Parts List
EUR27A
Issued: 07-08-2019
Revised: 02-02-2022
NOTE:
To order spare parts, always include the following information:
- Model Number _______________________
- Serial Number ________________________

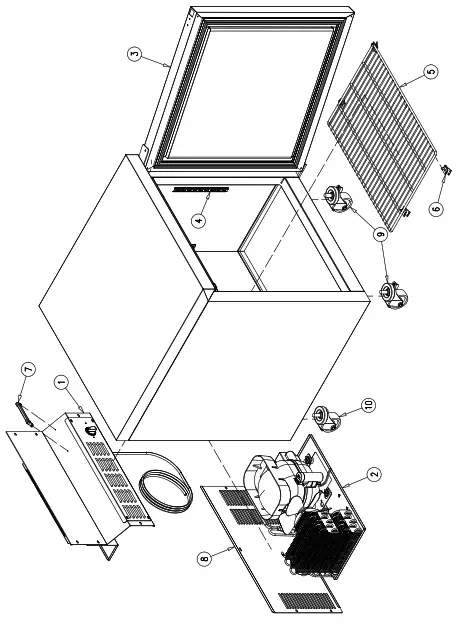

MAIN ASSEMBLY
| Item No. | Description | Part No. | Quantity per cooler |
| 1 | EVAPORATOR ASSEMBLY | OT-EV-0256 | 1 |
| 2 | CONDENSING UNIT ASSEMBLY | OT-UN-0393 | 1 |
| 3 | DOOR ASSEMBLY | OT-PTA-0257 | 1 |
| 4 | PILASTER 48” | PI-5 | 1 |
| 5 | FLAT SHELF | SH-0559-HD-GR | 1 |
| 6 | SHELF CLIPS | CL-51-SS-E | 4 |
| 7 | THERMOMETER | TH-1-E | 1 |
| 8 | BACK GRILL | OT-22328 | 1 |
| 9 | FRONT LOCKING CASTER | CA-4-BR | 2 |
| 10 | BACK NON-LOCKING CASTER | CA-4 | 2 |

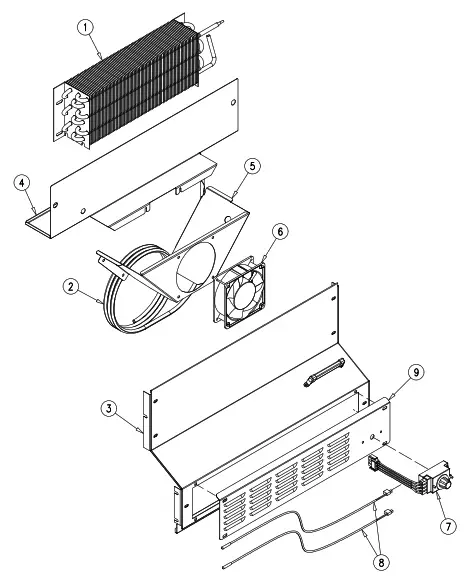

EVAPORATOR ASSEMBLY
| Item No. | Description | Part No. | Quantity per cooler |
| 1 | EVAPORATOR | CO-476 | 1 |
| 2 | HEAT EXCHANGER | TUB-1301 | 1 |
| 3 | SHROUD | OT-22285 | 1 |
| 4 | EVAPORATOR SUPPORT | OT-22297 | 1 |
| 5 | EVAPORATOR FAN MOTOR BRACKET | OT-22298 | 1 |
| 6 | EVAPORATOR FAN MOTOR | FA-110 | 1 |
| 7 | CONTROL MODULE | CT-198-SOL-125 (K)** | 1 |
| 8 | CABINET THERMISTOR (Evaporator and ambient probes) | CT-196-2-SOL | 2 |
| 9 | CONTROL MODULE BRACKET | OT-22818 | 1 |
** THE PART NUMBER CT-198-SOL-125 (K) INCLUDES:
CONTROL MODULE CT-198-SOL-125
DOOR SWITCH HARNESS OT-AR-5022
CONTROLLER HARNESS OT-AR-5518
CABINET THERMISTOR CT-196-2-SOL
| *Parts Change With Serial Number Break | ||||||
| ITEM No. | Description | Interchangeable | Previous Component | Hoshizaki Last Serial Number and Earlier | Current Component | Hoshizaki First Serial Number and Later |
| 7 | CONTROL MODULE | YES | CT-194-SOL-137 | L-03875(H) | CT-198-SOL-125 | M-00896(A) |

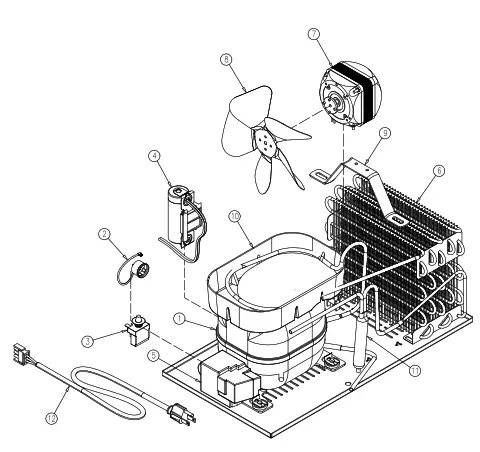

CONDENSING UNIT ASSEMBLY
| Item No. | Description | Part No. | Quantity per cooler |
| 1 | COMPRESSOR (1/6HP 115V/60HZ R-290) | EM2U3111U | 1 |
| 2 | EXTERNAL PROTECTOR (4TM302KFBYY-53) | EL-2107-R | 1 |
| 3 | PTC RELAY (8EA14C3/A4R7MD3) | EL-2076-R | 1 |
| 4 | RUN CAPACITOR (12µF 180V) | CAP-12-180 | 1 |
| 5 | ELECTRICAL BOX | EL-2095-R | 1 |
| 6 | CONDENSER | CO-426 | 1 |
| 7 | CONDENSER FAN MOTOR | FA-1-EBM | 1 |
| 8 | CONDENSER FAN BLADE | FA-2-SW* | 1 |
| 9 | CONDENSER FAN MOTOR BRACKET | FA-39 | 1 |
| 10 | COMPRESSOR EVAPORATION TRAY | DP-6 | 1 |
| 11 | DRIER | DR-36-C | 1 |
| 12 | POWER CORD (9 ft) | OT-EL-1265-9-4784 | 1 |
| *Parts Change With Serial Number Break | ||||||
| ITEM No. | Description | Interchangeable | Previous Component | Hoshizaki Last Serial Number and Earlier | Current Component | Hoshizaki First Serial Number and Later |
| 8 | CONDENSER FAN BLADE | YES | FA-2-EBM | L-00882(E) | FA-2-SW | L-03700(H) |

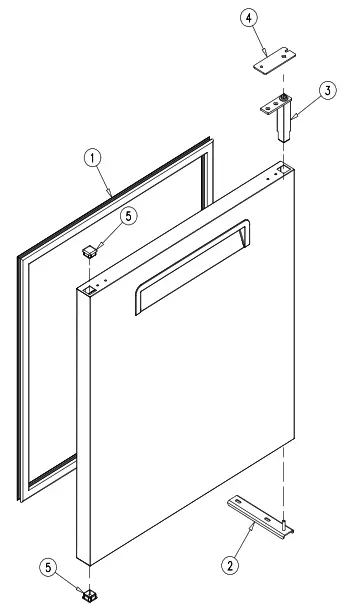

DOOR ASSEMBLY
| Item No. | Description | Part No. | Quantity per cooler |
| 1 | MAGNETIC GASKET | OT-GA-500-PTA-0257 | 1 |
| 2 | LOWER HINGE ASSEMBLY | HA-613 | 1 |
| 3 | TORSION MECHANISM | HA-612 | 1 |
| 4 | TORSION MECHANISM CAP | OT-22263 | 1 |
| 5 | DOOR PLUG | PL-191-G | 2 |
| *Parts Change With Serial Number Break | ||||||
| ITEM No. | Description | Inter- changeable | Previous Component | Hoshizaki Last Serial Number and Earlier | Current Component | Hoshizaki First Serial Number and Later |
| 1 | MAGNETIC GASKET | YES | OT-GA-400-PTA-0257 | L-03875(H) | OT-GA-500-PTA-0257 | PENDING |
