Installation instructions for 2809 & 2909
Privacy Adaptors to suit
2800 & 2900 Series Leversets (Purchase leverset and tubular latch separately)
2909 Privacy Adaptors to suit 2900 Series Leversets

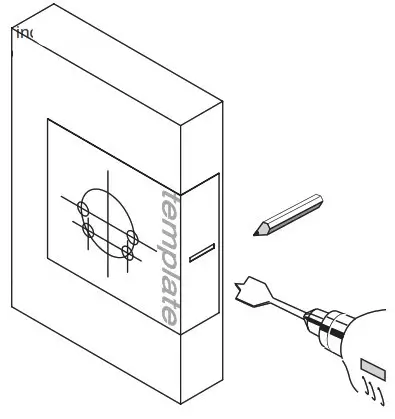

Step 1.
- Fold template where indicated.
- Position template on door edge at desired latch height.

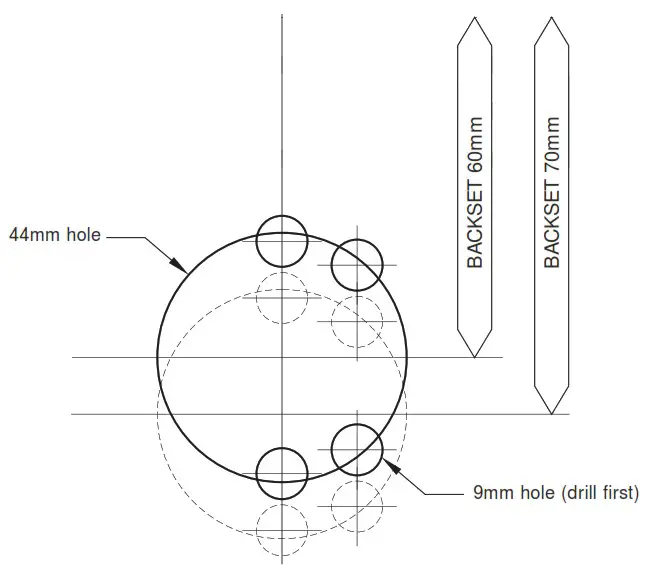

- Firmly hold template & mark latch height & 5 hole centres 4 off 9mm & 1 off 44mm) at required backset.
- Measure door thickness and mark centre.
- Drill 25mm latch hole.
Note: it is important to drill this hole squarely. - Drill Pilot holes – suggest 3mm, then enlarge (4 off) 9mm holes & (1 off) 44mm holes from both sides of door.
Step 2.

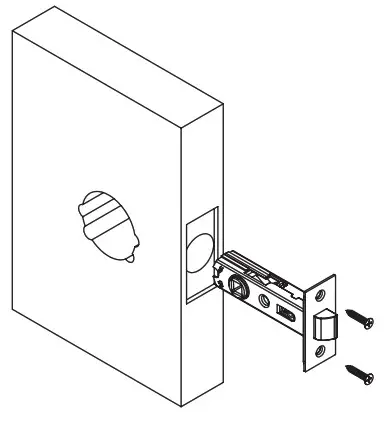

- Mark and chisel door edge for faceplate.
- Chisel the recess to a depth that allows latch to sit flush with door edge. Use latch faceplate as a template.
- Insert latch & fasten with wood screws provided.
Step 3.

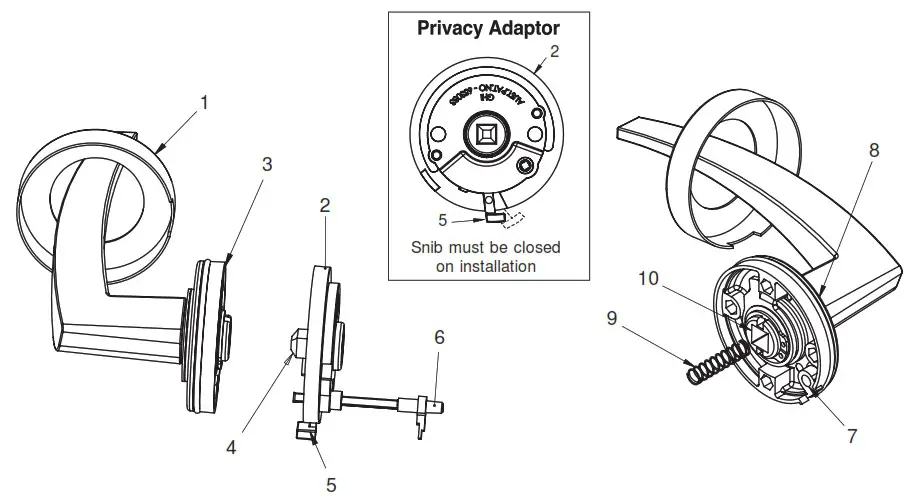

Prepare Internal Assembly
- Remove rosette covers (1) from both lever assemblies.
- Remove alignment posts & tube nuts & discard.

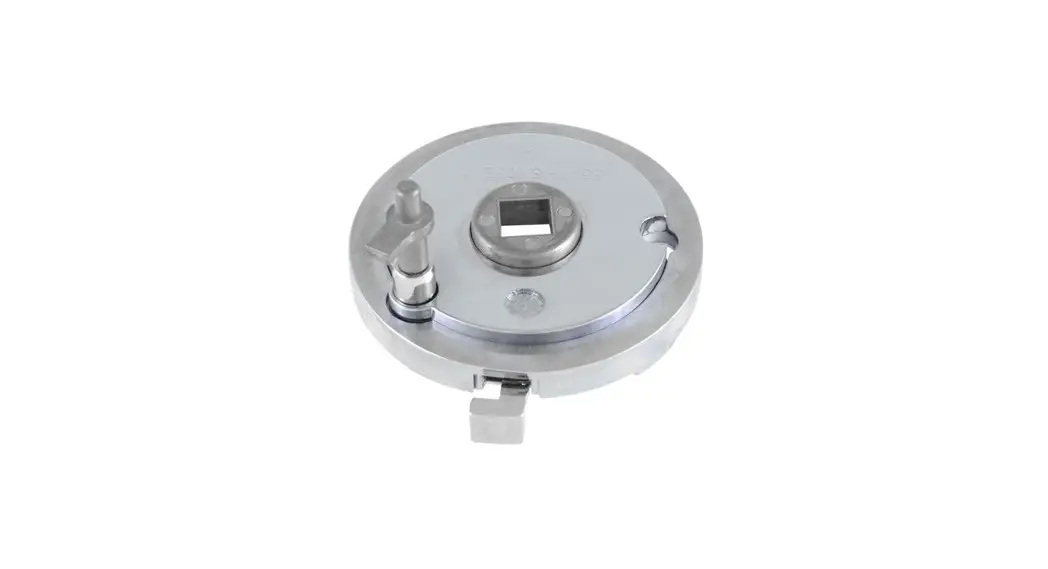

- Hold the privacy adaptor (2) against the inside of internal lever-rosette (3) by inserting the adaptor’ s spindle extension (4) into square recess on inside of internal lever.
- Ensure that the privacy snib (5) is in the closed position.
Note: Emergency release arm must align with slot (7) on external lever-rosette assembly (8).
Prepare External Assembly
- Install spring (9) into square recess (10) in external lever-rosette as shown.
- Insert emergency release bar (6) as shown locating L shaped end into slot (7).
NOTE: Carefully follow these instructions when installing. Screws to be tightened to a recommended 2.5Nm torque.
Fit here on door edge
Important Note
Drill 9mm holes before 44mm hole for ease of drilling
