ALLEGION 2821 Series Dummy Lever
Installation Instructions
Step 1.

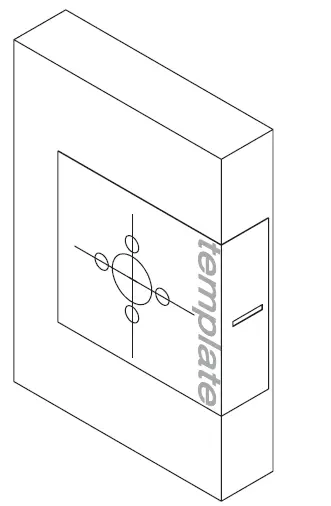

- Fold Template where indicated.
- Position template on door edge at desired height.

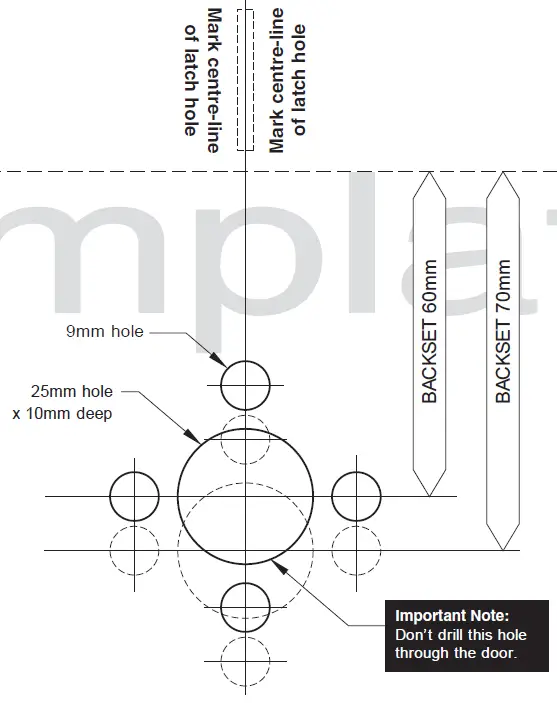

- Firmly hold template & mark 5 hole centres (4 off 9mm & 1 off 25mm) at required backset.

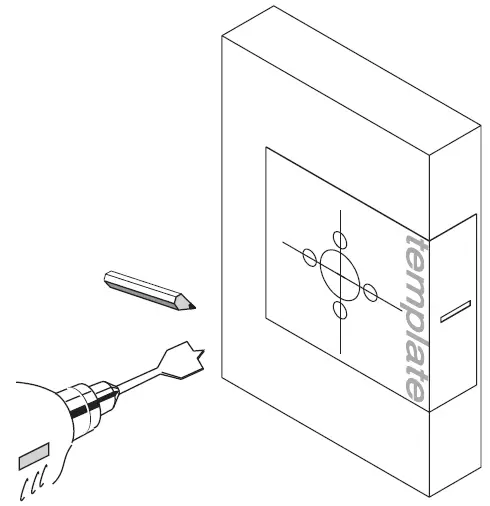

Note: 25mm hole 10mm deep only. - Drill Pilot holes – suggest 3mm, then enlarge (4 off) 9mm holes from both sides of door.
- Drill (1 off) 25mm hole 10mm deep on side of door dummy leverset will be fitted.
Step 2.

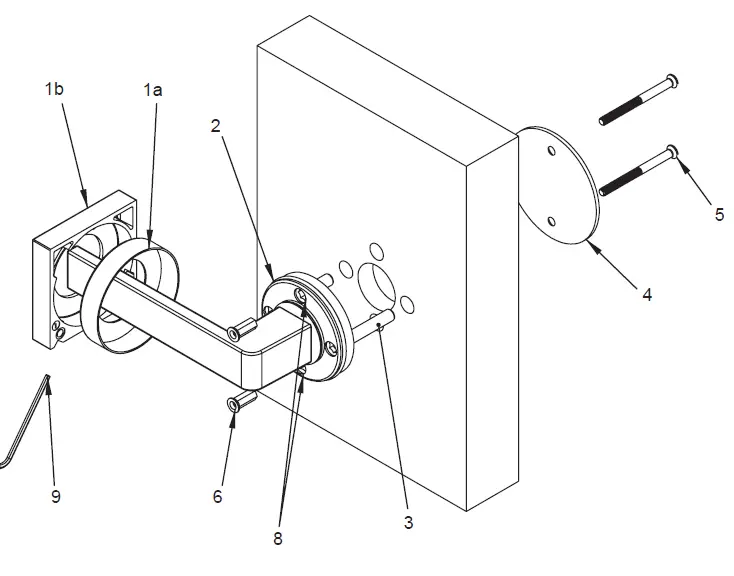

Install lever assemblies to door:
- Remove rosette cover (1a or 1b) from lever assembly.
- Place dummy lever assembly (2) with latch alignment posts (3) against door face.
- Place dummy plate (4) into position, on back of door.
- Fasten lever assembly & dummy plate together with screws (5) & tube nuts (6) provided: Use long screws for thick doors and short screws for thin doors.
- Install screws (5) from dummy plate side into the vertical tube nut holes (8) of the dummy leverset under-rose. Then tighten both screw heads.
2921 - Reapply rosette cover (1a) to under-rose by pushing the cover over the rubber rring until flush with door.
2821 - Reapply rosette cover (1b) to under-rose by pushing the cover over the rubber ring until flush with door. The *grub-screw, which is already located in the rosette cover, should be on the lower face.
- Check the rosette cover is square with the door edge. Fasten in place with *grub-screw using allen key (9) provided.
Note: Grub-screw is already located in the rosette cover.
Dimension
