Mitchell1 ssa Cobra Shift Lever Instruction Manual
YMMS: 2012 International Pro Star Series
Engine: International Maxx Force 13 Diamond Logic Controller EPA 10 6 CYL
VIN: 3HSDJSJR0CN054537
License:
Odometer:
COBRA SHIFT LEVER

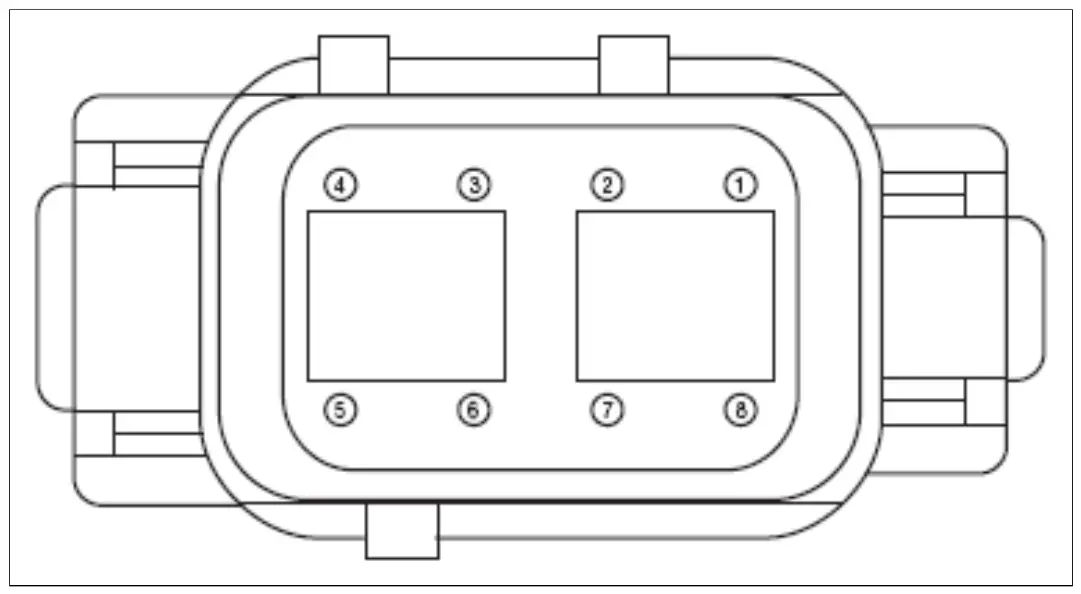

Fig 1: 8-Terminal Cobra Lever Connector End View
CONNECTOR PINS DESCRIPTION
| 8-Terminal Pin | Description | Wire | 38-Terminal Vehicle Harness Connector Pin |
| 1 | Auto Mode Signal (+) | 16 TXL | 15 |
| 2 | Shift Control Common 1 (-) | 16 TXL | 17 |
| 3 | Shift Control Protected Battery Negative (-) 1 | 16 TXL | 25 |
| 4 | Shift Control Protected Battery Positive (+) | 16 TXL | 31 |
| 5 | Dash Lights | 16 TXL | N/A |
| 6 | Service Light Supply | 16 TXL | 23 |
| 7 | Shift Control Protected Battery Negative (-) 2 | 16 TXL | 14 |
| 8 | Shift Control Manual Mode Signal (+) | 16 TXL | 16 |
Fig 2: 30-Terminal Push Button Shift Control Connector End View
CONNECTOR PINS DESCRIPTION
| 30-Terminal Pin | Description | Wire | 38-Terminal Vehicle Harness Connector Pin |
| C1 | Shift Control Protected Battery Positive (+) | 16 TXL | 31 |
| B3 | Dimmer Control | 16 TXL | N/A |
| F1 | HIL High (+) | 16 TXL | 28 |
| F2 | HIL Low (-) | 16 TXL | 27 |
| J3 | Shift Control Protected Battery Negative (-) | 16 TXL | 25 |
SHIFT SELECTOR
CONNECTOR PINS DESCRIPTION
| 3-Terminal Pin | Description | Wire | 38-Terminal Vehicle Harness Connector Pin |
| A | Shift Control Manual Mode Signal (+) | 16 TXL | 16 |
| B | Auto Mode Signal (+) | 16 TXL | 15 |
| C | Shift Control Common 1 (-) | 16 TXL | 17 |
| Service Lamp | 16 TXL | 23 |
