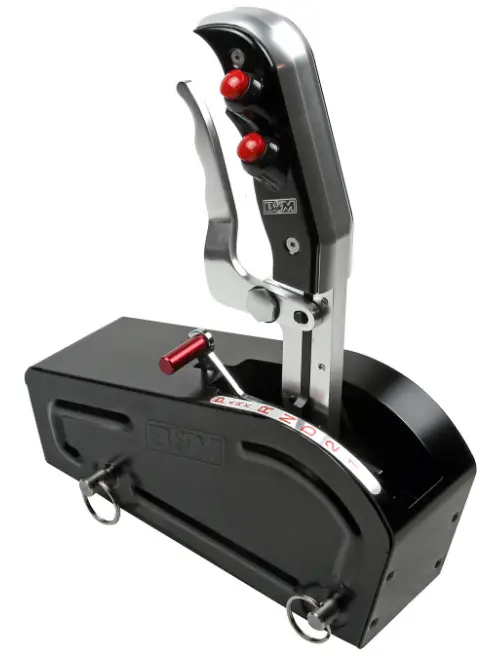

B M 81104 Magnum Grip Pro Stick Universal Shifter

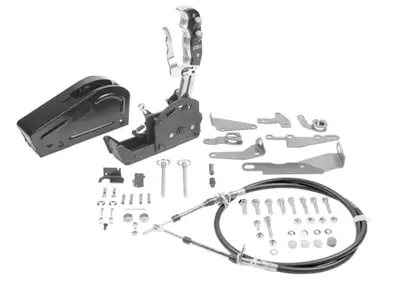

Parts Breakdown
| DESCRIPTION | QTY |
| SHIFTER ASSEMBLY | 1 |
| BOLT, 1/4-20 × 1-1/4″ | 4 |
| MICRO-SWITCH | 1 |
| BRACKET, MICRO-SWITCH | 1 |
| SCREW, 4-40 × 5/8″ | 2 |
| WASHER, SPLIT LOCK #4 | 2 |
| NUT, HEX 4-40 | 2 |
| SCREW, 10-24 × 3/8″ | 1 |
| CABLE, SHIFTER, SUPER-DUTY 5′ | 1 |
| E-CLIP, 1/4″ I.D. | 1 |
| BOLT, 1/4-20 × 1/2″ | 1 |
| NUT, HEX 1/4-20 | 6 |
| WASHER, SPLIT LOCK 1/4″ | 5 |
| SELECTOR LEVER, CHRYSLER / AMC | 1 |
| CABLE BRACKET, CHRYSLER / AMC | 1 |
| SELECTOR LEVER, FORD C4 / C5 and C6 | 1 |
| CABLE BRACKET, FORD C4 / C5 | 1 |
| CABLE BRACKET, FORD C6 | 1 |
| SELECTOR LEVER, GM TH & ELECTRONIC | 1 |
| CABLE BRKT, GM TH & ELECTRONIC (NO PRNDL SWITCH) | 1 |
| BOLT, 1/4-20 × 1-1/2″ | 1 |
| BOLT, 5/16-18 × 1″ | 2 |
| BOLT, M8-1.25 × 25 (FOR GM & FORD 4-SPEEDS) | 2 |
| WASHER, FLAT 5/16″ | 2 |
| SPACER, 7/16″ I.D. × 1/4″ L | 2 |
| SWIVEL, CABLE | 1 |
| JAM NUT, 10-32 (COMES INSTALLED ON CABLE END) | 1 |
| PIN, COTTER 1/16″ × 1″ | 1 |
| WIRE TERMINAL, FEMALE, 1/4″, BLUE, 16-14 AWG | 2 |
| WIRE CONNECTOR, BUTT, RED, 18-22 AWG | 4 |
| COVER, PRO STICK | 1 |
| SPACER, NYLON, 1/4″ I.D. × 5/16″ THK | 1 |
| SPACER, NYLON, 1/4″ I.D. × 3/16″ THK | 3 |
| PIN, QUICK-RELEASE | 2 |
| DECAL SHEET, SHIFT PATTERN | 1 |
| HANDLE, REVERSE LOCKOUT LEVER | 1 |
| SCREW 8-32 × 3/8″ | 1 |
INSTALLATION INSTRUCTIONS
Part No. 81104
MAGNUM GRIP PRO STICK™
UNIVERSAL SHIFTER w/DUAL
MOMENTARY 12V SWITCHES
for the automatic transmissions listed below, with applicable gate plate (kit includes 3-speed forward-pattern gate plate)
