Deviant Race 45600 Polaris Ranger Billet Shift Handle Instruction Manual

Deviant Race 45600 Polaris Ranger Billet Shift Handle Instruction

RZR / Ranger Billet Shift Knob Install Instructions

Tools you may need:

• T25 Torx
• 3MM Allen Key
• Flat head Screwdriver

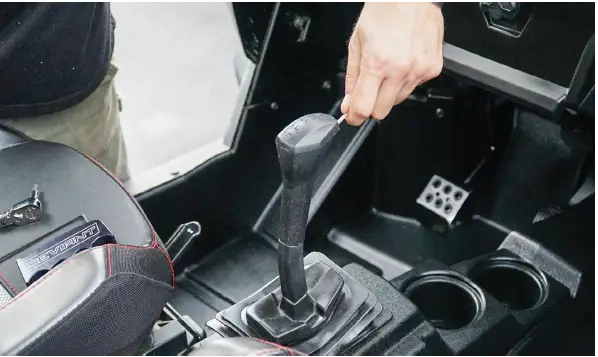

1. With a flat head screwdriver, remove the shift knob cap.

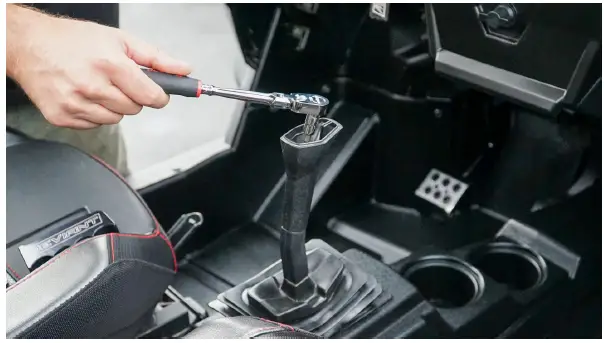

2. Remove the T25 Torx screw from the top of the shift knob.

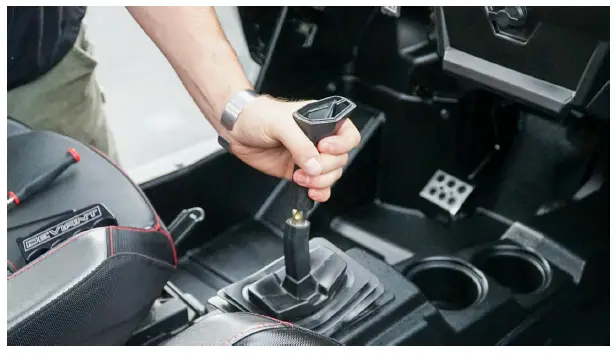

3. With the screw removed, lift straight up on the shift handle and set to the side.

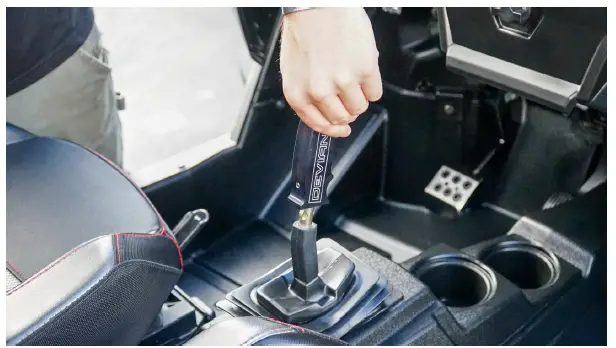

4. Place the new Deviant shift knob onto the shifter.

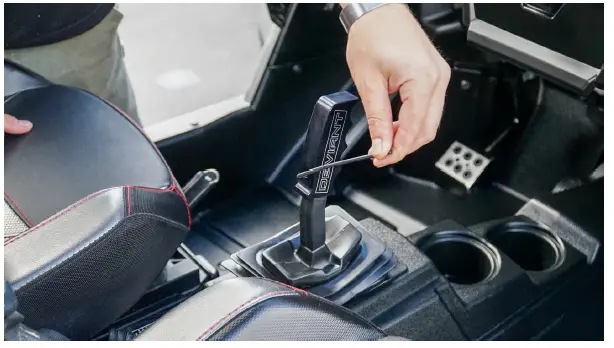

5. Push down on the shift handle until it’s tight up against the rubber shift boot and tighten the 3mm set screw.

RZR/ Ranger Billet Shift Knob check list

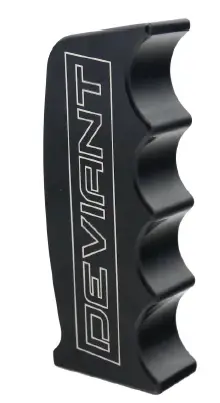

• (1) Shift handle
• (1) Set screw

Packaged By:
Date:
