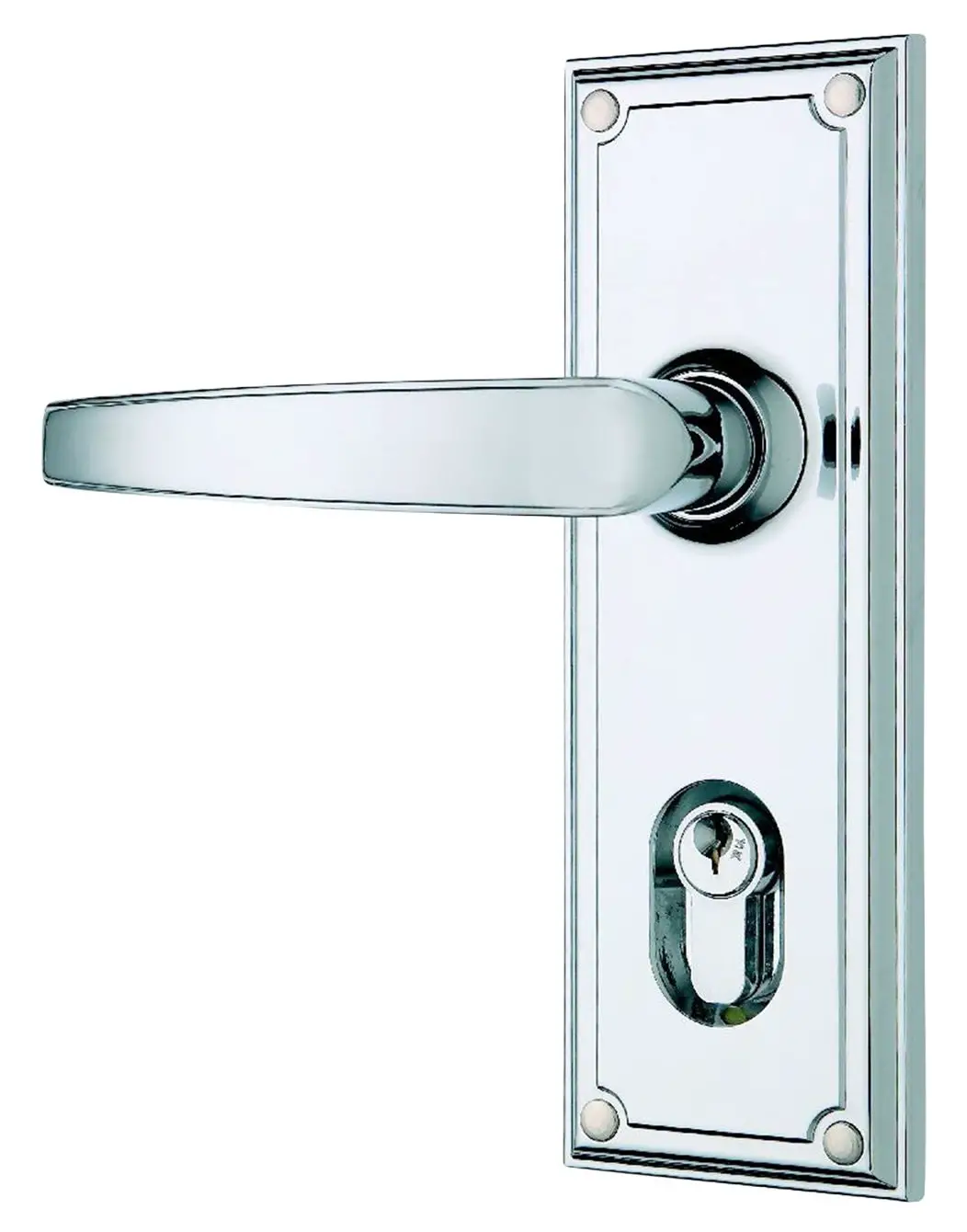

GAINSBOROUGH Trilock Traditional Dummy Trim Entry Leverset Bright Chrome
INSTALLATION INSTRUCTIONS

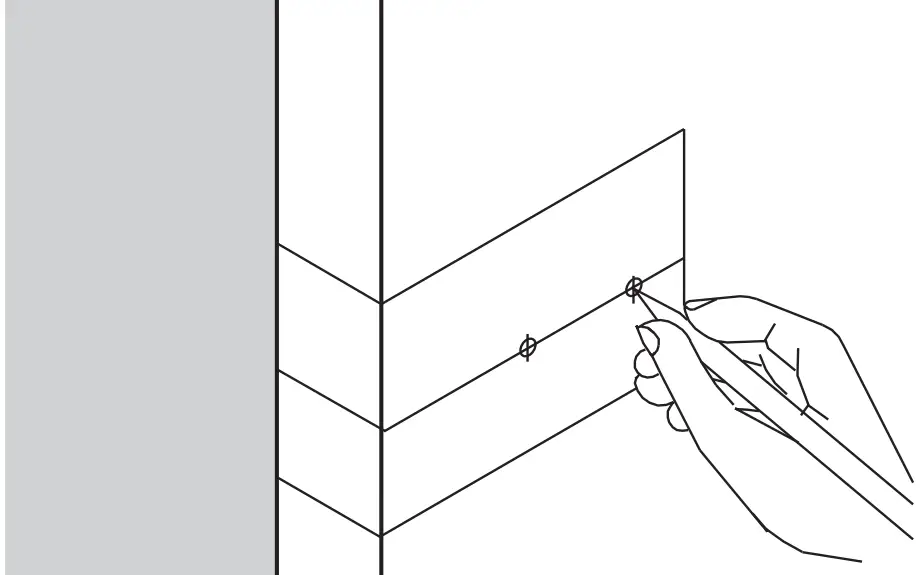

STEP 1. Hole Preparation
- Place the template on the door face in the desired location.
- Mark the location for the two holes.
- Drill 2 x 3mm holes 25mm deep.

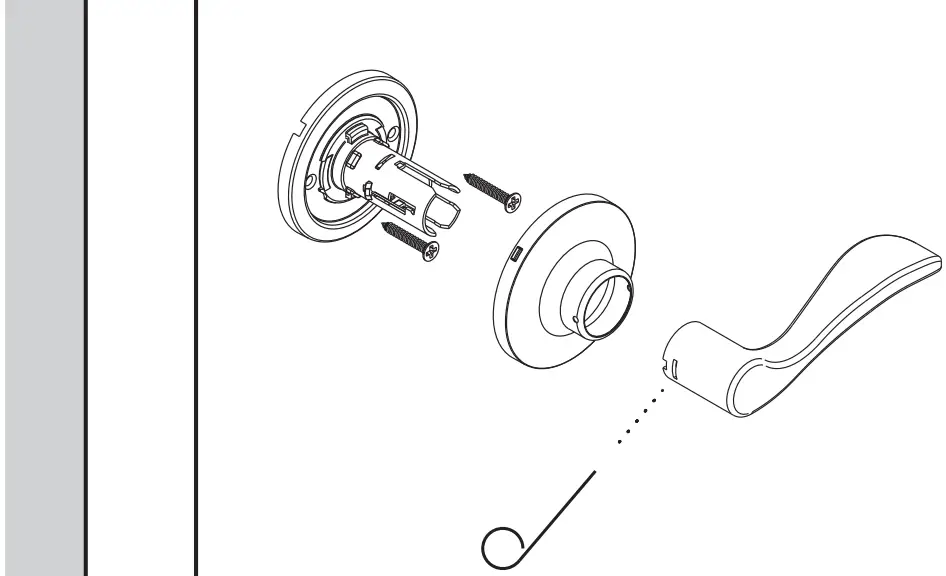

STEP 2. Install Dummy Trim
- Place the base plate on the door face over the drilled holes.
- Insert the two screws through the screw holes in the rose plate and tighten firmly
- Place rose cap over base and place spiget
- Push leaver over post until it clicks in place

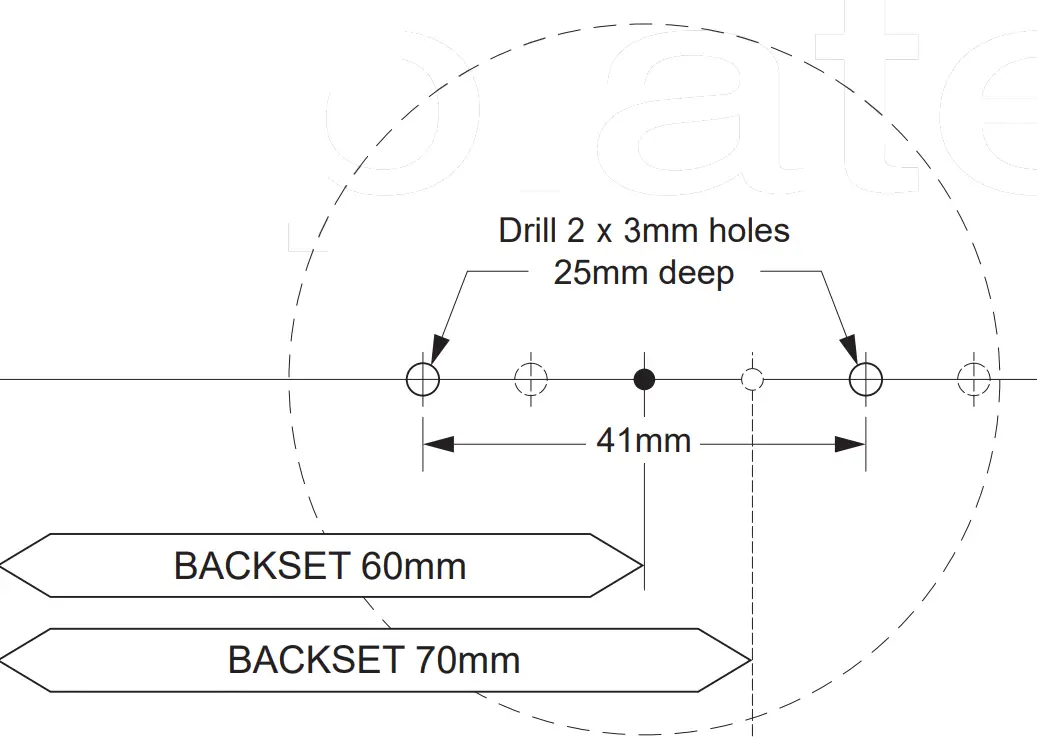

Installation template for dummy applications
