Cal-royal N-cvresc-00 Escutcheon Trim Instruction Manual

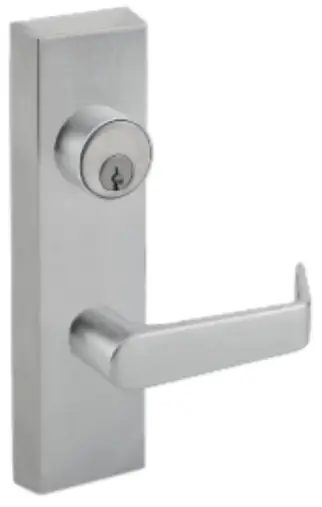

CAL-ROYAL N-CVRESC-00 Escutcheon Trim

Installation Instructions

N-CVRESC-00	N-CVRESC-30	N-CVRESC-40	0 N-CVRESC-05
Lockable NEC Lever Trim Key locks & Unlocks Lever	No Cylinder Trim Always Operable	Pull when Push bar locked down Dummy Nesc Lever Trim	Key unlock Nesc Lever, Key remained on Cylinder unless Locked. Cylinder Nesc Lever Trim
13 function Entrance	15 functionPassage	10 function Dummy	04 function Storeroom

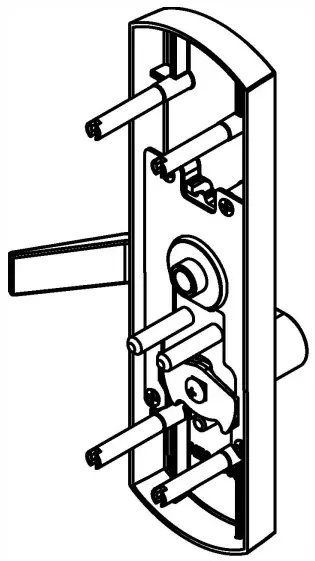

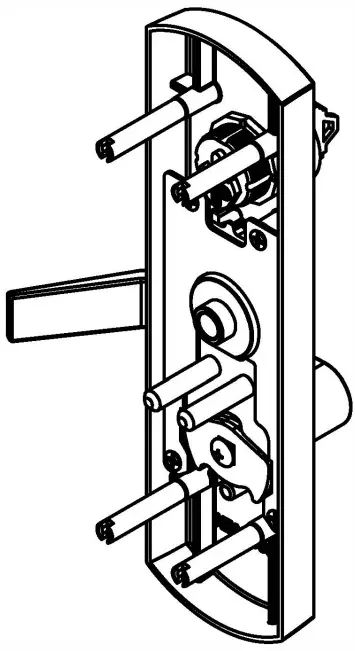

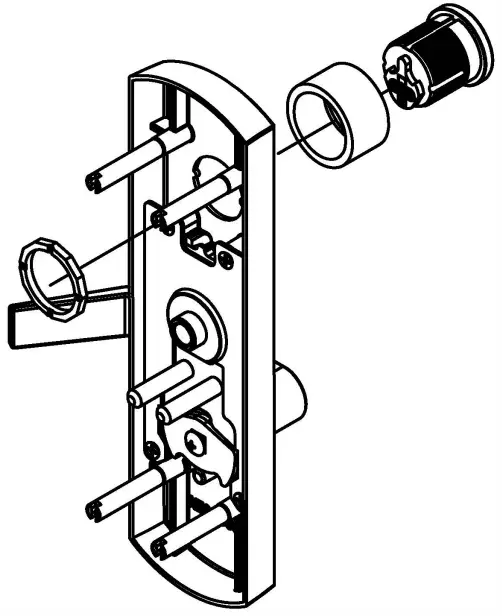

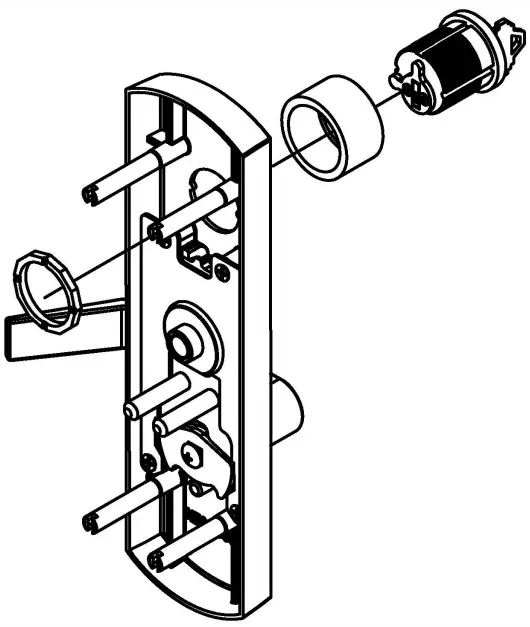

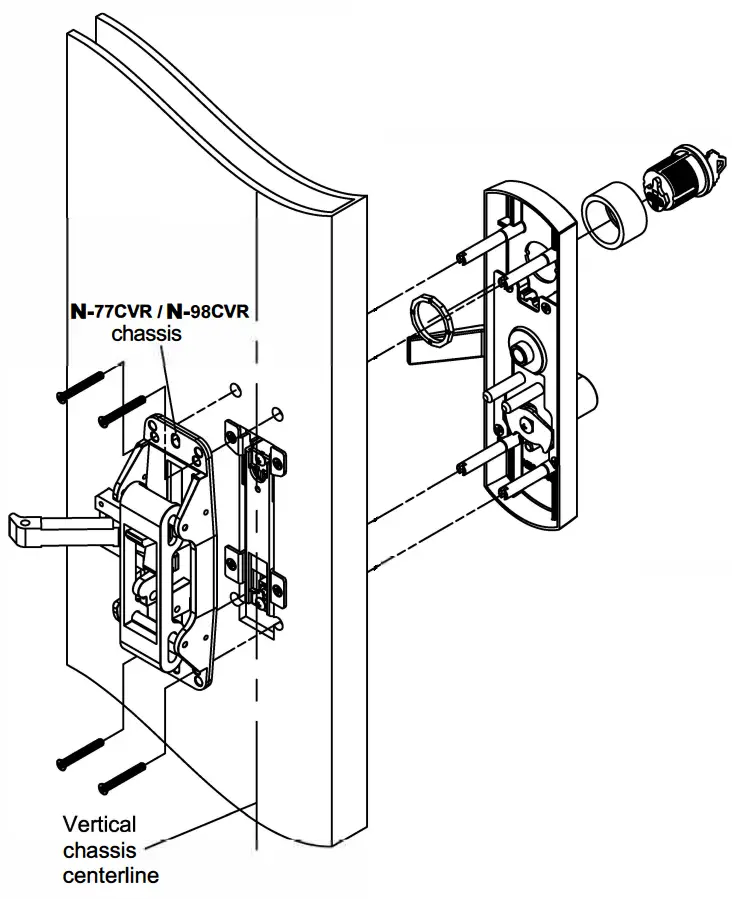

Attach the collar and mortise cylinder to the nesc case with mortise nut, attach case to door thru bolting (4) screws to the chassis, aligning spindle to hub.	Attach nest case to door thru bolting the (4) screws to the chassis, allaying spindle to hub of the chassis.	Attach the collar and dummy cylinder to the nest case with mortise nut, attach case to door thru bolting (4) screws to the chassis.	Attach the collar and mortise cylinder to the nesc case with mortise nut, attach case to door thru bolting (4) screws to the chassis, aligning spindle to hub.

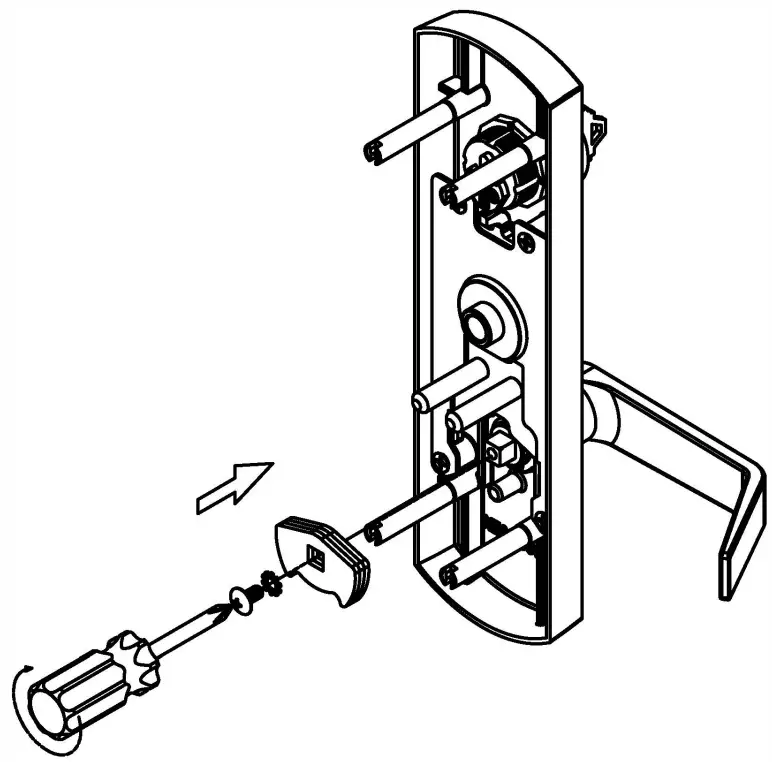

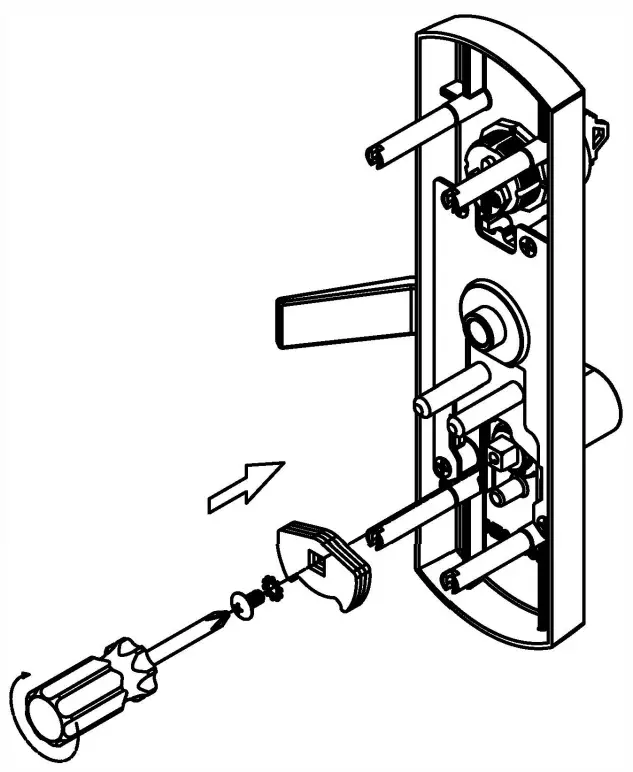

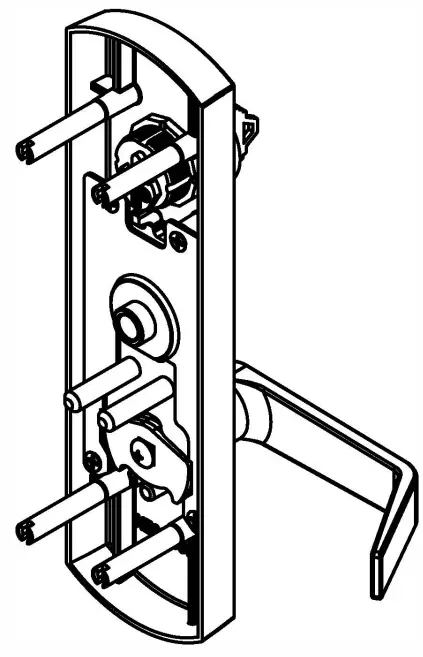

Method of Change Handing of Lever LHR(Reverse Step for RHR)

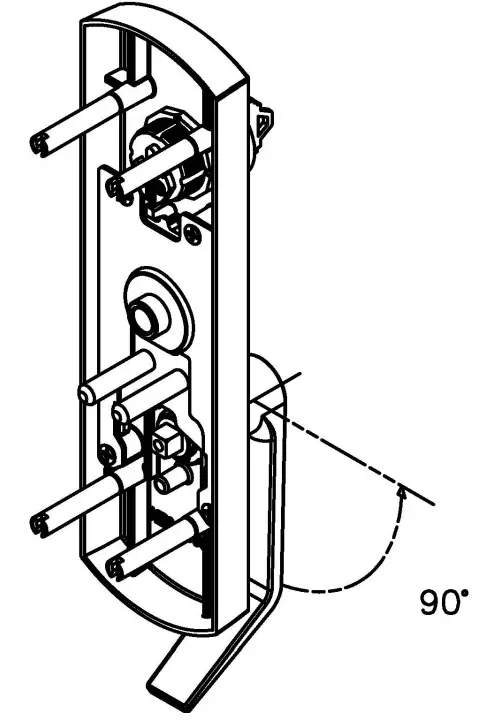

1. Rotate lever to LHR positioned at goº.

2. Place and fasten cam piece with locked type washer and screw.

3. Done.

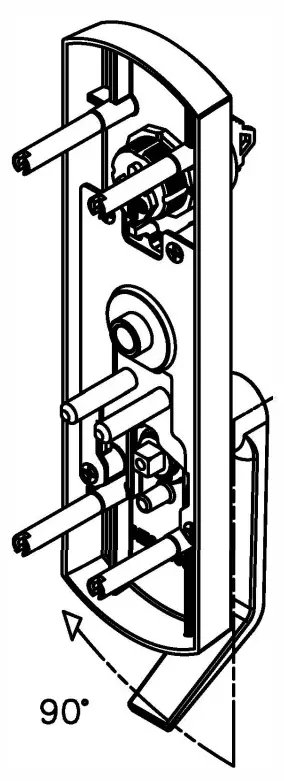

4. Rotate lever to LHR positioned at goº.

5. Place and fasten cam piece with locked type washer and screw.

6. Done.
