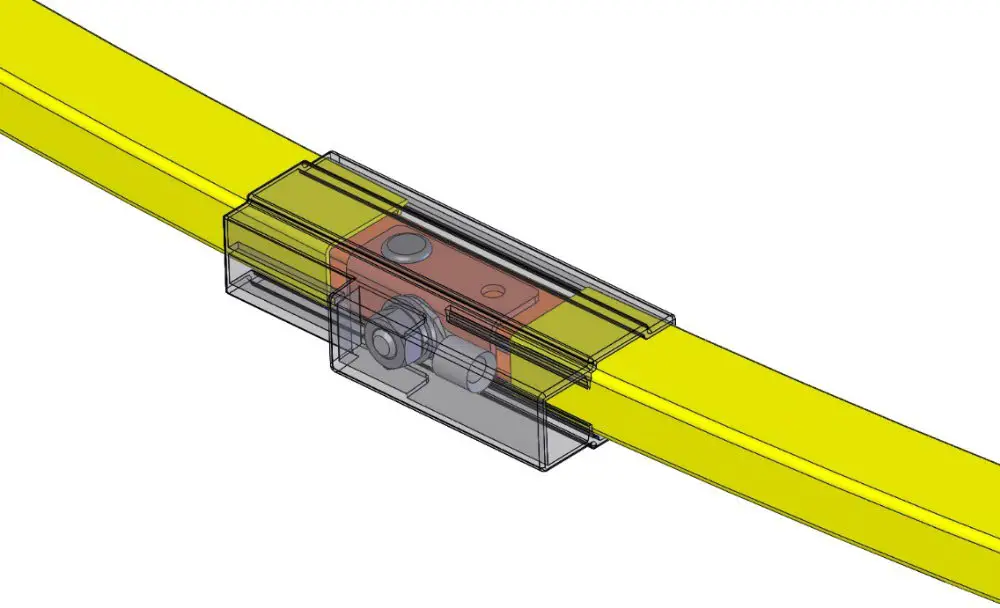

Conductix Wampfler Line Feed Singleflexline Program 0815 Instruction Manual

Installation Instructions
Line Feed
SingleFlexLine Program 0815

Technical Data

• For straight and bended rails r ≥ 1000 mm
• I_max = 54 A
• Cable Cross Section = 4-6 mm²

Installation

Work steps:

1. Bend the rail to the desired radius (see BAL0800-0004).

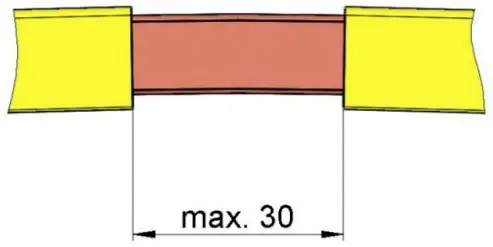

2. Cut the insulation profile on the needed position.

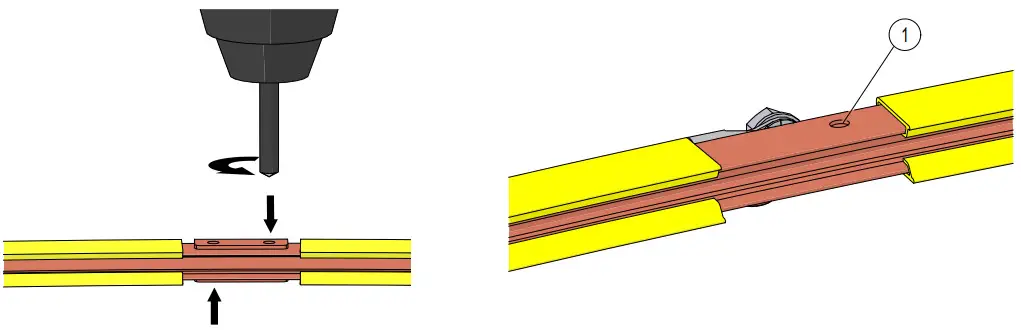

3. Put the U-plate on the right position and drill a hole with Ø = 3.1 mm (one hole on each side with a staggered arrangement).
   Notice: The holes (1) for the blind rivets are no through holes!

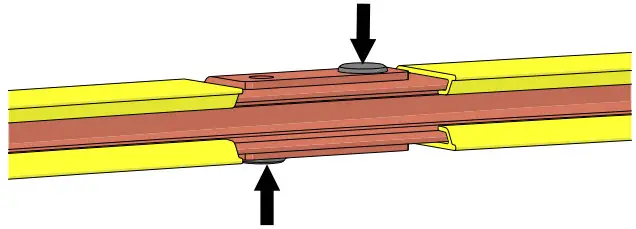

4. Put a blind rivet at each side, notice a staggered arrangement.

5. Crimp the cable and cable lug.

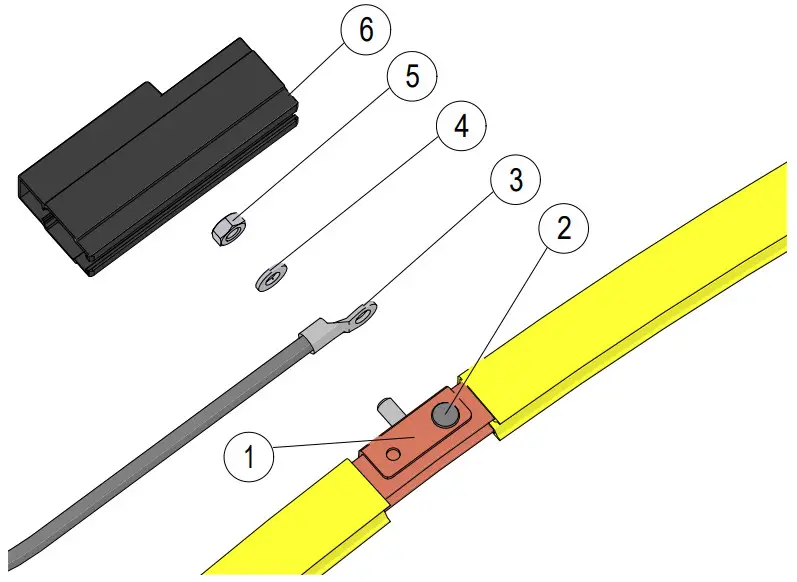

6. Consider the required arrangement of small parts and fix it with the hexagon nut. Tighten the screw with 2 Nm.
   All parts included in delivery!

   Pos.	Description
   1	Contact Plate Line Feed 0815
   2	Blind Rivet Copper/Bronze Ø3×5 Flat Head
   3	Cable Lug M4/6mm²
   4	Detent-Edged Washer SHB-K-D4,1-A4
   5	Hexagon Nut DIN934-M4-A4
   6	Power Feed Cover 0815 SP

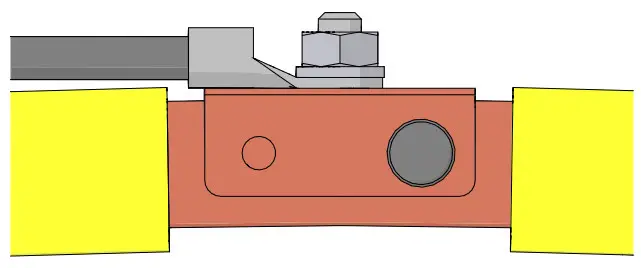

7. After the assembly it should be like following:

8. After the cable was connected, put the feed cap over the feeding point and consider the direction for the cable.

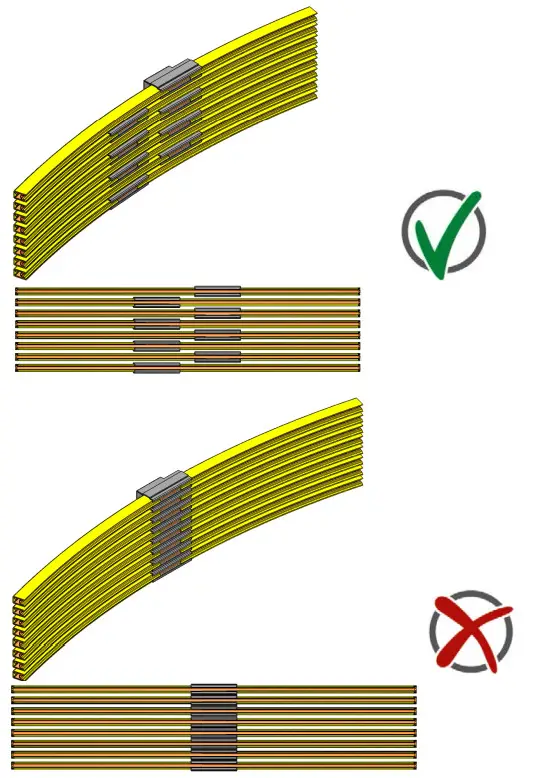

9. Installation position (feed offset): Mount the power feeds with an offset

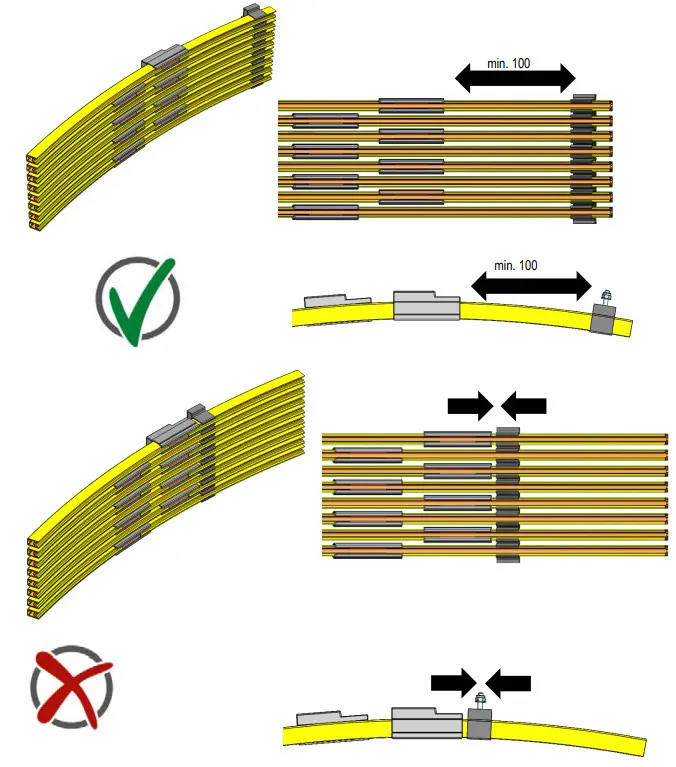

10. Do not mount the power feeds directly next to the hanger clamp.


Conductix-Wampfler GmbH Rheinstraße 27 + 33 79576 Weil am Rhein – Märkt Germany	Phone: +49 (0) 7621 662-0 Fax: +49 (0) 7621 662-144 [email protected] www.conductix.com
Importer for the United Kingdom: Conductix-Wampfler Ltd. 1, Michigan Avenue Salford M50 2GY United Kingdom	Phone: +44 161 8480161 Fax: +44 161 8737017 [email protected] www.conductix.com

Order Number: 08-E015-0570
MV0815-0009b-EN
