0812 Conductor Rail System Single Power Line
User Guide
0812 Conductor Rail System Single Power Line
The animations do not replace the Installation Instruction. Please refer also to our Technical Documentation („BAL0812-0001“and „ MV0812-0017”)!
Please click the hyperlink or scan the code to start each animation:

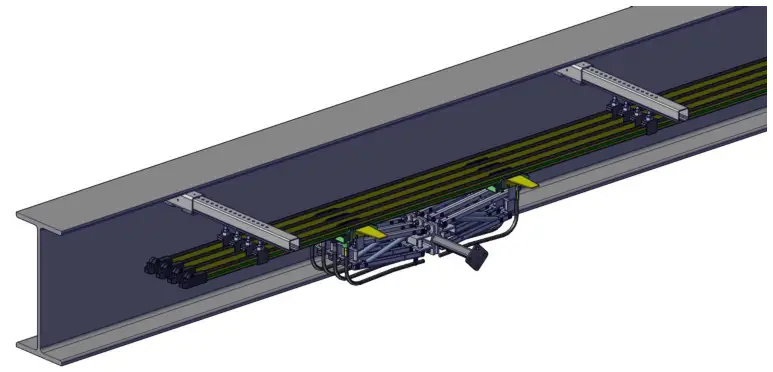

| Single Power Line 0812 System Overview: | MOV0812-0001 |  |
| Cutting Rail: | MOV0812-0002 |  |
| Bending Rail: | MOV0812-0003 |  |
| Mounting Hanger Clamps: | MOV0812-0004 |  |
| Connecting Rails and Mounting Line Feed: | MOV0812-0005 |  |
| Mounting Anchor Points: | MOV0812-0006 |  |
| Mounting and Adjusting Expansion Unit: | MOV0812-0007 |  |
| Mounting End Cap: | MOV0812-0008 |  |
| Mounting the Air Gap Insulation Section: | MOV0812-0009 |  |
| Current Collector Tolerances: | MOV0812-0010 |  |
Single Power Line 0812 Conductor Rail System

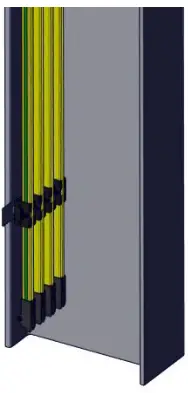

Vertical Application
Please click the hyperlink or scan the code to start each animation:
| Mounting Hanger Clamps/Anchor Points: | MOV0812-0011 |  |
| Mounting Fall Arrest Device: | MOV0812-0012 |  |
Notes:
