Shure Uabiast In Line Power Supply User Guide

UABIAST In line Power Supply
User Guide

Before using this product, please read and save the enclosed warnings and safety instructions.

SAFETY PRECAUTIONS

The possible results of incorrect use are marked by one of the two symbols-“WARNING” and “CAUTION”-<lepending on the imminence of the danger and the severity of the damage.
WARNING: Ignoring these warnings may cause severe injury or death as a result of Incorrect operation.
CAUTION: Ignoring these cautions may cause moderate inJury or property damage as a result of incorrect operation.
WARNING
• If water or other foreign objects enter the inside of the device, lire or electric shock may resuh.
• Do not attempt to modify this product. Doing so could result in personal inJury and/or product failure.
CAUTION
Never disassemble or modify the device, as failures may result.
Do not subject to extreme force and do not pull on the cable or failures may result.
Keep the microphone dry and avoid exposure to extreme temperatures and humidity.

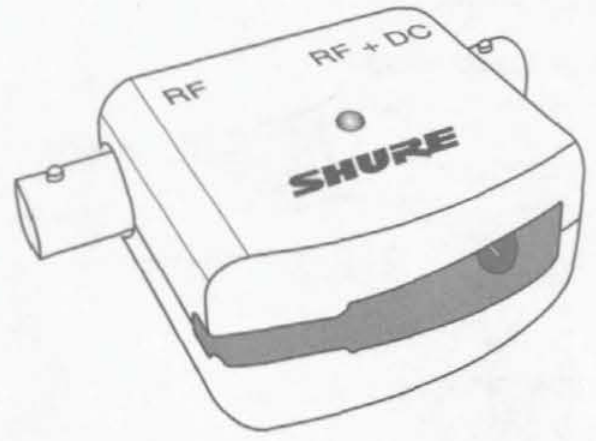

UABIAST In-line Power Supply

The Shure UABIAST is an in-line adapter that provides 12V DC Bias power to an active antenna or in-line accessory when a receiver’s antenna input jack does not provide  the necessary power. The UABIAST receives power from a wall outlet using a Shure PS24 power supply, and passes the RF signal while supplying power to an active antenna  or other in-line device. It is capable of supplying power to three in-line amplifiers (Shure UA834), or two in-line amplifiers and one active antenna (Shure UA874).
Note: For cable runs exceeding 25 feet (7.6 meters), an in-line amplifier (Shure UA834) may be required to compensate for signal loss.

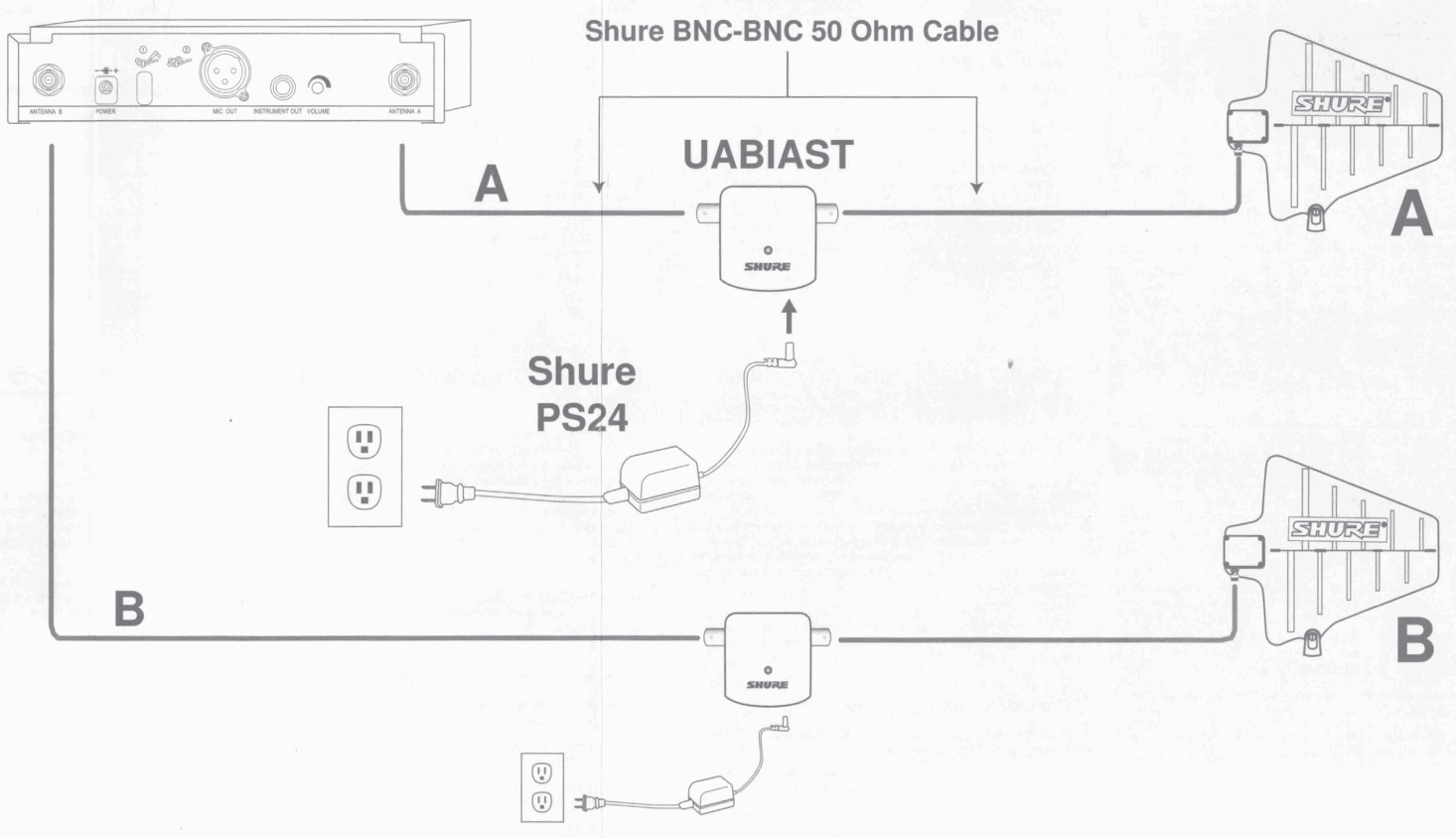

Connecting to a Device
Using Shure 50 Ohm BNC-BNC coaxial cables is recommended when making connections.

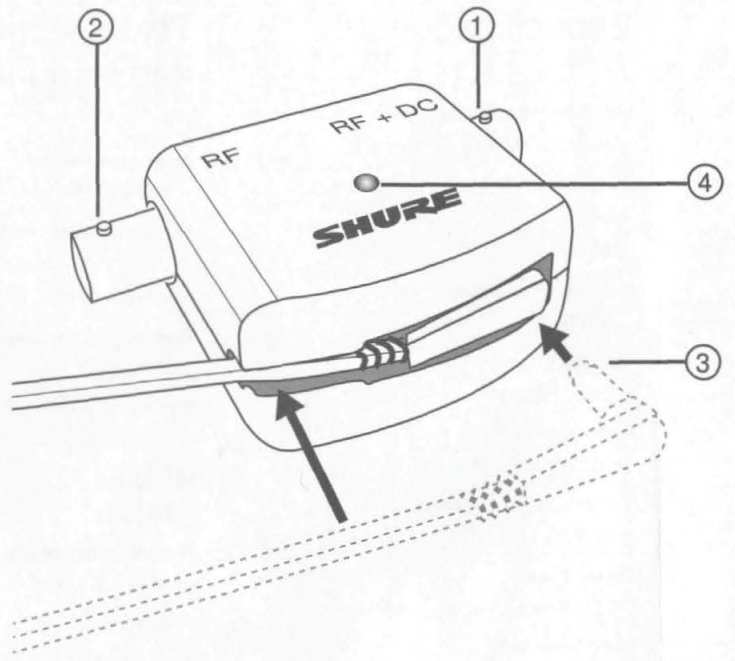

1. Connect the active device that requires DC power into the UABIAST input (marked “RF + DC”).
2. Connect the UABIAST output (marked “RF only”) to the antenna input of the wireless receiver.
3. Plug in a power adapter (Shure PS24) to the DC power input.
4. The green LED illuminates to verify the 12VDC is active.

Specifications

Frequency Range 100–2000 MHz
Maximum Input Power
12.4 V DC, 400 mA +3 dB+10 dB
Insertion Loss
<1 dB
Connector Type
BNC, Female
Impedance
50 Ω
Bias Voltage
12 V DC
Dimensions
25 x 67 x 49 mm (H x W x D)
Net Weight
49 g (1.73 oz.)
Operating Temperature Range
−7°C (45°F) to 38°C (100°F)

© 2015 Shure Incorporated
Printed in China
27A28528 (Rev. 1)

UABIAST In-line Power Supply

The Shure UABIAST is an in-line adapter that provides 12V DC Bias power to an active antenna or in-line accessory when a receiver’s antenna Input jack does not provide  the necessary power. The UABIAST receives power from a wall outlet using either a Shure PS24 power supply, and passes the RF signal while supplying power to an active  antenna or other in-line device. It is capable of supplying power to three in-line amplifiers (Shure UA834), or two in-line amplifiers and one active antenna (Shure UA874).
Note: For cable runs exceeding 25 feet (7.6 meters), an in-line amplifier (Shure UA834) may be required to compensate for signal loss.

Connecting to a Device

Using Shure 50 Ohm BNC-BNC coaxial cables is recommended when making connections.

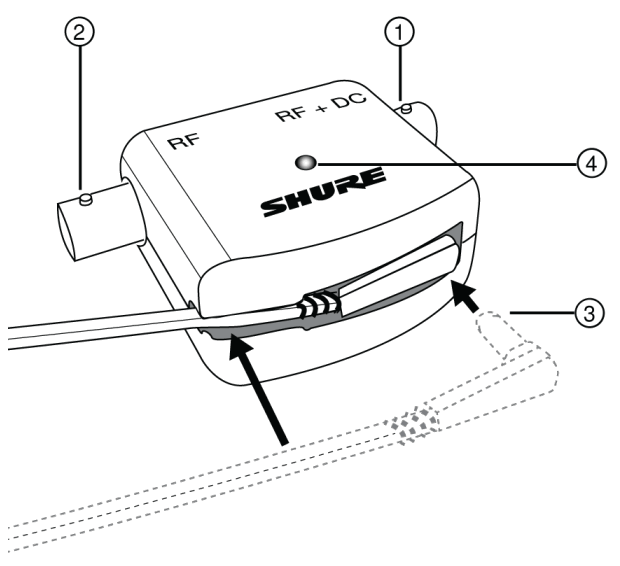

1. Connect the active device that requires DC power into the UABIAST input (marked “RF+ DC”).
2. Connect the UABIAST output (marked “RF only”) to the antenna input of the wireless receiver.
3. Plug in a power adapter (Shure PS24) to the DC power input.
4. The green LED illuminates to verify the 12VDC is active.

Specifications
Frequency Range
100-2000 MHz
Maximum Input Power
12.4 V DC, 400 mA +3 dB +10 dB
Insertion Loss
<1 dB
Connector Type
BNC, Female
Impedance
500
Bias Voltage
12V DC
Dimensions
25 x 67 x 49 mm (H x W x D)
Net Weight
49 g (1.73 oz.)
Operating Temperature Range
-7°C (45° F) to 38°C (100° F)

Description
Energy-efficient external switching mode addc power supply, for use with Shure products world-wide.

IMPORTANT SAFETY INSTRUCTIONS

1. READ these inslructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near waler.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions.
8. DO NOT install near any heat sources such as open flames, radiators, heal reg isters, stoves, or other apparatus (including amplifiers) that produce heat. Do not place any open flame sources on the product.
9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has  two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consutt an electrician for replacement of the obso’ete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the carV apparatus combination to avoid injury from lip-over.
13. UNPLUG this apparatus during lightning storms or when unused for long periods of time.
14. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is  damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been  dropped.
15. DO NOT expose the apparatus to dripping and splashing. 00 NOT put objects filled with liquids, such as vases, on the apparatus.
16. The MAINS plug or an appliance coupler shall remain readily operable.
17. The airborne noise of the Apparatus does not exceed 70d8 (A).
18. Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.
19. To reduce the risk of fire or electric shock, do not expose this apparatus to rain  or moisture.
20. Do not attempt to modify this product. Doing so could result in personal injury and/ or product failure.
21. Operate this product within its specified operating temperature range.

	This symbol indicates that dangerous voltage constituting a risk of elecIrie shock is present within this unit.
	This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

WARNING: Voltages in this equipment are hazardous lo lite. No user-serviceable parts inside. Refer all servicing to quaMied service personnel. The safely certifications do  not apply when the operating voltage is changed from the factory setting.

Certifications
Meets requirements of the California Energy Commission: CEC-400-2010·012: December 2010.
Approved per Australian Standard requirements of AS/NZS 4665.1 :2005 and AS/NZS 4665.2:2005.
Listed per safery s~dard ANSI/UL 60065, CAN/CSA 22.2 E60065, EN60065, and AS/NZS60065.
Conforms to the relevanl requirements of regulation (EC) No.278/2009, for low voltage external power supplies.
Industry Canada ICES-003 Compllance label: CAN ICES-3 {B)/NMB-3 (B)
This product meets the Essential Requirements of all relevant European directives and is eligible for CE mar1<ing.
The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance

Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Sir. 12
75031 Eppingen, Germany
Phone: +49-7262-9249 0
Fax: +49-7262-92 49 11 4
Email: [email protected]

Information to the user
This equipment has been tested and found to comply with the limits tor a Class B digital device, pursuant to Part 15 of lhe FCC Rules. These limits are designed to provide reasonable protection against harmful Interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, it not installed and  used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee thal interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi sion reception, which can be determined by turning the equipment off and on, the  user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different 1rom that lo which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
Operation of this device is subject to the following two conditions: (t) this device may not cause interference, and (2) this device must accept any Interference, including  Interfer­ ence that may cause undesired operation of the device.

Specifications

© 2020 Shure Incorporated
27A44092 (Rev. 1)
Printed in China

LIMITED WARRANTY

Shure Incorporated (“Shure”) hereby warrants to the original consumer purchaser only that, except as otherwise specified below, this product will be free in normal use of any defects in  materials and workmanship for a period of two (2) years from the consumer’s original date ofpurchase directly from Shure or from a Shure-authorized reseller.
Any  rechargeable batteries contained in or packaged with this product are so warranted for a period of one (1) year from the consumer’s original date of purchase. However, rechargeable batteries are consumable and their capacity will be reduced over time based on temperature, amount of time in storage, charging cycles, and other factors; hence  reduction in battery capacity does not constitute a defect in material or workmanship. At its sole option, Shure will repair or replace the defective product and promptly  return it to you. In order for this warranty to be valid, the consumer must, at the time the product Is returned, provide proof of purchase In the form of the original purchase  receipt directly from Shure or from a Shure-authorized reseller. If Shure elects to replace the defective product, then Shure reserves the right to replace the defective product  with another product of the same model or a model of at least comparable quality and features U1 Shure’s sole determination.
If you believe this product is defective within the warranty period, carefully repack the unit, Insure It and return it with proof of purchase, postage prepaid, to Shure Incorporated, Atten  tion: Service Department, at the address below.
Outside of the United States, return the product to your dealer or Authorized Service Center.
Addresses are listed on www.Shure.com or can be obtained by contacting Shure at the address listed below.
This warranty is not transferable. This warranty does not apply in cases of abuse or misuse of the product, use contrary to Shure’s instruction, ordinary wear and tear, an act  of God, negligent use, purchase from a party other than Shure or a Shure-authorized reseller, unau thorized repair, or modification of the product.
ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED TO THE EXTENT  PERMITTED UNDER APPLI­ CABLE LAWS AND, TO THE EXTENT NOT PERMITTED, ARE HEREBY LIMITED TO THE DURATION AND TERMS OF  THIS WARRANTY. SHURE ALSO HEREBY DISCLAIMS ALL LIABILITY FOR INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above /imitation may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
This warranty does not restrict the rights of the consumer mandated under applicable laws.
THIS WARRANTY SUPERSEDES ALL OTHER WARRANTIES THAT ARE ASSOCIATED OR INCLUDED WITH THIS PRODUCT, EXCEPT THAT ANY  SOFTWARE CONTAINED IN OR PACKAGED WITH THIS PRODUCT IS EXCLUDED FROM THIS WARRANTY AND INSTEAD SHALL BE COVERED BY  THE WARRANTY, IF ANY, PROVIDED IN SHURE’S END USER LICENSE AGREEMENT ACCOMPANYING SUCH SOFTWARE.
FOR ORIGINAL PURCHASES IN AUSTRALIA ONLY

LIMITED WARRANTY AGAINST DEFECTS

Shure Incorporated (“Shuren) hereby warrants to the original consumer purchaser In Australia only that, except as otherwise specified below, this product will be free in  normal use of any defects in materials and workmanship for a period of two (2) years from the consumer’s original date of purchase directlf from Shure or from a Shure- authorized reseller.
Any rechargeable batteries contained in or packaged with this product are so warranted for a period of one (1) year from the consumer’s original date of purchase. However,  rechargeable batteries are consumable and their capacity will be reduced over time based on temperature, amount of time in storage, charging cycles, and other factors; hence  reduction in battery capacity does not constitute a defect in material or workmanship.
At its sole option, Shure will repair or replace the defective product and promptly return it to you. In order for this warranty to be valid, the consumer must, at the time the  product is returned, provide proof of purchase In the form of the original purchase receipt directly from Shure or from a Shure-authorized reseller. If Shure elects to replace  the defective product, then Shure reserves the right to replace the defective product with another product of the same model or a model of at least comparable quality and  features in Shure’s sole determination.
If you believe this product Is defective within the warranty period, carefully repaCk the unit, insure it {at your expense, if you want the benefit of insurance) and return it with proof of purchase. postage paid by you, to Shure Incorporated, Attention: Service Department, at the address below.
Outside of the United States, return the product to your dealer or Authorized Service Center. Addresses are listed on www.Shure.com or can be obtained by contacting Shure  at the address listed below.
This warranty Is not transferable. This warranty does not apply in cases of abuse or misuse of the product, use contrary to Shure’s instruction, ordinary wear and tear, an act  of God, negligent use, purchase from a party other than Shure or a Shure-authorized reseller, unau­ thorized repair, or modification of the product.
ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED TO THE EXTENT  PERMITTED UNDER APPLI CABLE LAWS AND, TO THE EXTENT NOT PERMITTED, ARE HEREBY LIMITED TO THE EXTENT PERMITTED TO THE  DURATION AND TERMS OF THIS WARRANTY. SHURE ALSO HEREBY DISCLAIMS ALL LIABILITY FOR INCIDENTAL, SPECIAL, OR CONSE QUENTIAL DAMAGES FOR ANY PURCHASER ACQUIRING THIS PRODUCT, EXCEPT THAT THIS DOES NOT CONSTITUTE A DISCLAIMER OF  RIGHTS GUARANTEED TO ANY “CONSUMER” UNDER THE AUSTRALIAN CONSUMER LAW.
This warranty gives purchasers of this product in Australia specific legal rights which are In addition to the rights and remedies of consumers under the Australian Consumer  Law, which cannot be excluded or limited. If you are a “consumer” under the Australian Consumer Law, you are entitled to a replacement or refund for a major failure and for  compensation for any other reasonably forseeable loss or damage. You are also entitled to have the goods repaired or replaced If the goods fail to be of acceptable quality and the failure does not amount to a major failure.
THIS WARRANTY SUPERSEDES ALL OTHER WARRANTIES THAT ARE ASSOCIATED OR INCLUDED WITH THIS PRODUCT, EXCEPT THAT ANY  SOFTWARE CONTAINED IN OR PACKAGED WITH THIS PRODUCT IS EXCLUDED FROM THIS WARRANTY AND INSTEAD SHALL BE COVERED BY  THE WARRANTY, IF ANY, PROVIDED IN SHURE’S END USER LICENSE AGREEMENT ACCOMPANYING SUCH SOFTWARE.

Service Centers

@ 2018, Shure Incorporated
27F3175 (Rev. 5)
Printed in China
I l.16.GSl31 .00501 .0211 I

Compliance Requirements Supplement

Hereby, Shure Incorporated declares that this product has been determined to be in compliance with UKCA requirements.
The full text of the UK declaration of conformity is available at the following site:
https://www.shure.com/en-GB/support/declarations-of-conformity
Hereby, Shure Incorporated declares that this product has been determined to be in compliance with European Union requirements.
The full text of the EU declaration of conformity is available at the following site:
https://www.shure.com/en-EU/support/declarations-of-conformity

© 2021 Shure Incorporated
27A50347 (Rev. 1)
Printed in China

PT. GOSHEN SWARA INDONESIA
Kompleks Harco Mangga Dua Blok L No. 35 Jakarta Pusat
l.16.GSl31.00501.0211
