MSI MPG Serise Power Supply Unit
Specifications
1000W | |||||
Voltage | +5V | +3.3V | +12V | -12V | +5Vsb |
| Max load | 22.0A | 22.0A | 83.5A | 0.3A | 3.0A |
Min load | 0.0A | 0.0A | 0.0A | 0.0A | 0.0A |
| Combined power (+5V&+3.3V) | 120W | 1000W | 3.6W | 15.0W | |
Total Power | 1000W | ||||
| Regulation | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% |
| Ripple & Noise | 30mVp-p | 30mVp-p | 50mVp-p | 40mVp-p | 40mVp-p |
850W | |||||
Voltage | +5V | +3.3V | +12V | -12V | +5Vsb |
| Max load | 22.0A | 22.0A | 70.8A | 0.3A | 3.0A |
Min load | 0.0A | 0.0A | 0.0A | 0.0A | 0.0A |
| Combined power (+5V&+3.3V) | 120W | 850W | 3.6W | 15.0W | |
Total Power | 850W | ||||
| Regulation | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% |
Ripple & Noise | 30mVp-p | 30mVp-p | 50mVp-p | 40mVp-p | 40mVp-p |
750W | |||||
Voltage | +5V | +3.3V | +12V | -12V | +5Vsb |
| Max load | 22.0A | 22.0A | 62.5A | 0.3A | 3.0A |
Min load | 0.0A | 0.0A | 0.0A | 0.0A | 0.0A |
| Combined power (+5V&+3.3V) | 120W | 750W | 3.6W | 15.0W | |
Total Power | 750W | ||||
| Regulation | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% |
Ripple & Noise | 30mVp-p | 30mVp-p | 50mVp-p | 40mVp-p | 40mVp-p |

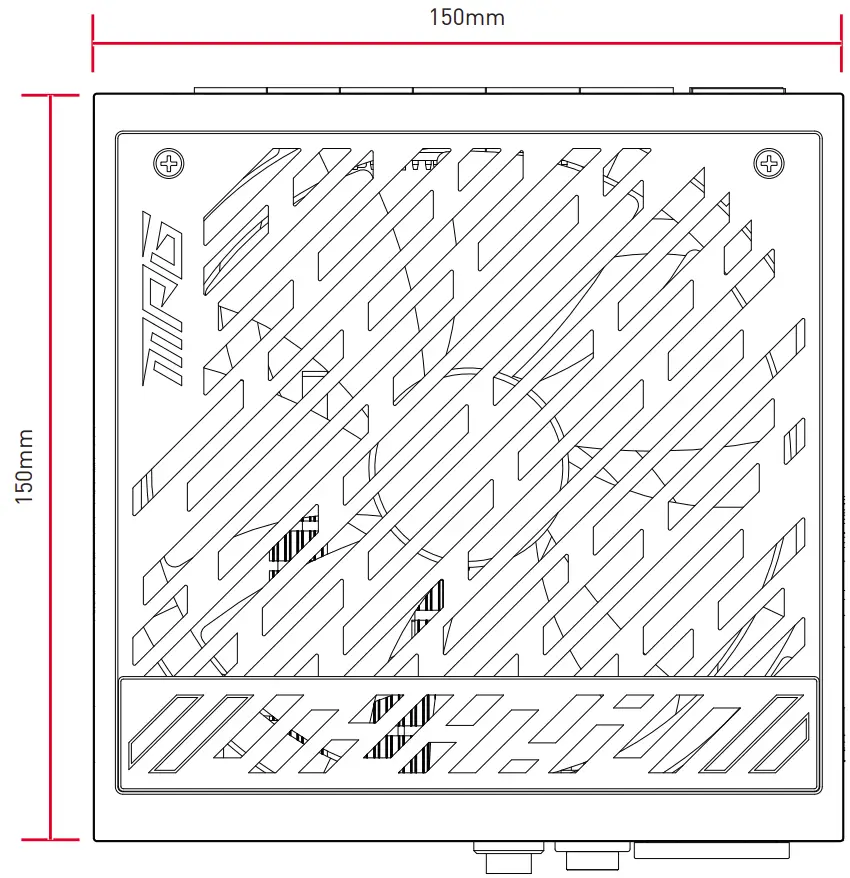

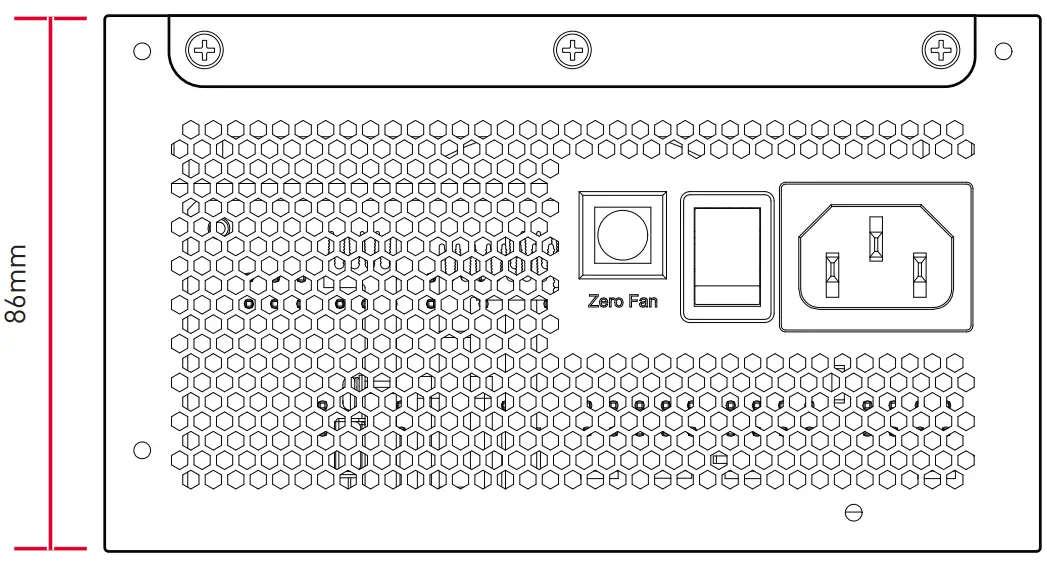

Dimensions

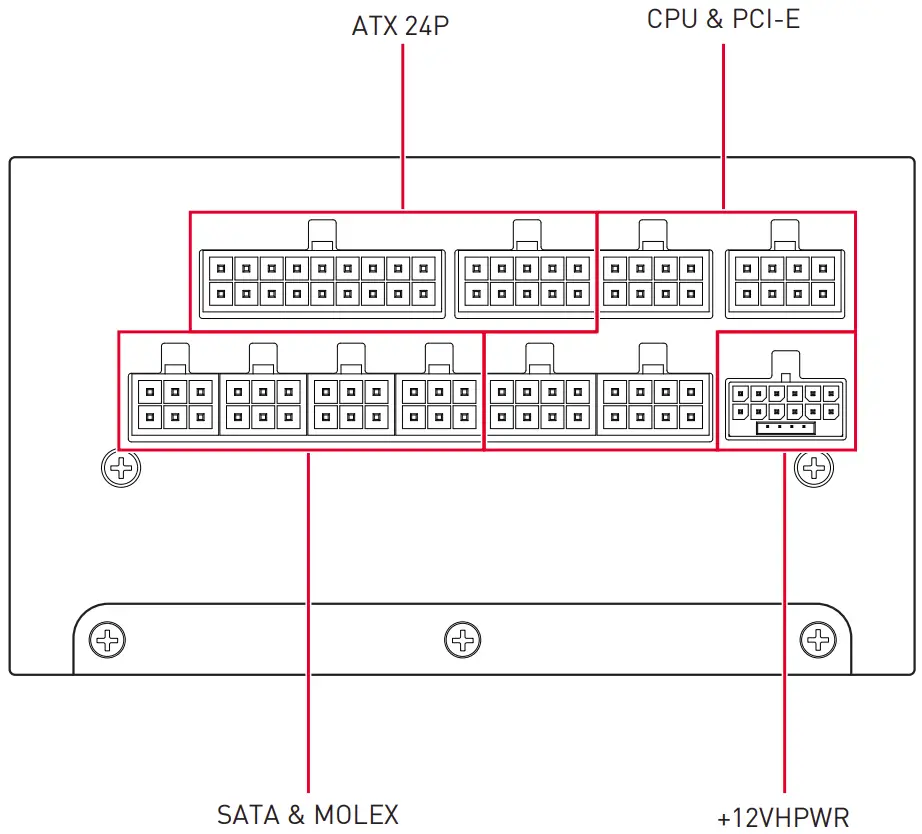

Detachable Connectors
Number of Power Connectors
Power Connectors | A1000G PCIE5 | A850G PCIE5 | A750G PCIE5 |
| ATX12V (Motherboard) 20+4 pin | 1 | 1 | 1 |
12VHPWR 16pin | 1 | 1 | 1 |
| EPS12V (CPU) 4+4 pin | 2 | 2 | 2 |
PCIe (VGA) 6+2 pin | 6 | 6 | 6 |
| SATA 15 pin | 12 | 8 | 8 |
Peripheral (PATA) 4 pin | 4 | 4 | 4 |
| FDD 4 pin | 1 | 1 | 1 |

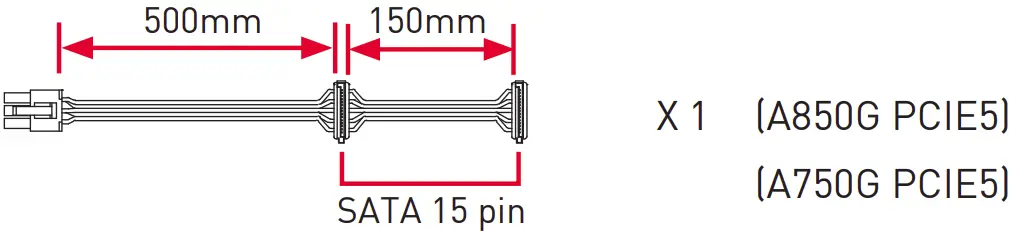

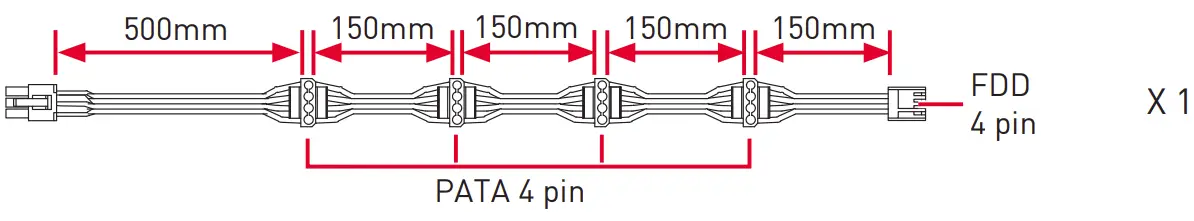

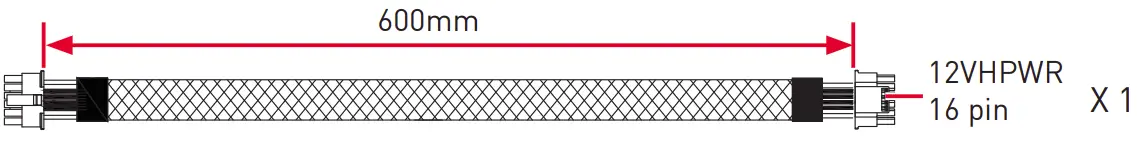

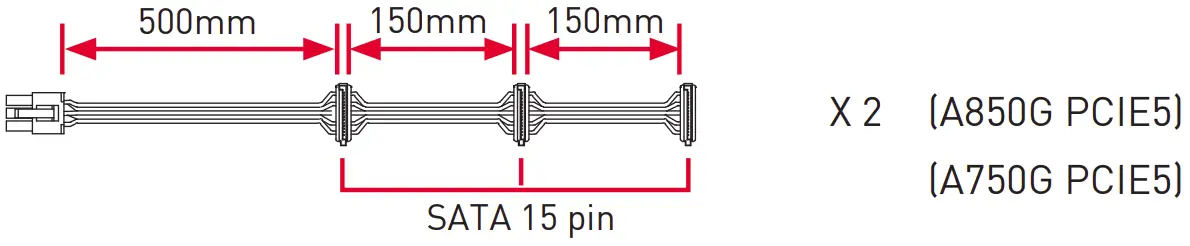

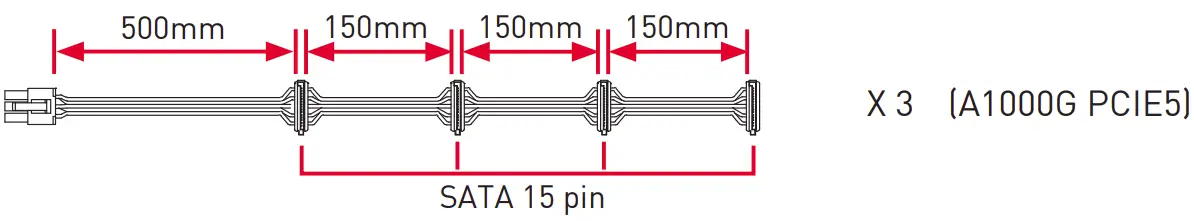

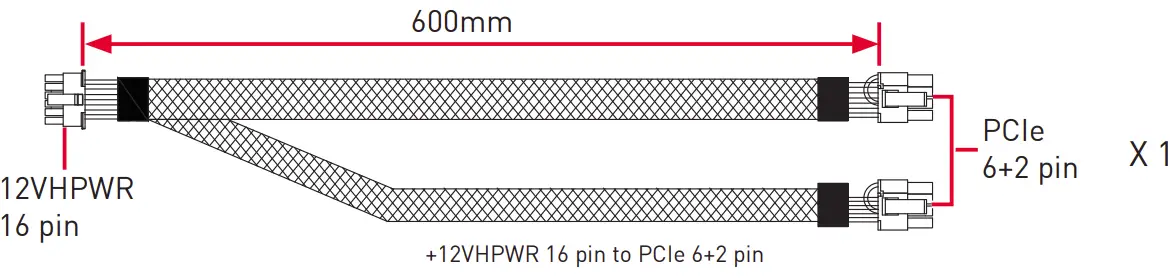

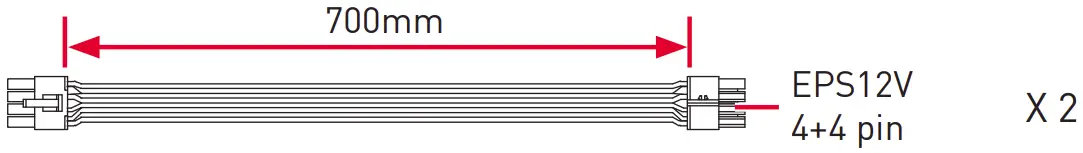

Connectivity and Cable Lengths
Model Number
Model No.: 7ZP7C, 7ZP7B, 7ZP7A
