MSI MAG A600DN Power Supply Unit
MSI MAG A600DN Power Supply Unit
Specifications
| 600W | ||||||
| AC Input | 110-240V~, 10A Max, 50-60Hz | |||||
| DC Output | +3.3V | +5V | +12V1 | +12V2 | -12V | +5Vsb |
| 14A | 14A | 25A | 25A | 0.3A | 2.5A | |
| Total Power | 105W | 576W | 3.6W | 12.5W | ||
| 600W | ||||||
| 500W | ||||||
| AC Input | 110-240V~, 8A Max, 50-60Hz | |||||
| DC Output | +3.3V | +5V | +12V1 | +12V2 | -12V | +5Vsb |
| 14A | 14A | 21A | 21A | 0.3A | 2.5A | |
| Total Power | 105W | 456W | 3.6W | 12.5W | ||
| 500W | ||||||

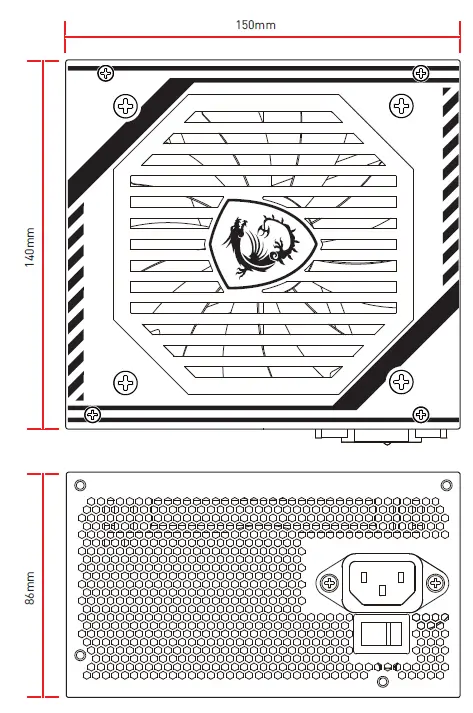

Dimensions
Number of Power Connectors
| Power Connectors | A600DN | A500DN |
| ATX12V (Motherboard) 20+4 pin | 1 | 1 |
| EPS12V (CPU) 4+4 pin | 1 | 1 |
| PCIe (VGA) 6+2 pin | 2 | 2 |
| SATA 15 pin | 5 | 5 |
| Peripheral (PATA) 4 pin | 2 | 2 |
| FDD 4 pin | 1 | 1 |

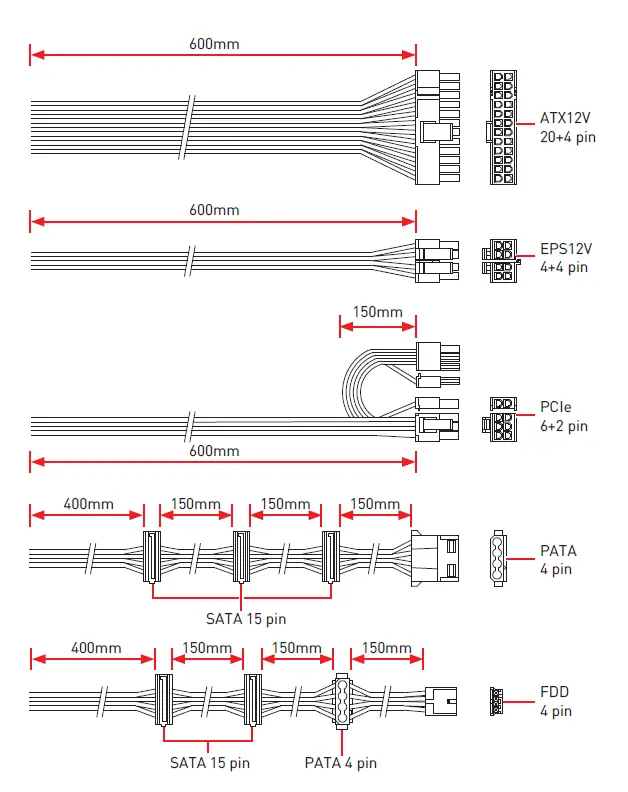

Connectivity and Cable Lengths
