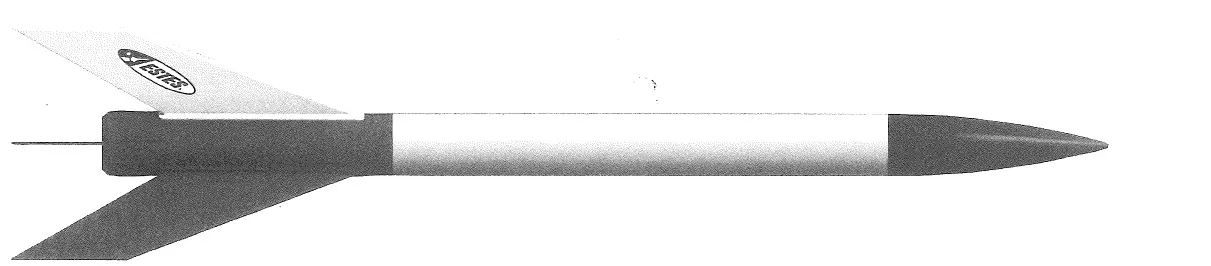

Astra 1714 Estes Workshop Rocket Kit
MODEL ROCKET INSTRUCTIONS
KEEP FOR FUTURE REFERENCE
IMPORTANT: Please record date found on box and keep for future reference.
READ ALL INSTRUCTIONS. Make sure you have all parts and supplies.

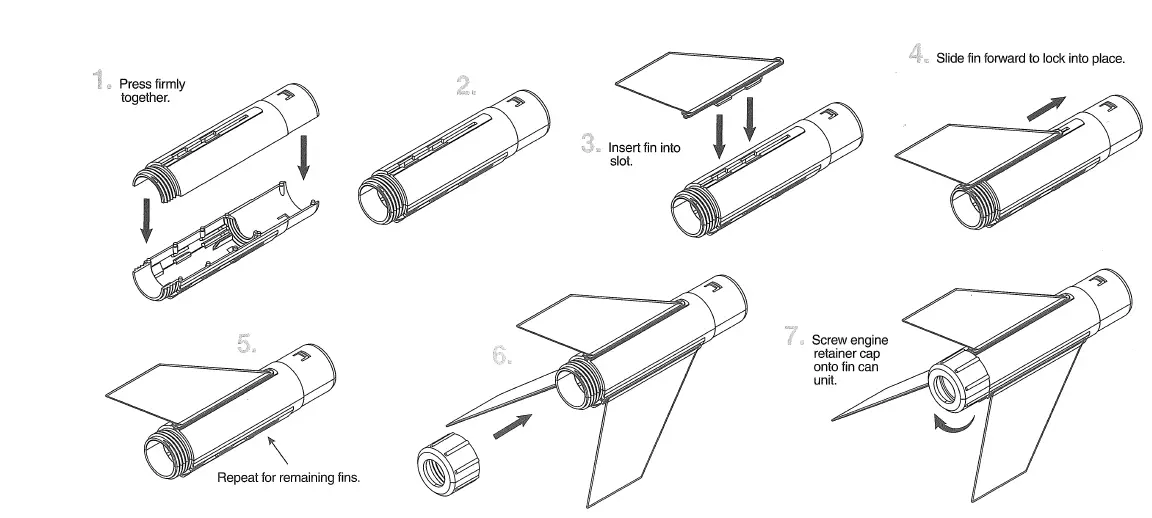

ASSEMBLE ENGINE MOUNT FIN CAN UNIT

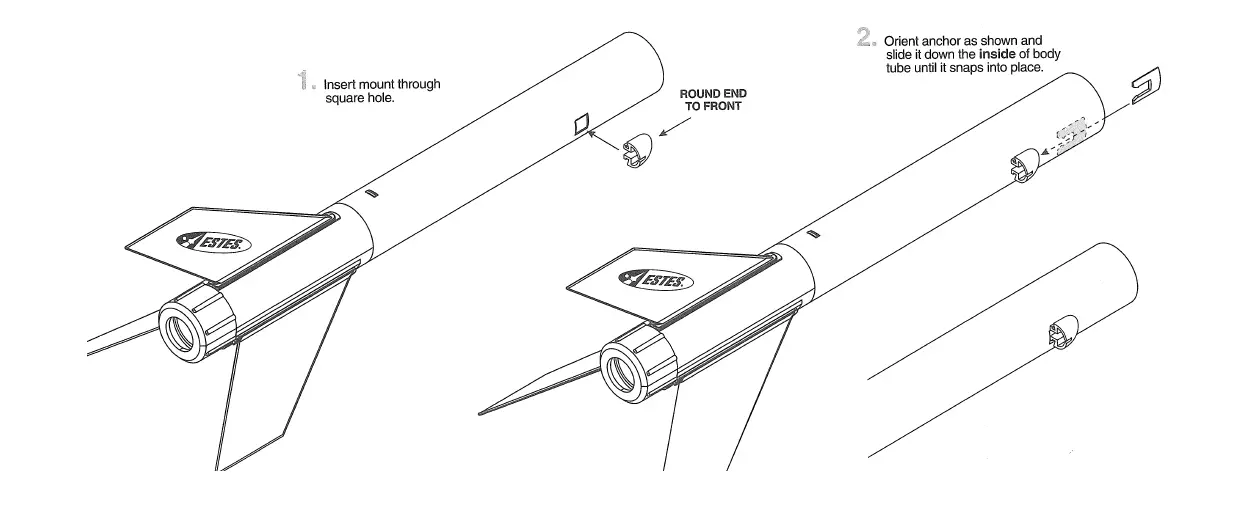

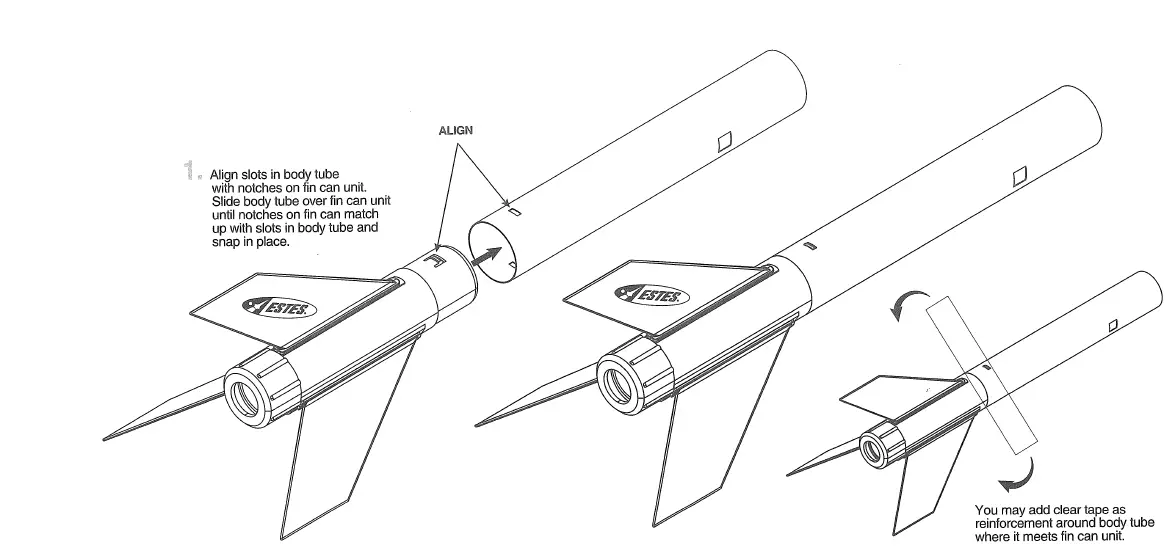

ATTACH BODYTUBE
ATTACH SHOCK CORD MOUNT

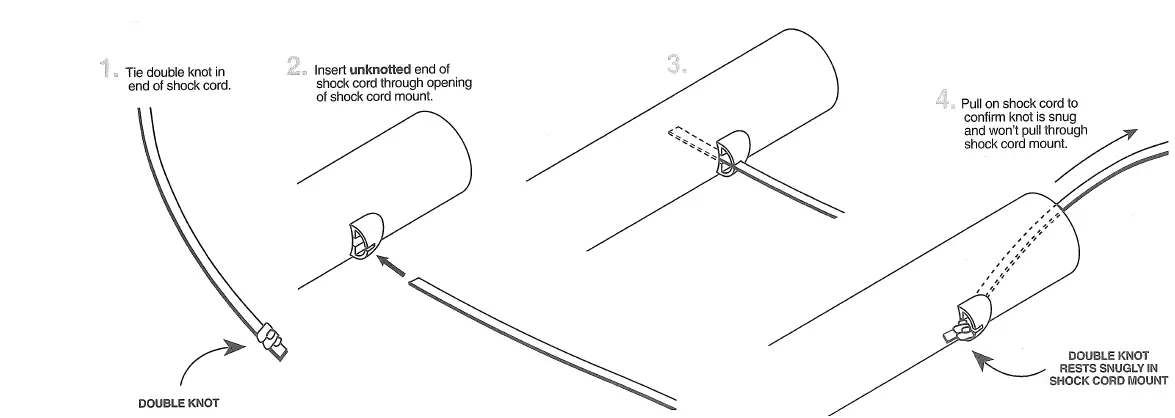

INSTALL SHOCK CORD

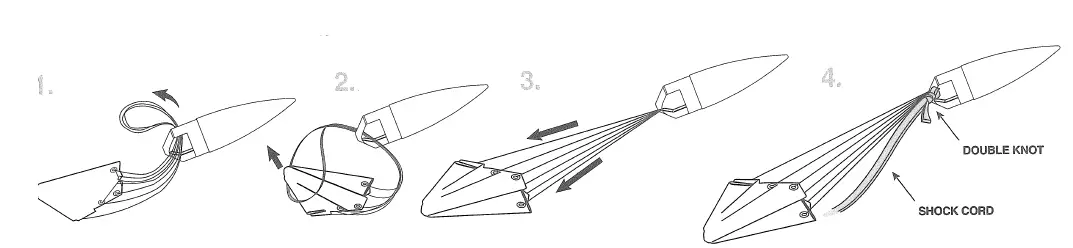

ATTACH PARACHUTE AND SHOCK CORD

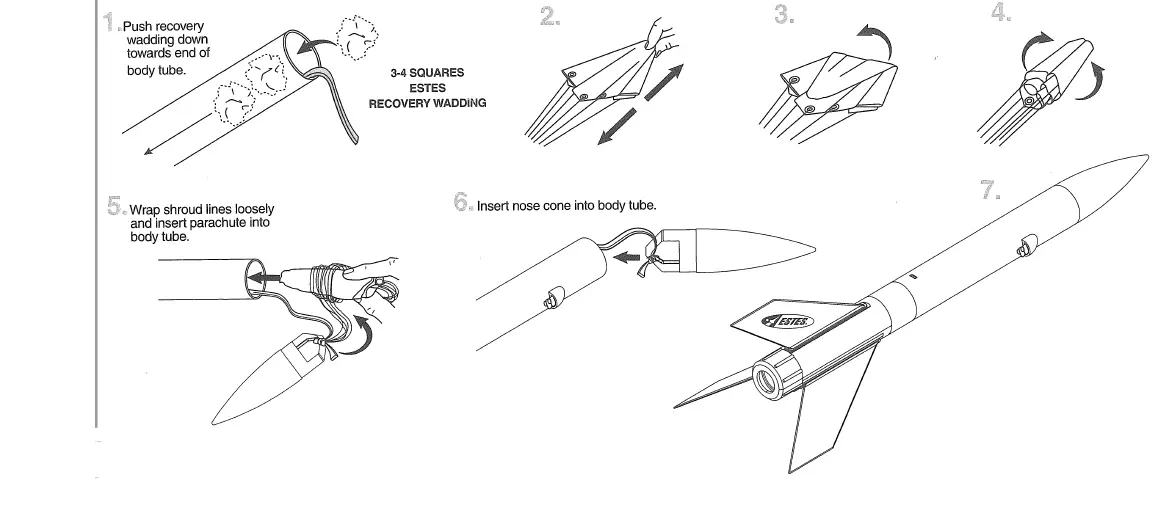

PREPARE FLIGHT RECOVERY
NOTE:
Recovery wadding and parachute must slide easily into body tube. If too tight, redo.
WARNING: FLAMMABLE

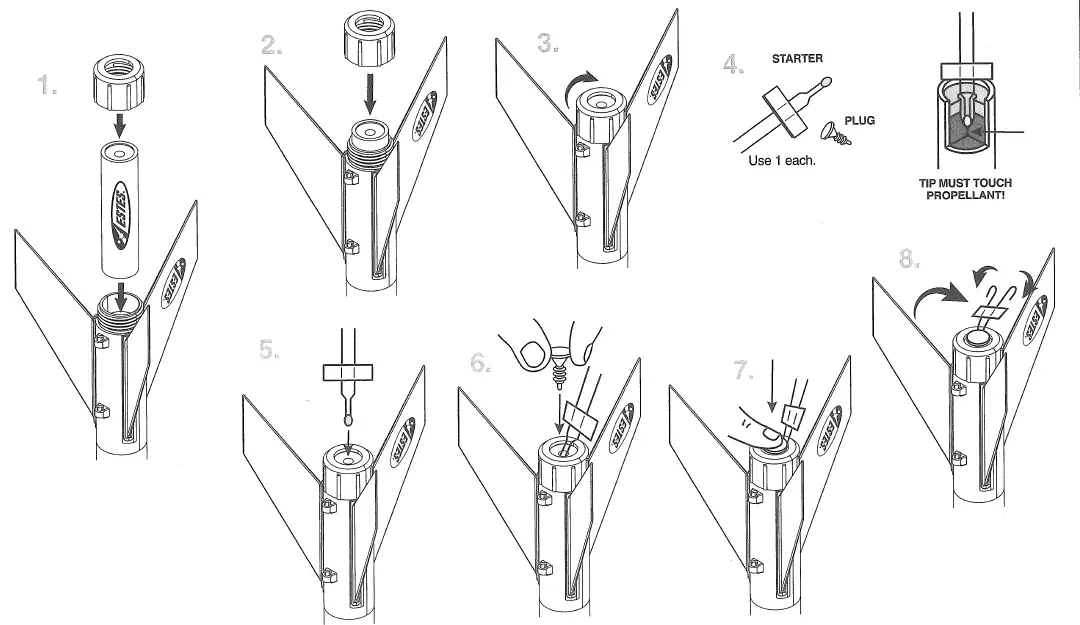

To avoid serious injury, read instructions& NAR Safety Code included with engines. PREPARE YOUR ENGINE ONLY WHEN YOU ARE OUTSIDE AT THE LAUNCH SITE PREPARING TO LAUNCH. If you do not use your prepared engine, remove the starter before storing your engine.
NOTE:
When tightening engine cap, make sure launch lugs are centered between engine retainer cap ridges.

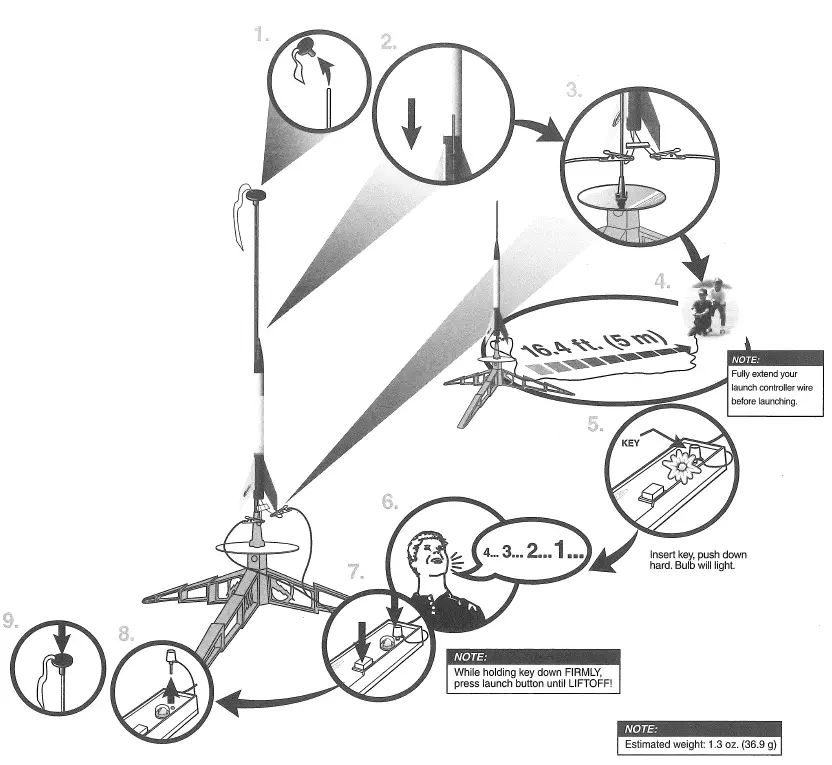

COUNTDOWN AND LAUNCH
ESTES LAUNCH SUPPLIES NEEDED
(Sold Separately)
- Recovery Wadding
- Launch Pad
- Launch Controller
- Starters (with engines)
- Plugs (with engines)
- EstesEngines:
A8-3 (first launch), B4-4, B6-4, C6-5, C6-7
PRECAUTIONS
PRE-LAUNCH CHECK For safety, never launch a damaged rocket. Check the rocket’s body, nose cone and fins. Also, check the engine mount, recovery system and launch lug(s).
Repair any damage before launching the rocket.
FLYING YOUR ROCKET Choose a large field (500 t. [152 m] square) free of dry weeds and brown grass. The larger the launch area, the beter your chance of recovering your rocket.
Football fields and playgrounds are great. Launch only with little or no wind and good visibility. Always follow the National Association of Rocketry (NAR) SAFETY CODE (enclosed).
MISFIRES TAKE THE KEY OUT OFTHE CONTROLLER. WAIT ONE MINUTE BEFORE GOING NEAR THE ROCKET! Disconnect the micro clips and remove the engine. Take the plug and starter out of the engine. A burned starter means the starter tip was not touching engine propellant. Install a new starter; be sure the tip is touching propellant inside engine.
Repeat the steps under Countdown and Launch.
2019 Estes Industries, LLC. All rights reserved.
Estes Industries, LLC. 1295 H Street, Penrose, CO. Made in Guangdong, China.
