QUIX™
5318
MODEL ROCKET INSTRUCTIONS
KEEP FOR FUTURE REFERENCE
IMPORTANT: Please record the date found on the decal and keep it for future reference.
READ ALL INSTRUCTIONS. Make sure you have all parts and supplies. Test fit all parts before applying glue. Product color and shape may vary.

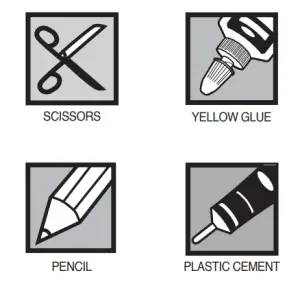

SUPPLIES

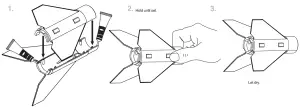

ASSEMBLE FIN CAN

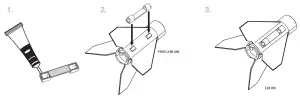

ATTACH LAUNCH LUG
ATTACH BODY TUBE
ASSEMBLE NOSE CONE
INSTALL SHOCK CORD
PREPARE RECOVERY SYSTEM
APPLY DECAL
PREPARE FLIGHT RECOVERY
NOTE:
Recovery wadding and parachute must slide easily into the body tube. If too tight, redo.
PREPARE ENGINE
WARNING: FLAMMABLE
To avoid serious injury, read instructions & NAR Safety Code included with engines. PREPARE YOUR ENGINE ONLY WHEN YOU ARE OUTSIDE AT THE LAUNCH SITE PREPARING TO LAUNCH. If you do not use your prepared engine, remove the starter before storing your engine.

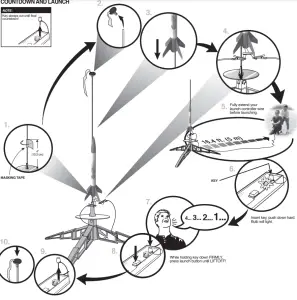

COUNTDOWN AND LAUNCH
NOTE
Estimated weight: .6 oz (19.8 g)
ESTES® LAUNCH SUPPLIES NEEDED (Sold separately)
- Launch Pad
- Launch Controller
- Recovery Wadding
- Starters (with engines)
- Plugs (with engines)
- Estes® Engines: 1/2A3-4T (first launch), A3-4T, A10-3T
PRECAUTIONS
PRE-LAUNCH CHECK For safety, never launch a damaged rocket. Check the rocket’s body, nose cone, and fins. Also, check the engine mount, recovery system, and launch lug(s).
Repair any damage before launching the rocket.
FLYING YOUR ROCKET Choose a large field (500 ft. [152 m] square) free of dry weeds and brown grass. The larger the launch area, the better your chance of recovering your rocket.
Football fields and playgrounds are great. Launch only with little or no wind and good visibility. Always follow the National Association of Rocketry (NAR) SAFETY CODE (enclosed).
MISFIRES TAKE THE KEY OUT OF THE CONTROLLER. WAIT ONE MINUTE BEFORE GOING NEAR THE ROCKET! Disconnect the starter clips and remove the engine. Take the plug and starter out of the engine. If the starter has burned, it worked but did not ignite the engine because it was not touching the propellant inside the engine. Put a new starter all the way inside the engine without bending it. Push the plug in place. Repeat the steps under Countdown and Launch.
090001-5318
Self-stick decal
EstesRockets.com
© 2019 Estes Industries, LLC, All rights reserved.
Estes Industries, LLC, 1295 H Street, Penrose, CO 81240-9698 Made in Guangdong, China
PN 083172 (7-19)
