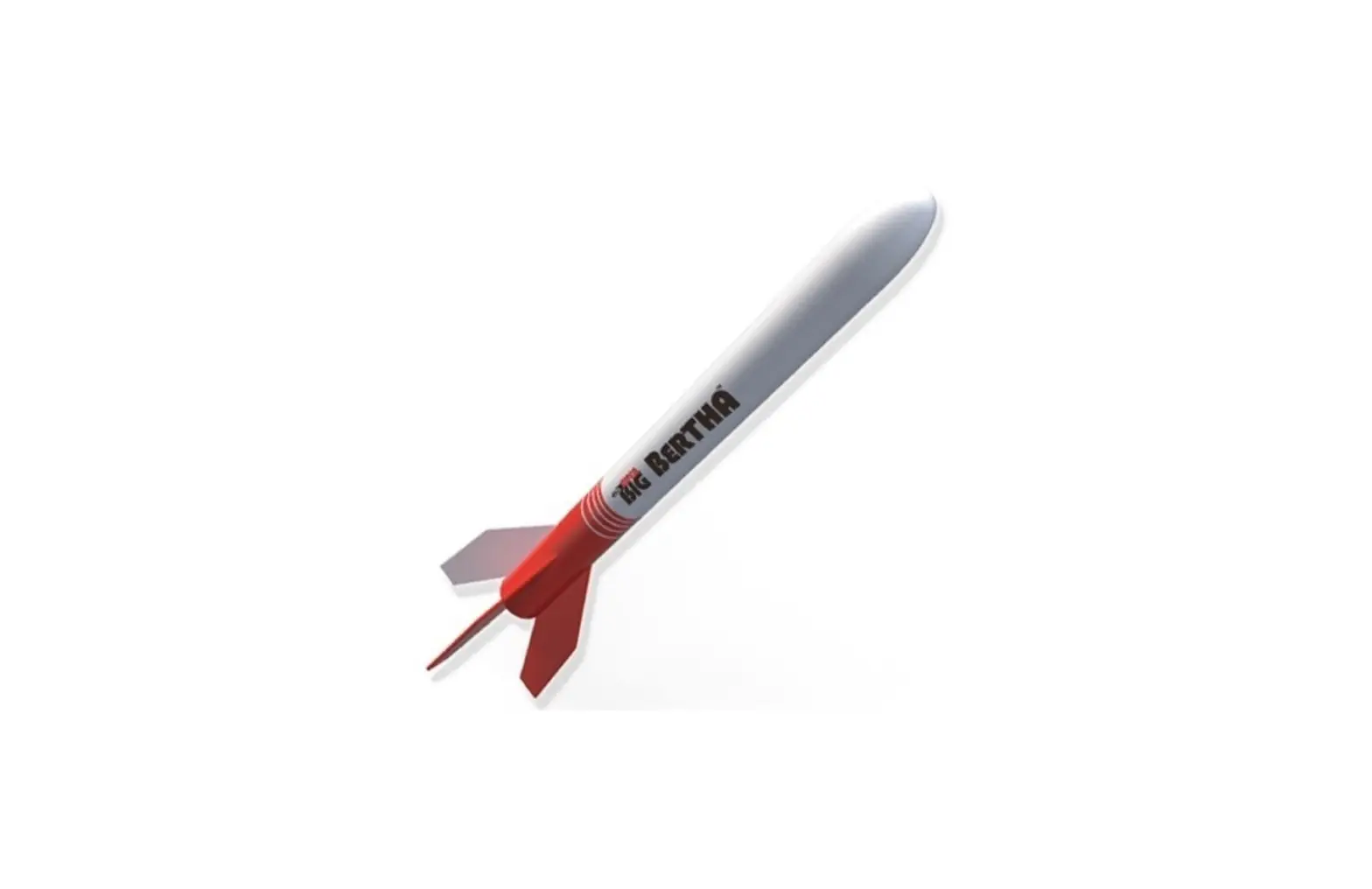

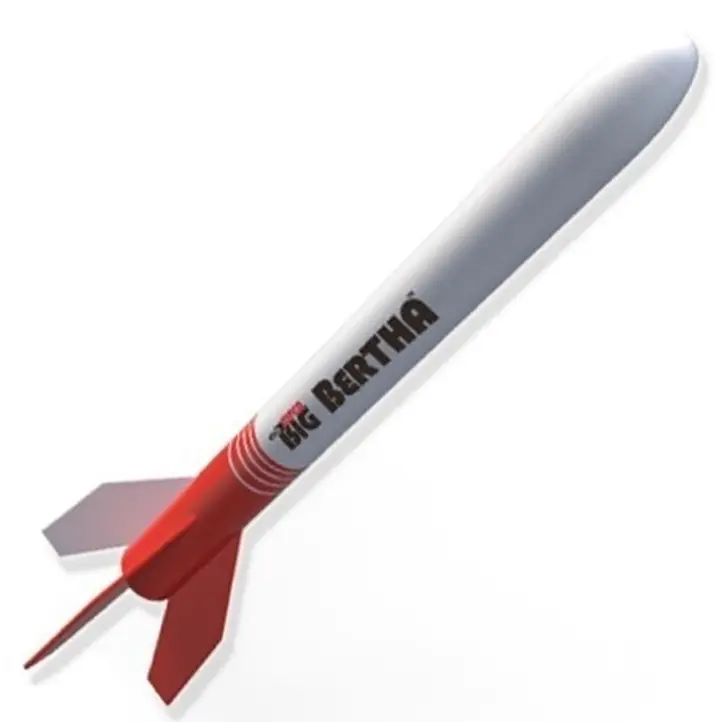

ESTES 9719 Super Big Bertha Model Rocket
IMPORTANT: Please record date found on decal and keep for future reference.
Read all instructions. Make sure you have all parts and supplies. Test fit all parts before applying glue. Sand as necessary for precision assembly. Product color and shape may vary
SUPPLIES
TUBE MARKING GUIDE

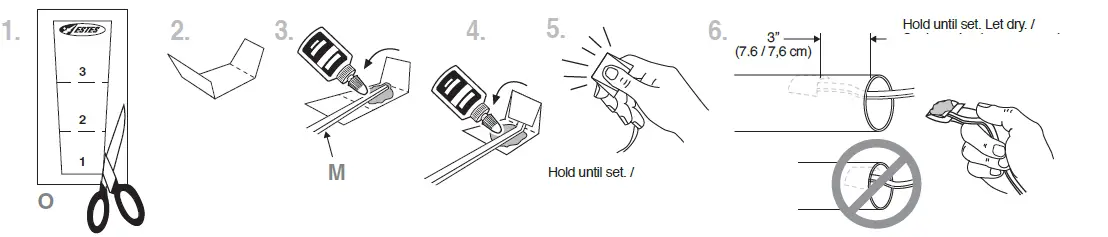

PREPARE FINS
ASSEMBLE ENGINE MOUNT

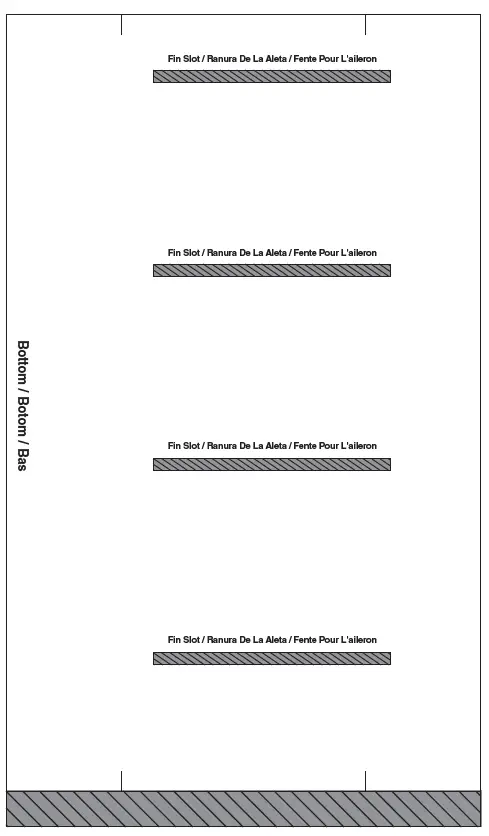

PREPARE FIN SLOTS

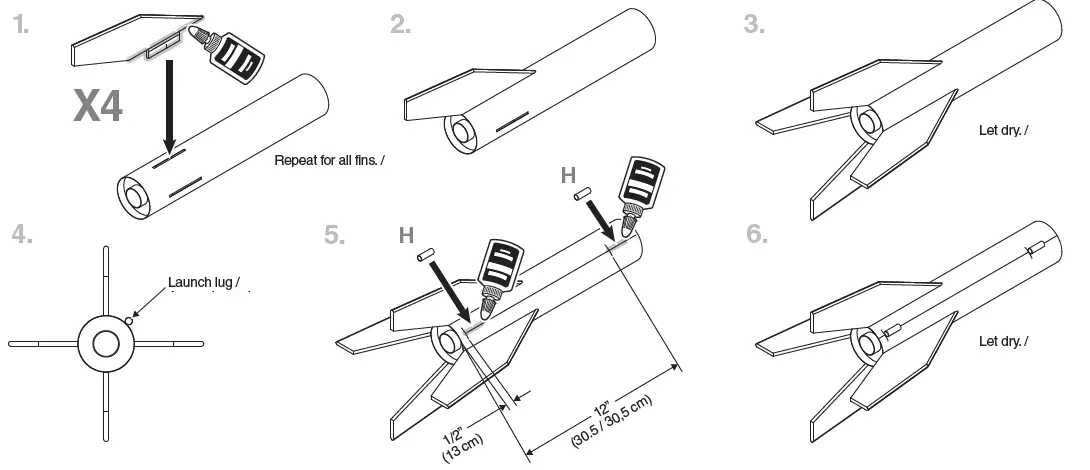

ATTACH FINS

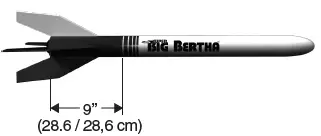

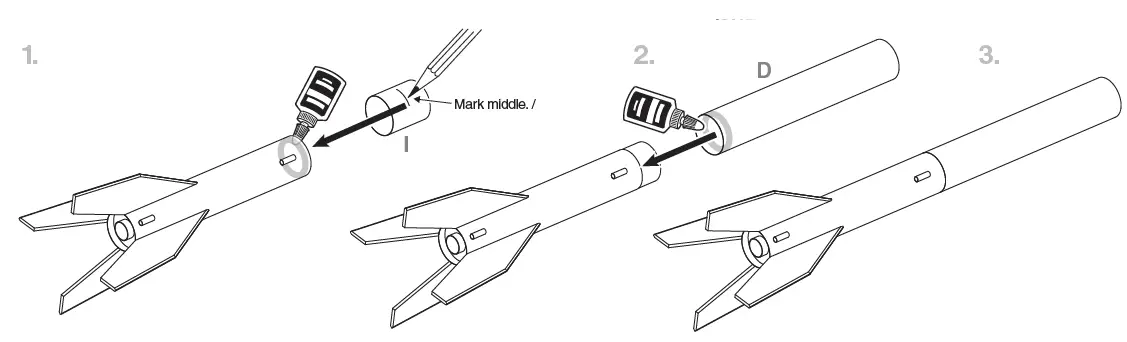

ATTACH UPPER BODY TUBE

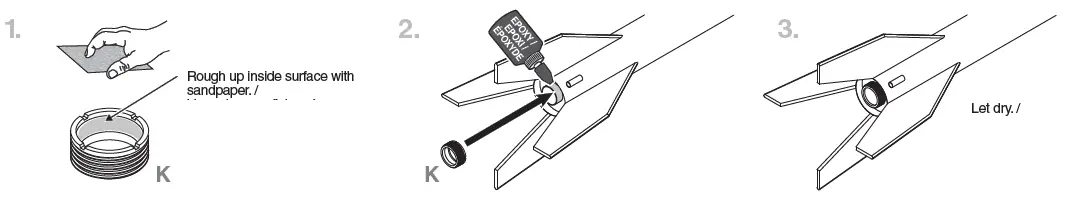

MOTOR RETENTION
ROCKET FINISHING
- Spray rocket with white primer, let dry, and sand. Repeat until rocket is smooth, then paint. Apply decals after paint is dry.
- Cut decals from sheet, trimming close to edge.
- One at a time, place in warm water until decal curls and begins to relax.
- Remove and position on rocket, sliding decal away from backing material.
- Blot with clean paper towel. Let set overnight.
- OPTIONAL: Apply protective clear coat.
INSTALL SHOCK CORD

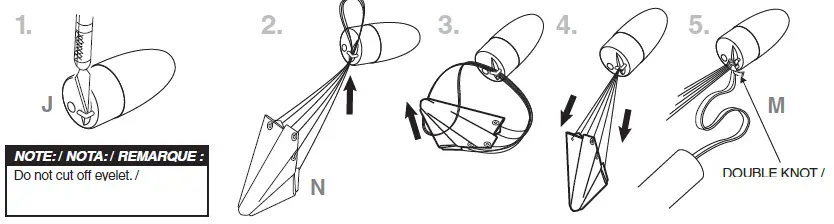

PREPARE RECOVERY SYSTEM

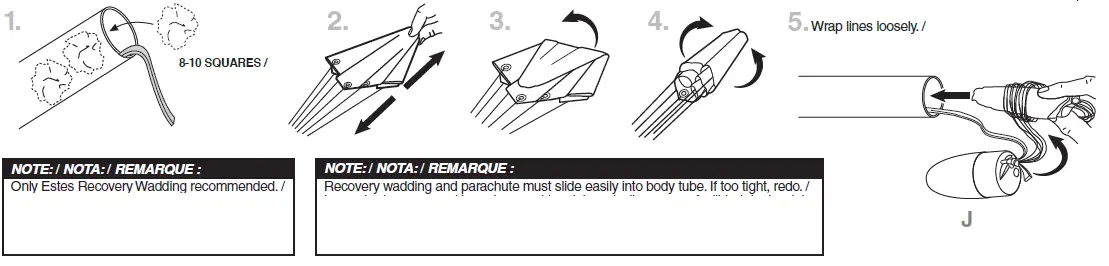

PREPARE FLIGHT RECOVERY

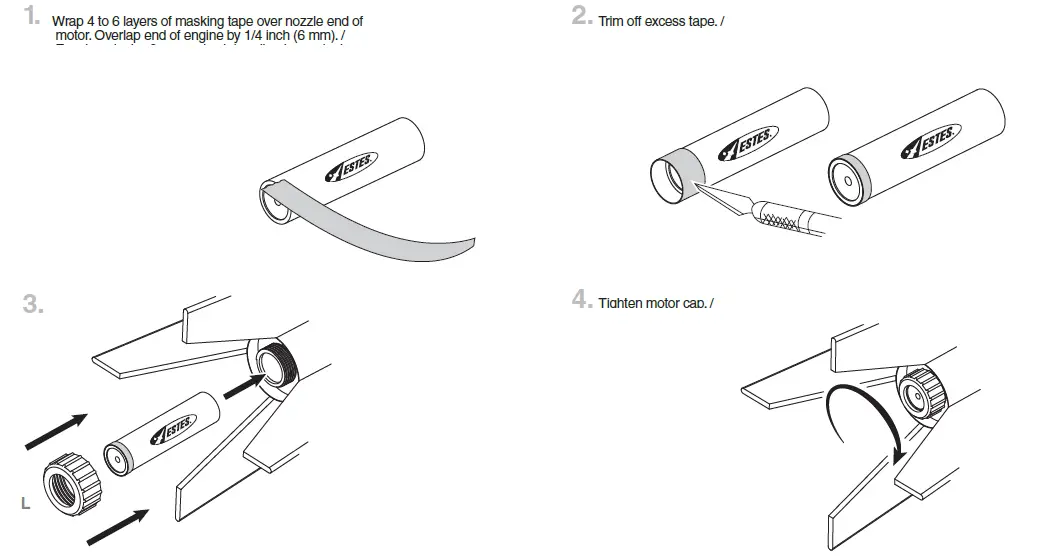

INSTALL ENGINE

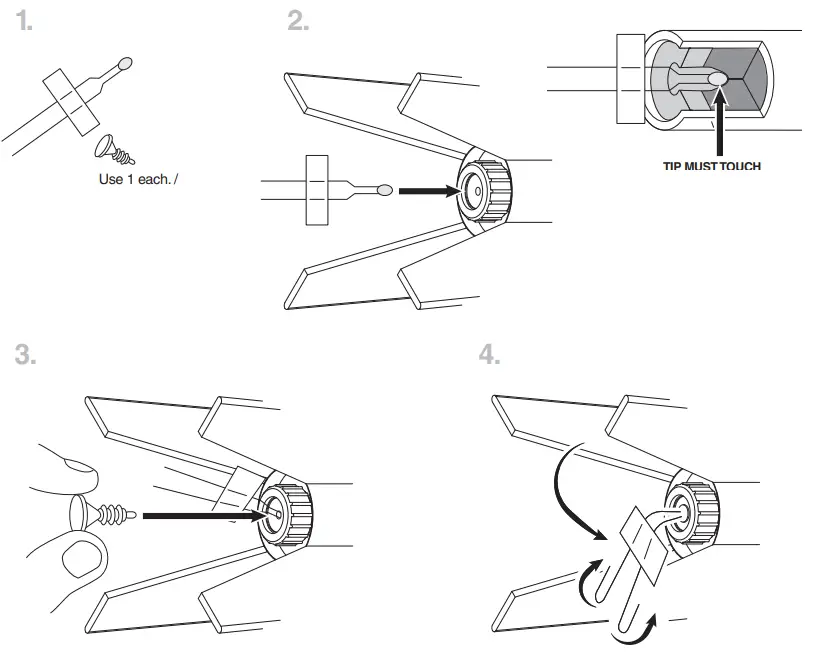

PREPARE ENGINE
NOTE: Key always out until final countdown
ESTES LAUNCH SUPPLIES NEEDED
(Sold Separately)
- Pro Series II™ Launch Pad
- Pro Series II™ Launch Controller
- Recovery Wadding
- Starters (with engines)
- Plugs (with engines)
- Recommended Estes® Engines: E16-4 (first launch), F15-6
WARNING: FLAMMABLE
To avoid serious injury, read instructions & NAR Safety Code included with engines. PREPARE YOUR ENGINE ONLY WHEN YOU ARE OUTSIDE AT THE LAUNCH SITE PREPARING TO LAUNCH. If you do not use your prepared engine, remove the starter before storing your engine
PRECAUTIONS
PRE-LAUNCH CHECK For safety, never launch a damaged rocket. Check the rocket’s body, nose cone and fins. Also, check the engine mount, recovery system and launch lug(s).
Repair any damage before launching the rocket.
FLYING YOUR ROCKET Choose a large field (500 ft [152 m] square) free of dry weeds and brown grass. The larger the launch area, the better your chance of recovering your rocket.
Football fields and playgrounds are great. Launch only with little or no wind and good visibility. Always follow the National Association of Rocketry (NAR) SAFETY CODE.
MISFIRES TAKE THE KEY OUT OF THE CONTROLLER. WAIT ONE MINUTE BEFORE GOING NEAR THE ROCKET! Disconnect the starter clips and remove the engine. Take the plug and starter out of the engine. If the starter has burned, it worked but did not ignite the engine because it was not touching the propellant inside the engine. Put a new starter all the way inside the engine without bending it. Push the plug in place. Repeat the steps under Countdown and Launch.
