S7i Roof Air Cooler Internal Water Tank

Product Information:

S7i Fresair Roof Air Cooler

The S7i Fresair Roof Air Cooler is an innovative cooling
solution designed to provide efficient and eco-friendly cooling for
your space. It features a range of components and materials that
ensure optimal performance and durability.

Components:

Top Cover: Made of Anti-UV ABS or PSAI material, fastened with
Metric Machine Screw M5.
Straw Filter Assembly: Consists of a Pine Straw Filter made of
Polypropylene (PP) and treated pine straw.
Fan Cover: Protects the internal components of the cooler.
Fan Bracket: Holds the Motor Fan in place.
Motor Fan: Generates airflow for effective cooling.
Internal Water Tank: Made of ABS material with a capacity of
12L.
Tray Filter: Made of PP material with a filter mat.
Pre Filter Tray: Made of ABS and TPE materials.
Universal Tray: Made of PP material.
Sealing Profile: Made of EPDM (autoadhesive) and PVC Foam for
effective sealing.
Main Panel: Made of PS/ABS material.
Output to Supply Profile: Connects to the water fill connector
for water supply.
Control Panel: Version R6 for convenient operation.
Mounting Bracket: Used for secure installation.
Finishing Frame: Made of ABS material for a polished look.

Technical Specifications:

Weight: 35 lbs (with empty water tank), 70 lbs (with full water
tank).
Consumption (A/h): Varies between 100-1000 ml/h depending on
external temperature and humidity.

Dimensions:

(Dimensions in inches are not provided in the extract.)

Product Usage Instructions:

Place the S7i Fresair Roof Air Cooler in a suitable location on
your roof, ensuring proper ventilation and secure mounting using
the included mounting bracket.
Fill the internal water tank with a maximum of 12L of water
through the water fill connector.
Connect the water out pipe to ensure proper drainage of excess
water.
Turn on the control panel using the Version R6 interface and
adjust the settings according to your desired cooling
preferences.
Regularly clean and replace the Pine Straw Filter, Tray Filter,
and Pre Filter Tray to maintain optimal performance.
If necessary, use the Sealing Profile to ensure proper sealing
and prevent any air leakage.

Please refer to the complete user manual for detailed
instructions, safety guidelines, and troubleshooting
information.

View Fullscreen

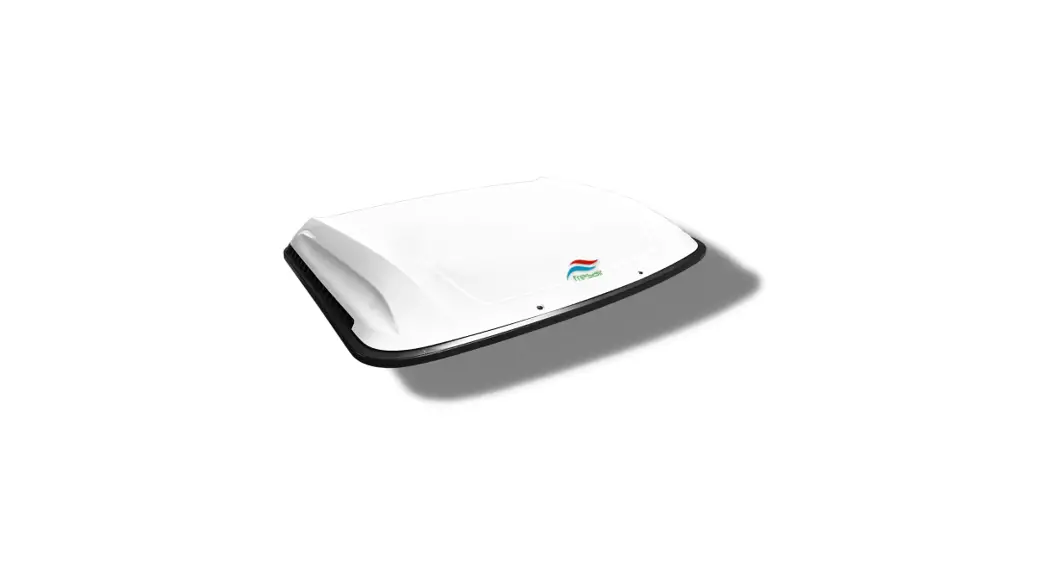

S7i Fresair Roof Air Cooler
Internal Water Tank
© Fresair, LLC. | All Rights Reserved

S7i Fresair Roof Air Cooler
© Fresair, LLC. | All Rights Reserved

2 of 18

S7i Fresair Roof Air Cooler
Expanded View
1 Top Cover 2 Straw Filter Assembly 3 Fan Cover 4 Fan Bracket 5 Motor Fan 6 Internal Water Tank 7 Tray Filter 8 Pre Filter Tray 9 Universal Tray 10 Sealing Profile 11 Main Panel 12 Output to Supply Profile 13 Control Panel 14 Mounting Bracket 15 Finishing Frame
© Fresair, LLC. | All Rights Reserved

1 2
4 6 8
12
13

3 5
7 9 10
11 14
15
3 of 18

S7i Fresair Roof Air Cooler
Top Cover
Material: Anti-UV ABS OR PSAI Fastening: Metric Machine Screw M5
© Fresair, LLC. | All Rights Reserved

4 of 18

S7i Fresair Roof Air Cooler
Pine Straw Filter
Filter Structure: Polypropylene (PP) Refill: Treated Pine Straw
© Fresair, LLC. | All Rights Reserved

5 of 18

S7i Fresair Roof Air Cooler
Motor Fan
Voltage: 12V Radial Motor (Dual Turbine) FLow: 400m³/h
© Fresair, LLC. | All Rights Reserved

6 of 18

S7i Fresair Roof Air Cooler
Internal Water Tank
Material: ABS Capacity: 12L
© Fresair, LLC. | All Rights Reserved

7 of 18

S7i Fresair Roof Air Cooler
Tray Filter
Material: PP + Filter Mat
© Fresair, LLC. | All Rights Reserved

8 of 18
