LiQuRIZER
Installation Manual

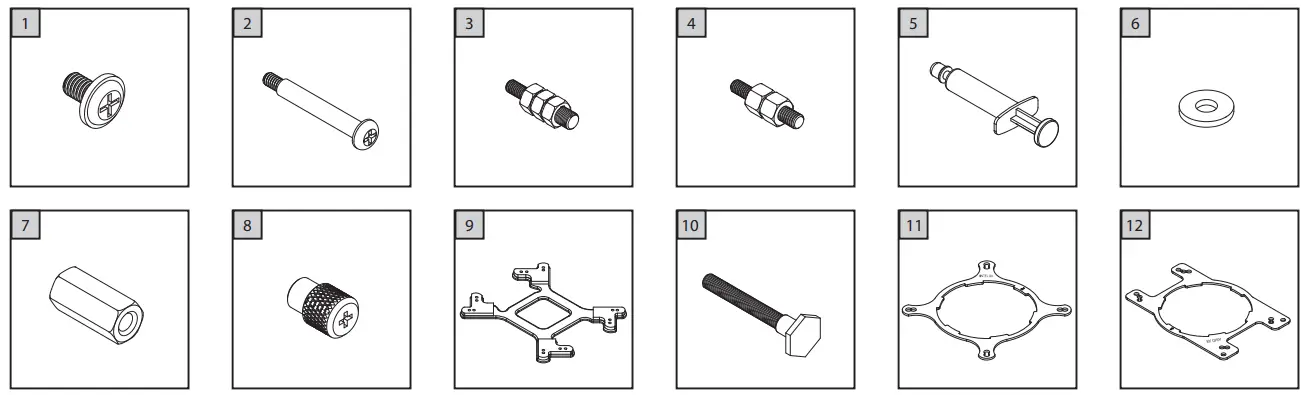

Component List

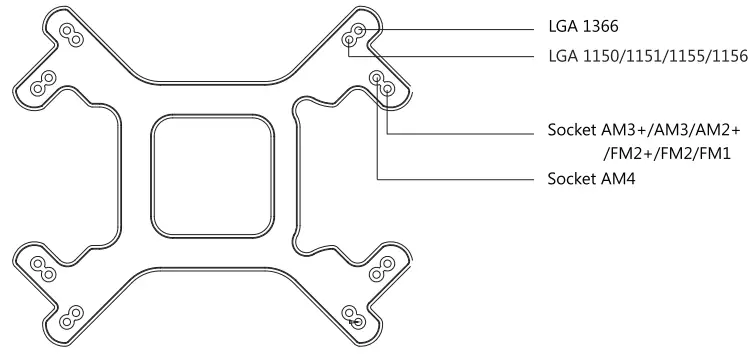

Mounting options on backplate

INTEL MOUNTING

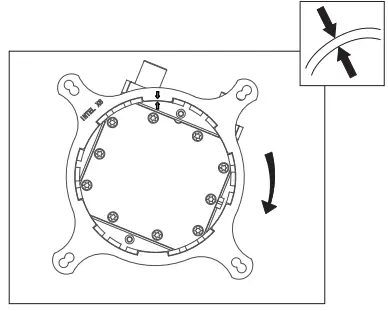

Intel Bracket Mounting
Align the arrows on the bracket and the pump base, turn the bracket clockwise to secure it to the pump base.
* The Intel bracket is universal for
LGA2066/2011/1150/1151/1155/1156/1366.

LGA1150/1151/1155/1156/1366 Installation

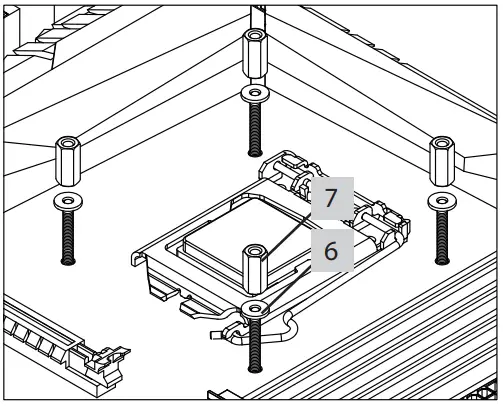

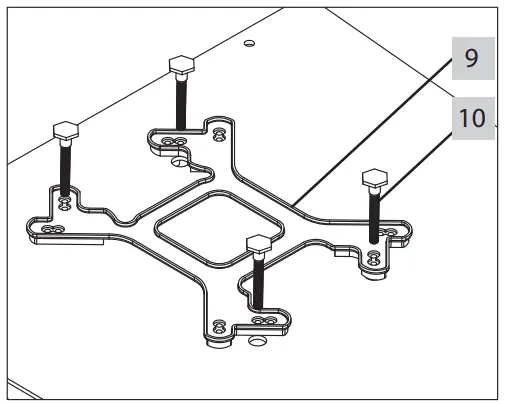

Choose the right mounting holes accordingto CPU Socket. Insert the long screws through the backplate and then through the mainboard.	Put the washer onto the long screws first, and then fasten the thread nuts onto the screws.

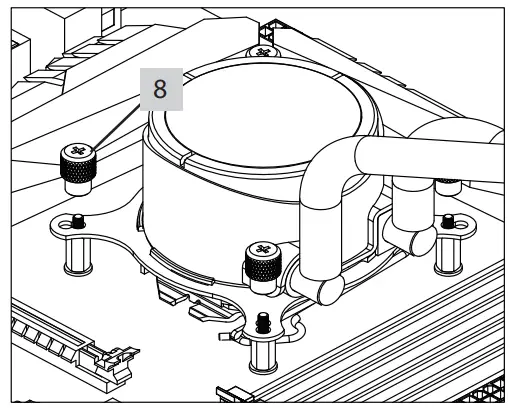

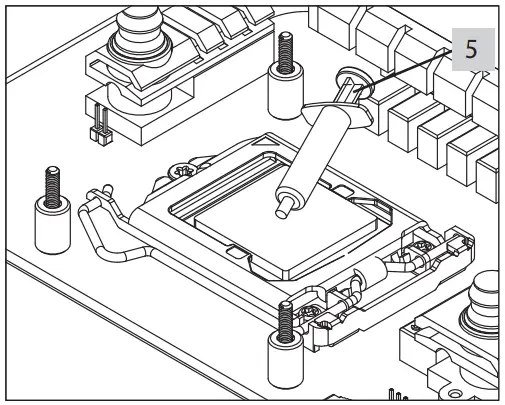

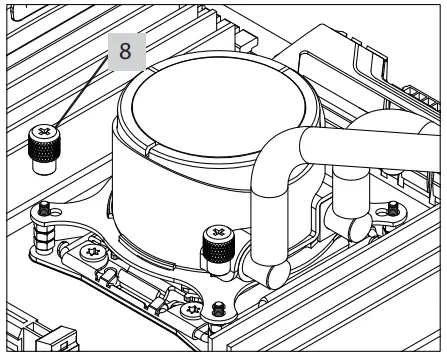

Clean the CPU surface and apply a thin layer of thermal grease onto the surface.	Put the pump onto the CPU. Secure the block using the knurled tightening nuts.

LGA2066/2011 Installation

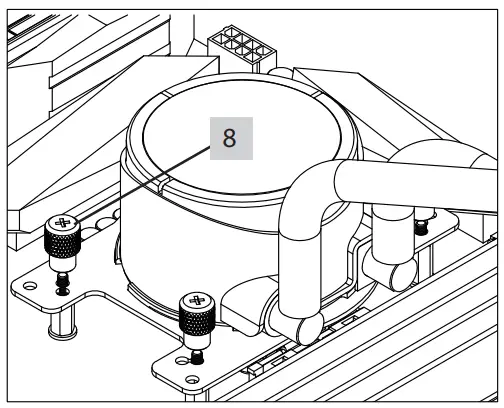

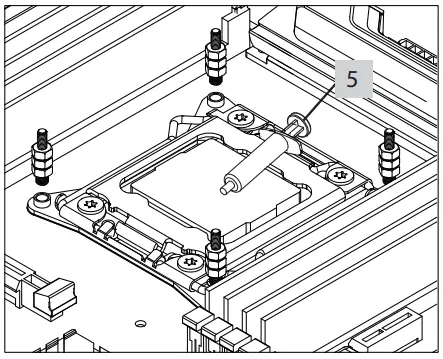

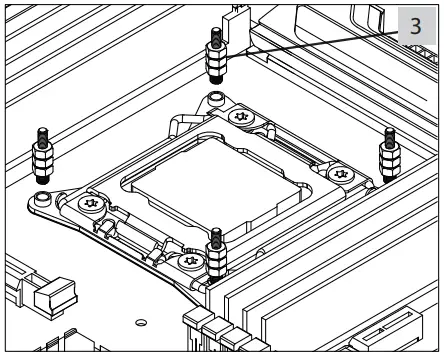

Thread the LGA2066/2011 standoff into the mounting holes on the mainboard.	Clean the CPU surface and apply a thin layer of thermal grease onto the surface.	Put the pump onto the CPU. Secure the block using the knurled tightening nuts.

AMD MOUNTING

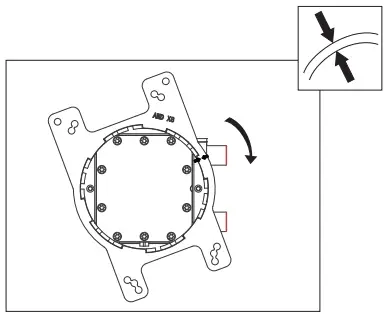

AMD Bracket Mounting
Align the arrows on the bracket and the pump base, turn the bracket clockwise to secure it to the pump base.
* The AMD bracket is universal for
TR4/AM4/FM2(+)/FM1/AM3(+)/AM2(+).

AM4/FM2(+)/FM1/AM3(+)/AM2(+) Installation

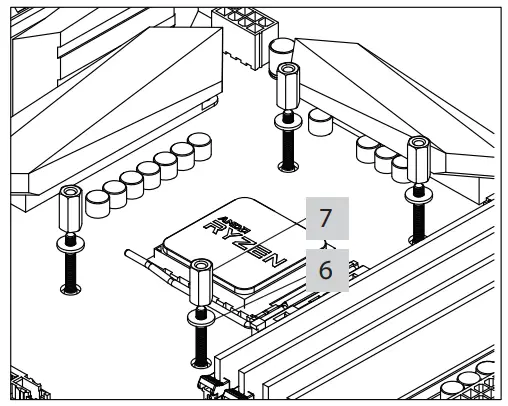

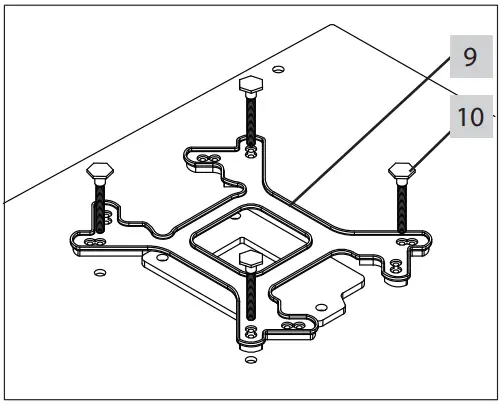

Choose the right mounting holes accordingto CPU Socket. Insert the long screws through the backplate and then through the mainboard.	Put the washer onto the long screws first, and then fasten the thread nuts onto the screws.

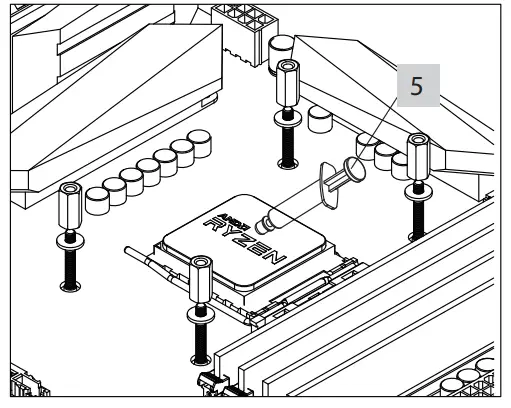

Clean the CPU surface and apply a thin layer of thermal grease onto the surface.	Put the pump onto the CPU. Secure the block using the knurled tightening nuts.

TR4 Installation

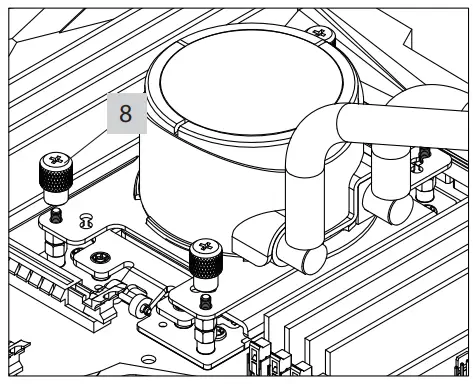

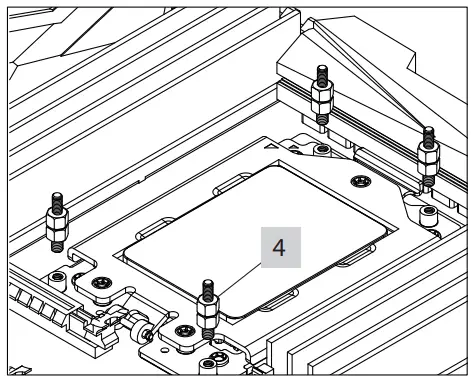

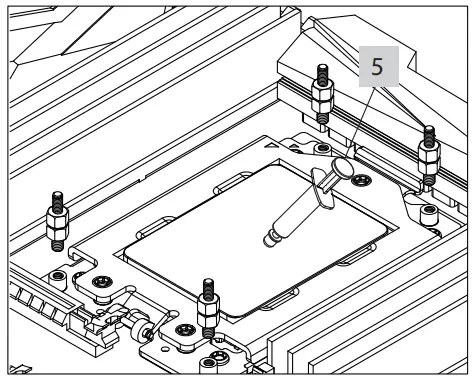

Thred the TR4 standoff into the mounting holes on the mainboard.	Clean the CPU surface and apply a thin layer of thermal grease onto the surface.	Put the pump onto the CPU. Secure the block using the knurled tightening nuts.

Fan & Radiator Mounting

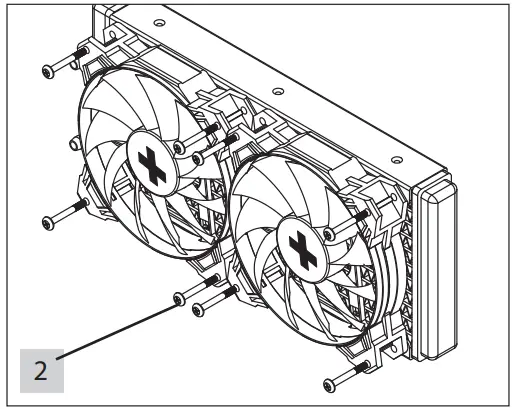

Using the fan mounting screws to secure the fan(s) onto the radiator.	Using the radiator mounting screws to secure the radiator to the case panel.

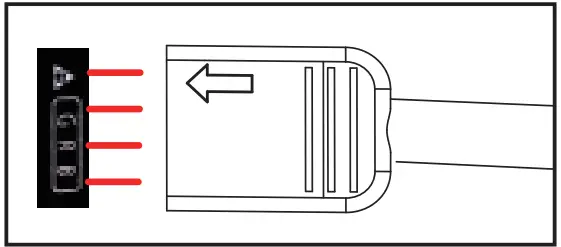

Installation of RGB lighting

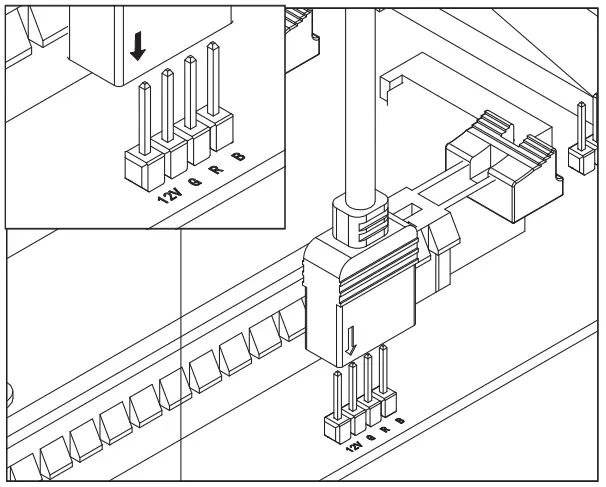

* Note: RGB function is only available for LQ240RGB model by using mainboard RGB control

By using internal RGB controller

CAUTION
Wrong connection will damage the device and cause mal-function!

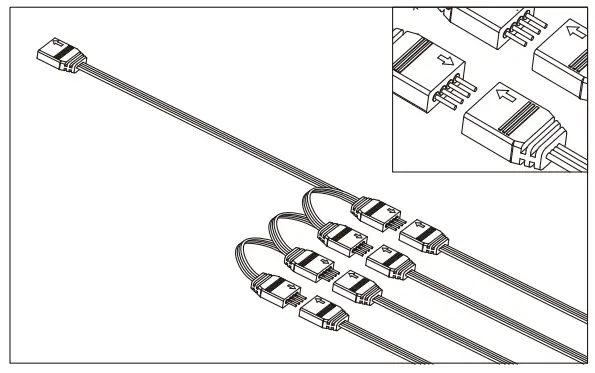

By using RGB Splitter to connect pump/fans’ RGB cables

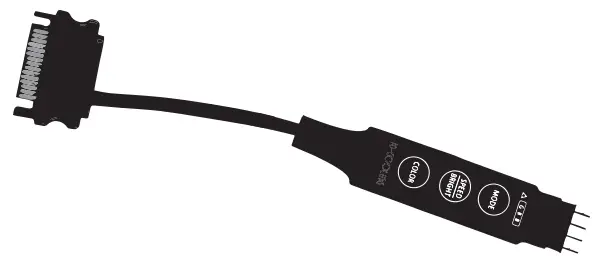

	Press this button to switch the fan into dynamic modes: Blinking mode (on/o ): 7 di erent colors in turn -> one of these colors Changing mode: 7 colors in trun -> 7 colors in turn backward -> RGB in turn Breathing mode: 7 colors in trun -> 7 colors in trun backward -> RGB in turn
	Press this button to switch the fan int xed single color mode: There’re up to 20 di erent colors for choice including green, blue, red, orange, purple, white, etc.
	1) In dynamic mode, this button will change the color switching speed; 2) In static mode, this button will control the brightness of the lighting; 3) Long press this button trt press to turn on the lighting.

If you have questions,

1. Please ask for professional help if you don’t know how to install.
2. Make sure you’re working on a Power-Off PC.
3. If you have any doubt about components list or product itself, please contact your original reseller/retailer.
4. Xilence is always ready to offer our support. You can see below contact information.
5. Descriptions are for your reference. Different models may vary in terms of components list.

XILENCE GmbH
Lavesstraße 4
31137 Hildesheim
Germany
www.xilence.net
[email protected]
