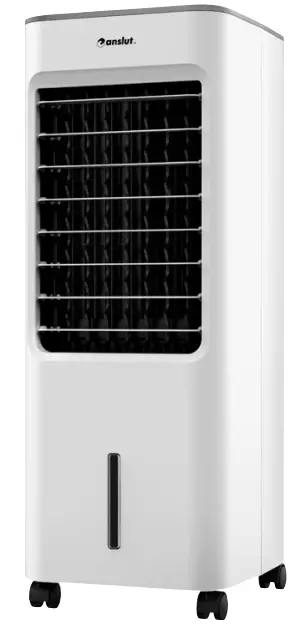

Anslut 013880 Air Cooler Instruction Manual

013880 Air Cooler
Instruction Manual

AIR COOLER

OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions).
Care for the environment! Recycle discarded products in accordance with local regulations.
Jula reserves the right to make changes. For the latest version of operating instructions, see www.jula.com

JULA AB, BOX 363, SE-532 24 SKARA
2022-04-11
©Jula AB

SAFETY INSTRUCTIONS

• For indoor use.
• Unpack the product and check that no parts are missing or damaged.
• This product can be used by children from eight years and upwards and by persons with physical, sensorial or mental disabilities, or persons who lack experience or knowledge if they are supervised or receive instructions concerning the safe use of the product and understand the risks involved with its use. Do not allow children to play with the product.
• Keep the packaging material out of the reach of children and pets — the risk of suffocation
• The product is intended for indoor ventilation. Do not use the product for any other purpose than the one it is intended to be used for
• Do not use the product in a bathroom.
• Never poke any objects into the grille in the product.
• Do not touch the product with wet hands.
• Do not carry or pull the product by the power cord. Do not pull the power cord to pull out the plug.
• Switch off the product, pull out the plug and wait until all moving parts have completely stopped before cleaning and/or maintenance.
• Repairs must only be carried out by an authorized service center.

SYMBOLS

	Safety class II.
	Approved in accordance with the relevant directives.
	Recycle end-of-life products in accordance with local regulations.

TECHNICAL DATA

DESCRIPTION

1. Control panel
2. Filter panel
3. Cover for water reservoir
4. Water container
5. Ice packs
6. Link wheel FIG. 1

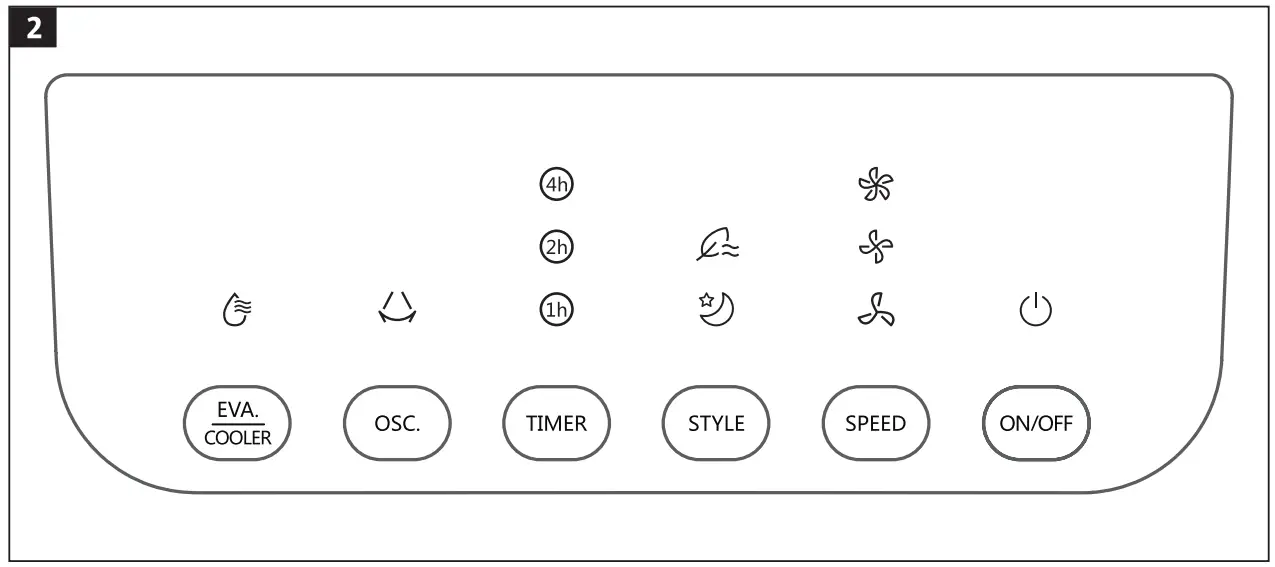

CONTROL PANEL

SPEED
Press the SPEED button to select the speed and airflow (3 modes)
STYLE
Press the STYLE button to switch between normal function and night mode.

• Symbol MOON =15 min on medium -> rest of the time on low.
• Symbol LEAF = sequence. Three sequences depending on the speed.

TIMER
Press TIMER when the fan is running to set automatic switching off from 1 to 7 hours or, when the fan is in standby, to automatically start in 1 to 7 hours.
EVA/COOLER
Press the level control button EVA/COOLER to check the water level — if the status light stays on there is enough water, if the status light flashes immediately add water. FIG.2

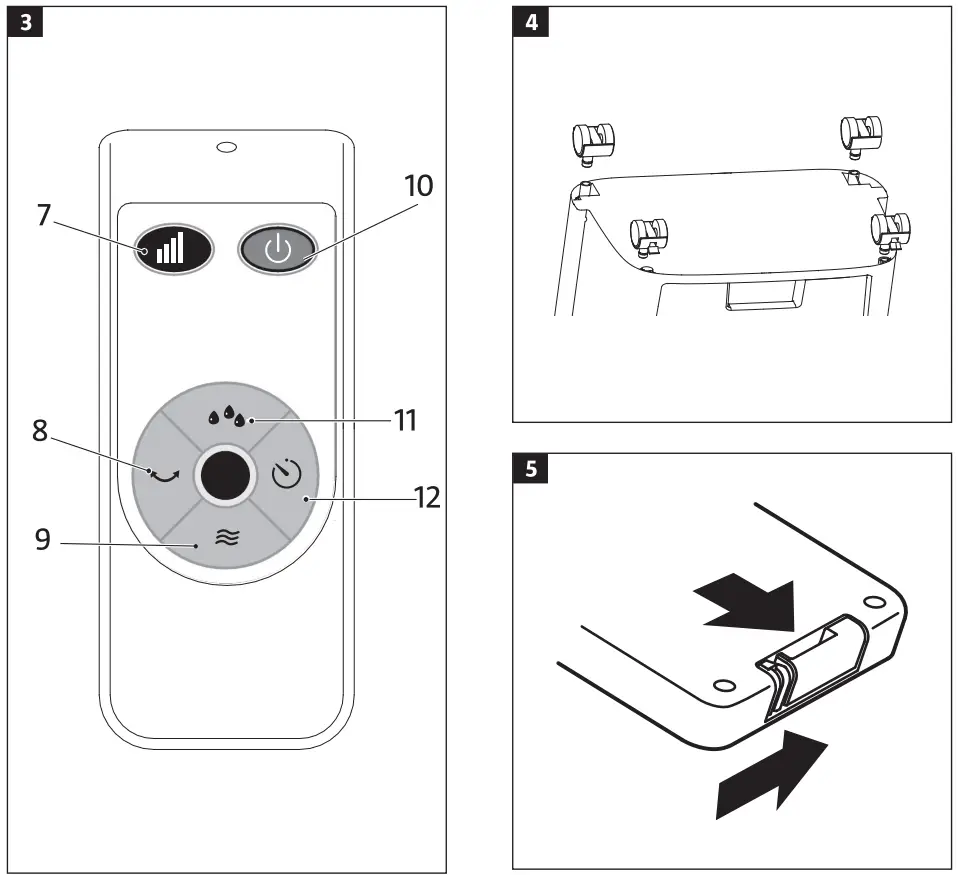

REMOTE CONTROL
7 Airspeed
8. Oscillation
9. Airflow
10. ON/OFF
11. Humidification/cold air
12. Timer FIG. 3

ASSEMBLY

WHEEL
Fit the wheels in the holes in the bottom of the air cooler. FIG. 4
BATTERY
The remote control needs a battery to work. The remote control can be used at a range of up to five meters when pointed at the product (it can normally handle a deviation of 30 degrees).

1. Open the battery cover. FIG. 5

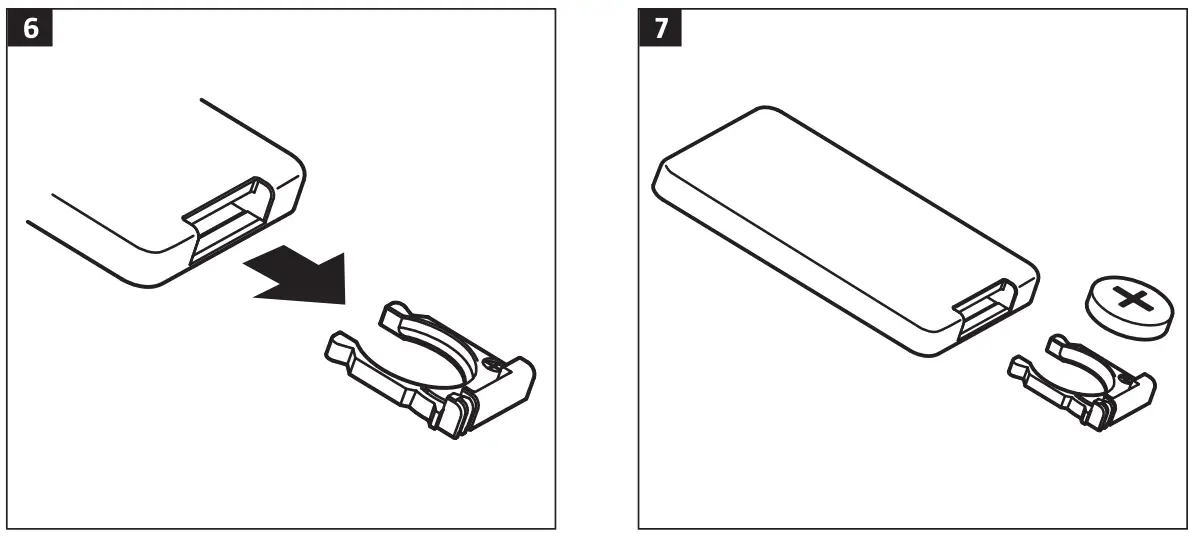

2. Take out the battery holder. FIG. 6
3. Insert the battery with the positive terminal facing up. FIG. 7
4. Push the battery holder into the remote control.

USE

1. Make sure that the ice packs are frozen.

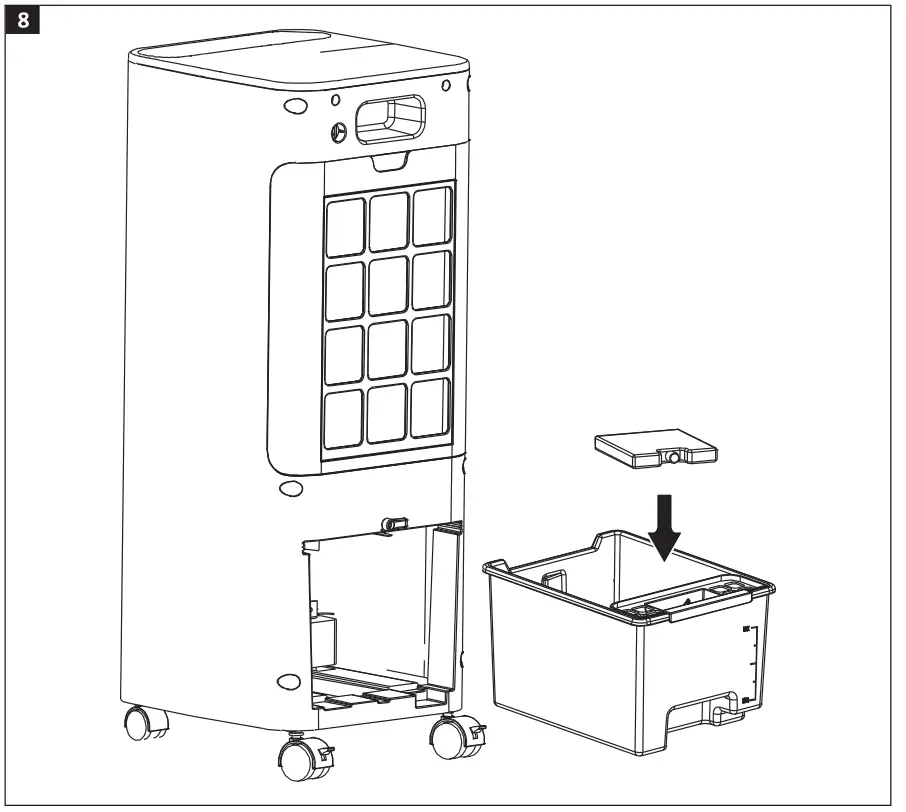

2. Put the ice packs in the water container together with water. FIG. 8
3. Plug the plug on the ice cooler into a powerpoint.
4. Select the required setting with the control panel or remote control.

MAINTENANCE

NOTE:
Switch off the product and pull out the plug before cleaning. The filter panel and dust filter must be cleaned at regular intervals to ensure adequate airflow. Clean the product with a cloth moistened with water and a mild detergent. Wipe with a cloth or sponge moistened with water and dry with a dry cloth.

• Do not use abrasive detergent or petrol, thinner, or other solvents that can damage the surface of the product.
• Make sure that no water or other liquid enters the motor housing or other parts of the product.
