S8 Fresair Roof Air Cooler
External Water Tank
© Fresair, LLC. | All Rights Reserved
S8 Fresair Roof Air Cooler

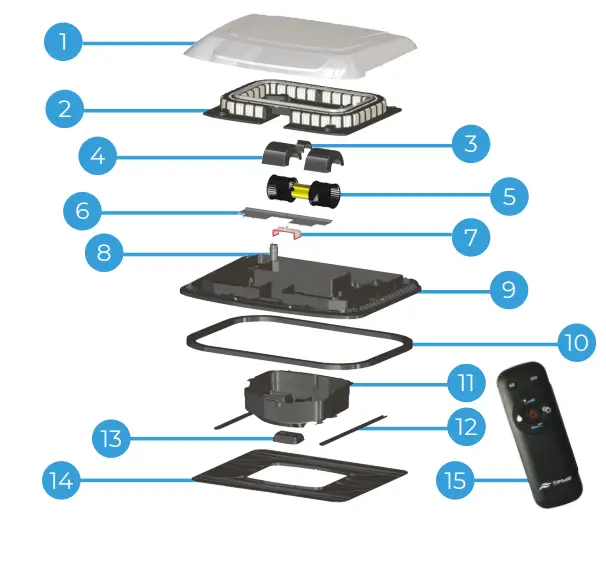

Expanded View
- Top Cover
- Cover Straw Filter
- Fan Clamp
- Fan Cover
- Motor Fan
- Tray Filter
- Pre Filter Tray
- Pump
- Universal Tray
- Sealing Profile
- Main Panel
- Mounting Bracket
- Control Panel
- Finishing Frame
- Remote Control

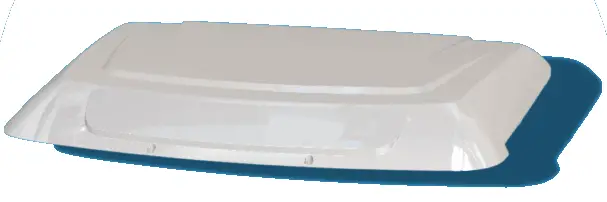

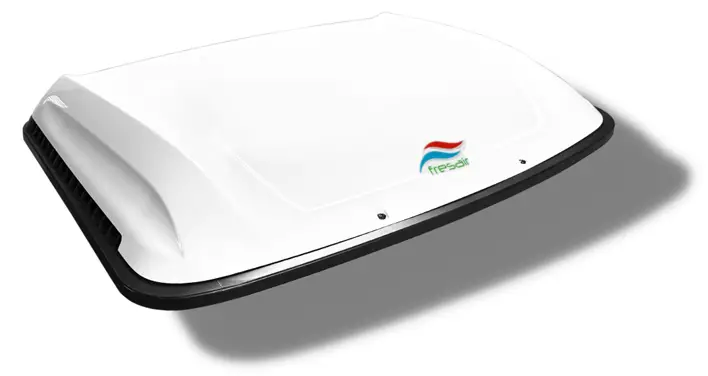

Top Cover
Material: Anti-UV ABS OR PSAI

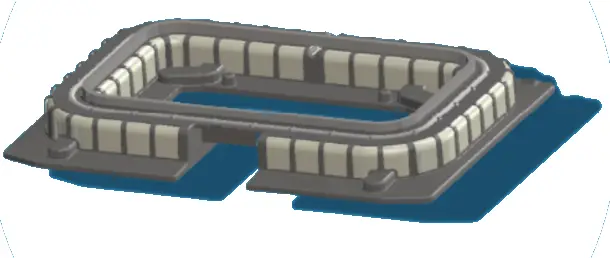

Straw Filter
- Filter Structure:
Polypropylene (PP) - Refill: Treated Wood

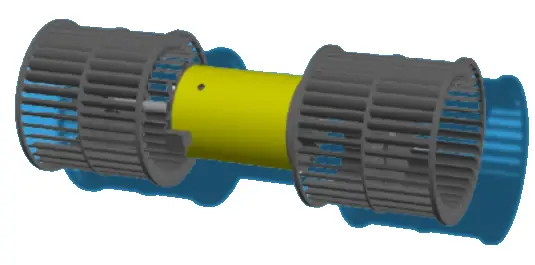

Motor Fan
- Voltage: Options 12V
- Radial Motor (Dual Turbine)
- FLow: 400m³/h

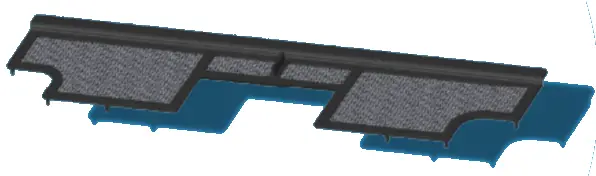

Tray Filter
- Material: PP + Filter Mat
Pre Filter Tray
- Material: ABS + TPE

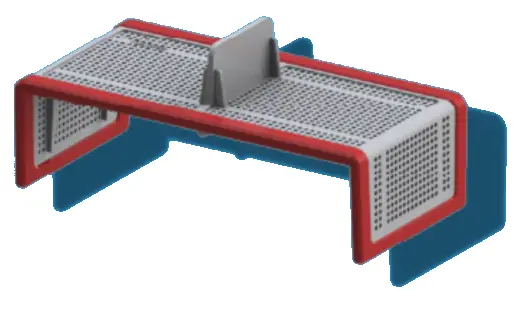

Universal Tray
- Material: PP

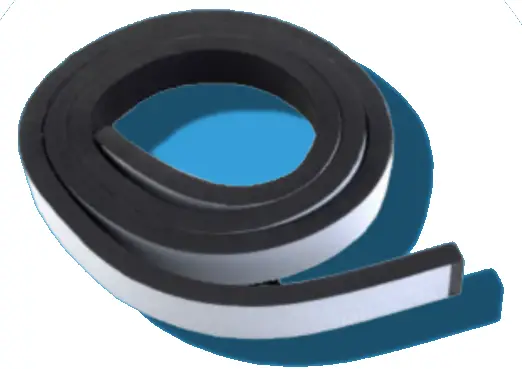

Sealing Profile
- Material: EPDM (autoadhesive) and PVC Foam

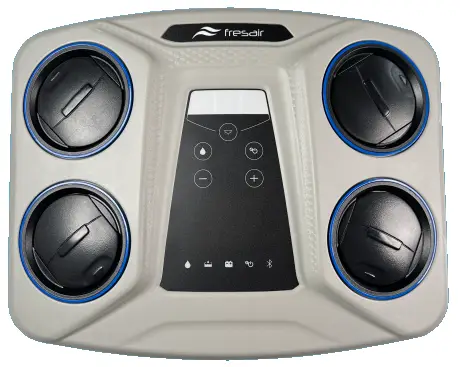

Main Panel
- Material: PS/ABS

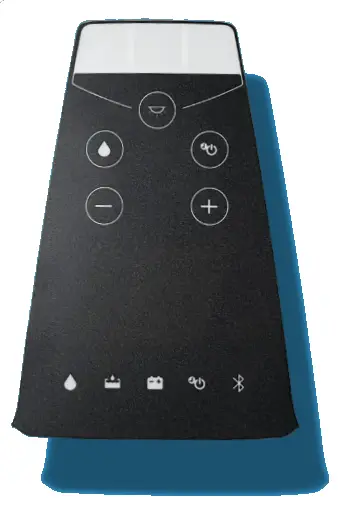

Control Panel
- Version R8

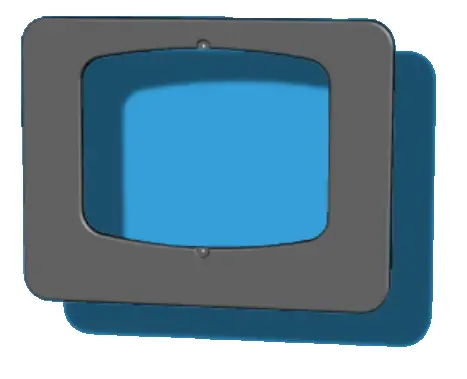

Finishing Frame
- Material: ABS

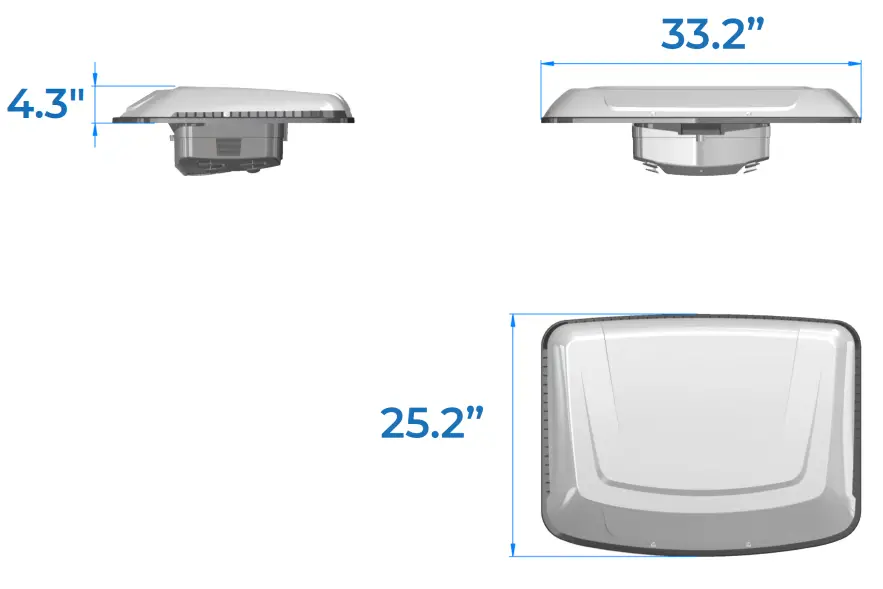

Dimensions (Inches)
Technical Specifications
- Weight: 26 lbs
- Consumption (A/h):
 | Universal Roof Air Cooler 12V |
| Minimum | 0117 A/h |
| Medium | 3,55 A/h |
| Maximum | 10,15 A/h |
- Autonomy: 100-1000 ml/h depending on the external temperature and humidity.
