Cyberview Rp-f617 6u Rackmount Display Panel User Manual

CYBERVIEW RP-F617 6U Rackmount Display Panel

Legal Information
First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

Safety Instructions

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

• Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
• Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with temperatures not exceeding 40º Celsius (104º Fahrenheit).
• When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing damage to other equipment or injury to persons nearby.
• When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the power supply. Proper air convection is necessary to keep it from overheating.
• Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
• If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed on the equipment’s ratings label.
• Observe all precautions and warnings attached to the equipment.
• If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being damaged by transient over-voltage.
• Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power supply or on other hardware may cause damage, fire or electrical shock.
• Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and invalidate its warranty.
• If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.

What the warranty does not cover

• Any product, on which the serial number has been defaced, modified or removed.
• Damage, deterioration or malfunction resulting from:
  • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
  • Repair or attempted repair by anyone not authorized by us.
  • Any damage of the product due to shipment.
  • Removal or installation of the product.
  • Causes external to the product, such as electric power fluctuation or failure.
  • Use of supplies or parts not meeting our specifications.
  • Normal wear and tear.
  • Any other causes which does not relate to a product defect.
• Removal, installation, and set-up service charges.

Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Re-position or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Before Installation

• It is very important to mount the equipment in a suitable cabinet or on a stable surface.
• Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration.

Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are included and in good condition. If anything is missing, or damaged, contact the supplier immediately.

How To Clean Your LCD Monitor

Caution:

• To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or plugging your monitor into an electrical outlet.
• When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can scratch or damage your display. Pressure damage is not covered under warranty.
• Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to clean monitors and monitor screens can scratch the LCD display or strip off the finish.
• Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly onto the screen or case can cause damage which is not covered under warranty.
• Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based paper product such as paper towels can scratch your LCD screen.

Cleaning Your Monitor

To clean your LCD safely, please follow these steps :

1. Disconnect the power cord.
2. Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.

Cleaning Tough Marks and Smudges

To remove tough marks and smudges, please follow these steps:

1. Disconnect the power cord.
2. Spray a small amount of non-abrasive cleanser on a microfiber cloth.
   Caution: Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your microfiber cloth first, not directly on the parts you are cleaning.
3. Gently wipe the surface. Use as little pressure as possible.
4. Wait until your monitor is completely dry before plugging it in and powering it up.

Package Content

RP-F617 unit X 1

• 6ft VGA cable X 1
• Power adapter X 1
• Power cord X 1

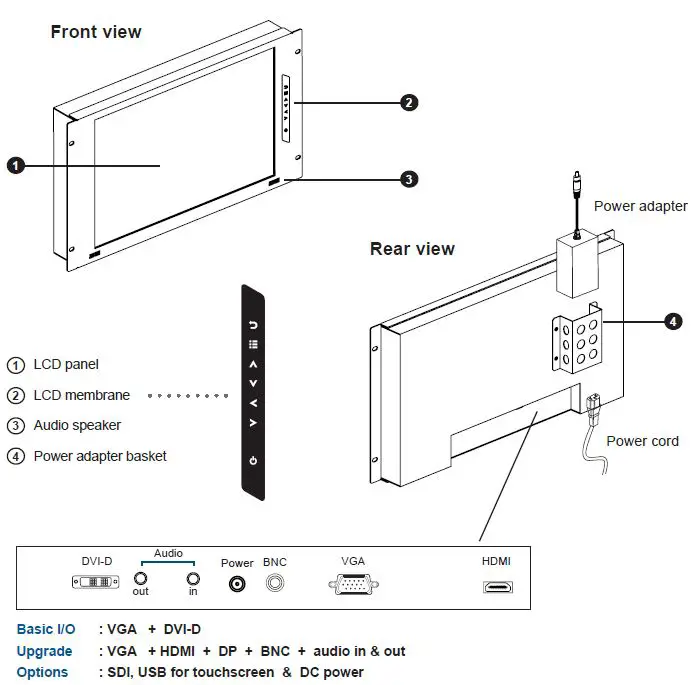

Structure Diagram

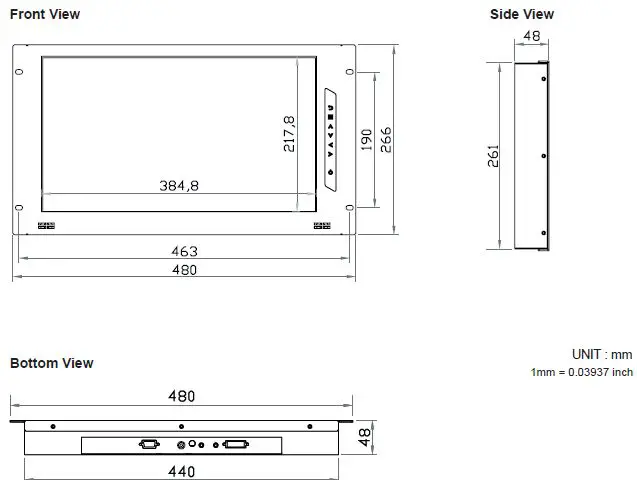

Dimension

Installation

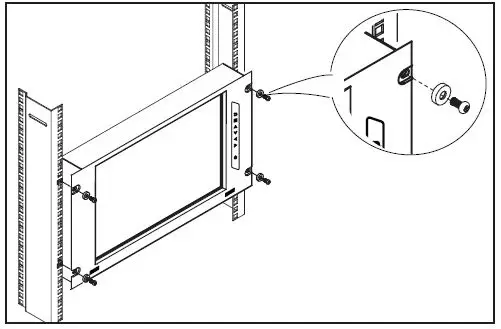

Step 1:

• Mount the display panel with M6 screw set.
• M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided.

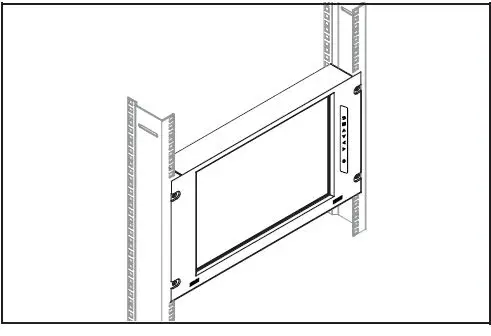

Step 2:

• Fix the LCD into the rack.

Product Specifications

When the audio output is connected, speaker output is OFF.

All dimensions stated are subject to change if options are selected/integrated to base model part.

In some circumstances, if the user connects the LCD to PC via HDMI port or video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fix the issue.

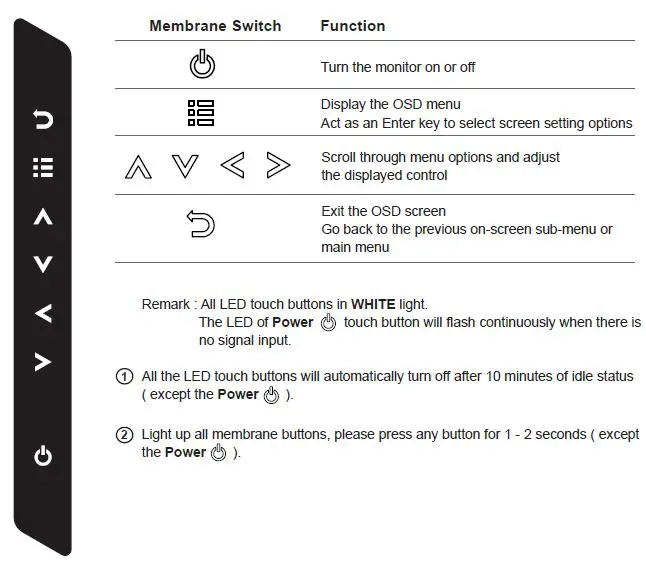

On-screen Display Operation ( OSD )

On-screen Display Operation ( OSD )

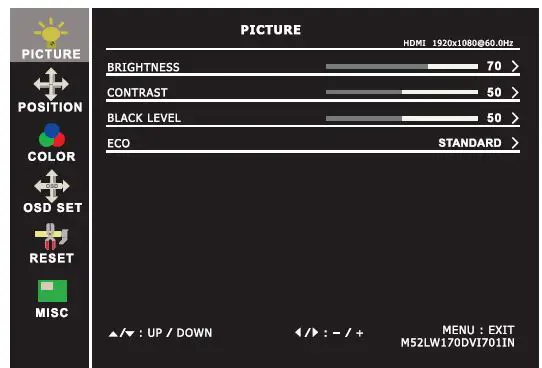

1. Picture
   Brightness: Adjust the screen brightness
   Contrast: Adjust the difference between the image background ( black level ) and the foreground ( white level )
   Black level: Adjust background black level of the screen
   Eco: Screen in power saving mode

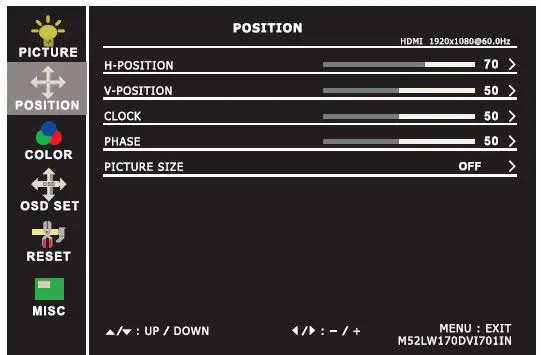

2. Position
   • H-Position: To adjust the horizontal position of the video
   • V-Position: To adjust the vertical position of the video
   • Clock: To auto adjust H. Size of the screen
   • Phase: To fine tune the screen.
   • Picture size: FULL SCREEEN / 4:3 / 5:4 / 16:10

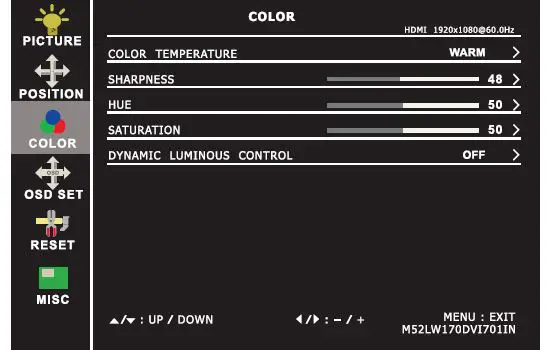

3. Color
   • Color temperature: User / Warm / Cool / 5400k mode and Red / Green / Blue color balance
   • Sharpness: Adjust the image from weak to sharp
   • Hue: Adjust the screen hue value
   • Saturation: Adjust the saturation of the image color Dynamic
   • luminous control: Control the dynamic brightness

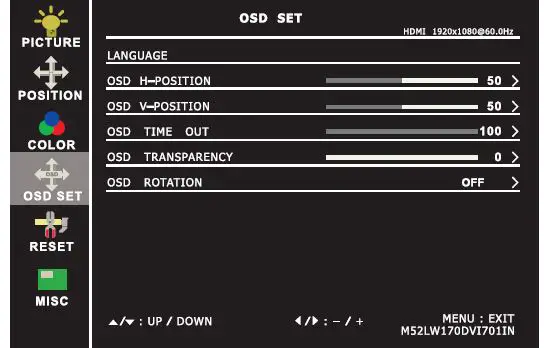

4. OSD Set
   • Language: Select the language in which the OSD menu is displayed – English
   • OSD H-Position: Align the screen image left or right
   • OSD V-Position: Align the screen image up or down
   • OSD time out: Adjust the screen timeout
   • OSD transparency: Adjust the screen transparency
   • OSD rotation: Rotate the screen – 90° / 180° / 270°

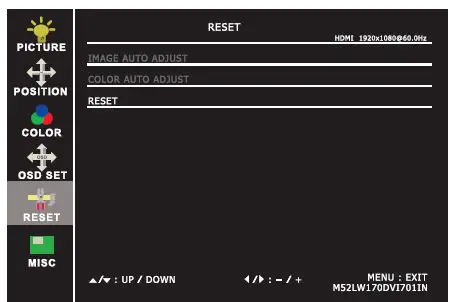

5. Reset
   Reset: Return the adjustment back to factory setting

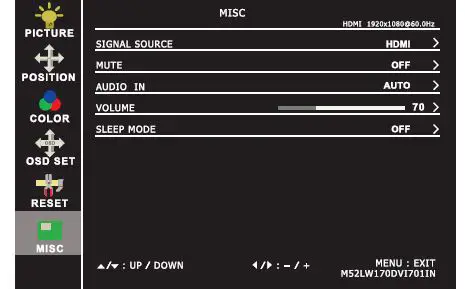

6. MISC
   • Signal source: Select the signal source – DP / HDMI1 / HDMI2
   • Mute: Turn off the surrounding sound
   • Audio in: Auto / Line in / DP
   • Volume: Adjust the volume of sound
   • Sleep mode: Set the off time – 10 min / 20 min / 30 min / 50 min / 60 min / 120 min / 240 min

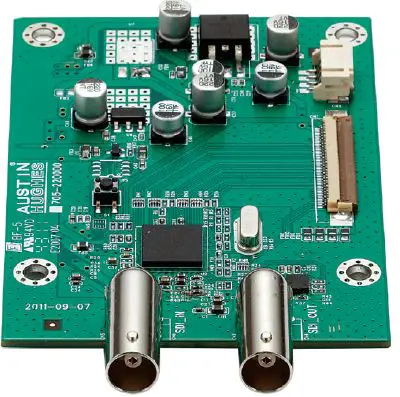

Options : 3G / HD / SD-SDI input

Austin Hughes’ SDI input is an ideal solution for the broadcastgrade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.

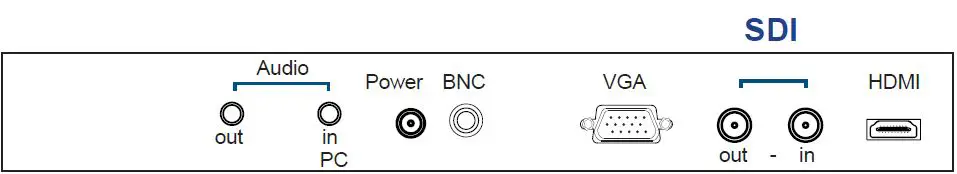

For SDI option, the AD board will be upgraded, and this comes standard with HDMI, VGA, BNC and audio inputs.

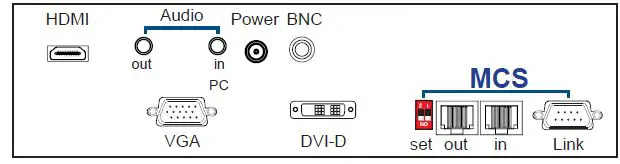

Options : MCS ( Multi-display Control )

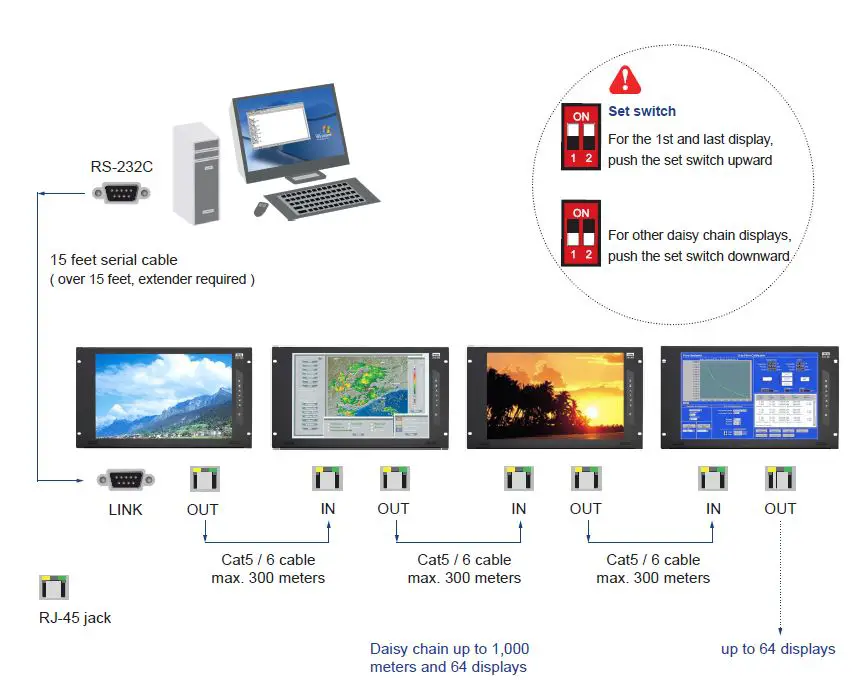

More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of various CyberView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus is used for the various LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. Designed for use with CyberView LCD displays, Austin Hughes provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty.

Please download the protocol of MCS control at : http://www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MCS.pdf

For MCS option, casing depth will be changed.

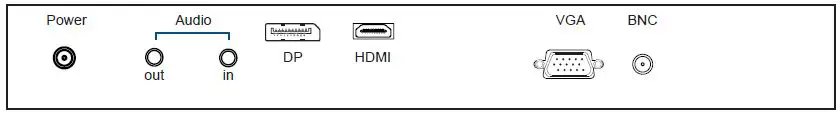

Upgrade Options:

• HDMI ( HDMI 1.4, HDCP 1.4 )
• Display Port ( DP 1.0, HCDP 1.3 )
• Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in )

In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fix the issue.

Options: Touchscreen & driver

F17″ USB Touchscreen Specification

• USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
• For detailed information, please refer to the attached CD disc
• As the touchscreen unit is not made of toughened glass, please handle it carefully.

USB Touchscreen

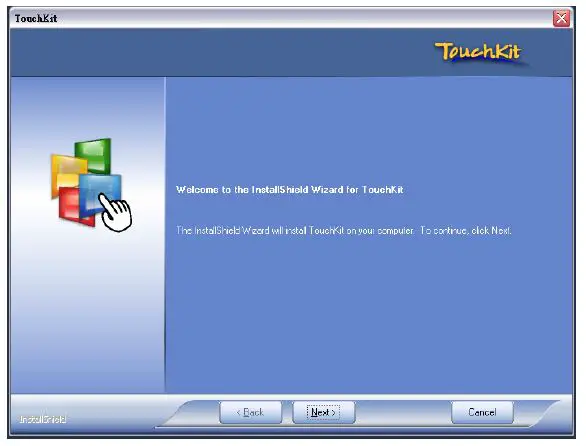

Please follow the below steps to setup the touch screen:-

Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/resources/driver/rackmount-display
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to finish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration”.
Please do the initial calibration after the first setup.

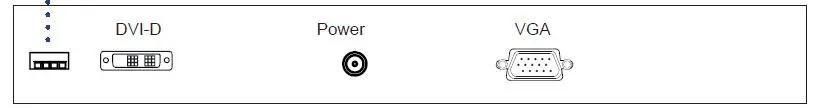

Options : DC Power

Options : MIL-type or Lockable Connector

There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design flexibility possible. For more information, please contact us.

MIL-type or Lockable connectors above can be integrated with our LCD displays. Sale service just for connectors not provided.

The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved.
