Cyberview Rp-f117 Full Hd Rack Mount Monitor Drawer User Manual

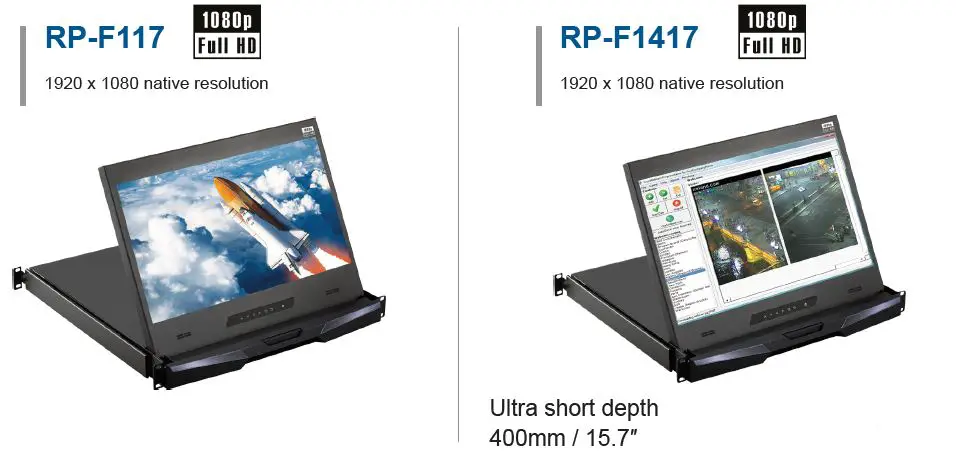

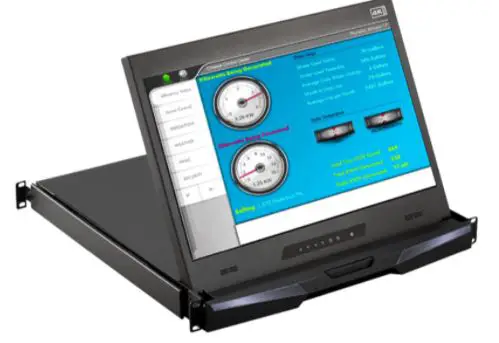

CyberView RP-F117 Full HD rack Mount Monitor Drawer

17” FHD 1080p LCD

Designed and manufactured by Austin Hughes

Legal Information

First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

Safety Instructions

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

• Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
• Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with temperatures not exceeding 40º Celsius (104º Fahrenheit).
• When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing damage to other equipment or injury to persons nearby.
• When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the power supply. Proper air convection is necessary to keep it from overheating.
• Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
• If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed on the equipment’s ratings label.
• Observe all precautions and warnings attached to the equipment.
• If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being damaged by transient over-voltage.
• Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power supply or on other hardware may cause damage, fire or electrical shock.
• Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and invalidate its warranty.
• If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.

What the warranty does not cover

• Any product, on which the serial number has been defaced, modified or removed.
• Damage, deterioration or malfunction resulting from:
  • Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
  • Repair or attempted repair by anyone not authorized by us.
  • Any damage of the product due to shipment.
  • Removal or installation of the product.
  •  Causes external to the product, such as electric power fluctuation or failure.
  • Use of supplies or parts not meeting our specifications.
  • Normal wear and tear.
  • Any other causes which does not relate to a product defect.
• Removal, installation, and set-up service charges. Regulatory Notices Federal Communications Commission (FCC)
  This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Re-position or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Before Installation

• It is very important to mount the equipment in a suitable cabinet or on a stable surface.
• Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration.

Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are included and in good condition. If anything is missing, or damaged, contact the supplier immediately.

How To Clean Your LCD Monitor

Caution:

• To9o avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or plugging your monitor into an electrical outlet.
• When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can scratch or damage your display. Pressure damage is not covered under warranty.
• Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to clean monitors and monitor screens can scratch the LCD display or strip off the finish.
• Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly onto the screen or case can cause damage which is not covered under warranty.
• Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based paper product such as paper towels can scratch your LCD screen.

Cleaning Your Monitor
To clean your LCD safely, please follow these steps :

1. Disconnect the power cord.
2. Gently wipe the surface using a clean, dry microfiber cloth. Use as littl e pressure as possible.

Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :

1. Disconnect the power cord.
2. Spray a small amount of non-abrasive cleanser on a microfiber cloth.
   Caution: Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your microfiber cloth first, not directly on the parts you are cleaning.
3. Gently wipe the surface. Use as little pressure as possible.
4. Wait until your monitor is completely dry before plugging it in and powering it up.

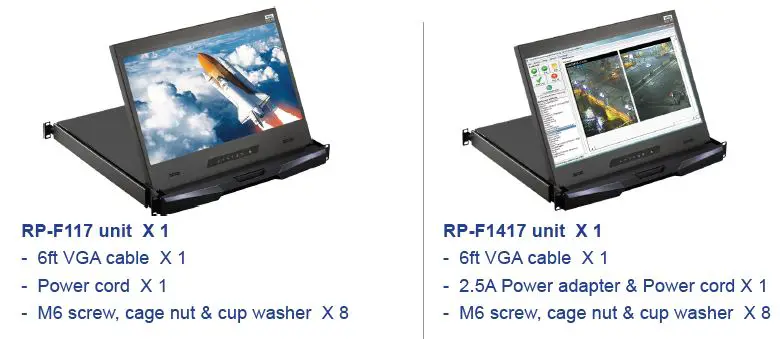

Package Content

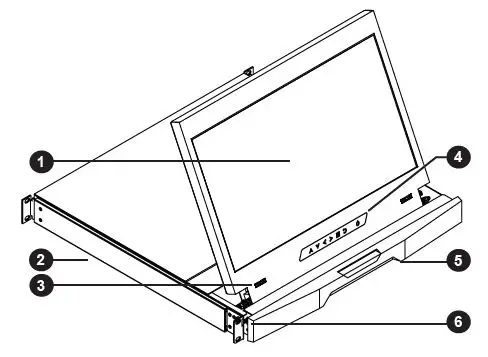

Structure Diagram

1. LCD panel
2. Installation Slide
3. Audio speaker ( for SDI or HDMI option )
4. LCD OSD membrane
5. Carry handle to release the 2-pt lock
6. 2-point lock

1. LCD panel
2. Installation Slide
3. Audio speaker ( for SDI or HDMI option )
4. LCD OSD membrane
5. Carry handle to release the 2-pt lock
6. 2-point lock

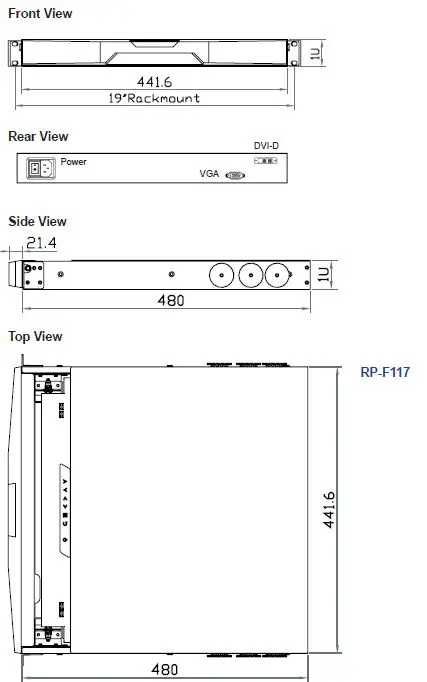

Dimension – RP-F117

The weight is only for the pure models. It varies with accessories & options such as SDI, HDMI, audio, touchscreen & DC power.

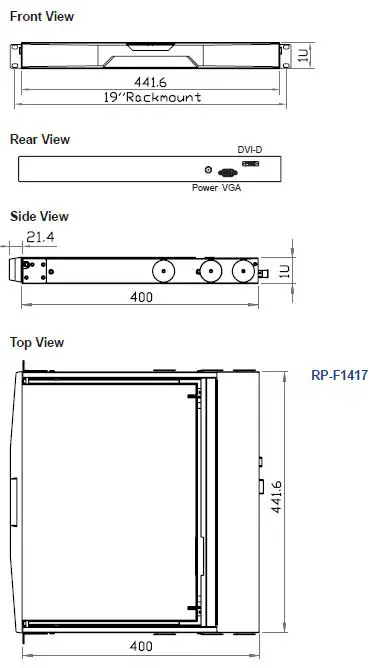

Dimension – RP-F1417

Installation – How to install

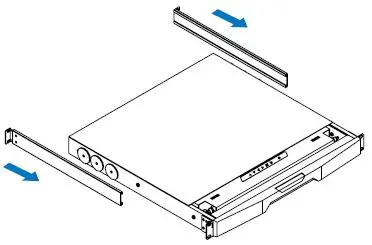

Step 1

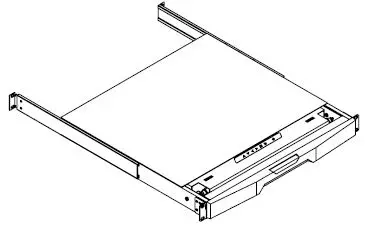

Insert the left and right rear mounting brackets into the display drawer

Step 2

• Measure the depth of the front and rear mounting rails.
• Align each rear mounting bracket to a suitable length.

Step 3

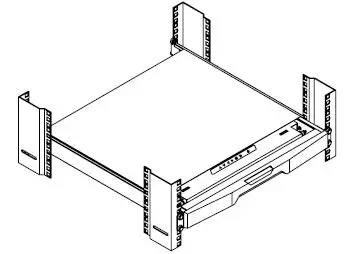

Complete the installation. Fix the display drawer into the rack.
M6 screw, cage nut & cup washer x 8 are provided.

Specifications / OSD

Product Specifications

* When the audio output is connected, speaker output is OFF.

• All dimensions stated are subject to change if options are selected / integrated to base model part codes.


  Applicable Format	DVI-D / VGA Input	PC Signal	1920 x 1080 x 60Hz
  			1680 x 1050 x 60Hz
  			1440 x 900 x 60Hz
  			1360 x 768 x 60Hz
  			1280 x 1024 x 60Hz
  			1280 x 768 x 60Hz
  			1280 x 720 x 60Hz
  			1152 x 864 x 60Hz
  			1024 x 768 x 60Hz
  			800 x 600 x 60Hz
  			640 x 480 x 60Hz
  		Audio Signal	2ch Linear PCM
  	HDMI Input	PC Signal	Same as VGA
  		HDMI 1.4	1920 x 1080 x 50 / 60Hz ( 1080p )
  			1920 x 1080 x 25 / 30Hz ( 1080i )
  			1280 x 720 x 50 / 60Hz ( 720p )
  			720 x 480 x 50 / 60Hz ( 576p / 480p )
  		Audio Signal	2ch Linear PCM
  	Display port Input	PC Signal	1920 x 1080 x 60Hz
  			1680 x 1050 x 60Hz
  			1440 x 900 x 60Hz
  			1360 x 768 x 60Hz
  			1280 x 1024 x 60Hz
  			1280 x 768 x 60Hz
  			1280 x 720 x 60Hz
  			1152 x 864 x 60Hz
  			1024 x 768 x 60Hz
  			800 x 600 x 60Hz
  			640 x 480 x 60Hz
  		Audio Signal	2ch Linear PCM

  In some circumstances, if the user connects the LCD to PC via HDMI port or video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fix the issue.

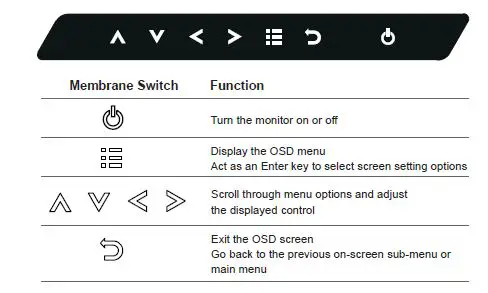

On-screen Display Operation ( OSD )

Remark: All LED touch buttons in WHITE light.
The LED of Power touch button will flash continuously when there is no signal input.

1. All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power ).
2. Light up all membrane buttons, please press any button for 1 – 2 seconds ( except the Power)

1. Picture
   • Brightness: Adjust the screen brightness
   • Contrast: Adjust the difference between the image background ( black level ) and the foreground ( white level )
   • Black level: Adjust background black level of the screen
   • Eco: Screen in power-saving mode.
2. Position
   • H-Position: To adjust the horizontal position of the video
   • V-Position: To adjust the vertical position of the video
   • Clock: To auto adjust H. Size of the screen
   • Phase: To fine tune the screen.
   • Picture size: FULL SCREEEN / 4:3 / 5:4 / 16:10

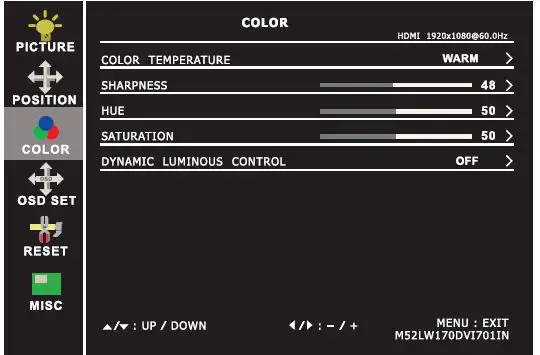

3. Color
   • Color temperature: User / Warm / Cool / 5400k mode and Red / Green / Blue color balance
   • Sharpness: Adjust the image from weak to sharp
   • Hue: Adjust the screen hue value
   • Saturation: Adjust the saturation of the image color Dynamic
   • luminous control: Control the dynamic brightness

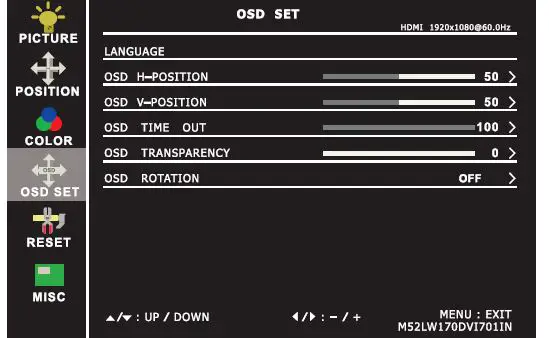

4. OSD Set
   • Language: Select the language in which the OSD menu is displayed – English
   • OSD H-Position: Align the screen image left or right
   • OSD V-Position: Align the screen image up or down
   • OSD time out: Adjust the screen timeout
   • OSD transparency: Adjust the screen transparency
   • OSD rotation: Rotate the screen – 90° / 180° / 270°

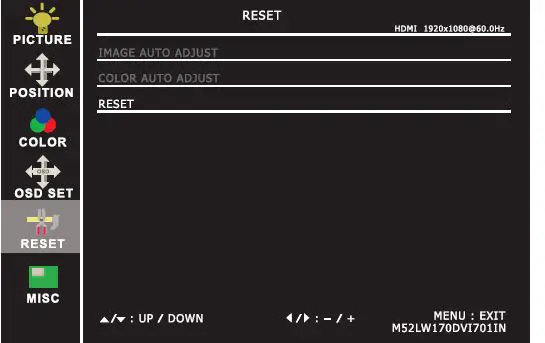

5. Reset
   • Reset: Return the adjustment back to factory setting.

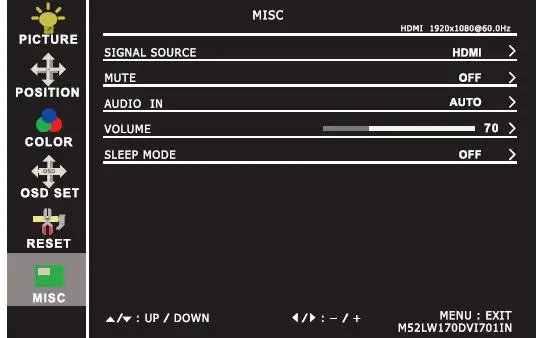

6. MISC
   • Signal source: Select the signal source – DP / HDMI1 / HDMI2
   • Mute: Turn off the surrounding sound
   • Audio in: Auto / Line in / DP
   • Volume: Adjust the volume of sound
   • Sleep mode: Set the off time – 10 min / 20 min / 30 min / 50 min / 60 min / 120 min / 240 min

Options

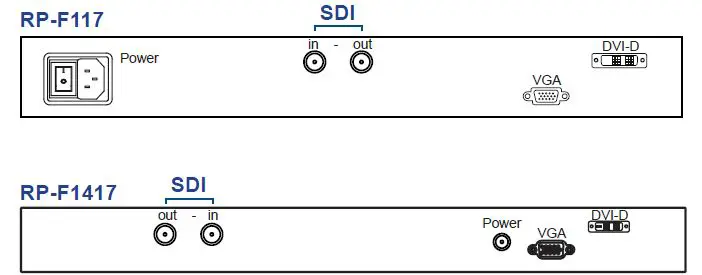

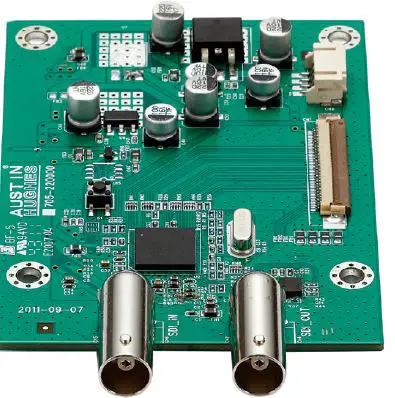

Options : 3G / HD / SD-SDI input

Austin Hughes’ SDI input is an ideal solution for the broadcast grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.

DP Option

Display Port ( DP 1.0, HDCP 1.3 )

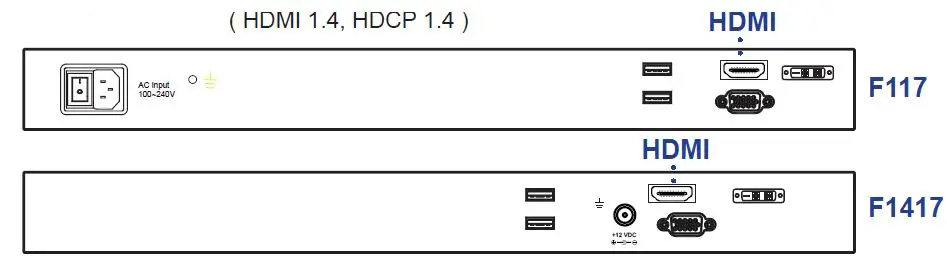

HDMI Option – HDMI

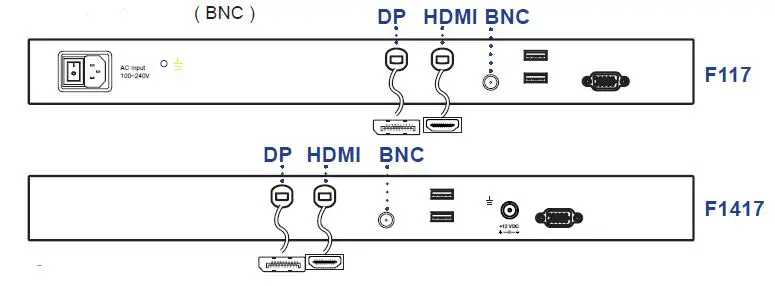

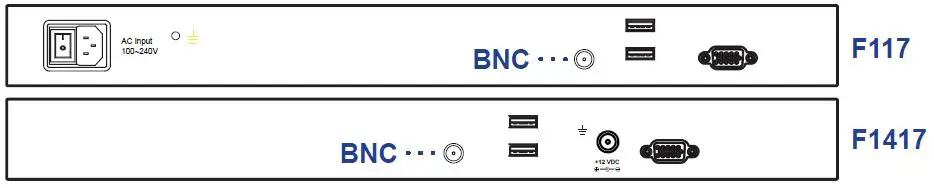

BNC Option – Composite

AV4.4 Option

• Display Port ( DP 1.0, HDCP 1.3 )
• HDMI ( HDMI 1.4, HDCP 1.4 )
• Composite ( BNC )

1. In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fix the issue.

Options : Touchscreen & driver

F17″ USB Touchscreen Specification

• RP-F117 Dimension will be changed if touchscreen required
• USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
• For detailed information, please refer to the attached CD disc
• As the touchscreen unit is not made of toughened glass, please handle it carefully.

Options : Touchscreen & driver

TRB Driver

Please follow the below steps to setup the touch screen:-

Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/resources/driver/rackmount-display
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to finish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration.

Please do the initial calibration after the first setup.

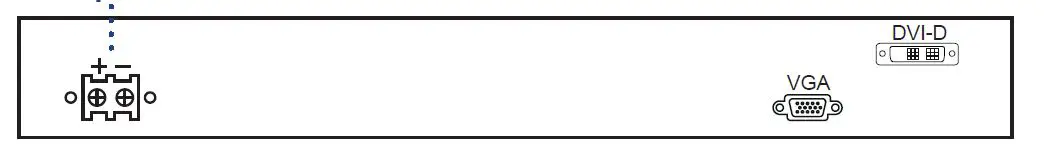

Options : DC Power

DC power

For DC power option:

1. If the unit with LCD, earthing may be required.
2. DC option excludes AC power adapter and power cord.
3. RP-F117 Dimension will be changed if DC power required.

RP-F1417 Options : ORB-2.1 2-Post Rack Mounting Brackets

Step 1:

• Before apply 2-post rack brackets, please release front mounting ears and rear mounting wheels.
• Attach left and right mounting brackets to the drawer with the screws below :
  6#32*3.5 mm screw x 8 ( only for front )
  6#32*4.5 mm screw x 6 ( only for rear )

Step 2:

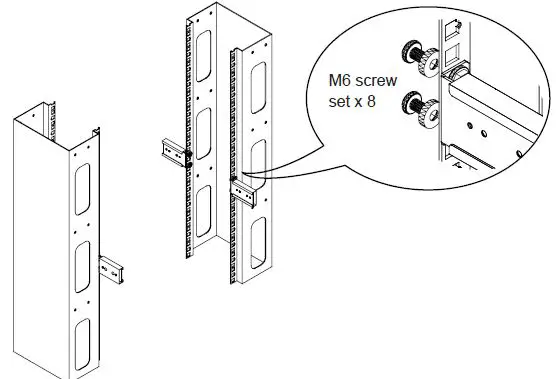

• Attach the set of 4 mini brackets to the 2-post rack.
• M6 screw set is not provided/

Step 3:

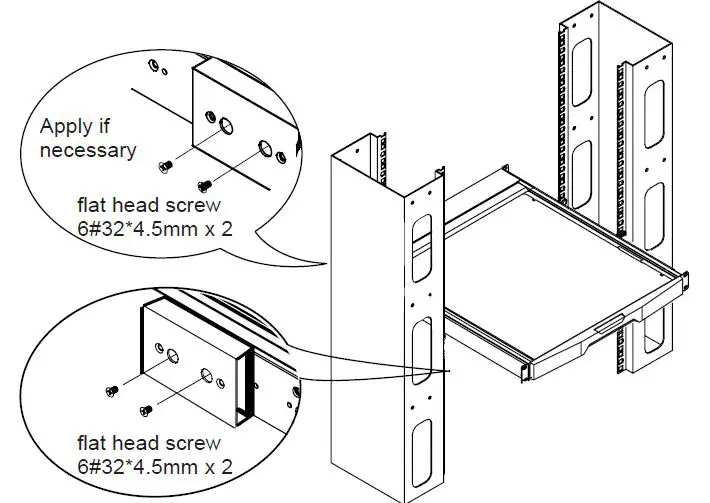

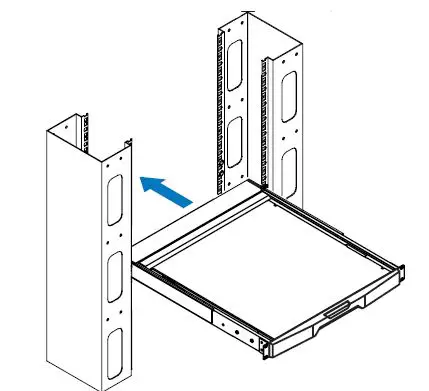

• Insert the drawer into the mini brackets.

Step 4:

• Fix the LCD console drawer to the mini brackets with 6#32*4.5 mm screw x 8.
• Installation completed

This step is necessary for front. Failure to complete this will cause damage.

The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved.
