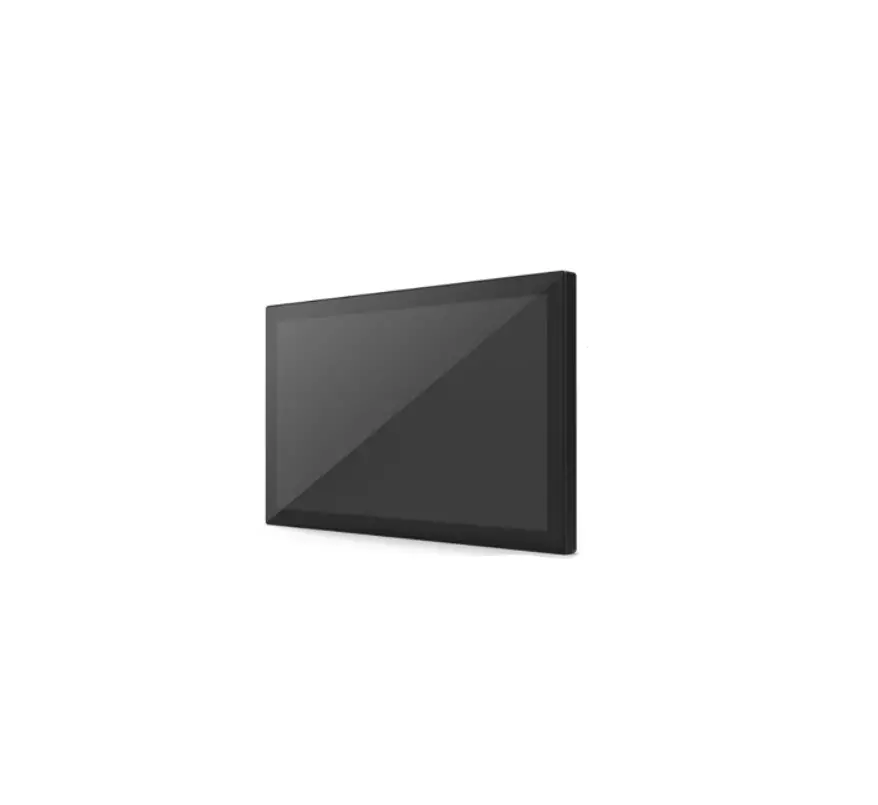

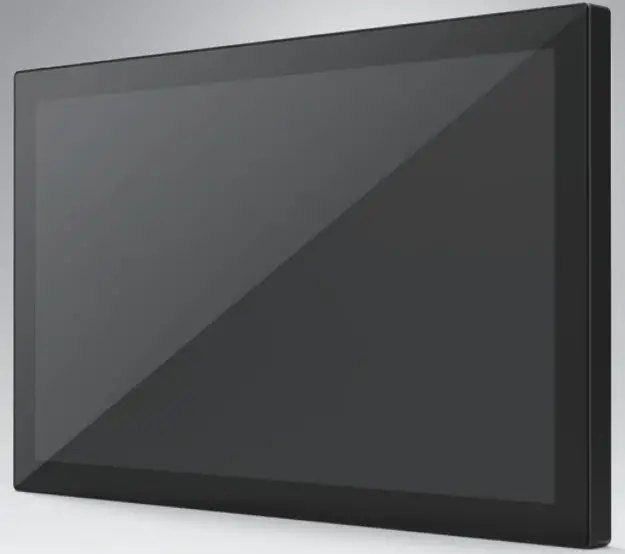

VUE-2156 Series
15.6″ Panel Mount Monitor
Features
- 15.6″ active screen size
- 6-axis color adjustment (Green/Red/Blue/Cyan/Magenta/Yellow) for high level and more accuracy customized image
- Full-flat cover glass for extremely simple and elegant surface design
- Anti-glare (AG) treatment on screen for a comfortable viewing experience
- Built-in multiple I/O interfaces for diverse media connectivity
- Adopts industrial-grade components for guaranteed performance
- Mount with multi-way and easy to extend peripheral devices (box PC/camera…)
- Front IP65 water-proof rating and IK08 high-level impact protection
(for PCAP touch model) - Support 10-point touch function (PCAP technology)
- Excellent noise immunity well-suited for rugged applications (CS 10V)
- Support many touch methods including fingers, glove, and stylus
Specifications
| Model | PCAP touch | I None touch | |||
| Brand | Advantech | ||||
| Display | Active Screen Size | 15.6 inch | |||
| Resolution | 1920 x 1080 (FHD) | ||||
| Brightness | 450 nits | ||||
| Contrast Ratio | 800:1 (Typ.) | ||||
| Aspect Ratio | 16:09 | ||||
| Viewing Angle | 85° / 850 it 850 / 85° | ||||
| Response Time | 25 ms (Typ.) | ||||
| Backlight Life (hours) | 50.000 (Typ.) | ||||
| Touch | Touch Type | Projected Capacitive Touch (PCAP) | N/A | ||
| Touch Function | 10 points | N/A | |||
| Touch Interface | USB | WA | |||
| Connectivity | Input | Video | VGA x 1. HDMI x 1. DVI-D x 1. DisplayPort x 1 | ||
| Audio | Audio line-in x 1 | ||||
| Control | USB type x 1 (for touch function) | ||||
| Others | USB3.0 x 2 | ||||
| Output | Video | N/A | |||
| Audio | 2W+2W Internal Speaker | ||||
| Control | N/A | ||||
| Control | OSD Function | Hotkey (ON/OFF. LIFT. RIGHT, MENU, AUTO) | |||
| OSD Language | English. French. Korea. Portuguese. Russian. Simplified Chinese. Spanish. Traditional Chinese | ||||
| Power | Power Type | DC input, 19V Adaptor | |||
| Power Input | 100-240Wc. 50-60Hz. 1.5A | ||||
| Power Consumption | 24W | ||||
| Environment | Operating | Temperature | 0°C- +40°C | ||
| Humidity | 10% to 85% (non-condensing) | ||||
| Storage | Temperature | -20°C- +60°C | |||
| Humidity | 5% to 80% (non-condensing) | ||||
| Mechanical Specification | Housing Material | 1.0 mm sheet metal (Black) | |||
| VESA Compatibil it? | 100 x 100 mm | ||||
| Dimensions (Wx HxD) | Physical | 384.80 x 237.10 x 49.04 mm | |||
| Packing | 455 x 330 x 185 mm | ||||
| Weight | Net | 3.1 Kg | |||
| Gross | 4.7 Kg | ||||
| Installation | Mounting on a wall/machine | 100 x 100 mm. VESA grid | |||
| Mounting withstand/arm | 100 x 100 mm. VESA grid | ||||
| Mounting through bracket | 64 mm. Side mount screw hole | ||||
| Approbation | Certificates | CB. UL. BSMI. CCC. CE. UKCA. FCC. CEC. ERP lot5 | |||
| Warranty | 2-year (1-year for the panel) | ||||

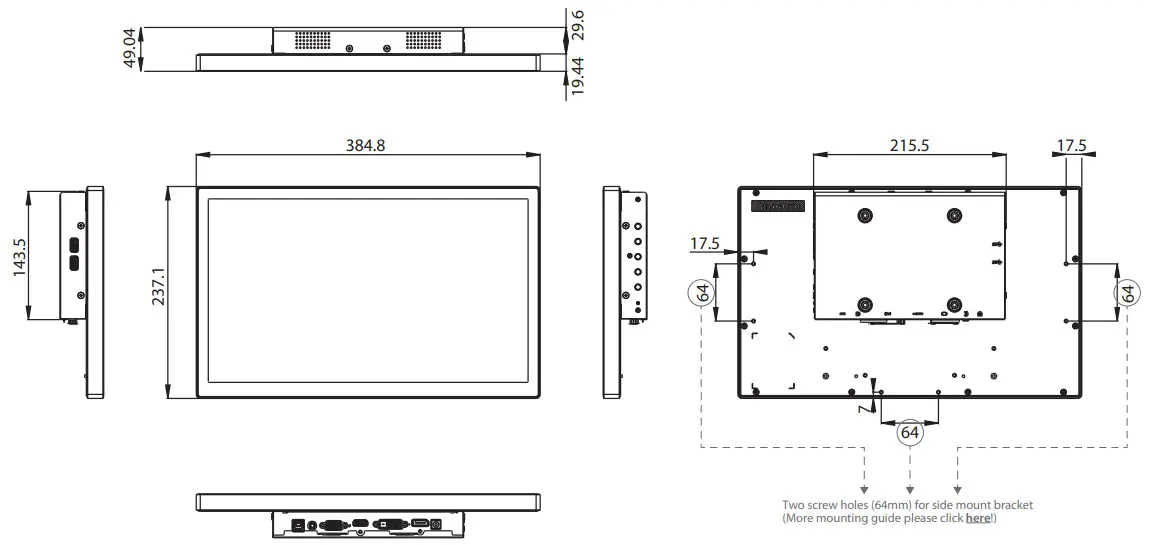

Dimensions
Ordering Information
| Part Number | Description | Packing List | |
| PCAP touch model | None touch model | ||
| VUE-2156-FD45PA-N4 | VUE-2156-FD45MA-N4 | Advantech 15.6′ Full HD Panel Mount Monitor (incl. Japan, Korea, Australia, and Middle East Power Cord) |
|
| VUE-2156-FD45PC-N4 | VUE-2156-FD45MC-N4 | Advantech 15.6′ Full HD Panel Mount Monitor (incl. China Power Cord) | |
| VUE-2156-FD45PX-N4 | VUE-2156-FD45MX-N4 | Advantech 15.6′ Full HD Panel Mount Monitor (incl. Europe, Taiwan, UK, and US Power Cord) | |
Optional Accessories
| Part Number | Description |
| 960T-A15DEE-B0 | Active Stylus Pen for VUE-2000 series, Black |
| 960T-SD-10H10-L | Desktop Stand for VUE-2000, VESA100x100, Large, support up to 7kg |
| 960T-BT-V2K156 | VUE-2156 Bracket kit |
Online Download
All product specifications are subject to change without notice.
Last updated: 13-Apr-2021
