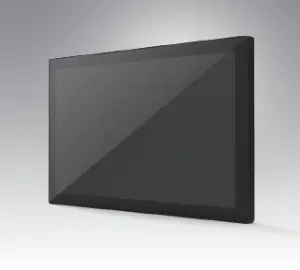

advantech VUE-2156 Series Panel Mount Monitor Specifications
Features
- 15.6″ active screen size
- 6-axis color adjustment (Green/Red/Blue/Cyan/Magenta/Yellow) for high level and more accuracy customized image
- Full-flat cover glass for extremely simple and elegant surface design
- Anti-glare (AG) treatment on screen for comfortable viewing experience
- Built-in multiple I/O interfaces for diverse media connectivity
- Adopts industrial-grade components for guaranteed performance
- Mount with multi-way and easy to extend peripheral devices (box PC/camera…)
- Front IP65 water-proof rating and IK08 high-level impact protection (for PCAP touch model)
- Support 10-point touch function (PCAP technology)
- Excellent noise immunity well-suited for rugged applications (CS 10V)
- Support many touch method including fingers, glove, and stylus
Specifications
Model | PCAP touch | None touch | ||
Brand | Advantech | |||
Display | Active Screen Size | 15.6 inch | ||
| Resolution | 1920 x 1080 (FHD) | |||
| Brightness | 450 nits | |||
| Contrast Ratio | 800:1 (Typ.) | |||
| Aspect Ratio | 16:9 | |||
| Viewing Angle | 85° / 85° / 85° / 85° | |||
| Response Time | 25 ms (Typ.) | |||
| Backlight Life (hours) | 50,000 (Typ.) | |||
Touch | Touch Type | Projected Capacitive Touch (PCAP) | N/A | |
| Touch Function | 10 points | N/A | ||
| Touch Interface | USB | N/A | ||
Connectivity | Video Input | VGA x 1, HDMI x 1, DVI-D x 1, DisplayPort x 1 | ||
| Audio Input | Audio line x 1 | |||
| Other Slot/Ports | USB3.0 x 2 | |||
Control | OSD Function | Hot key (ON/OFF, LIFT, RIGHT, MENU, AUTO) | ||
| OSD Language | English, French, Korea, Portuguese, Russian, Simplified Chinese, Spanish, Traditional Chinese | |||
| Power | Power Type | DC input, 19V Adaptor | ||
| Power Input | 100-240VAC, 50-60Hz, 1.5A | |||
| Power Consumption | 24W | |||
| Environment | Operating | Temperature | 0°C- +40°C | |
| Humidity | 10% to 85% (non-condensing) | |||
| Storage | Temperature | -20°C- +60°C | ||
| Humidity | 5% to 80% (non-condensing) | |||
| Mechanical Specification | Housing Material | 1.0 mm sheet metal (Black) | ||
| VESA Compatibility | 100 x 100 mm | |||
| Dimensions (W x H x D) | Physical | 384.80 x 237.10 x 49.04 mm | ||
| Packing | 455 x 330 x 185 mm | |||
| Weight | Net | 3.1 Kg | ||
| Gross | 4.7 Kg | |||
| Installation | Mounting on a wall/machine | 100 x 100 mm, VESA grid | ||
| Mounting with stand/arm | 100 x 100 mm, VESA grid | |||
| Mounting through bracket | 64 mm, Side mount screw hole | |||
| Extending PC/camera/peripherals | 64 mm, Side mount screw hole | |||
| Approbation | Certificates | BSMI, CB, CCC, CE, CEC, FCC | ||
| Warranty | 2-year (1-year for panel) | |||

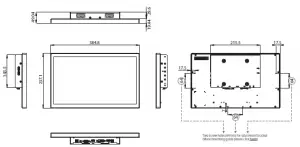

Dimensions
Ordering Information
| Part Number | Description | Packing List | |
| PCAP touch model | None touch model | ||
| VUE-2156- FD45PA-N4 | VUE-2156-FD45MA N4 | Advantech 15.6″ Full HD Panel Mount Monitor (incl. Japan, Korea, Australia, and Middle East Power Cord) |
|
| VUE-2156- FD45PC-N4 | VUE-2156-FD45MC- N4 | Advantech 15.6″ Full HD Panel Mount Monitor (incl. China Power Cord) | |
| VUE-2156- FD45PX-N4 | VUE-2156-FD45MX- N4 | Advantech 15.6″ Full HD Panel Mount Monitor (incl. Europe, Taiwan, UK and US Power Cord) | |
Optional Accessories
Part Number | Description |
| 96OT-A15DEE-B0 | Active Stylus Pen for VUE-2000 series, Black |
| 96OT-CM-V2K238 | Cable management kit for VUE-2156 and VUE-2238 |
| 96OT-BT-V2K156 | VUE-2156 Bracket kit |
