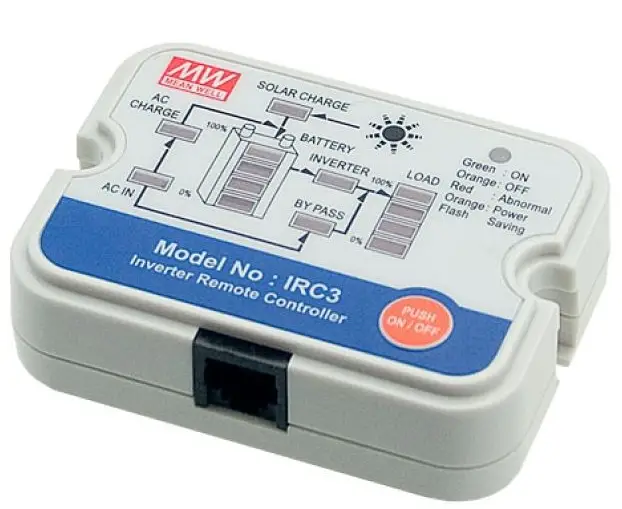

MEAN WELL IRC3 Power Inverter Remote Control
Features
- Wall-mount and control panel are acceptable
- Built-in ON/OFF button
- Digital meters for battery level, output load level, and operating status on the remote control panel
- LED indicators for remote ON/OFF, abnormal and power-saving mode
- Remote panel with 10FT cable length, optional for 25FT or 50FT
- Connect directly to the remote socket of the inverter, no power supply is needed 3 years warranty
- Description: IRC1/IRC2/|RC3 is the monitoring and control unit used for the inverter series. It can decode the RS-232 signal sent by the inverter series and display it through digital meters. IRC1 / IRC2/ IROc3 can also turn the ON/OFF of the inverter remotely which makes the basic control more easily.
SPECIFICATION
| MODEL | IRC1 | IRC2 | IRC3 | |
| OUTPUT | DIGITAL METER | —– | Display the battery level, output load level, and operating status of inverter unit | |
| CONTROL OUTPUT | Remote ON/OFF for inverter unit | |||
| LED INDICATOR | Remote turn ON(Green) ; Remote turn Off(Orange) ; Abnormal (Red) ; Saving mode (Orange flash) | |||
|
FUNCTION | REMOTE ON/OFF CONTROL | The controlled inverter unit can be turned ON/OFF on the remote control panel for IRC1 / IRC2 / IRC3 | ||
| POWER SAVING CONTROL | Power saving enable / disable activation | |||
|
SUITABLE SERIES | TS-700 / 1000 / 1500 / 3000 TN-1500 / 3000 NTS-750 / 1200 / 1700 / 2200 / 3200 NTU-1200 / 1700 / 2200 / 3200 | TS-700 / 1000 / 1500 / 3000 NTS-750 / 1200 / 1700 / 2200 / 3200 NTU-1200 / 1700 / 2200 / 3200 | TN-1500 / 3000 NTS-750 / 1200 / 1700 / 2200 / 3200 NTU-1200 / 1700 / 2200 / 3200 | |
|
ENVIRONMENT | WORKING TEMP. | -20 ~ +50℃ | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| EMC | EMC EMISSION | Compliance to BS EN/EN55032 class A, BS EN/EN61000-3-2,3, FCC PART 15 class A | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8 | |||
| OTHERS | DIMENSION | 75*55*21mm (L*W*H) | ||
| PACKING | 0.26Kg; 24pcs/7.3Kg/1.75CUFT | |||
| NOTE | 1. The remote control can not re-power for the inverter at abnormal status. 2. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitudes higher than 2000m(6500ft). | |||
