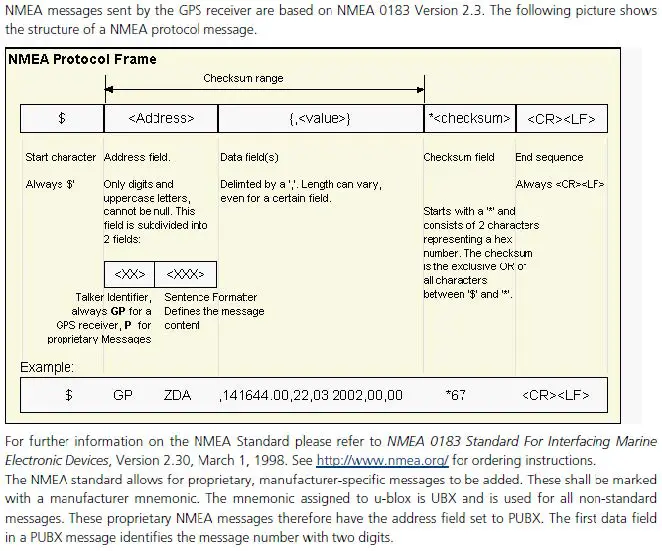

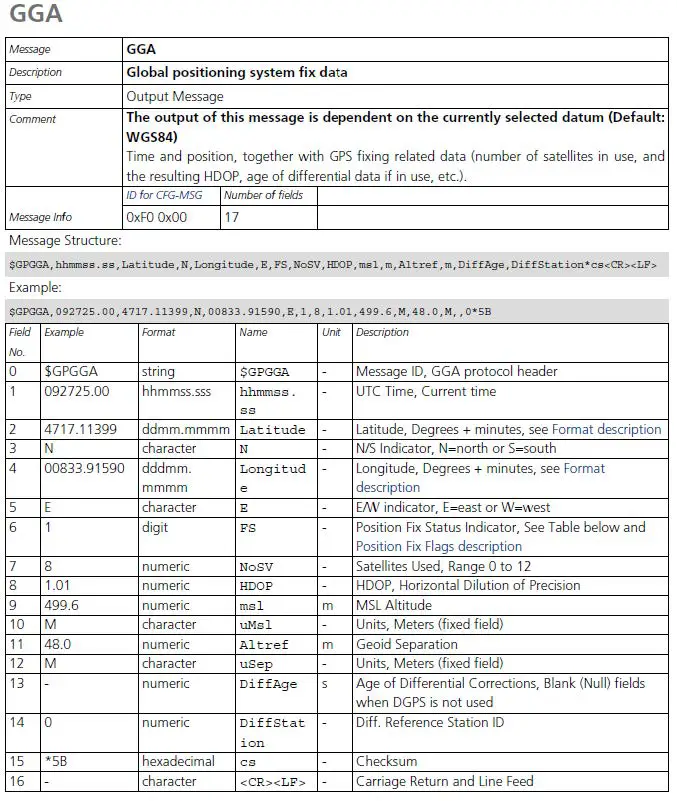

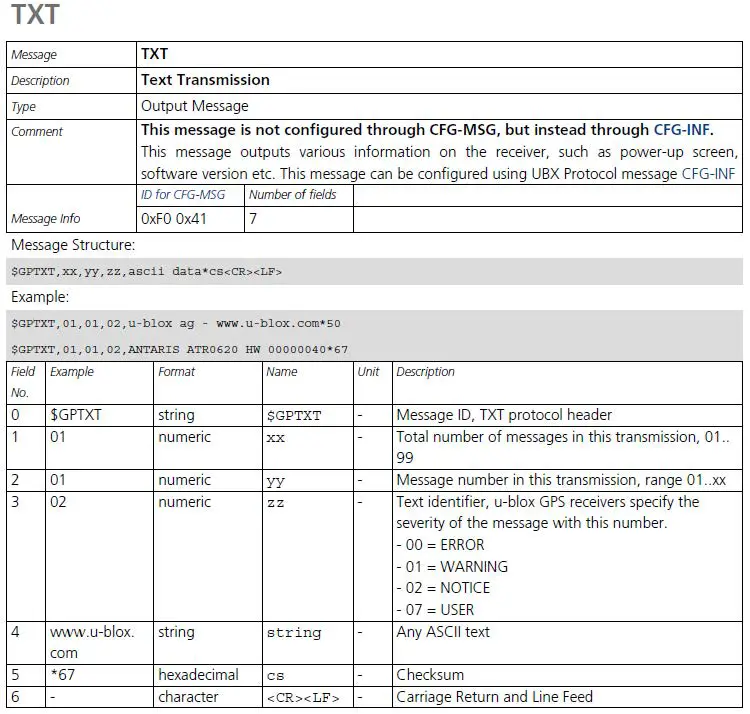

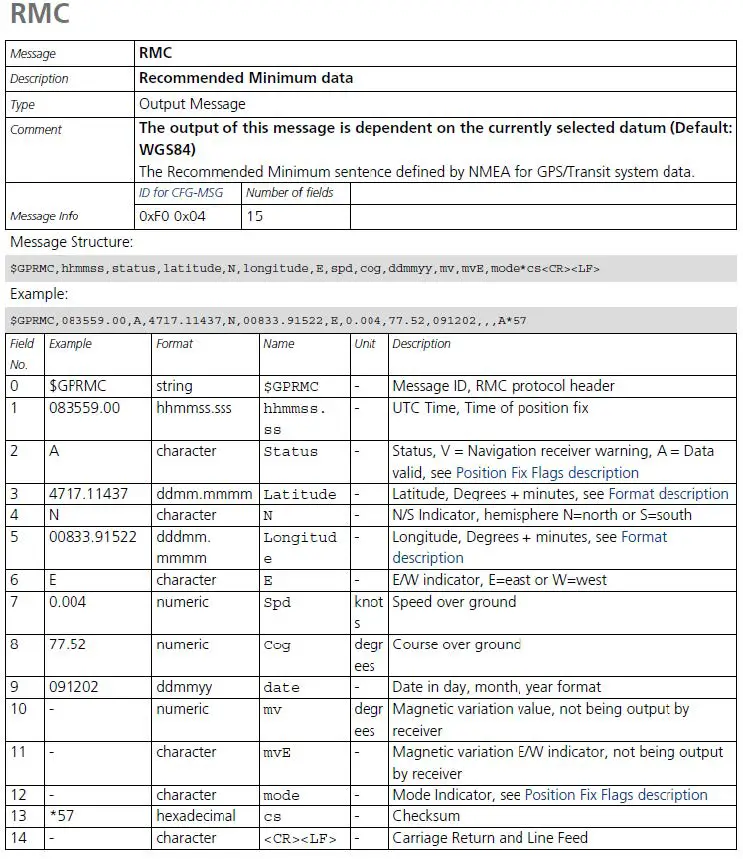

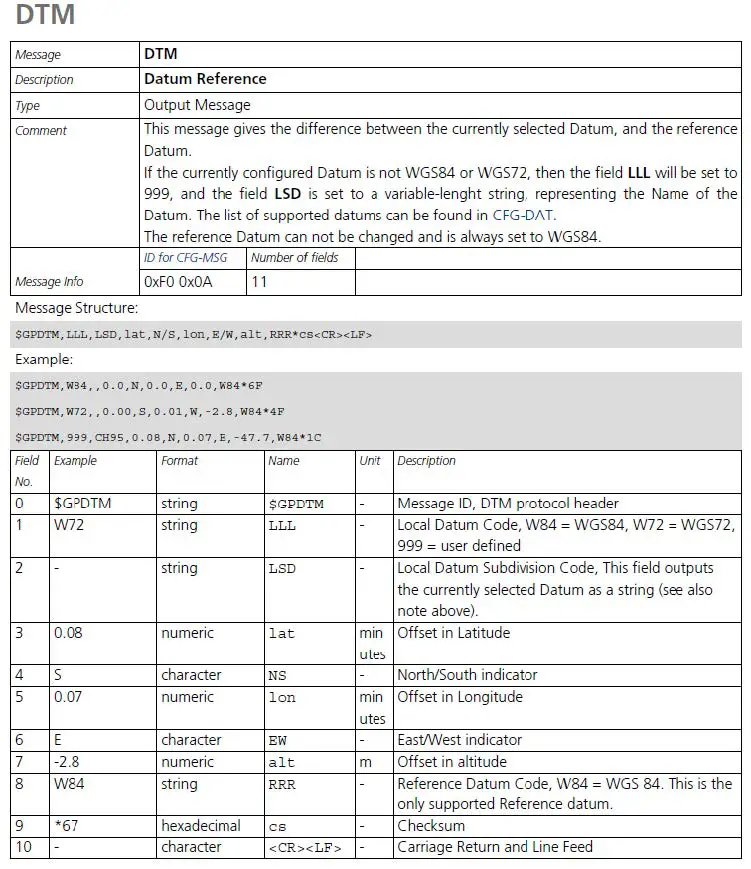

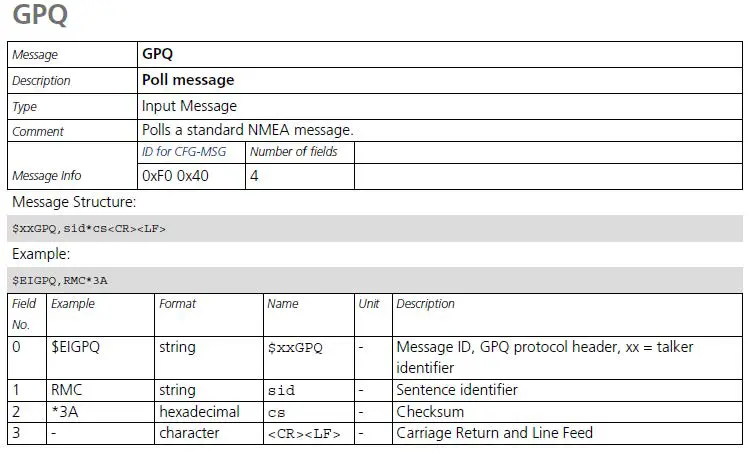

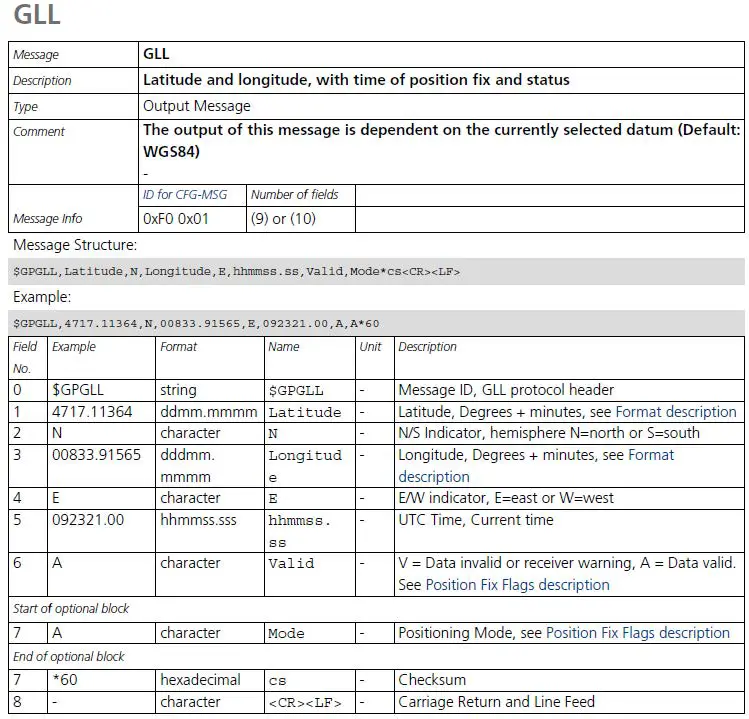

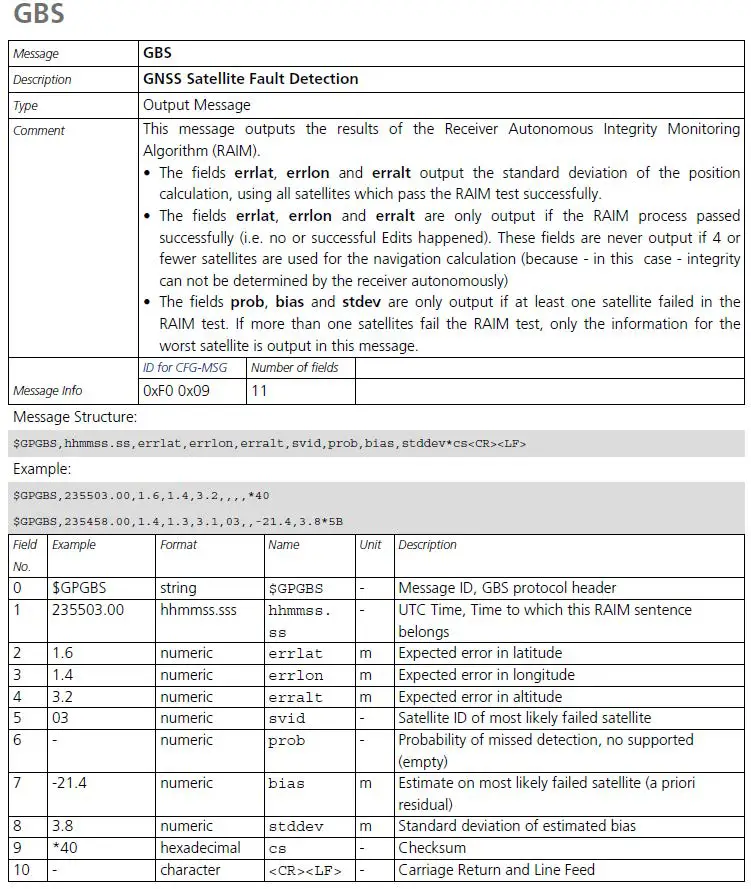

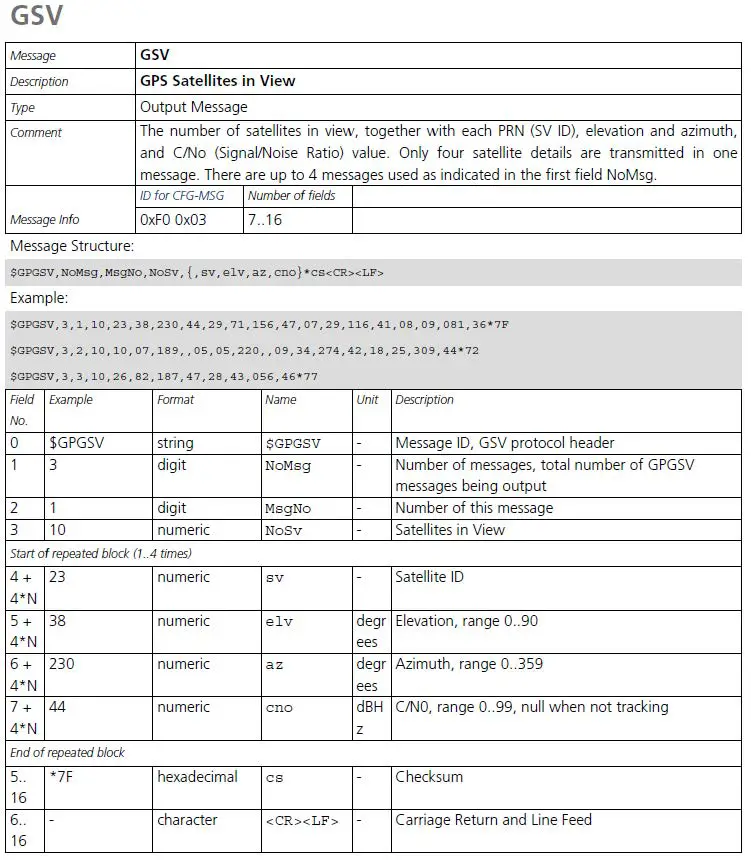

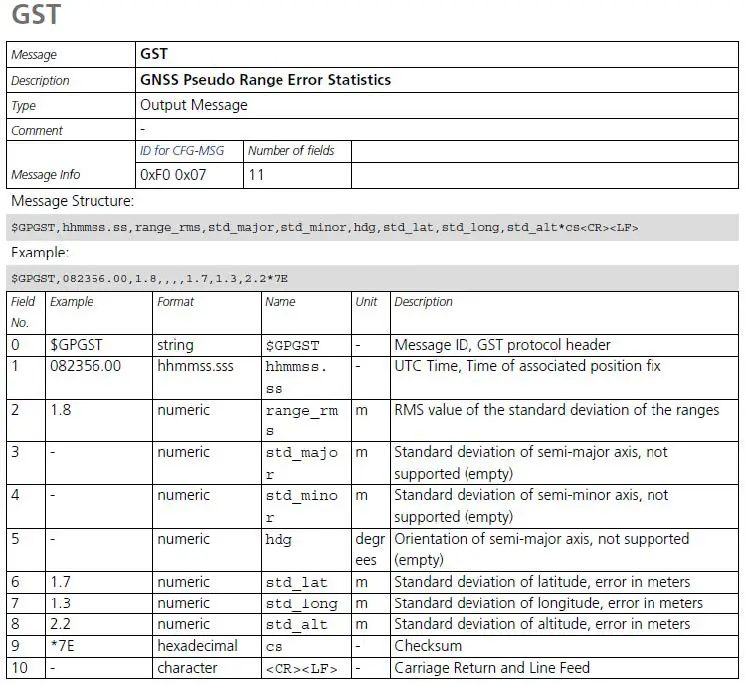

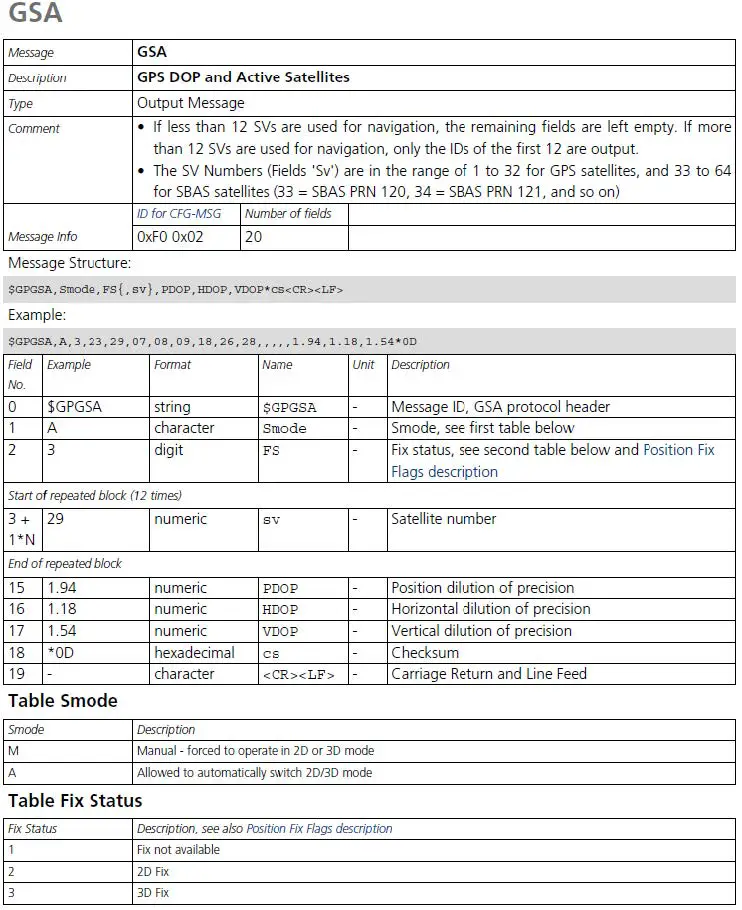

7 S/W – NMEA Protocol

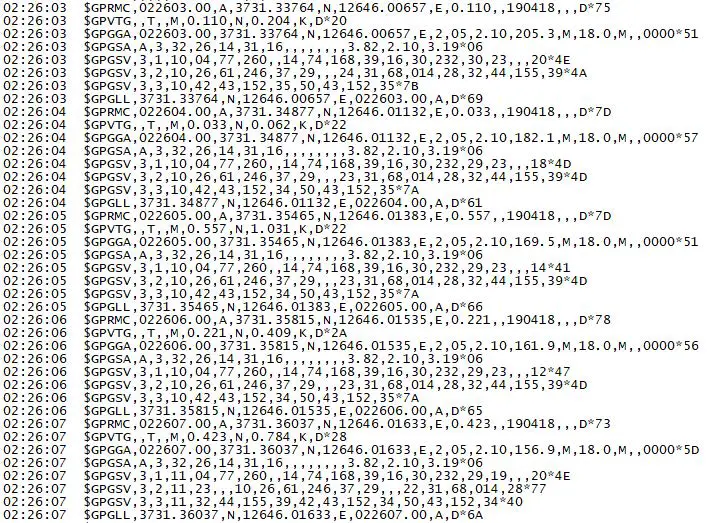

8 GPS NMEA DATA (Exam.)

9 Documents / Resources

9.1 References

10 Related Posts

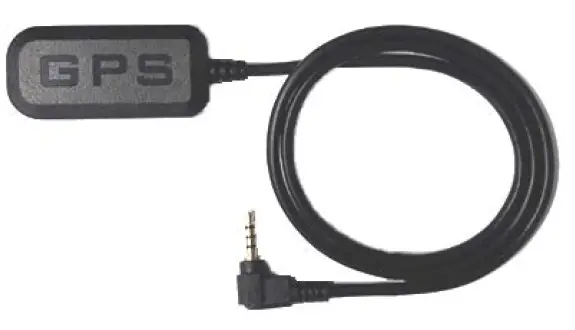

Fourstech FST-UE1528M GPS Receiver Module

Revision History

Revision	Description of change	Revision date	APPR.
VER1.0	Initial Release	Apr-21-2015	ywkim
VER1.1	– GPS Chipset변경 – UBX-G7020-KT ->UBX-G8020-KT	Apr-10-2019	ywkim

Introduction

General Description

The FST-UE1528M is the latest generation of low power GPS receiver Module from FourStech. It’s a highly integrated GPS receiver offering high performance and wide range applications. FST-UE528M receiver module designed to receive the L1 band signal 1575.42 MHz.

Feature Highlights

Low power, Fast standby mode
Single Supply Voltage(3.3V)
Integrated 0.5ppm TCXO
UART Support 9,600bps baud rate
72 channels Ublox 7 Engine
Hybrid GPS/SBAS engine (WAAS, EGNOS, QSZZ)
Anti-jamming technology
Removes in-band jammers up to 80dB-Hz
Navigate down to –163 dBm
Faster acquisition with AssistNow Autonomous
Support standard NMEA-0183 and binary protocol
RoHS Compliant
ARM7TDMI-S Technologies
GPS Week rollover : 2015-10-18 ~ 2035-06-02
Small size 22 x 46 x 10mm

Applications

Telematics equipment
Marine navigation application
Mobile Phone and Handheld GPS receiver application
Ideal for PDA, Pocket PC and other computing devices at GPS application

Specification

Absolute Maximum Ratings

Symbol	Parameter	Min	Max	Unit
VCC	Supply Voltage	0	6.0	V
VBAT	Input back_Up Battery	0	5	V
ESD	ESD Rating	–	2	KV
TSTG	Storage Temperrature Range	-40	+85	˚C
Humidity		–	95	%

Note : Absolute maximum ratings are stress ratings only, and functional operation at the maximums is not guaranteed. Stress beyond the limits specified in this table may affect device
reliability or cause permanent damage to the device.
For functional operating conditions, please refer to the operating conditions tables as follow.

Operating Conditions

Symbol	Parameter	Min	Typ	Max	Unit
VCC	Supply Voltage	3.0	3.3	5.5	V
VBAT	Voltage Back_up battery	1.4	3.1	3.3	V
ViH	I/O input high level	0.7×3.0	–	3.3	V
ViL	I/O input low level	-0.4	–	0.45	V
VoH	I/O output high level	0.7×3.0	–	3.0	V
VoL	I/O output low level			0.4	V
Temperature	With battery	-20	–	+60	˚C
*Temperature	Without battery	-30	–	+85	˚C

DC Electrical Characteristics

	Parameter	Min	Typ	Max	Unit
Power Consumption (With LNA)	Average Acquisition	–	42	–	mA
	Average Tracking (Max performance Mode)	–	40	–	mA
	V_BackUp	–	15	–	uA

General & Performance Specification

Parameter	Description	Specification
Receiver Type	L1 Band	1575.42MHz
Sensitivity	Tracking	-166dBm
	Cold starts	-148dBm
	Hot starts	-157dBm
Time To First Fix	Cold start (autonomous)	29sec
	Warm start (autonomous)	26sec
	Hot start (autonomous)	<1S
Accuracy	Position	2.5m CEP
Accuracy	SBAS	2.0m CEP
Operation Limits	Velocity	500m/s
Operation Limits	Altitude	50,000m
Serial Interface	1 UART	9,600bps Full Duplex
Protocol Message	NMEA-0183	Version 4.0 With WGS-84
LNA	Gain	20dB±1dB
LNA	Noise Figure	Less than 0.65dB
Antenna Type	Active antenna	Patch or Linear
	Centerfrequency	1575.42MHz
	Polarrization	RHCP
	Impedance	50Ω

Pin Assignment

Pin Number	Name	I/O	Description
1	VCC	I	Supply Voltage dc 3.3V
2	TXD	O	Serial data output (GPS to Host)
3	RXD	I	Serial data input (Host to GPS)
4	GND	–	GND

VCC(+3.3V DC power Input)
This is the main DC power supply input pin. IT provides voltage to module.
TXD (GPS to Host)
This is the main transmitting NMEA data and is used to programming download or debug port. NMEA Format 9,600 Baud rate.
RXD (Host to GPS)
This is the UART receiver port of the module. It is used to receive software commands and If you want you can change Baud rate, Static Hold, assistnow autonomous…
GND
GND provides the ground.
