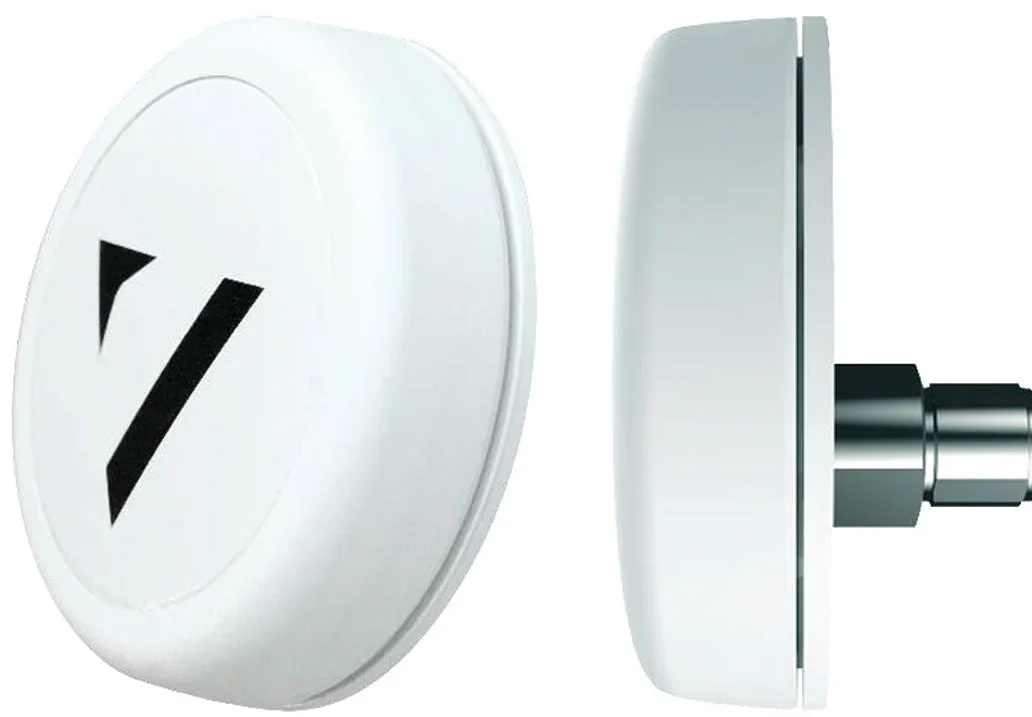

Veratron GO GPS GNSS Receiver
PRODUCT OVERVIEW

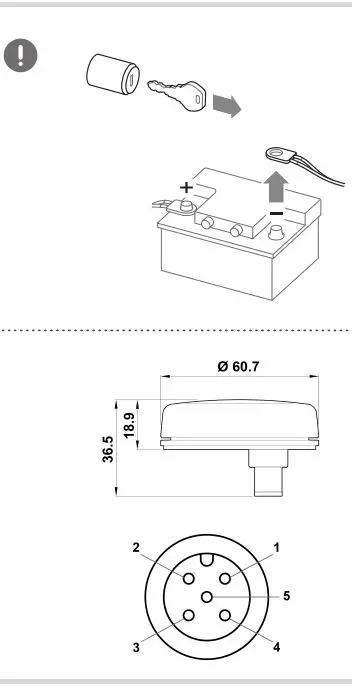

Before assembly
NOTICE: short circuit. Cable burning, battery explosion. Remove the ignition key and detach the battery negative pole terminal.
NOTICE: NMEA 2000 network overload. Burnt cables. Check current absorption on devices connected to the NMEA 2000 network and dimension the power cable accordingly.
Box contents
- Veratron GO GPS
- These installation instructions
Note: for more information on available accessories, refer to the accessory catalog or visit www.veratron.com.
Technical specifications
| Material | Acrylonitrile Styrene Acrylate (ASA) |
| Connector | NMEA 2000® Micro-C 5-pin M12 connector (male, product side) |
| IP Protection Class | IPX7 according to IEC60529 (or EN 60529) |
| Supply Voltage | 12V (powered from NMEA 2000®) |
| Time To First Fix (TTFF) | Cold Start -30 sec |
| Position accuracy | 2.5 m with good sky view |
| GNSS augmentation | SBAS-WAAS / EGNOS / MSAS / GAGAN |
| Reception channels | 72 |
| Update rate | 10 Hz |
Micro-C 5-pin M12 connector
(male, product side)
Note: use according to NMEA 2000 protocol.
- Shield
- NET-S (V+)
- NET-C (V-)
- NET-H (CAN H)
- NET-L (CAN L)
NMEA 2000 Data
| PGN 126992 | System Time |
| PGN 129025 | Position, Rapid Update |
| PGN 129026 | COG & SOG, Rapid Update |
| PGN 129029 | GNSS Position Data |
| PGN 129539 | GNSS DOPs |
| PGN 129540 | GNSS Satellites in View |

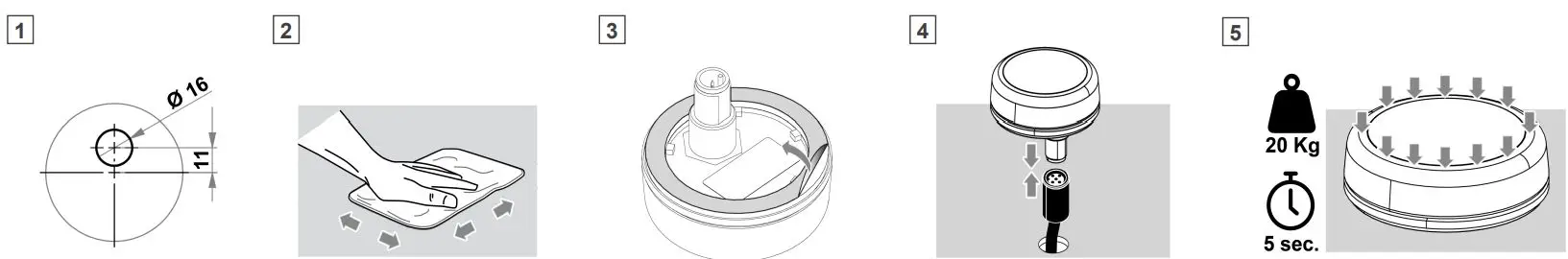

Install the Veratron GO GPS

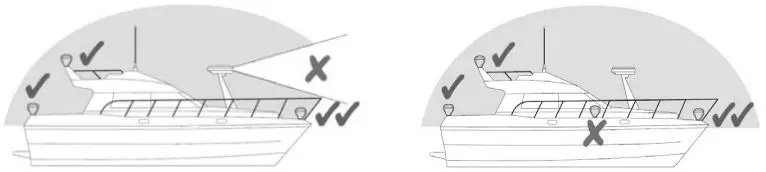

Where to install
