TRANSSTEEL 4000 PULSE Synergic Welding Inverter
User Guide
Quick Guide to Synergic Welding
Set the welding process
 | The parameters for the welding power can be set individually. |
 | When setting a welding power parameter, the remaining parameters are set automatically. |
 | Manual metal arc welding |

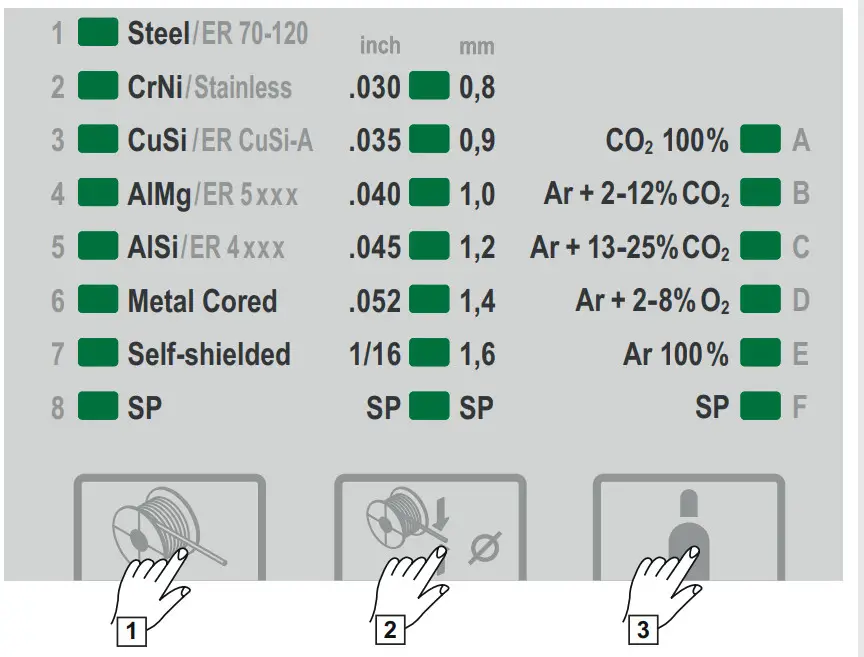

Set the filler metal and shielding gas
Set the operating mode
 | 2-step mode: for short weld seams, tacking work |
 | 4-step mode: for longer weld seams, a high level of comfort |
 | Special 4-step mode: in addition to the 4-step mode, offers settings for starting and final current |
 | Settings for spot welding and stitch welding |

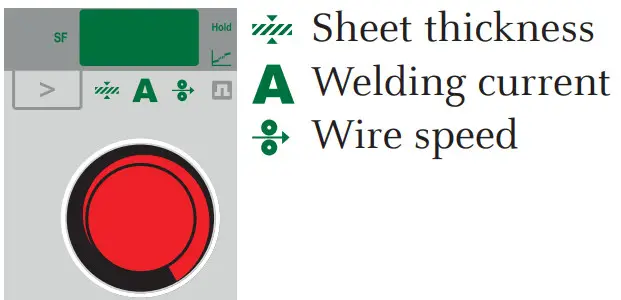

Set the welding power
select desired parameter
set desired parameter
Measuring the welding circuit resistance r
According to the Operating Instructions of the power source

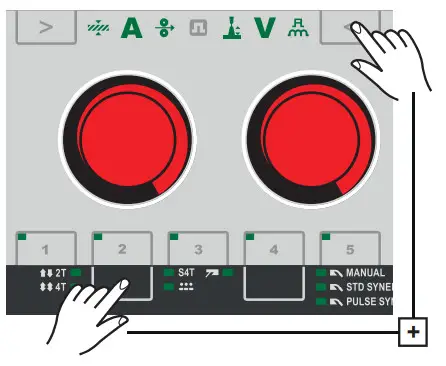

Activating/deactivating the key lock

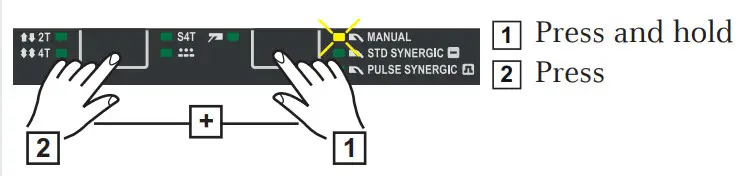

Description of Setup Parameters
 | Gas pre-flow time Gas post-flow time Slope (2-step, special 4-step) Starting current (2-step, special 4-step) Final current (2-step, special 4-step) Starting current duration (2-step) Final current duration (2-step) Feeder inching speed Burnback effect Length of wire fed before the safety cut-out trips Spot welding time/interval welding time Interval pause time Interval Frequency (SynchroPulse) Delta wire feed (SynchroPulse) Upper arc length correction (SynchroPulse) Reset power source to factory settings |

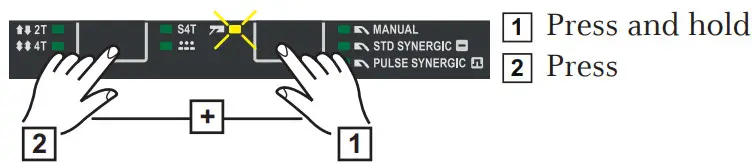

2nd menu level
 | Country-specific setting (metric/imperial) Synergic characteristics (EU/US) Cooling unit control Cooling unit monitoring Welding circuit resistance Welding circuit inductivity The electrical energy of the arc Arc length correction EasyJob Trigger |
 | Gas pre-flow time Gas post-flow time Feeder inching speed Burnback effect Ignition current Length of wire fed before the safety cut-out trips Spot welding time/interval welding time Interval pause time Interval Reset power source to factory settings |
2nd menu level
 | Country-specific setting (metric/imperial) Cooling unit control Cooling unit monitoring Welding circuit resistance Welding circuit inductivity The electrical energy of the arc EasyJob Trigger |
 | HotStart current Hot current time Anti-stick Reset power source to factory settings |
2nd menu level
 | Country-specific setting (metric/imperial) Welding circuit resistance Welding circuit inductivity |

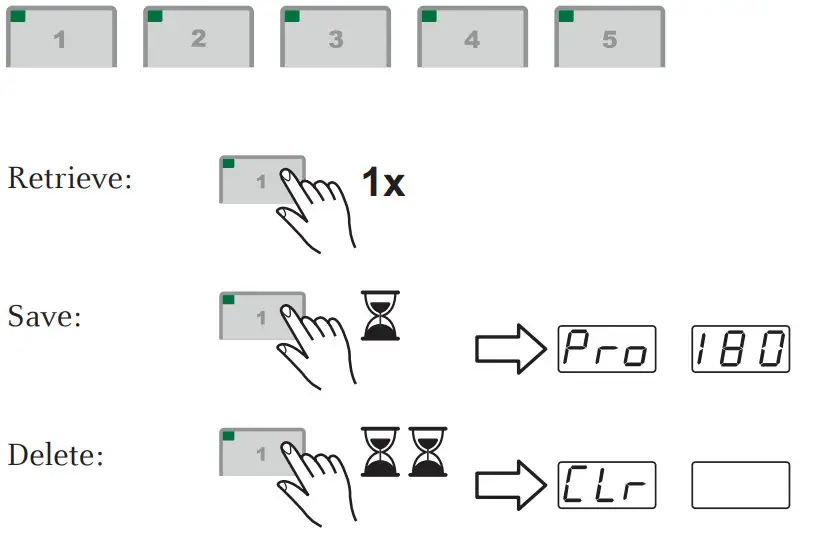

EasyJobs
SAFETY
Before working with the device, ensure that you have read and understood all the documents provided in hard copy and online.
This document does not describe all the functions of the device.
For a complete description of the device, refer to the Operating Instructions.
TransSteel 5000 PULSE
