Bticino Pm1ws255 Energy Management Web Server Instructions

bticino PM1WS255 Energy Management Web Server

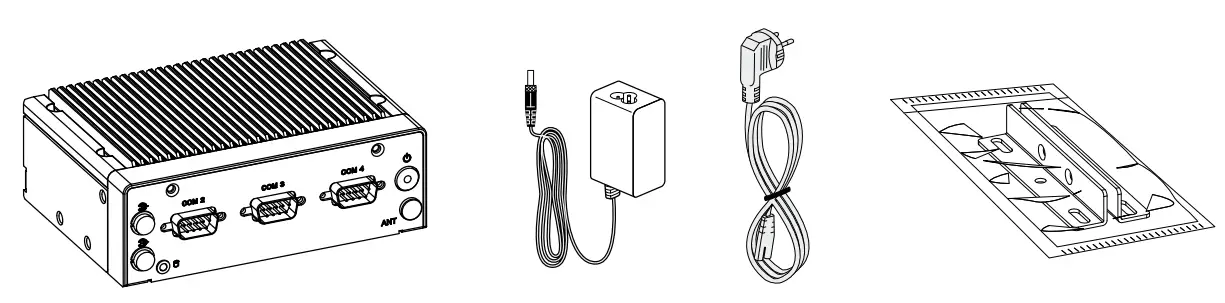

Package Content

	The instructions for installation and use must be strictly observed in order to avoid the risk of electric shock or fire.

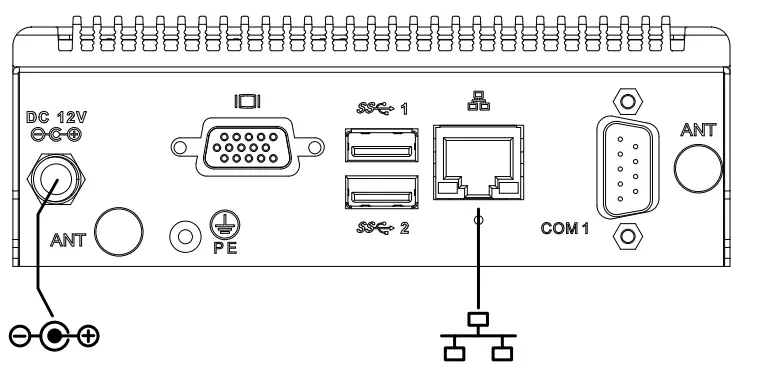

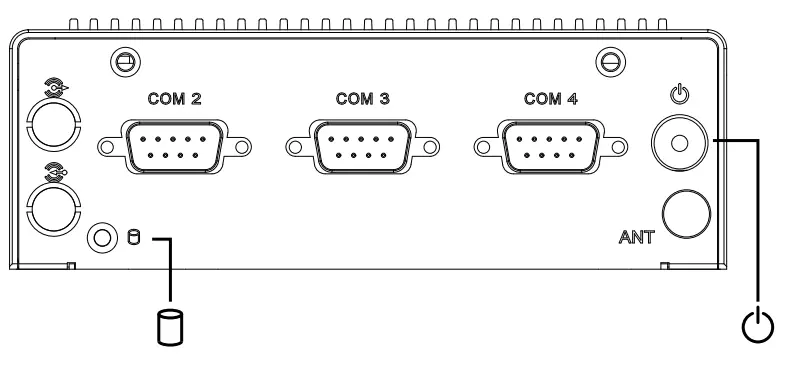

Description

U
P	10,2 W
	Ethernet RJ45; 10/100/1000Mb
	192.168.1.100
	255.255.255.0
	192.168.1.1
PIN	99999
PUK	00000 9999 00000
	(-20°C) – (+60°C)

		Green	Device powered
		Orang	Device off/suspended
		Rouge	HDD activity

Power input connector (Power supplier included)

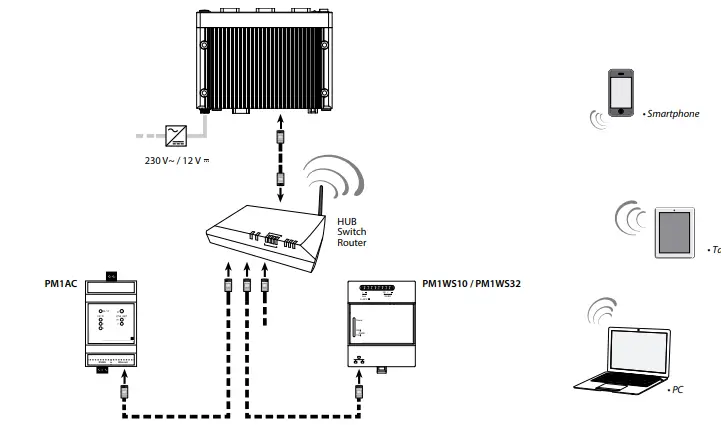

Wiring diagram

Installation

	Parts not included

RAEE/WEEE: bticino.com/disposal

https://professionisti.bticino.it/

Complete documentation is available in the ”Configuration software” area at

https://www.bticino.com/products-catalogue/
