INTELLIGENT ENERGY STORAGE
BTS E5 … E20-D5
5 / 10 / 15 / 20 kWh

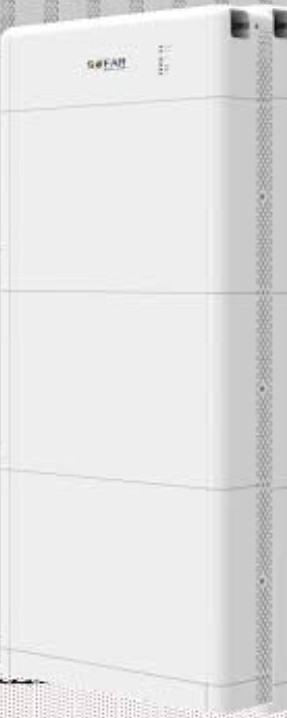

E5-DS5 Intelligent Energy Storage

• Modular and integrated design for easy transportation and installation
• Flexible battery capacity expansion
• User-friendly one-button battery operation
• Maximal battery energy with pack optimization
• Extremely low battery self- consumption in sleep mode
• Energy storage specially for ME / HYD 5…20KTL-3PH inverters

Datasheet System Parameters	BTS E5-DS5	BTS E10-DS5		BTS E10-DS5			BTS E20-DS5
System
Battery type		LFP
Battery distribution unit	BTS 5K-BDU
Number of battery distribution units	1
Battery module		BTS 5K
Nurnber of battery modules	1	2			3		4
Battery total energy (kWh)’	5.	10.			1336		20.
Usable energy (kW)’	5.	10.			14.		19
Rated power (kW)	23	5			8.		10
Rated voltage (V)		400
Voltage range for full load (V)	350 — 425
Rated charge/discharge current (A)	7 I 14 I 21						28
Degree of protection	IP65
Ambient temperature range’	-10°C — 50°C
Allowable relative humidity range	5 — 95%
Max. operating altitude’	4000 m v
Weight (kg)	59		110			161
Dimension (mm)	708’170’680		708’170’1100			708’170’1520		708’170′ ,. 708’170’1100
Installation	Floor stand
Cooling	Natural
Display	LED indicators
Communication	CAN
Compatible inverters	Please refer to the BTS ES … 204355 configuration hsl

1. Test conditions: 0.2C charge/discharge at 25°C, 100% DoD.
2. Based on the battery cell.
3. Please refer to the temperature derating curve.
4. If the altitude is >2000 m, derating is required. Please refer to the derating curve.

BTS E5 / BTS E10 / BTS E15 / BTS E20-D5_EN_202206
