Pytes V5 Home Energy Storage System Owner’s Manual
Introduction
V5°, the new generation LFP battery for home energy storage system. It provides safe,well-designed and high-performance standard LFP battery pack for you. The battery pack is compact, easy to install, free of maintenance, and could be deployed to the building block of energy storage system by being assembled in parallel. It is widely applied in home applications, small commercial and industrial energy storage system as well as Telecommunication stations. Its rechargeable LFP battery pack provides energy storage for solar self-consumption, time-based control, and backup.
Features
Below Freezing Temperature Charging
- designed for cold environment
Smart Energy Management
- field-proven sophisticated BMS to maximize reliability and longevity
- remote upgrading
High Charge/Discharge Rate
- fully charged in 1 hour
- high power output (1C)
Long-lasting Battery Module
- integrated with tier 1 automotive LFP cells
- lifespan ≥6000 cycles
Easy Connection
- Up to 300A confluence current in parallel.
Technical Specifications
| Battery Model | V5° |
| Chemistry | LFP |
| Nominal Voltage | 51.2V |
| 51.2V | 44.8V-57.6V |
| Nominal Capacity | 100Ah |
| Nominal Energy | Nominal Energy |
| Unit Dimension(L*W*H) | 19*20.9*5.5 in |
| Weight | 97 lbs |
| Standard Charge/Discharge | 75A |
| Maximum Continuous Charge/Discharge | 100A |
| Peak Charge/Discharge | 150A(at 15s) |
| Round-Trip Efficiency | ≥95% |
| Communication Protoco | CAN/RS485 |
| Cycle Life | ≥6000 cycles (@ 90%DOD) |
| Calendar Life | ≥10years |
| Operating Temperature | 14℉~131℉ |
| Maximum Allowed Modules in Parallel | 16 pcs (82kWh) in a group 7 groups (573kWh) in a system w/ a Hub |
| Heating system | 14.4~18℉/h |

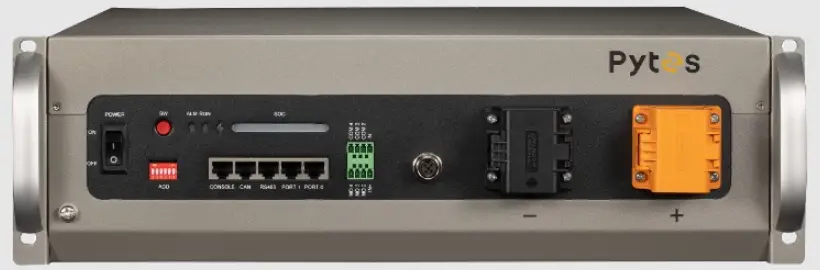

Operation Panel
