bticino 346040 ECO Power Supply

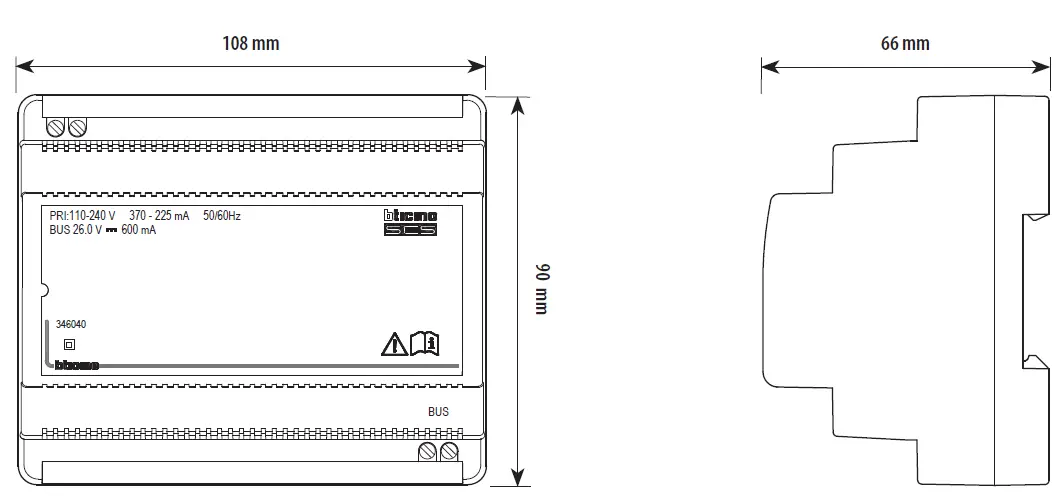

DIMENSIONS

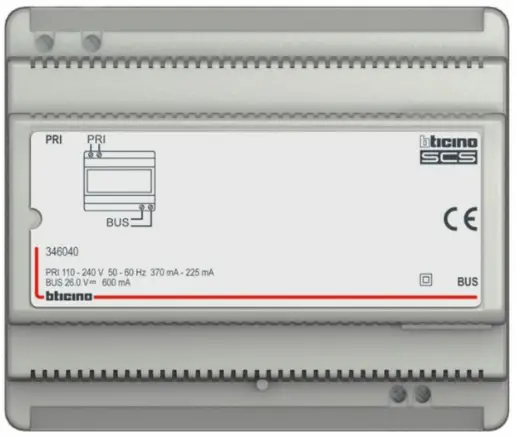

Front view
- Primary input connection clamps
- Clamps (BUS) for connection to the BUS/SCS
- This is a CAT II 2500 V power supply and therefore it needs additional external transient voltage protection (higher than the voltages of the design overvoltage category).
- The power supply must only be installed inside switchboards suitable for DIN devices.
- The device is only suitable for indoor installation.
- An omnipolar switch with minimum 3 mm distance between contacts must be installed near the power supply.
- The switch described above should be considered as a device for the disconnection of the power supply unit from the power mains.
- Do not weld the ends of the conductors that are inserted into the terminals.

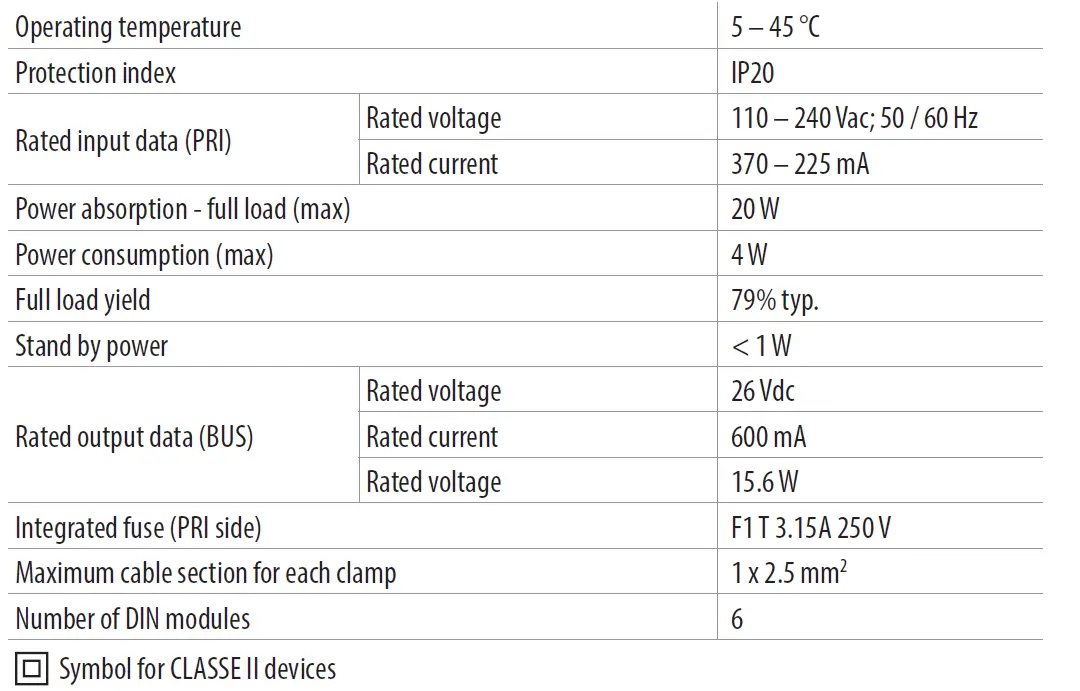

Technical data
Warnings and consumer rights
- Read carefully before use and keep for future reference.
- Touching the units with wet hands is forbidden.
- Using liquid cleaners or aerosols is forbidden.
- Blocking the ventilation openings is forbidden.
- Modifying the devices is forbidden.
- Removing protective parts from the devices is forbidden.
- Exposing the unit to water drops or splashes is forbidden.
- Installing the units near heat / cold sources is forbidden.
- Installing the units near harmful gases and powders is forbidden.
- Fastening the units on unsuitable surfaces is forbidden.
Danger of electrical shock.
- Risk of devices falling because the surface on which they are installed collapses or inappropriate installation.
- Switch the power supply OFF before any work on the system.
Caution: Installation, configuration, starting-up and maintenance must be performed exclusively by qualified personnel.
- Check that the wall installation has been carried out correctly according to the installation instructions.
- Check that the unit installation complies with the standards in force.
- Connect the power supply wires as indicated.
- Use only the items indicated in the technical specifications for any system expansions.
