Bluetti 500wh Portable Power Station User Manual

500Wh Portable Power Station
User Manual
Forehead

500Wh Portable Power Station

Please note the below comments while reading the instruction manual

• Due to product improvements, partial changes in appearance and specifications may be made without prior notice.
• This manual cannot be copied or reproduced without the use of the individual.
• If the product requires maintenance, please contact the local designated system installation and maintenance personnel.

Disclaimer

• The company shall not be liable for any damage caused by force majeure such as fire, typhoon, flood, earthquake or customer’s intentional negligence, misuse or use under other abnormal conditions.
• Defect caused by the non-standard connectors is not compensable.
• The company does not assume any responsibility for damage caused by not operating the product in accordance with the instructions in the operating instructions.
• This product is not suitable neither for atomic energy equipment, aerospace equipment, transportation equipment, medical equipment, etc. which are related with personal safety or equipment relies heavily on uninterrupted electricity must be guaranteed. It is assumed that the product is used on the above equipment or machine, the company is not liable for any personal accidents, fire accidents, or malfunctions caused by the malfunction of the product.

Safe Operating Guidelines

Please be sure to observe the following for safe use

DANGER	The situation in which people die or are seriously injured to a large extend due to improper operation
WARNING	The possibility of death or serious injury due to incorrect operation)
ATTENTION	Human or properties damage may occur due to incorrect operation

Serious Injury: refers to blindness, injury, electric shock, fracture, poisoning and other sequelae, and to be hospitalized or regularly need to go to the hospital for treatment.
Injuries: refer to injuries, burns, electric shocks that do not require hospitalization or go to the hospital regularly for a long time.
Properties Damage: refers to damage to houses, household property and livestock, pets.

It indicates that attention should be paid to fire, rupture and high temperature when operating the product. Specific attention is described in the figure.
This means that this behavior is prohibited when operating a product. Specific prohibited content is described in the icons or text in or near the icons.
Represents the mandatory operation of the product in accordance with the instructions. Specific mandatory content is described in graphics or text in or near the figure number.

• In order to use the product safely, a clear note label was pasted. Please use it with the contents and labels of this manual.
• Please do not make the labels sticking on this product dirty or fall off.

！ DANGER

Please do not disassemble, repair or transform, which may cause electric shock, heat, fire and other dangers.
Do not put the product near the fire source or put it into the fire or heat, which will cause fire or burns and other dangers.
This product can not be charged and used in dew, bathhouse, rain and other places; do not use water to clean the product, it will cause electric shock, heat, fire and other dangers.
Do not touch this product or connector plug when your hands are wet. It may cause electric shock hazard.
Do not use metal to contact AC output interface. It may cause electric shock, fever, fire and other dangers.
Do not wipe the liquid inside the eye. After washing with clean water, please see a doctor immediately. It may cause the risk of blindness.
Please do not use it as general waste disposal. Electricity shock, heat and fire may occur in the garbage collection truck or in the garbage collection truck.
Do not use AC connections other than those specified. It may cause electric shock, fever, fire and so on.
Please confirm the rated specifications of the connection interface or the connecting machine, and do not exceed the specifications. It may cause electric shock, fever, fire and so on.
Please do not have a strong impact on the product such as a drop or a hammer strike. It may cause electric shock, heat, fire or damage to the unit.
Do not place, store, and use in places that are prone to falling or dropping (such as high shelves). It may cause electric shock, heat, fire or damage to the unit.
Do not move the product while it is charging or in use. Due to vibration and shock during movement may cause heat or fire or electric shock or damage to the unit.

！ Warning

Please keep the place clean for use and storage. Powder or small metal contact terminal may cause short circuit, accidents such as smoke or fire.
Be sure to check before use. In case of any abnormality such as breakage, crack, leakage, fever and AC line breakage, please stop using the product immediately.
When AC wire is damaged, please pay attention to operation. Do not move the AC wire. Do not unplug the AC wire from the input port. Keep the AC wire away from the heat source. Do not trample or pull the AC wire, etc that would lead to AC wire damage. These are the causes of AC wire damage, heat, fire, electric shock.
Do not let children use this product. Or it may cause accidents or injuries.
Do not use if the interface cannot be fully plugged in due to loose or deformed interface, otherwise which may cause electric shock, heat and fire.
Please do not use it on the beach or in dusty places. Or it may cause smoke, fire.
Please do not use and keep in the car, trunk, loading table or high temperature place under direct sunlight. Otherwise, it may cause product failure obstacles or deterioration or cause fever.
When the liquid inside the product sticks to the skin or clothes, please wash it with water immediately. Otherwise may cause the skin injury and so on.
Remove the AC cable from the socket when lightning strikes during charging.
When it thunders, a large current from the socket may be generated Into a fever, fire, fire and other accidents.
Please charge in the specified voltage range (AC 100-240v).Otherwise, it may cause heating, fire, fire and other accidents.
Please do not put the product in reverse or sideways when using and storing.
Otherwise may cause leakage, heat, fire, fire and other accidents.

！ Note

Please stop using the product immediately when there is any abnormality such as rusting, peculiar smell, fever, etc.
The transportation of the product shall conform to the provisions of laws and regulations of dangerous goods. The built-in lithium ion battery capacity is more than the United Nations regulations (100Wh), therefore, the product must be packed, labeled and declared in accordance with IATA(international air transport association) regulations when transported by air or ship. Please consult with the shipping company for details.
When transporting the product with a car, etc., please fix the product so that it cannot be moved. Otherwise it May cause damage to the product, resulting in electric shock, heat, fire, etc.
Do not allow this product and the AC cable to get wet with water or other liquids.
It may cause short circuit, heat, fire, etc.
Please charge, use and storage this product under 0-40℃ , otherwise may cause poor performance or heat up.
In case of accidental fall and impact, the body may be damaged due to electric shock, heat, fire, etc., please stop using it immediately. To prevent accidents, please contact the local designated system installation and maintenance personnel immediately.
Please carefully read the operating instructions of the electrical products to be connected. Failure to operate the electrical products may result in accidents or injuries.
Before connecting electrical products, please make sure that the electrical products are stopped (power off), and sudden start of electrical products may cause accidents or injuries.
Be sure to turn off the main power button during storage to prevent unnecessary discharge of the battery and prevent electric shock.

Please read this manual before use and follow its guidance. Keep this manual for future reference

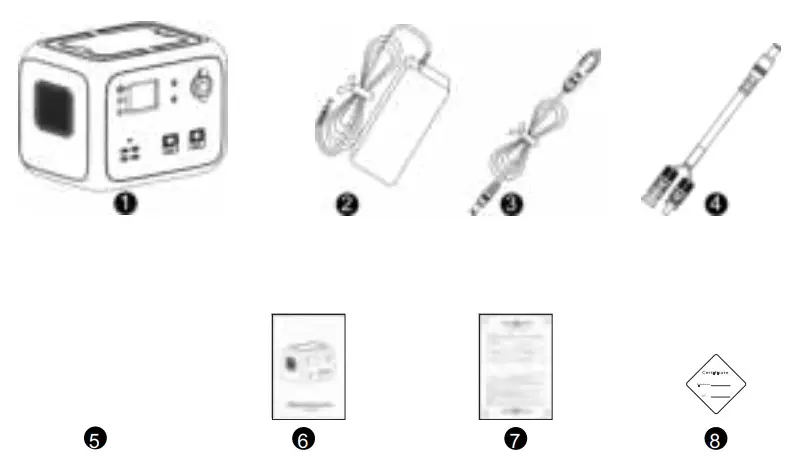

Packed Items

Before opening the package, please check whether the package is damaged or not, after opening the package, please check whether the product appearance is damaged or lack
of accessories.

Note: picture is only for reference, pls take the product as the standard.

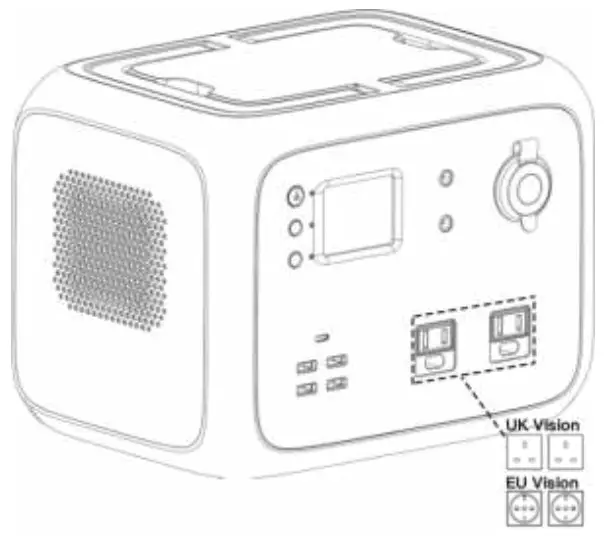

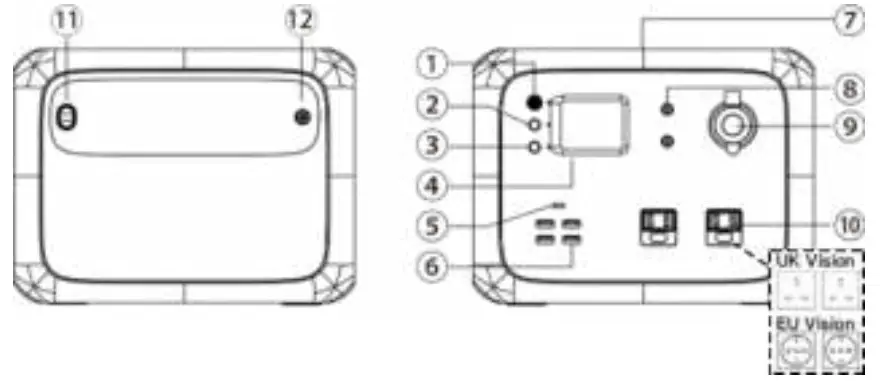

Function Introduction

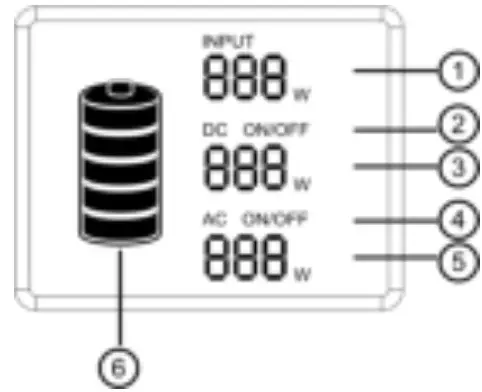

LCD Screen

LCD Battery Display:
The LCD Battery Display indicates the charge level. There are 5 segments of the battery, approximating 20%~40%~60%~80%~100% of capacity. During using, segments will disappear from the display, indicating the remaining capacity. When charging it, you will notice a battery segment blinking with 1 second interval. This indicates the current charge status and the number under INPUT shows the real-time charging power. Once it is fully charged, all battery segments will be lit and remain solid.
Note: If the product malfunctions, error codes would be displayed on screen.

Charging Instructions

Note: Please charge the product to 100% before using.
When charging the product, the battery capacity display icon on LCD screen will be on dynamic status, after the battery is charged fully, the display icon will on static status.

How to charge this product

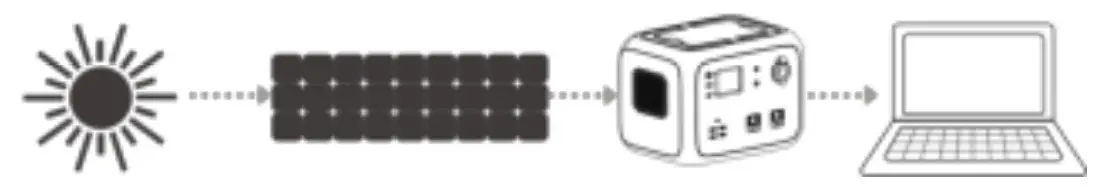

Solar Panel charge the product

1. Chose suitable solar panel (DC12-40V/120W)
2. Put the solar panel under strong sunshine, face to the sun positively.

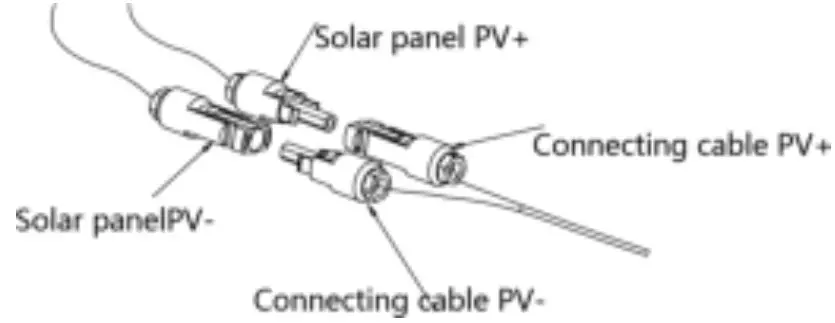

3. Take the part MC4 cable, connect the solar panel and the product.
4. When the product is charged fully by the Solar, it will stop charging automatically.

Please take out the charging cable, and turn off the product.

Note: Please make sure the cable connecting is correct and stable, or will cause the connector in high temperature status or sparking.
Note: Please charge the product under 0~40℃ temperature environment.
Note: During the charging, it is normal situation if the product is getting a little bit hot.
Note: The charging time is different when light intensity is different.
Note: Make sure that the positive and negative poles of solar panels are connected correctly. Refer to the following connection chart.

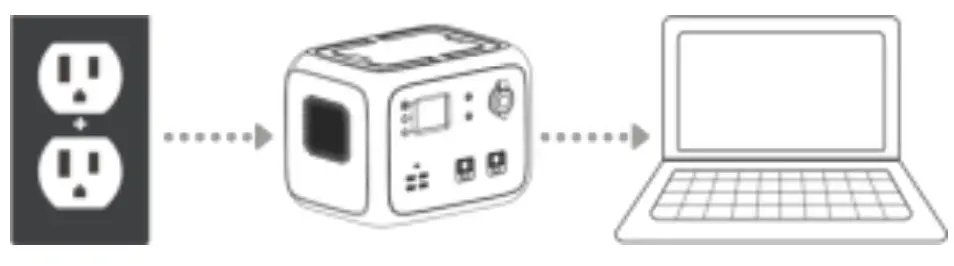

• AC charger charge the product
  Note: Always use the standard AC charger that comes with the product.

1. Connect the product and socket with the AC charger in the package.
2. please unplug the charger when charging completed.(it takes about 6-7hrs to fully recharge the product if using 90W AC adapter charger)

Note: It is normal for this product to get hot during charging.
Note: Make sure that the wiring is in good contact, otherwise the contact terminals may melt or ignite at high temperatures.

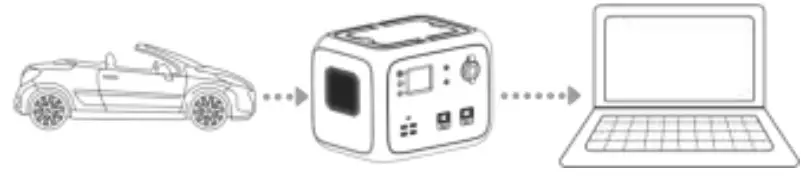

Car charger charge the product

1. Connect the product and the cigarette lighter socket with the cigarette lighter cable in package
2. Charge the product after starting the car.

Note: Make sure that the wiring is in good contact, otherwise the contact terminals may melt or ignite at high temperatures.

Discharge instructions

Buttons operation

1. Main power button
   Power on: Short press the main power button, the power indicator lights, and the LCD screen lights up.
   Power off: Press and hold the main power button over 2 seconds, the indicator will be off and the LCD screen will be off.
2. DC power button
   DC power on : Press and hold the DC button over 2 seconds, the DC indicator will light, and the LCD will display “DC ON”.
   DC power off: Press and hold the DC button for over 2 seconds, the DC indicator will be off, and the LCD will display “AC OFF”.
3. AC power button
   DC power on: Press and hold the AC button for over 2 seconds, the AC indicator will light, and the LCD will display “AC ON”.
   DC power off : Press and hold the AC button for over 2 seconds, the AC indicator will be off, and the LCD will display “AC OFF”.

Note: Turn off these buttons to save power when no using.
Note: The LCD background light will automatically go off after no operation for a period of time, and will be on again when short pressing any button.
Note: If the DC/AC button is turned off and there is no other operation, it will shut down automatically after 10 minutes to save power.

Connectible devices
USB output port: smartphone, MP3 player, digital camera, electronic reader, tablet computer, etc.
Type-C PD output port: smart phones, tablets, etc.
DC 12V 5521 output port: mainly used for LED light bulb lighting.
DC12V Cigarette Lighter output port: Vehicle Refrigerator and Other 12V equipment.
AC output port: notebook computer, camera, display devices and other AC power supply working equipment.
Note: DC output is suitable for most products in the market. Some products with instantaneous high current may trigger over-current protection.
Note: Please make sure that the connected electrical products can work properly before using this product.
Note: AC output uses electrical products with power below 300W.
Note: According to different electrical products, rated power below 300W may not be used (air conditioning, motor and other equipment requiring instantaneous high current).
Note: The output will stop automatically after overload protection.
Note: If the output stops repeatedly, please stop using it immediately. Only by eliminating the problem can it be used. Please contact the local designated system installation and maintenance personnel.
Note: Noise may occur in the broadcast or video player or TV and etc which are connected to this product.

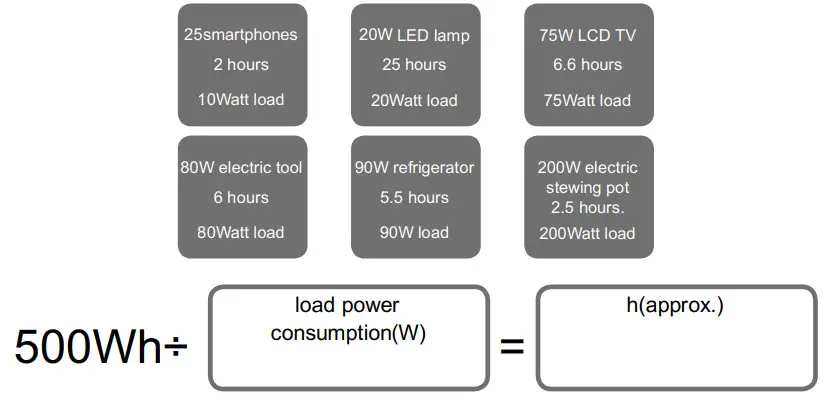

Estimation of backup time

  Note: The above data are for reference only. The backup time varies with the power of different loads.

Storage and maintenance

1. Full charge the machine before storage.
2. Switch off all power buttons.
3. If there is any dirt, soak and wring out the cloth to wipe it clean.
4. Please do not use gasoline, volatile oil, thinner, kerosene, etc. which have the function of dissolving the resin.
5. Keep it in dry and less dusty place. Temperature within 0 – 40℃ , avoid direct sunlight.
6. Please full charge the product at least once every six months.

Note: Please do not keep it in the car, trunk, loading platform or other hot place under direct sunlight. It may cause the product failure, degradation or thermal problem.

Technical specification

Note:

1. it may cause input low-voltage protection of some equipment if the voltage is low.
2. Solar panel charge type: MPPT

Trouble shooting

If the product cannot charge or power other devices, please check according to following steps:

1. Make sure the power button is turned on.
2. Make sure the AC and DC power buttons are on, viz. the LED on the right of the button is green
3. Check the battery capacity, if it’s lower than 10%, please recharge the product as soon as possible.
4. Make sure the load power connected didn’t exceed the limit power of this product, each port has a limit for the power connected
   If you can’t clear the trouble after above steps, please contact our after sale service center.

Note: the battery core protection level is high, low temperature protection is priority error code E05.

Frequently Asked Questions and Answers(FAQ)

Contact us
For enquiries or comments about our products, please email us at ([email protected] or [email protected]), and we will get back to you as soon as possible.
