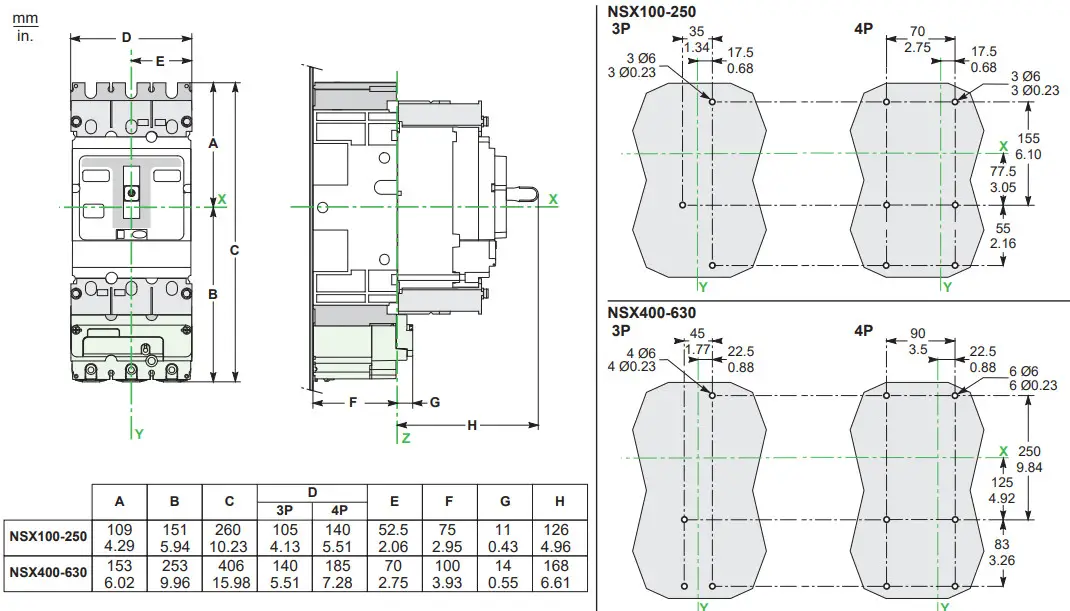

2 Dimensions

3 Documents / Resources

3.1 References

4 Related Posts

Electric M250 PowerTag Energy

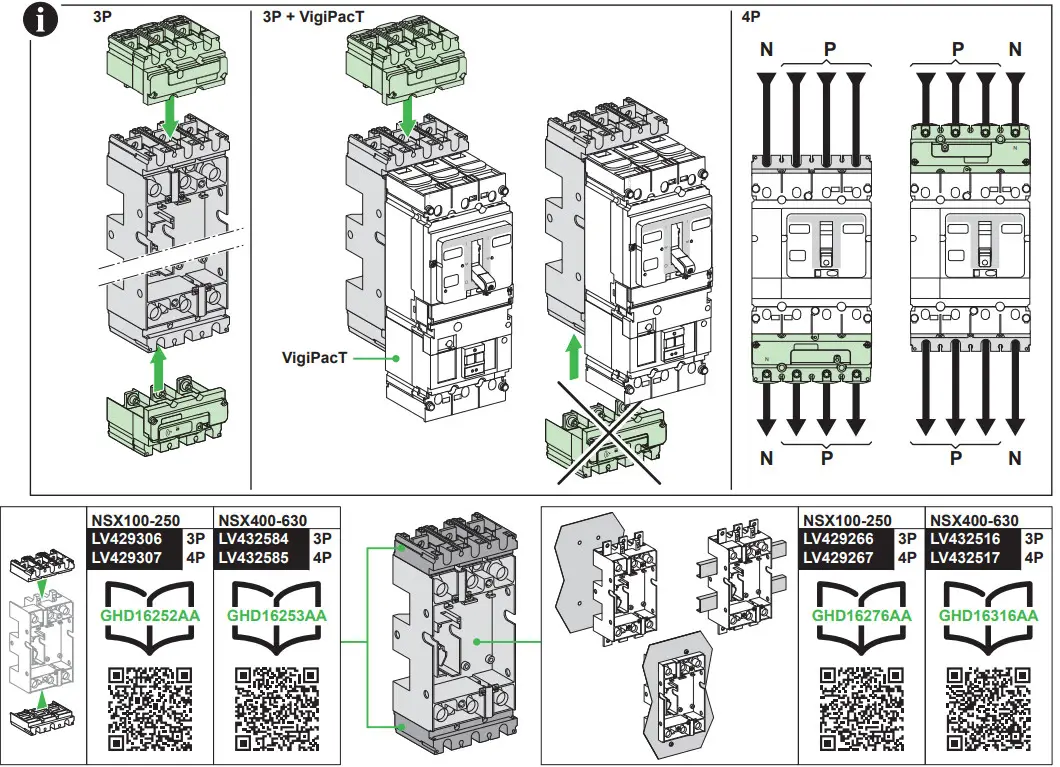

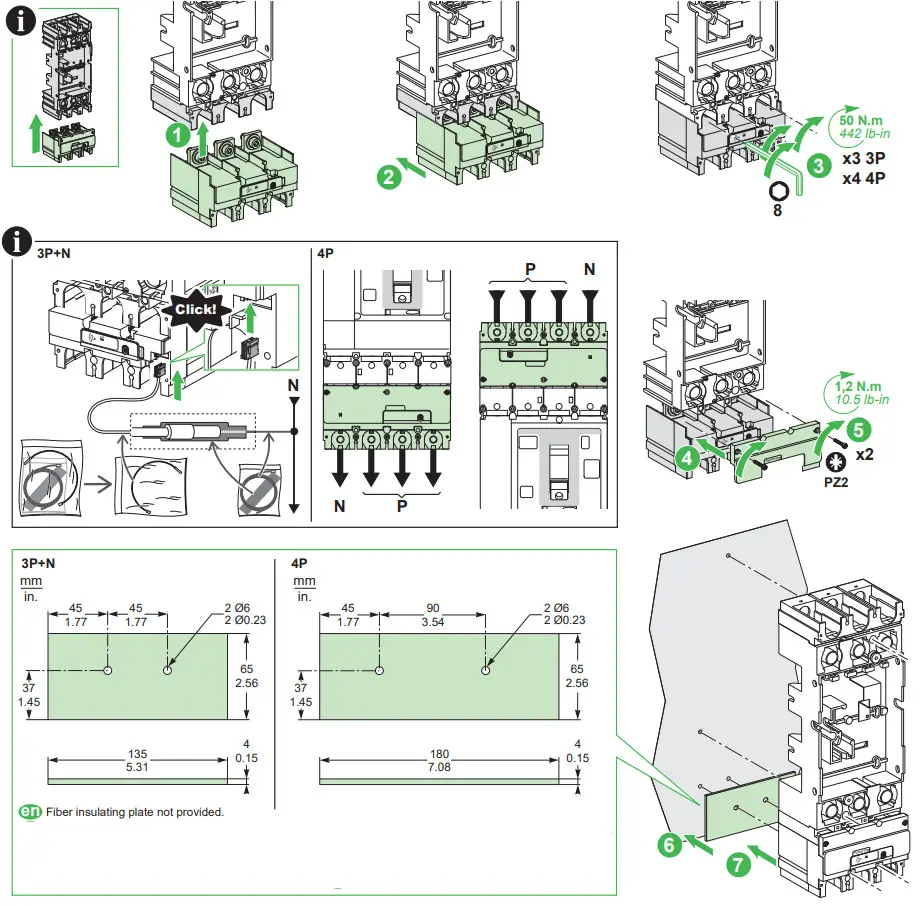

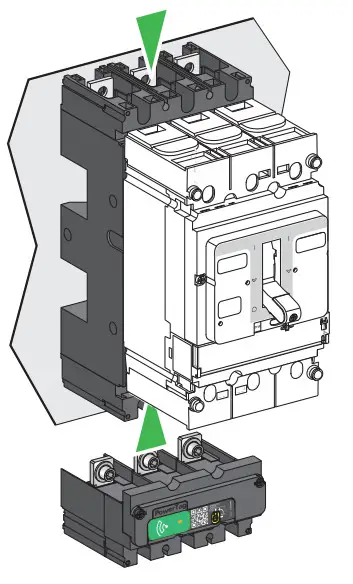

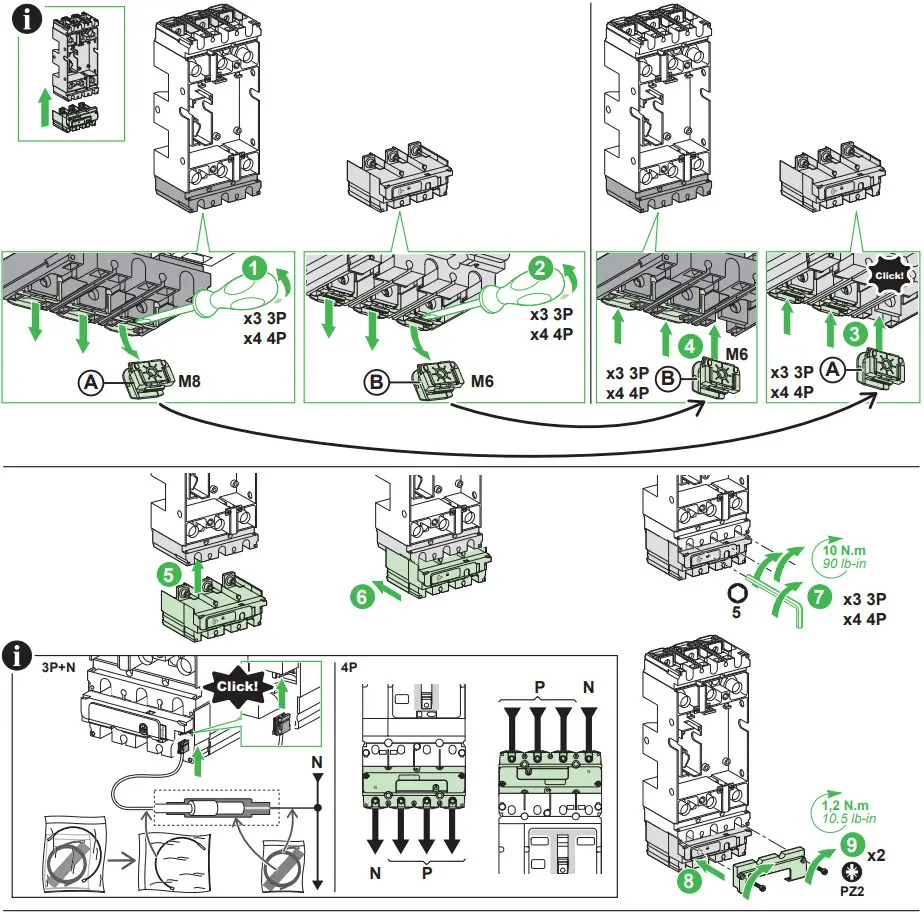

PowerTag M250 or M630 Mounting Instructions on the Plug-in Base ComPacT NSX100-250 or NSX400-630

www.se.com

This instruction sheet must be kept for future use.
Visit our website at www.se.com to download the instruction sheets listed above and other documents.

PLEASE NOTE

PowerTag devices must only be installed and maintained by qualified professionals.
PowerTag devices should not be installed if, while unpacking, any damage is observed.
PowerTag devices must not be repaired.
The PowerTag devices must be installed inside electrical panels or switchboards, behind a door or plate, so that they are inaccessible for unauthorised persons. The electric panels must meet the requirements of the applicable standards (IEC 61439-1) and installed in compliance with current installation and safety rules (IEC 61140).
All relevant local, regional, and national regulations must be respected while installing and using PowerTag devices.
Schneider Electric declines any responsibility in the event that PowerTag equipment is associated with equipment that is not listed in the document CA908058E.
Schneider electric is not liable in case the instructions mentioned in this document and other referred documents are not respected.

DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH

Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices.
Turn off all power supply sources before installing and during maintenance of this equipment.
Do not use a PowerTag product for voltage testing purposes. A Voltage Tester must be used instead.
Replace all devices, doors, and covers before turning on power to this equipment.

Failure to follow these instructions will result in death or serious injury.

NOTICE
HAZARD OF POWERTAG M250/M630 DETERIORATION
Do not mount PowerTag M250/M630 if the rated network voltage is greater than 480 Va 50/60 Hz.
Failure to follow these instructions can result in equipment damage.
