GOODWE SEC1000 Smart Energy Controller User Manual

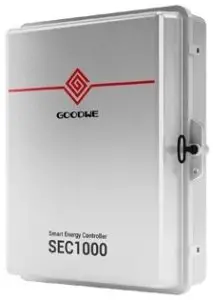

GOODWE SEC1000 Smart Energy Controller

Symbols

  • Caution! – Failure to observe a warning indicated in this manual may result in minor or moderate injury.
    caution icon
  • Danger of high voltage and  electric shock!
    Danger Icon
  • Product should not be disposed as normal household waste.
    household waste
  • CE Mark
    CE Mark
  • Keep Dry – The package/product must be protected from excessive humidity and must accordingly be stored under cover.
    Keep Dry
  • Components of the product can be recycled.
    recycled
  • This side up – The package must always be transported, handled and stored in such a way that the arrows always point upwards.
    side up arrows
  • No more than six (6) identical packages be stacked on each other.
    identical packages
  • The package/product should be handled carefully and never be tipped over or slung.
    slung icon

Safety and Warning

SEC1000 of Jiangsu GoodWe Power Supply Technology Co.,Ltd (hereinafter referred to as GoodWe) has been designed and tested strictly according to the international safety regulation. As electrical and electric equipment, Safety Regulation shall be followed during installation and maintenance. Improper operation may bring severe damage to the operator, the third party and other properties.

  • Installation. maintenance of SEC1000 must be performed by qualified personnel.in compliance with local electrical standards. regulations and the requirements of local power authorities.
  • To avoid electric shock, make sure the connection between SEC1000 and AC output of  inverter. SEC1000 and Grid, is disconnected before performing any installation or maintenance.
  • When in operation, users should not touch any of the electrical parts of SEC1000 ,like internal components. cables, to avoid electric shock.
  • All electrical installations must comply with local electrical standards and obtain permission from local power authorities before SEC1000 can be connected to the grid by professionals.
  • Before replacing any internal components of SEC1000, the connection between the inverter and SEC1000,the power grid and SEC1000 must be disconnected, and the newly replaced components must meet the requirements of SEC1000. Otherwise, GoodWe will not assume the responsibility and quality assurance for the personal harm.
  • Make sure that the AC input voltage and input current match the rated voltage and current of SEC1000, otherwise the components will be damaged or cannot work properly, and GoodWe will not assume the responsibility and quality assurance for this case.
  • There are lightning protection modules inside. Make sure to connect the internal PE with the ground when installing SEC1000.
  • When in operation, do not plug or unplug cables of SEC1000.
  • SEC1000 must be Installed out of reach of children.
  • Appropriate antistatic measures should be taken.

Mounting

Mounting Instruction
  • SEC1000 must be installed where there is no significant shaking, shock vibration and no rain or snow.
  • SEC1000 shall be installed at eye level for easy operation and maintenance.
  • SEC1000 should not be installed near inflammable and explosive items. Any strong electro magnetic equipment should be kept away from installation site.
  • SEC1000 shall be installed at a location free from explosive hazardous media and free from gas and dust sufficient to corrode metals and destroy insulation.
  • SEC1000 parameters and warning signs must be clearly visible after installation.
  • SEC1000 should be installed without sunshine, rain and snow.
    Mounting Instruction
Overview and Packaging

After opening the package, confirm if it is consistent with specification of SEC1000 you purchased.

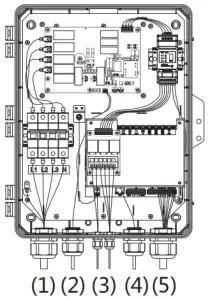

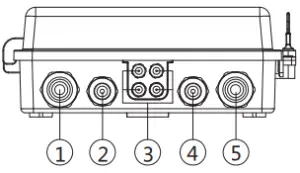

SEC1000 Overview

  1. Voltage input port
  2. GPRS antenna output port
  3. Current input (external CT) port
  4. LAN network port
  5. Communication port
    SEC1000 Overview
    SEC1000 Overview

Package

  • SEC1000×1
    Package Contents
  • User manual×1
    Package Contents
  • Expansion screw×4
    Package Contents
  • 2 Pin terminal×3
    Package Contents
  • Key×1
    Package Contents
  • Tubular terminal×4
    Package Contents
  • O type terminal×6
    Package Contents
  • Short wire×3
    Package Contents
  • Screw×2
    Package Contents
  • Sealing element×4
    Package Contents
  • Back hang×1
    Package Contents
  • Fireproofing mud×1
    Package Contents
  • Ribbon×5
    Package Contents
  • Antenna×1 (only GPRS type)
    Package Contents
SEC1000 Installation

Selecting the installation location

The following must be considered when selecting the best location for an SEC1000.

  • The mount and installation method must be appropriate for the SEC1000’s weight and dimensions.
  • Install on a sturdy surface
  • The installation location must be well ventilated
  • SEC1000 can be placed horizontally or installed vertically

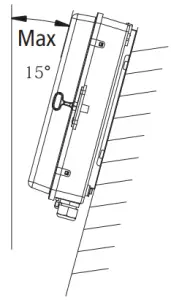

  • The SEC1000 must be installed vertical or with a backward tilt less 15°.No side ways tilt is allowed. The connection area must point downwards. Refer to Figure.
    SEC1000 Installation
    SEC1000 Installation
    Cross Icon

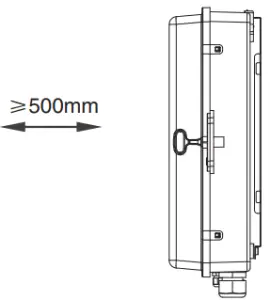

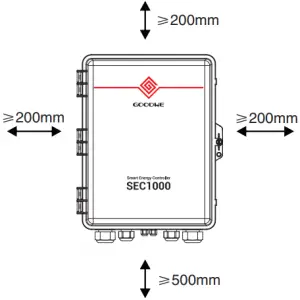

  • To allow dissipation of heat, and for convenience of dismantling, clearances around the SEC1000 must be no less than the values, refer to figure.
    SEC1000 Installation
    SEC1000 Installation
    • Upward ——- 200mm
    • Downward — 500mm
    • Front ———– 500mm
    • Both sides —- 200mm

Mounting Procedure

  1. Drill holes on the wall,8mm in diameter and 45mm deep; Refer to Figure.
    Mounting Procedure

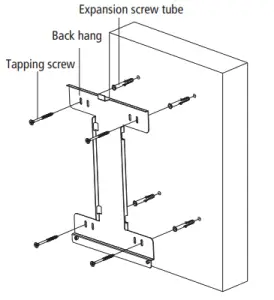

  2. Fix the wall mounting bracket on the wall with expansion bolts in accessory bag, refer to Figure.
    Mounting Procedure

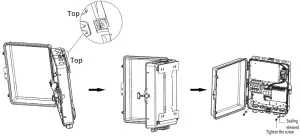

  3. Place SEC1000 on the wall-mounted bracket as illustrated in figure.
    Mounting Procedure

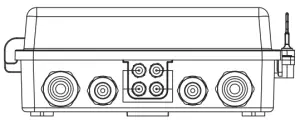

    SEC1000 can be placed horizontally to work, as shown in the figure.
    Mounting Procedure

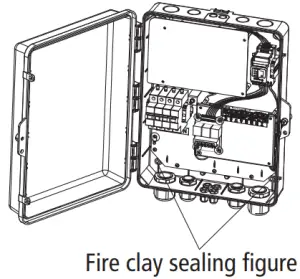

    Before installation, the inner mounting hole shall be sealed with the accessory fireproof mud, as shown in the figure.
    Mounting Procedure
    SEC1000 should be placed in a fixed place indoors.

Port and wiring instructions

Port and wiring instructions

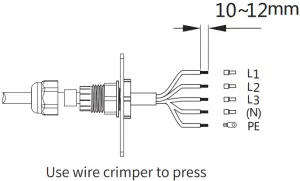

  1. Voltage Input Port(L1\L2\L3\(N)\PE)
    Port and wiring instructions
    Port and wiring instructions
    Input phase voltage range:AC60V-AC280V;Input line voltage range: AC100V-AC480V;AC Frequency:50/60Hz;
    Port and wiring instructions
    Port and wiring instructions

    No.

    Description

    Content

    A

    B

    Wire Diameter

    Cross Sectional Area of Copper Wire

    No more than 25 mm

    R ecommend:2.5-4mm2

    C

    Wire Length

    About 45 mm

    D

    Length of Bare Copper Wire

    About 12mm(10mm for PE)

  2. GPRS Antenna Output Port SEC1000(GPRS) uses this port to access the antenna.
  3. Current Input Port (three sets of CT: A&B&C ) Connect three sets of external CT to the connector at the position shown in figure 3-1 (A+A-\B+B-\C+C-).
    Each input current must be less than 5 A.

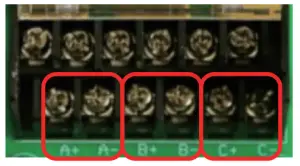

    Note: Correction method for misconnecting each CT.
    Take B+B- reverse connection as an example, and operate in the sequence from figure 3-2 to figure 3-5 below.
    Port and wiring instructions
    • (B+ and B- are reversed)
    • (Connect the corresponding position with a short wire)
    • (Switch the corresponding output terminal)
    • (Remove the short wire)
      Port and wiring instructions

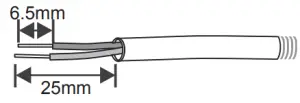

Specification and crimping of external CT input current wire

  • Port and wiring instructions
  • Port and wiring instructions

    NO

    Description

    Content

    A

    B

    Wire diameter

    Cross sectional area of copper wire

    No longer than 6 mm

    0.75-2.0(recommended)

    C

    Wire length

    45mm(more or less)

    D

    Length of bare copper wire

    5mm(more or less)

LAN Network port
Port and wiring instructions

LAN SEC1000 uses this port when accessing a network cable; The access point is as shown in the “NET” position in the figure above.

Communication Port
Port and wiring instructions

The description of bottom label inside SEC1000 is as follows

No.

Port

Description

1POWERDC Power Input (Occupied)
2NET

Ethernet Interface

3

DIDRED or RCR functional interface
4NC

reserve

5

COM1485 interface1 with Inverter
6COM2

485 interface2 with Inverter

7COM3485 interface3 with Inverter
8COM4

485 interface4 with SEC1000 internal Meter(Occupied)

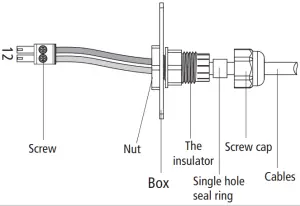

Wire specification and installation: It is recommended to use shielded twisted pair cables with conductor area 1mm2 for 485 communication cables.

  • Port and wiring instructions
    Port and wiring instructions
LineFunction
1RS485+
2RS485-

It is recommended to use Super Five Type of network cables. After wiring, use the fire-proof mud to seal the port, to ensure its protective performance.

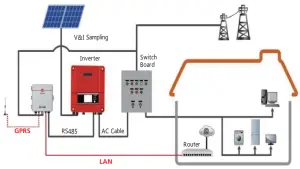

SEC1000 Grid Connection Diagram

  • SEC1000 Grid Connection Diagram

Main functions of SEC1000

In the Grid Connection Diagram as shown in 3.3.4( quantity of Inverter can be more than one),  SEC1000 will have the functions of Reactive Power Compensation, Active Power Regulation and Backflow prevention, etc. The corresponding parameters of the inverter are acquired and set through the software ProMate installed in computer for monitoring and configuring SEC1000.

ProMate is a kind of software that can configure EzLoggerPro, SEC1000 etc. It can modify the network IP address of EzLoggerPro and SEC1000, configure the number of connected inverters, time setting,  RCR, DRED function, configuration and on-site debugging.

First, the user need to install “ProMate” in the computer by downloading ProMate from Internet
(http://www.goodwe-power.com/files/ProMate.rar), Please access to the website to download the program and compete the installation.

If the user needs to use ProMate software to configure SEC1000, it needs to be set in dynamic IP(DHCP) or static IP according to the network connection mode.

  1. If the user is in the dynamic IP mode, he/she only needs to connect the SEC1000 NET port to the Router LAN port with the network cable to connect to the network, namely plug and play.
  2. If the user has a static IP, it is necessary to switch SEC1000 to the static IP mode. That is, press the Reload key for about 10 seconds to reset and restart SEC1000,About 10 seconds after pressing the Reload button, the LED lights on the SEC1000 internal EzLogger Pro Panel will blink from right to left and reset and restart.
    After restart, SEC1000 will be switched to static IP mode(default IP:192.168.1.200), then use cables to connect SEC1000“NET” port to the Ethernet port of the computer. At the same time, the IP address of the computer needs to be modified. The IP address and the default gateway should be set at 192.168.1.xxx segment (1 ≤XXX ≤250 and XXX ≠200). For example, the IP address can be set as 192.168.1.100 and the default gateway as 192.168.1.254.

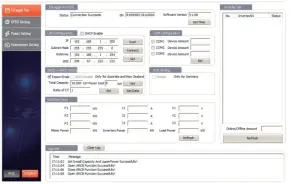

The interface of Promate is as follows:

  • interface of Promate

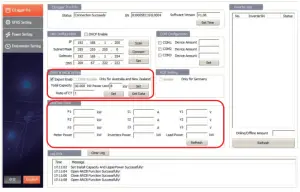

SEC1000 Backflow Prevention Function

Firstly, set the Total Capacity, Power Limit and the Ratio of CT( of external CT)) , and then check the Export Enable (as shown in the figure below), so that the active voltage, current and power data can be monitored in real time.

  • Prevention Function

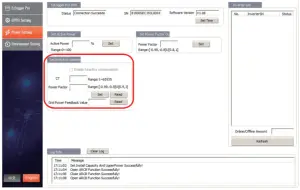

SEC1000 Reactive Power Compensation Function

Set the variable ratio of external CT (note that the primary current value of external CT does not exceed 5000A, and the corresponding secondary current value does not exceed 5A).

Set the desired Power Factor value.

The Grid Power Feedback value is the actual value acquired after setting the expected Power Factor.

  • Power Compensation Function

Technology parameter

Name

SEC1000(Smart Energy Controller 1000)

Technology parameter

Input voltage range

Phase voltage:AC60V~280V
Line voltage:AC100V~480V
Input voltage frequency50Hz/60Hz
Input current range0~5A(recommended CT see*1)
Rated power consumption<10W
Communication with the inverterRS485
Maximum distance from the inverter1000m(use shielded twisted-pair cable)
Maximum number of inverters connected60pcs
Communication with terminalsLAN, GPRS
Operating temperature range-25~60
Relative humidity0~100%
Level of protectionIP65
Size(L*W*H)320×420×131mm
Weight4KG

Recommended CT

According to the external current range, GoodWe recommends the following specifications, for reference only.

No

Range of current tested

Content

Remark

1Imax<250ACT 200A Acrel/AKH-0.66(200A/5A)Backflow CT, closed type(Hole size31mm*11mm,Φ22mm)
CT 250A/5A Acrel/AKH-0.66-K-30×20-250/5Backflow CT, open type(Opening size:32mm*22mm),accuracy 0.5%
CT 250A/5A Acrel/AKH-0.66-K-60×40-250/5Backflow CT, open type(Opening size:62mm*42mm),accuracy 1.0%

2

250A≤Imax<1000ACT 1000A/5A Acrel/AKH-0.66-K-60×40-1000/5Backflow CT, open type(Opening size:62mm*42mm),accuracy 0.5%
CT 1000A/5A Acrel/AKH-0.66-K-80×40-1000/5Backflow CT, open type(Opening size:82mm*42mm),accuracy 0.5%
CT 1000A/5A Acrel/AKH-0.66-K-80×80-1000/5Backflow CT, open type(Opening size:82mm*82mm),accuracy 0.5%

3

1000A≤Imax<5000ACT 5000A/5A Acrel/AKH-0.66-K-140×60-5000/5Backflow CT, open type(Opening size:142mm*62mm),accuracy 0.2%
CT 5000A/5A Acrel/AKH-0.66-K-160×80-5000/5Backflow CT, open type(Opening size:162mm*82mm),accuracy 0.2%



Relevant Certification

CE Mark

  • SEMS Portal app
    QR Code Icon
  • SEMS Portal website www.sems portal.com
    QR Code Icon
  • Company’s official website
    QR Code Icon
  • Company Wechat
    QR Code Icon

GoodWe(China)

No.90 Zijin Rd., New Distric
Suzhou,215011, China
T: 400 998 1212
[email protected]
www.goodwe.com.cn

GoodWe(Netherlands)

[email protected]
www.goodwe.com.cn

GoodWe(Australia)
[email protected]
www.goodwe.com.cn

GoodWe(UK)
[email protected]
www.goodwe.co.uk

Note: The information above is subject to change without prior notice, details refer to www.goodwe.com.cn.
