Installation Instructions
Mast Mount
18-03-21 Issue 9
SC12 – SC18 – SC20 – M92722 – SC21 – CAM-MM-01

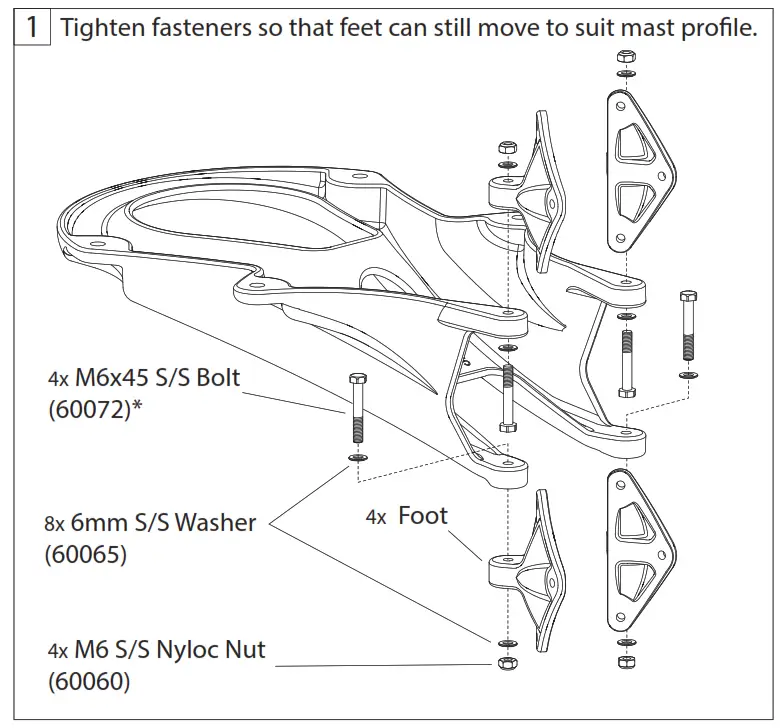

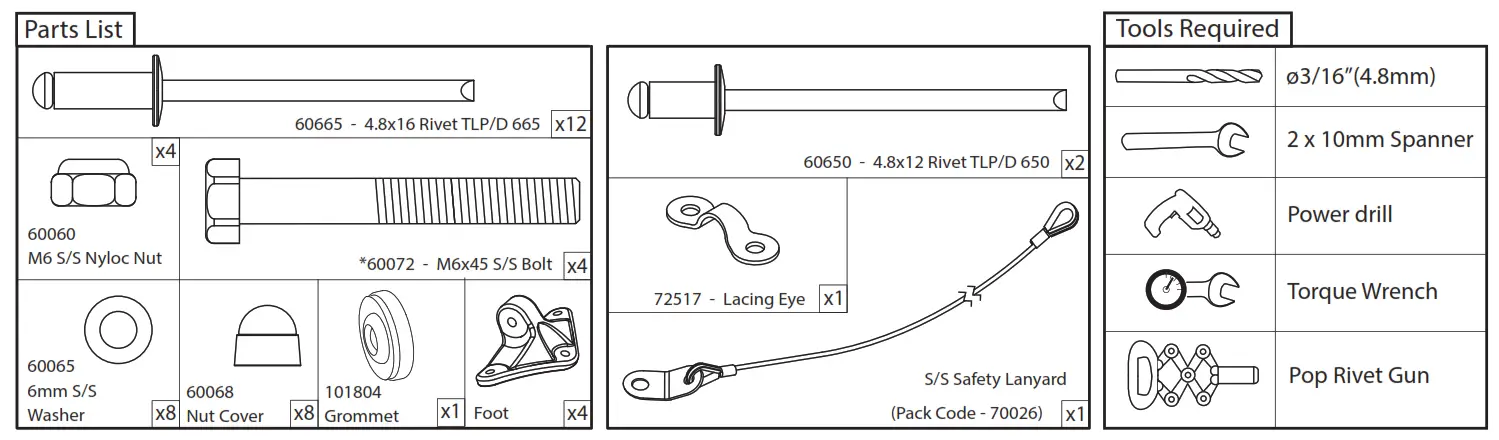

* SC20 and M92722 only. For SC12, 14, 16, 18, 21: 60640 – M6x40 S/S Bolt
For CAM-MM-01: 60635 – M6x35 S/S Bolt
 |  |
Important Notes
This Scanstrut Mast Bracket is only designed to support Radomes as stated in Scanstrut Product Guide, under normal sailing conditions. Use of the bracket with unapproved products, or overloading, invalidates any bracket warranty. No liability is accepted for damage caused by incorrect installation. The product has been designed specifically for the mounting of approved radar under normal sailing conditions. The product is designed to become detached from the mast in the event of an overload or other abuse, for example, impact, excessive force, and entanglement in sails or rigging. The safety lanyard must be fitted according to the instructions. Failure to do so invalidates any bracket warranty. Mast brackets must be regularly inspected for evidence of damage or lost parts. This product is designed to suit aluminum masts with a wall thickness in the range of 2mm (5/64”) – 5mm (3/16”). For installation on non-aluminum masts or mast sections outside the above sizes, please consult your mast manufacturer. The assembly is not designed to be fully removed and re-installed once fitted. If the bracket needs to be removed for servicing, the bracket should be disassembled from the feet by removing the bolts. The feet must remain attached to the mast, and the bracket must be re-fitted to the original feet, in their original location.

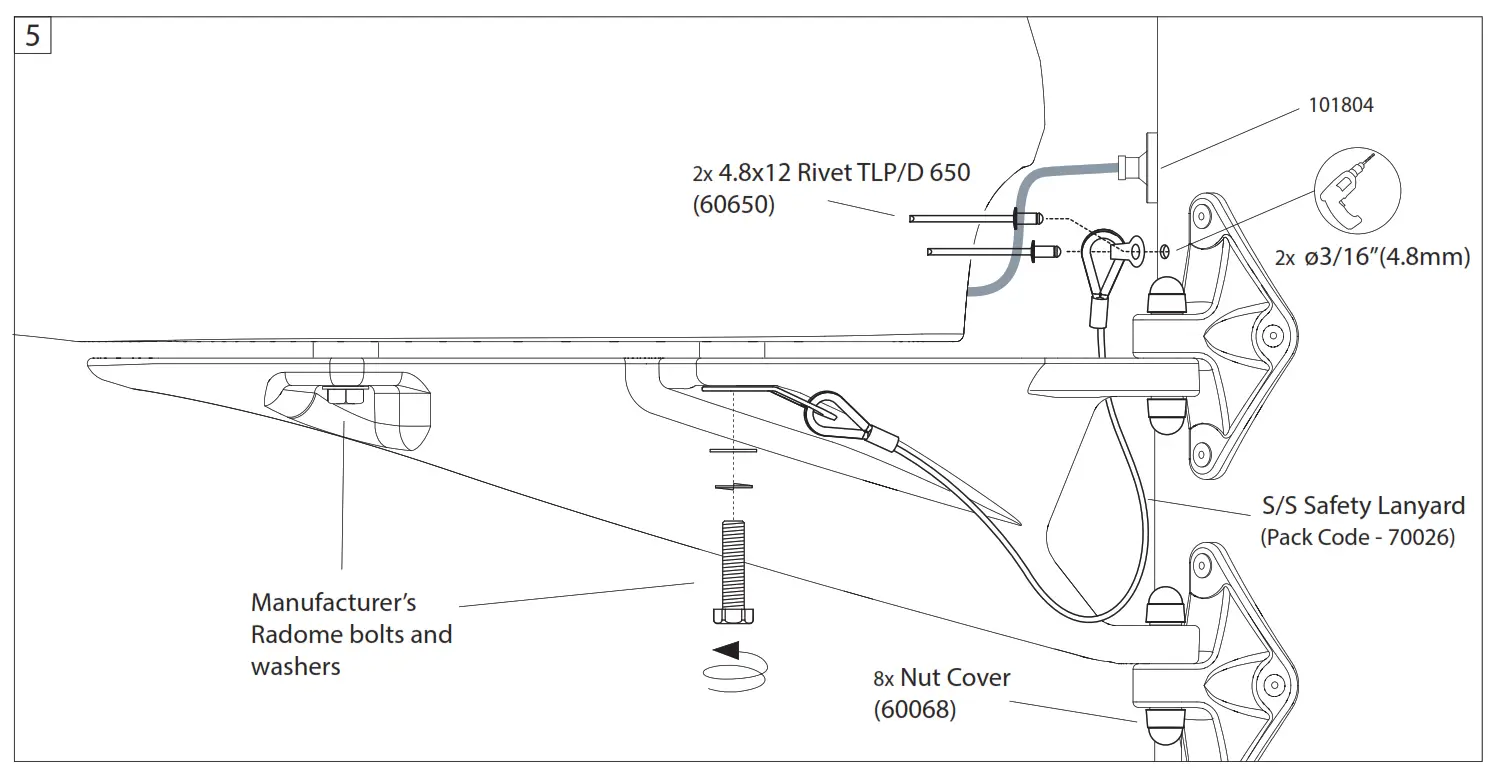

PLEASE NOTE: Failure to use the safety lanyard supplied invalidates any warranty offered by Scanstrut
