Installation Instructions
Aluminium/Stainless Steel PowerTower
| APT 6001 | SPT1001 | APT 5U |
| APT 6002 | SPT1002 | APT 10U |
| APT 102S | SPT1004 | APT 19000 |
| SPT1005 | APT 19001 |

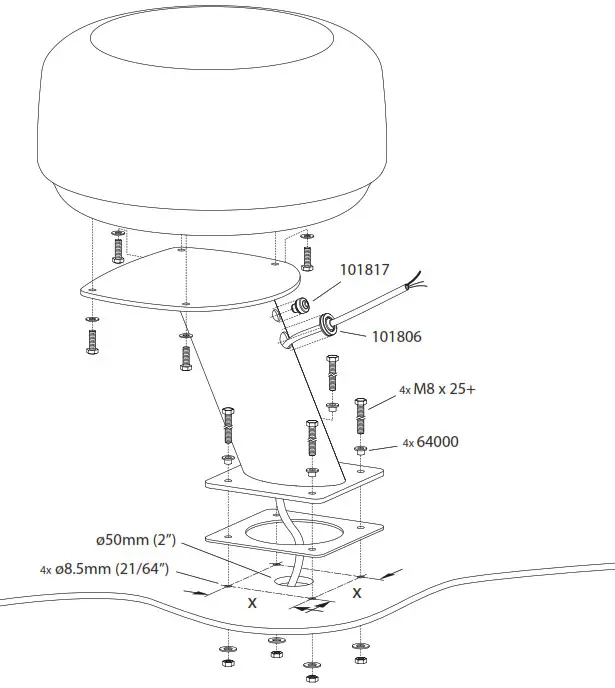

SPT 1001 Aluminium Stainless Steel Power Tower
| Model | x |
| SPT 1001 | 127mm (5”) |
| SPT 1002 | 127mm (5”) |
| SPT 1004 | 152mm (6”) |
| SPT 1005 | 152mm (6”) |
| APT 6001 | 150mm (5.9”) |
| APT 6002 | 150mm (5.9”) |
| APT 102S | 127mm (5”) |
| APT 5U | 127mm (5”) |
| APT 10U | 127mm (5”) |
| APT 19000 | 127mm (5”) |
| APT 19001 | 127mm (5”) |
IMPORTANT
Power Towers are only compatible with marine electronics devices as stated in the latest Scanstrut Product Guide – subject to change without prior notice.
Use of the Power Towers with unapproved products, or overloading, invalidates any product warranty.
Scanstrut does not supply fastenings to fix this product to the chosen surface. Please choose suitable fastenings for this purpose.
No liability is accepted for damage caused by incorrect installation.
The installation and assembly must be regularly inspected for evidence of damage or loose parts.
Product has been designed specifically for the mounting of approved marine electronics under normal boating conditions.
