Scanstrut Sc120 Lifting Crane Instruction Manual

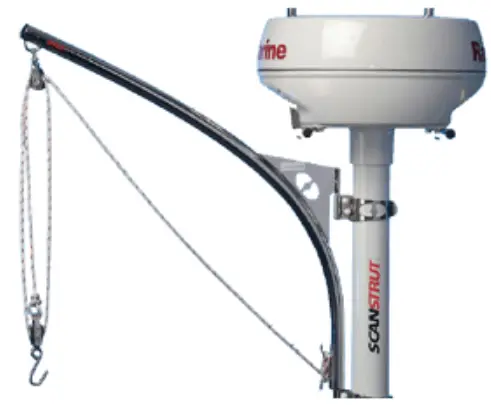

SCANSTRUT SC120 Lifting Crane

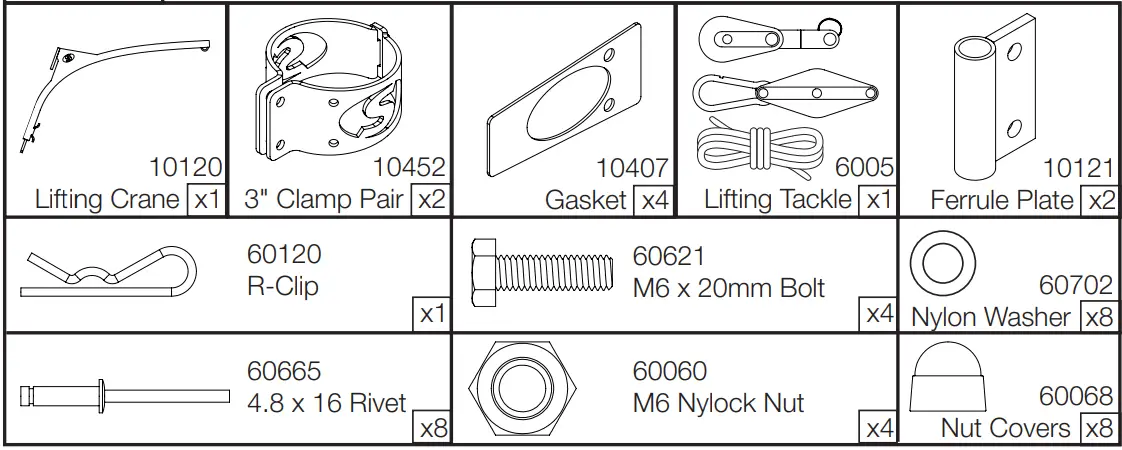

Parts List

Tools Required

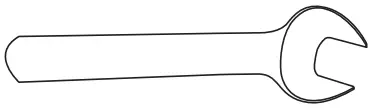

2 x 10mm Spanners	Rivet Gun

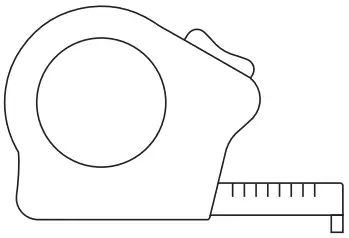

ø 5mm (3/16″) Drill Bit	Measuring Tool

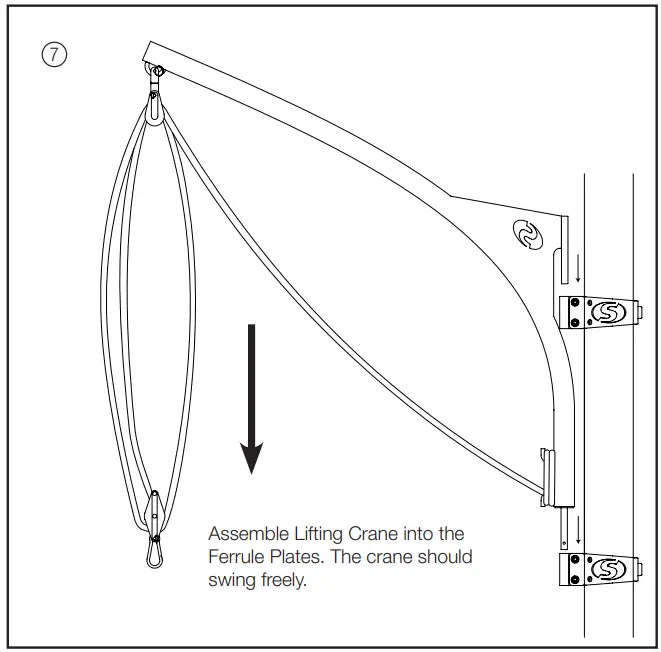

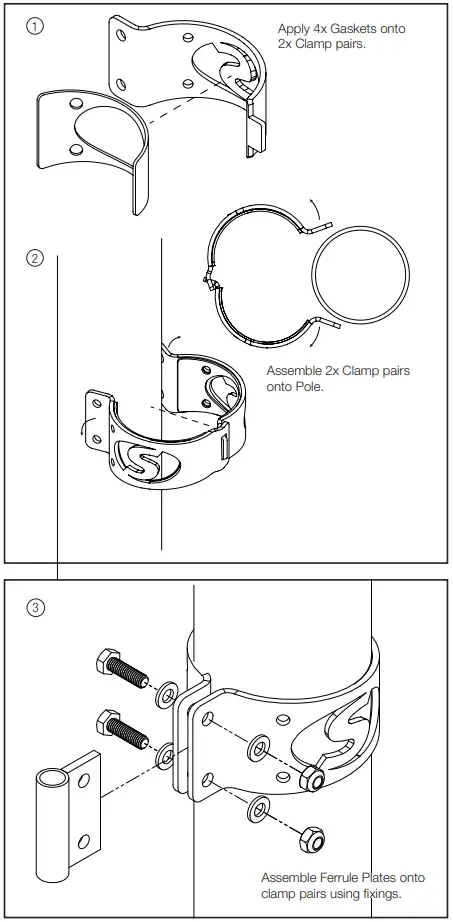

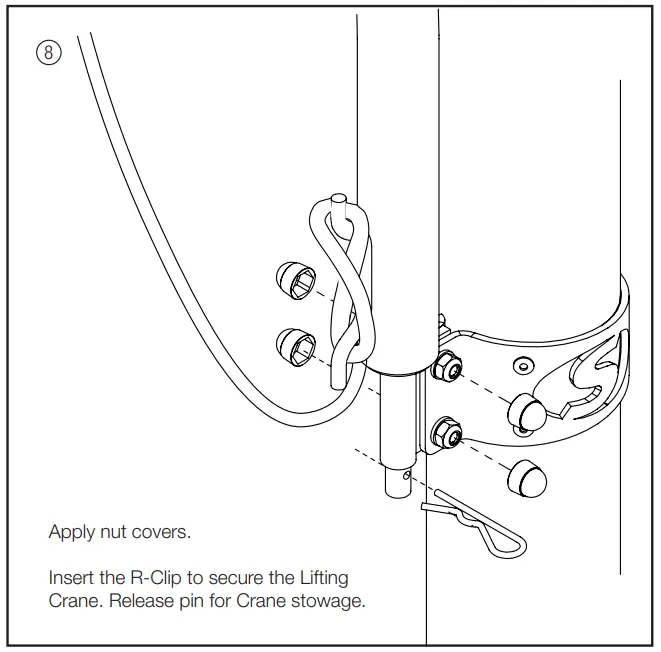

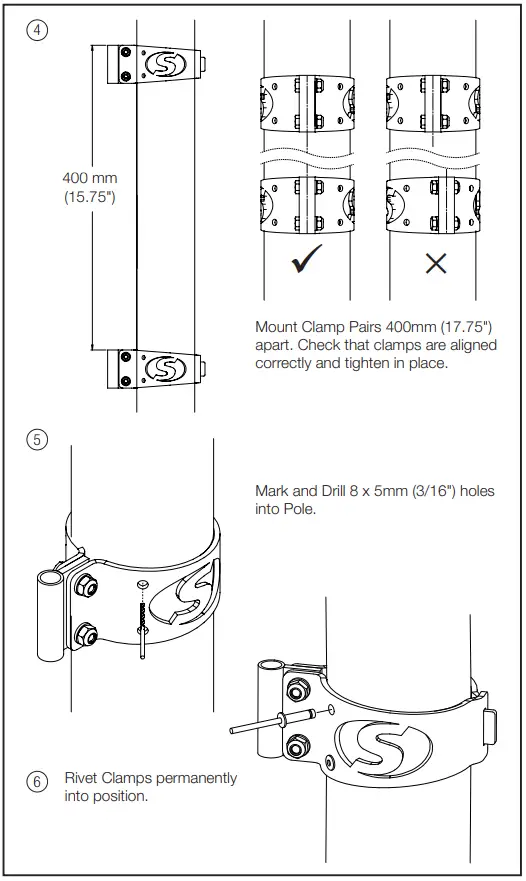

Assembly Instructions

Share your installation with us.

UK & International
+44 (0)1392531280
[email protected]
For further installation and warranty information please visit: www.scanstrut.com
USA
+1 860 308 1416
[email protected]
