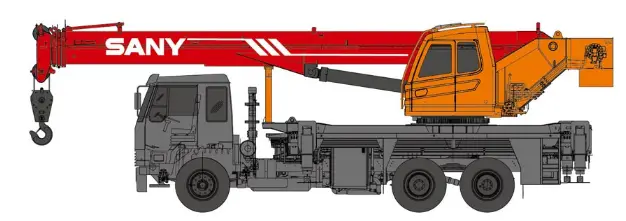

SANY SPC250 25 Tons Lifting Capacity Truck Crane
SANY Automobile Hoisting Machinery is one of the core business unit of Sany Heavy
Industry, mainly engaged in the research and development of high end, mid to large tonnage crane series, including mobile crane, crawler crane, tower crane and loader crane.
It has two industrial parks in Ningxiang and Huzhou, since entering the market, the products of Sany Automobile Hoisting Machinery have received worldwide recognition with advanced technology, lean manufacturing, high reliability and excellent service.
content

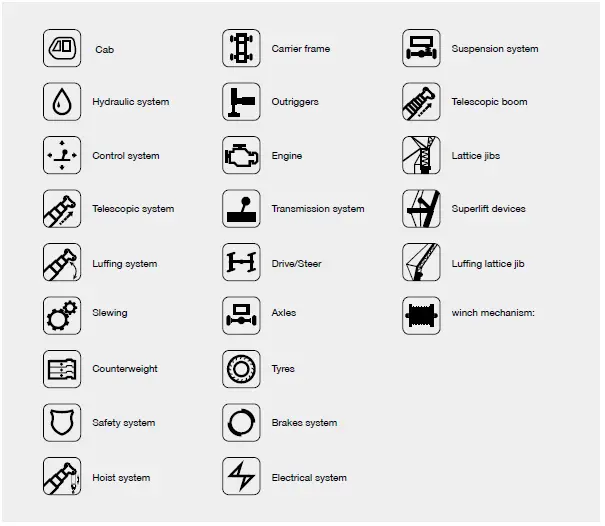

- 04 Icon
- 05 Selling Points
- 06 Introduction
- 08 Dimension

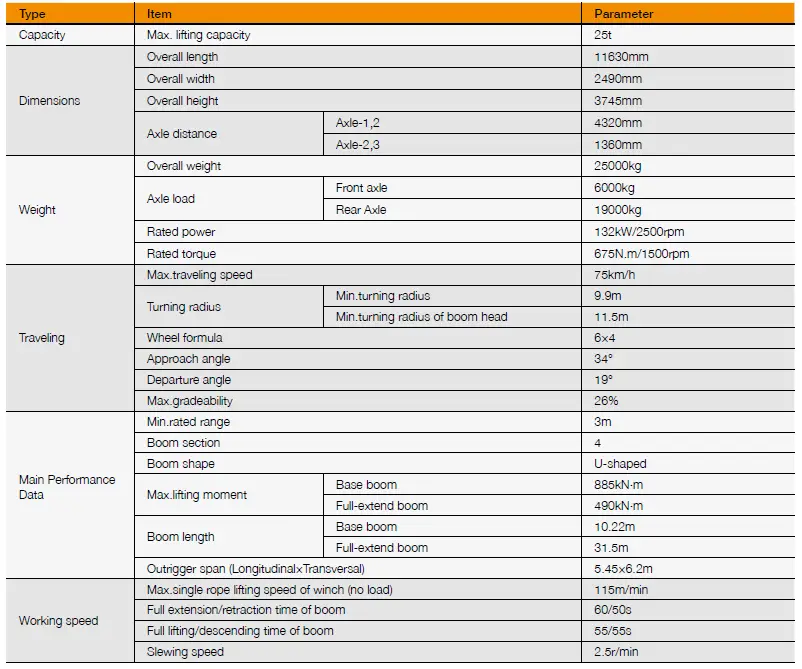

- 09 Technical Parameter
- 10 Operation Condition
- 11 Load Chart
- 14 Wheel Crane Family Map

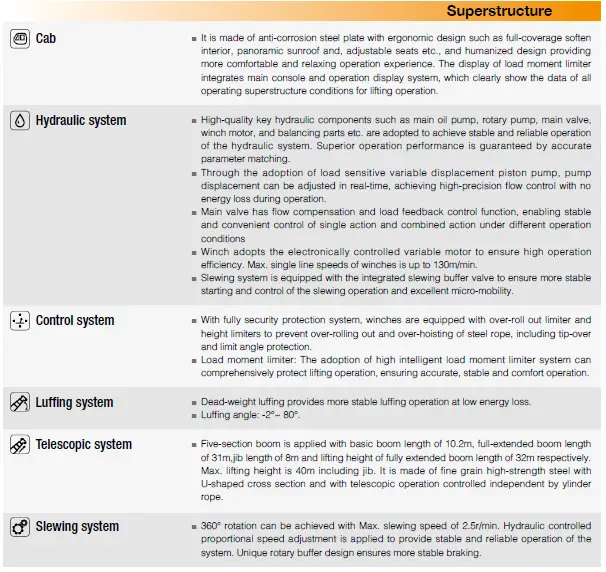

Ultra-long, super strong and highly sensitive load-lifting capacity
Four-section boom of high-strength steel structure and optimized U-shaped cross section reduces weight significantly with higher safety rates. Jib mounting angles are 0°, 15°, and 30° which ensures fast and convenient change-over between different operating conditions so as to improve working efficiency of the machine.
Highly efficient, stable, energy-saving, and adjustable hydraulic system
Hydraulic system load feedback and constant power control is applied to provide strong lifting capacity and good micromobility. Unique steering buffer design is adopted to ensure stable braking operation.
Safe, stable, advanced, and intelligent electric control system
Self-developed controller SYMC specially for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness, and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in realtime; the load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within 3% to provide a comprehensive logic and interlock control, thus ensuring more safe and reliable operation.

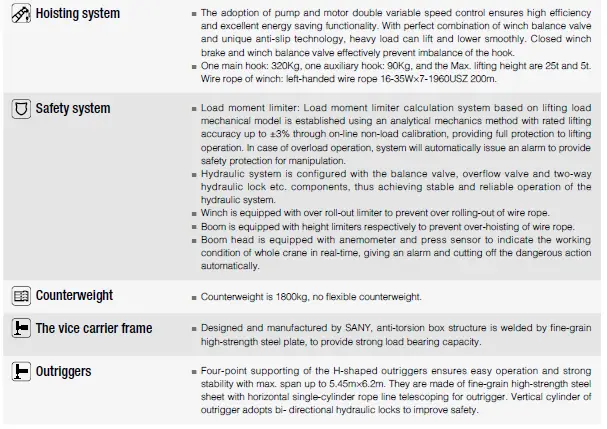

INTRODUCTION

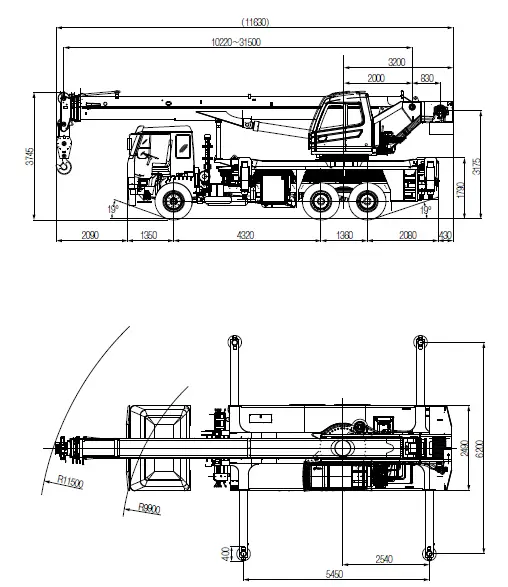

DIMENSION
OPERATION CONDITION

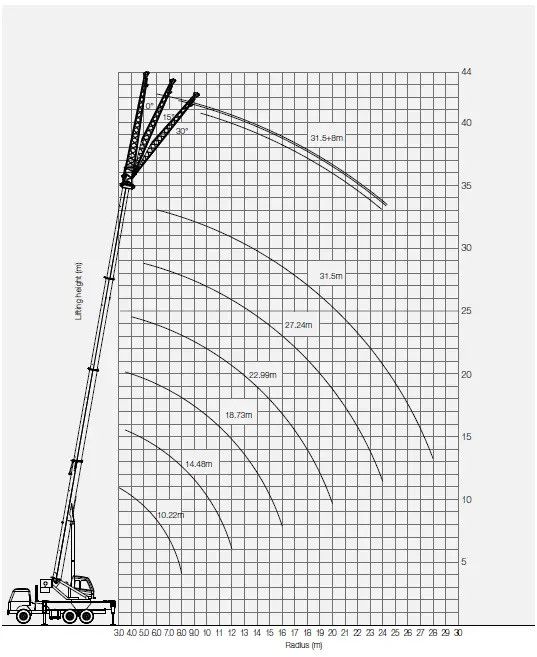

LOAD CHART
| Prerequisites: ① Boom operating condition(fully extended boom length),min.length is 10.22 and.max.length is 31.5m ② The span of outrigger is 5.45×6.2m ③ 240°rotation is applied ④ Counterweight is 1.6T | |||||||
| Working range(m) | Main boom | Working range(m) | |||||
| 10.22 | 14.48 | 18.73 | 22.99 | 27.24 | 31.5 | ||
| 3 | 25000 | 16000 | 3 | ||||
| 3.5 | 23000 | 16000 | 13700 | 3.5 | |||
| 4 | 21000 | 15500 | 13500 | 4 | |||
| 4.5 | 19000 | 15500 | 13300 | 10500 | 4.5 | ||
| 5 | 17000 | 15000 | 13100 | 10000 | 8500 | 5 | |
| 5.5 | 15000 | 14000 | 12500 | 10000 | 8500 | 5.5 | |
| 6 | 13200 | 13000 | 11600 | 9400 | 8000 | 6500 | 6 |
| 6.5 | 11500 | 11800 | 11000 | 8800 | 8000 | 6400 | 6.5 |
| 7 | 10000 | 10000 | 10000 | 8200 | 7500 | 6300 | 7 |
| 8 | 7500 | 7800 | 8000 | 7500 | 7000 | 5900 | 8 |
| 9 | 6200 | 6400 | 6300 | 6200 | 5400 | 9 | |
| 10 | 5700 | 5200 | 5300 | 5100 | 4900 | 10 | |
| 12 | 4200 | 3800 | 3800 | 3700 | 3700 | 12 | |
| 14 | 3000 | 3000 | 3000 | 2900 | 14 | ||
| 16 | 2200 | 2400 | 2300 | 16 | |||
| 18 | 1800 | 1700 | 1800 | 18 | |||
| 20 | 1500 | 1500 | 20 | ||||
| 22 | 1200 | 22 | |||||
| Number of lines | 8 | 6 | 6 | 4 | 3 | 3 | Number of lines |
| Telescoping condition(%) | |||||||
| Ⅰ | 100% | 100% | 100% | 100% | 100% | 100% | Ⅰ |
| Ⅱ | 0 | 20% | 40% | 60% | 80% | 100% | Ⅱ |
| Ⅲ | 0 | 20% | 40% | 60% | 80% | 100% | Ⅲ |
| Ⅳ | 0 | 20% | 40% | 60% | 80% | 100% | Ⅳ |
- Values listed in the table refer to rated lifting capacity measured at flat and solid gound under the lever state of the crane.
- Value above heavy line shall be determined by strength of the crane and under this line shall be determined by stability of the crane.
- Rated load values determined by stability shall comply with ISO 4305.
- Rated lifting capacity listed in the table included weights of lifting hooks (320kg of hook )and hangers.
- If actual boom length and range are between two values specified in the table, larger value will determine the lifting capacity.
| Prerequisites: ① Boom operating condition(fully extended boom length),min.length is 10.22 and.max.length is 31.5m ② The span of outrigger is 5.45×6.2m ③ 360°rotation is applied ④ Counterweight is 1.6T | |||||||
| Working range(m) | Main boom | Working range(m) | |||||
| 10.22 | 14.48 | 18.73 | 22.99 | 27.24 | 31.5 | ||
| 3 | 25000 | 16000 | 3 | ||||
| 3.5 | 22000 | 16000 | 13500 | 3.5 | |||
| 4 | 19000 | 15500 | 13000 | 4 | |||
| 4.5 | 17500 | 15500 | 13000 | 10500 | 4.5 | ||
| 5 | 15500 | 14500 | 12600 | 10000 | 8500 | 5 | |
| 5.5 | 14000 | 13500 | 12000 | 10000 | 8300 | 5.5 | |
| 6 | 12500 | 12500 | 11400 | 9400 | 7900 | 6300 | 6 |
| 6.5 | 10800 | 11000 | 10600 | 8700 | 7600 | 6100 | 6.5 |
| 7 | 9000 | 9800 | 9600 | 8000 | 7100 | 6000 | 7 |
| 8 | 7000 | 7500 | 7700 | 7200 | 6800 | 5600 | 8 |
| 9 | 6000 | 6000 | 6000 | 5900 | 5200 | 9 | |
| 10 | 5300 | 5000 | 5000 | 4900 | 4700 | 10 | |
| 12 | 3700 | 3500 | 3400 | 3400 | 3400 | 12 | |
| 14 | 2500 | 2500 | 2600 | 2500 | 14 | ||
| 16 | 1900 | 1800 | 1900 | 16 | |||
| 18 | 1400 | 1300 | 1400 | 18 | |||
| 20 | 1000 | 1000 | 20 | ||||
| 22 | 700 | 22 | |||||
| Number of lines | 8 | 6 | 6 | 4 | 3 | 3 | Number of lines |
| Telescoping condition(%) | |||||||
| Ⅰ | 100% | 100% | 100% | 100% | 100% | 100% | Ⅰ |
| Ⅱ | 0 | 20% | 40% | 60% | 80% | 100% | Ⅱ |
| Ⅲ | 0 | 20% | 40% | 60% | 80% | 100% | Ⅲ |
| Ⅳ | 0 | 20% | 40% | 60% | 80% | 100% | Ⅳ |
- Values listed in the table refer to rated lifting capacity measured at flat and solid gound under the lever state of the crane.
- Value above heavy line shall be determined by strength of the crane and under this line shall be determined by stability of the crane.
- Rated load values determined by stability shall comply with ISO 4305.
- Rated lifting capacity listed in the table included weights of lifting hooks (320kg of hook )and hangers.
- If actual boom length and range are between two values specified in the table, larger value will determine the lifting capacity.
| Prerequisites: ① Boom operating condition( fully extended boom length + jib length),max. length is 31.5m+8m ② The span of outriggers is 5.45×6.2m ③ 240°rotation is applied ④ Counterweight is 1.6T | ||||
| Main boom angle | Main boom+Jib | Main boom angle | ||
| Compensation angle0° | Compensation angle 15° | Compensation angle 30° | ||
| 78° | 2700 | 2400 | 1800 | 78° |
| 75° | 2510 | 2220 | 1750 | 75° |
| 72° | 2140 | 1830 | 1520 | 72° |
| 70° | 1910 | 1570 | 1350 | 70° |
| 65° | 1450 | 1240 | 1000 | 65° |
| 60° | 1080 | 1020 | 750 | 60° |
| 55° | 800 | 720 | 560 | 55° |
| 50° | 580 | 210 | 400 | 50° |

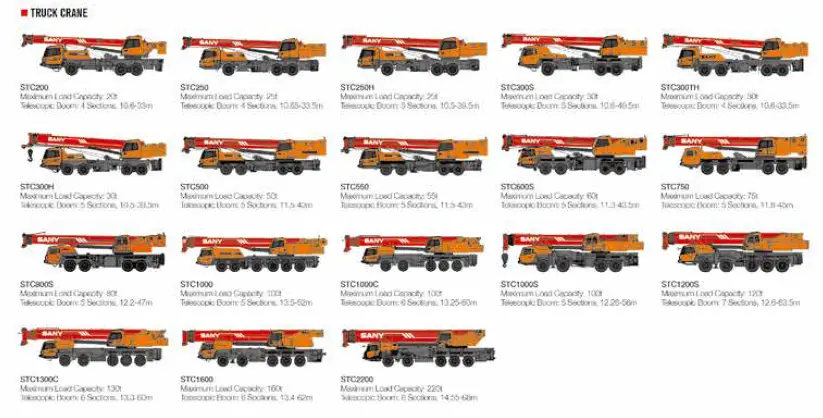

WHEEL CRANE FAMILY MAP
TRUCK CRANE

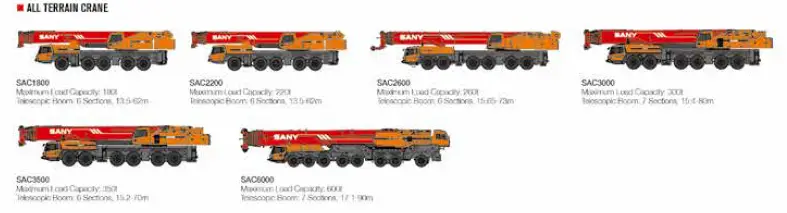

ALL TERRAIN CRANE

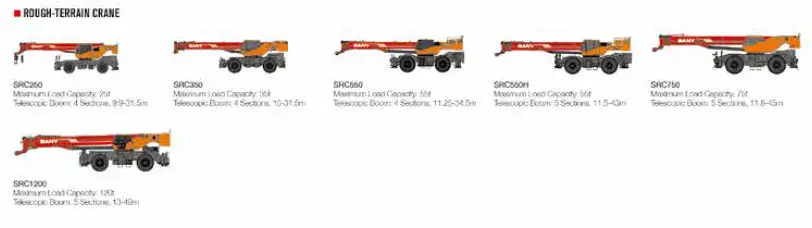

ROUGH-TERRAIN CRANE
