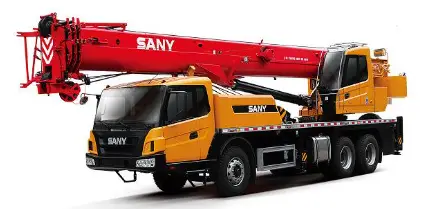

SANY STC250T4 25 Tons Lifting Capacity Truck Crane
SANY TRUCK CRANE STC250T4 / 25 TON LIFTING CAPACITY

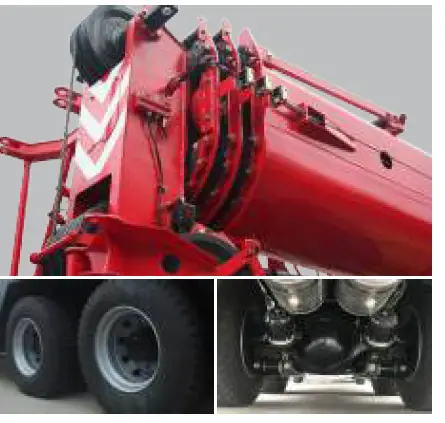

Strong boom
- 35m telescopic boom, Reach a new height of 35.5m.
- Larger cross-section boom, achieving a load moment of 1078KN·m.
- Boom section overlap increased, resulting in higher torsion resistance and bending resistance.
- 8m lattice jib, triangular structure for stable operation.

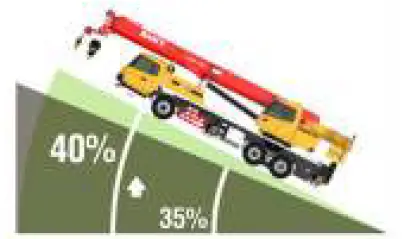

Powerful chassis
- DF Cummins ISLe290 30 engine, FAST 9-speed synchronizing gearbox, rubber suspension, 12R22.5 wire tire.
- Frame torsion resistance verified by 20k times of reliability and safety cycling test.
- Outrigger span expanded to 5.18m×6.4m (largest among this tonnage in the industry), stable base.

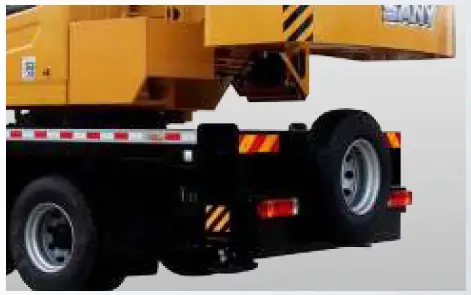

- Low deck carrier for drive stability.
SANY TRUCK CRANE STC250T4 / 25 TON LIFTING CAPACITY
Precise hydraulics

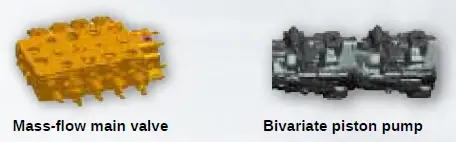

- Load sensing hydraulic system: higher efficiency with less consumption.
- Constant-pressure powered luffing: smoothly luffing down, free from impact of load fluctuation.
- Big-flow piston slewing motor: slower slewing with larger torque.
- Power control: Engine speed reduced by 12% in operation, less fuel needed, less noise generated.

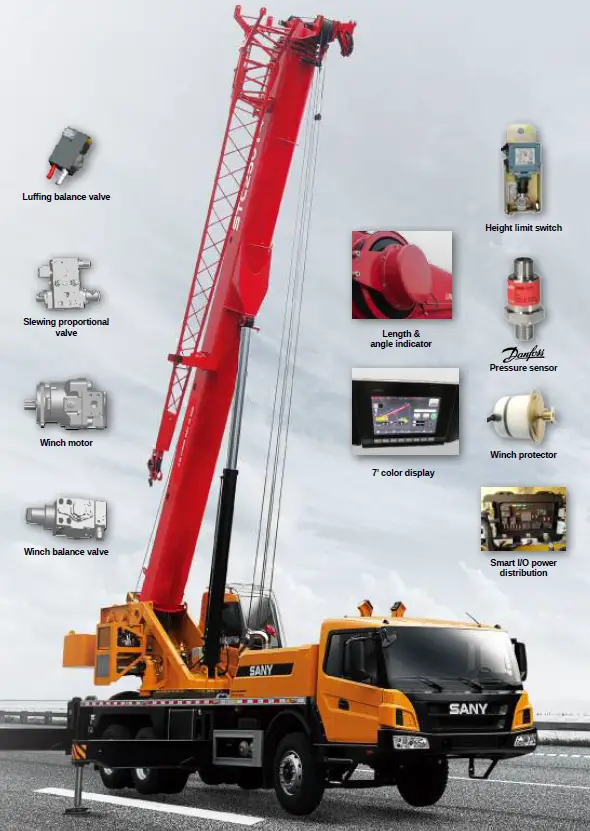

Smart control
- CAN-BUS system: instant transfer of information, as fast as 20ms.
- Fault diagnosis: BCM controller for fault detection and easy maintenance.

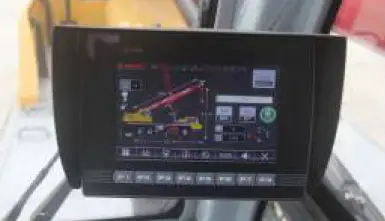

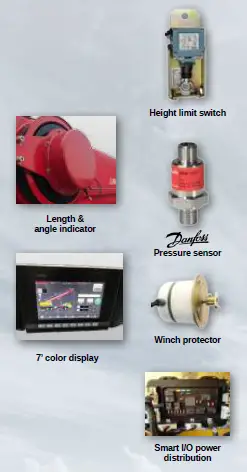

- 7’color display & smart panel & IO power distribution: user friendly.
- Safety guarantee: SANY, Load Moment Indicator monitoring load and wire rope conditions.
Technical Features
Winch for easy loading

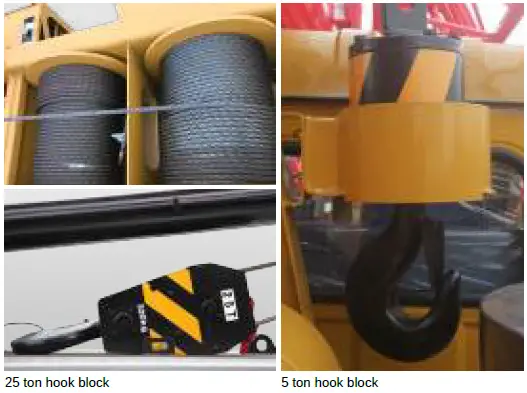

- Max. single line pull up to 5 ton. Freight within 5t can be loaded with a 5t auxiliary hook (standard configuration).
- Auxiliary hook block: wide opening with latch, safe and convenient.
Walking deck

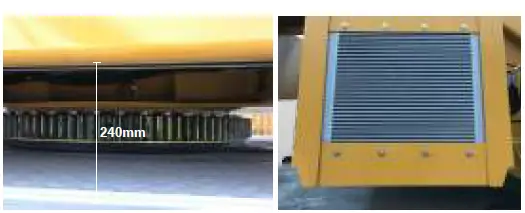

- Abundant distance between deck and slewing platform to place outrigger sleeper.
- Ample space on deck tail to place sleepers.

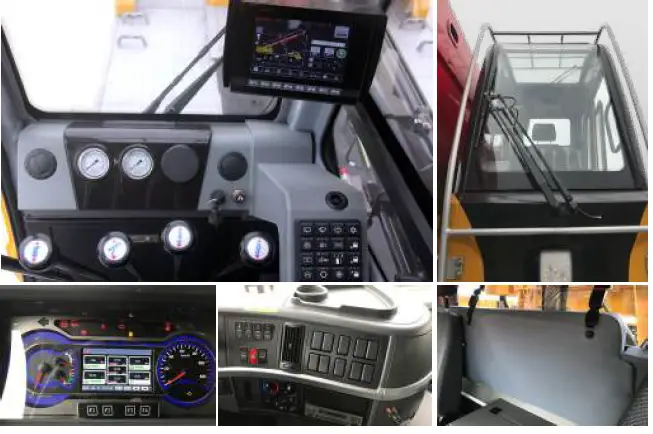

Two cabs
- Egronomic design gives you comfortable drive and operation.
- Wide view and multiple indicators for safe performance
Counterweight
Fixed 5 ton counterweight, high density with smaller size.

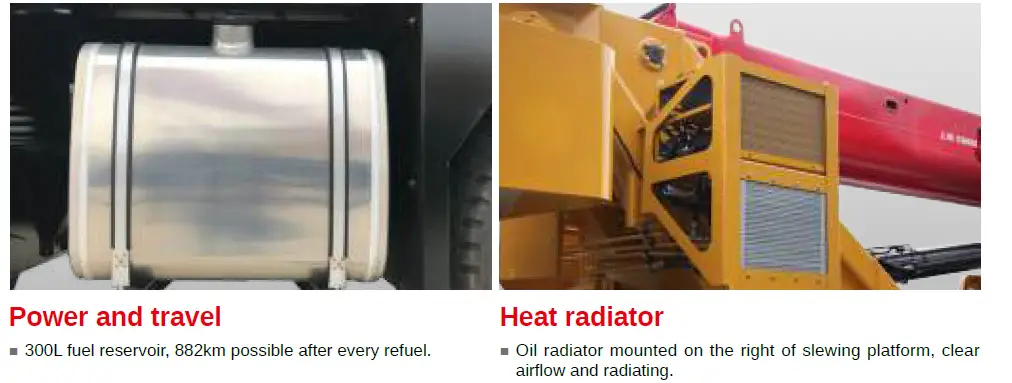

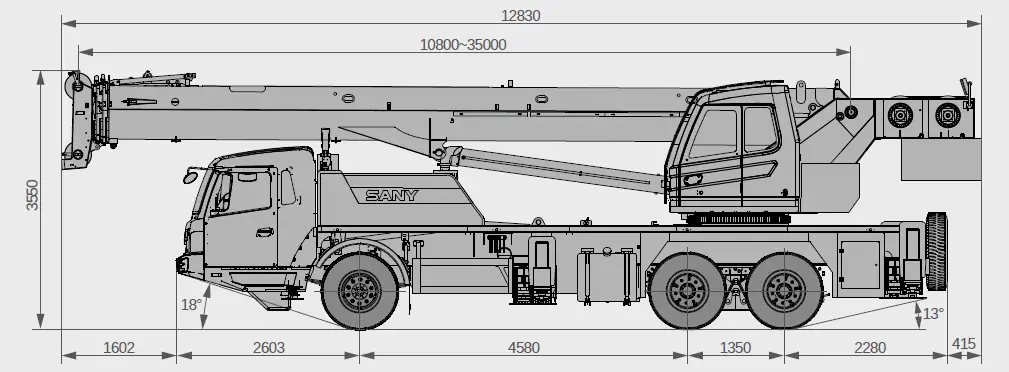

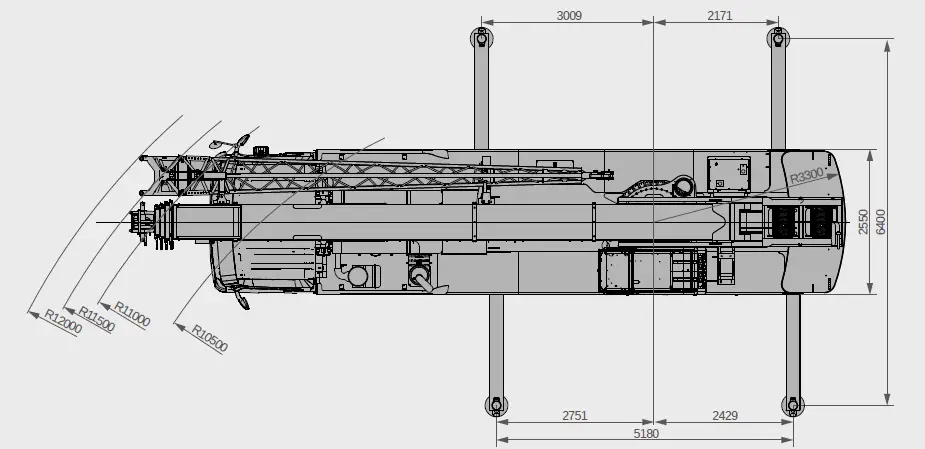

Overall Dimensions

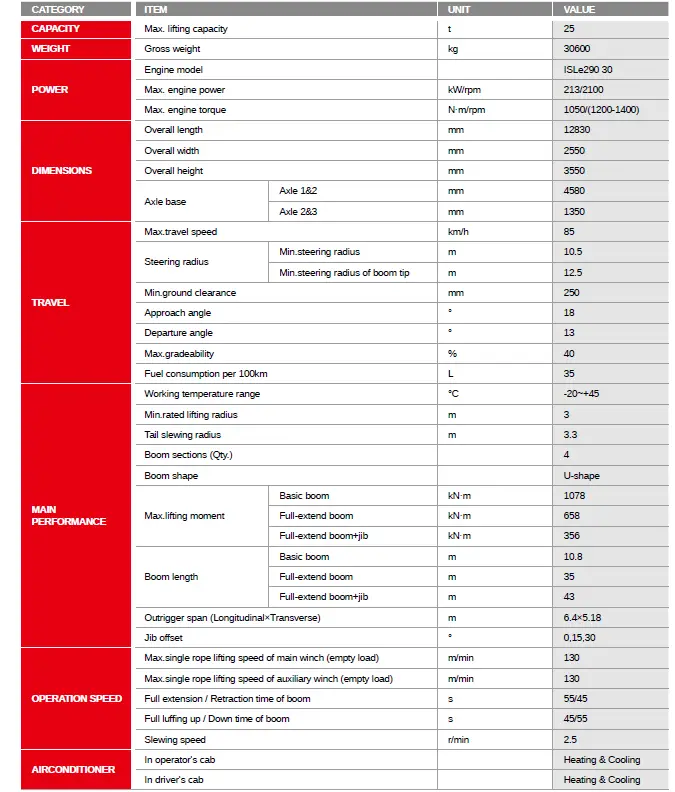

Technical Parameters
Axle Load
| Axle | 1 | 2 | 3 | Gross weight |
| Load per axle /kg | 6800 | 12000 | 11800 | 30600 |
Hook
| Load/t | Number of sheaves Rope rate Hook weight /kg | ||
| 25 | 4 | 8 | 320 |
| 5 | – | – | 85 |
Operations
| Item | Rope diameter/length Max. single line pull | ||
| Main winch | 16mm/165m | 5t | |
| Auxiliary winch | 16mm/95m | 5t | |
| Slewing | 2.5r/min | ||
| Luffing up/down | 45s/55s | ||
| Telescoping | 55s/45s | ||
| Outrigger jack | Retract | 30s | |
| Extend | 15s | ||
| Outrigger beam | Retract | 25s | |
| Extend | 20s | ||
Operating Range

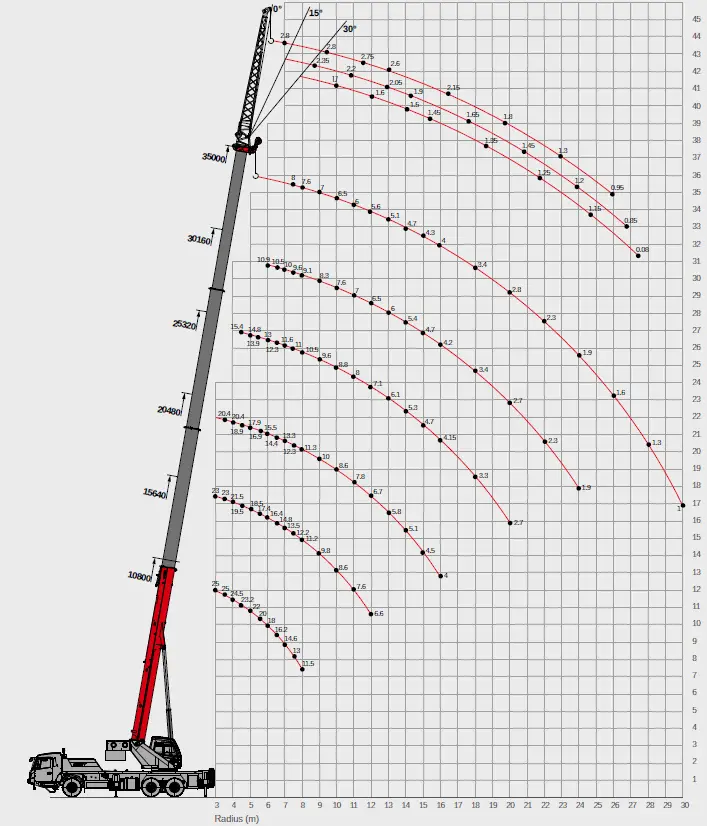

Load Chart-Jib
| Boom+Jib | ||||
| Boom angle
78° | jib offset angle(°) | Boom angle
78° | ||
| 0° | 15° | 30° | ||
| 2800 | 2350 | 1700 | ||
| 75° | 2800 | 2200 | 1600 | 75° |
| 72° | 2750 | 2050 | 1500 | 72° |
| 70° | 2600 | 1900 | 1450 | 70° |
| 65° | 2150 | 1650 | 1350 | 65° |
| 60° | 1800 | 1450 | 1250 | 60° |
| 55° | 1300 | 1200 | 1150 | 55° |
| 50° | 950 | 850 | 800 | 50° |
Remark:
- Value listed are the max. capacity when the crane is in a level condition on solid ground or surface;
- When the fifth outrigger is landed in position, value listed are applicable for 360 degree operation. In case of damage, avoid loading above carrier cab. Front operation is forbidden when the fifth outrigger is not working;
- Value above are calculated with hooks and lifting slings considered (320kg main hook, 85kg auxiliary hook);
- Radius refers to horizontal reach from hook center to slewing platform center;
- Load value is given according to the larger radius or boom length value when the actual radius or boom length falls between two numbers above;
- Lifting performance of boom point sheave equals that of 41m boom, while max. load shall be 5t;
- Boom load capacity shall be 450kg less than value given when jib is mounted.
