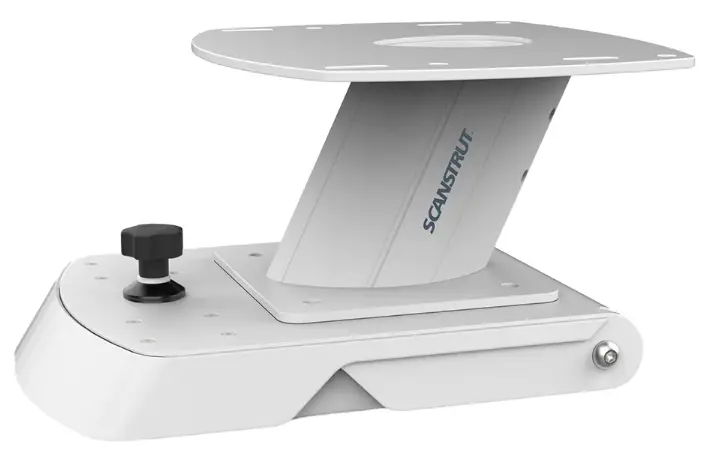

SCANSTRUT HS-02 Manual Hinge System

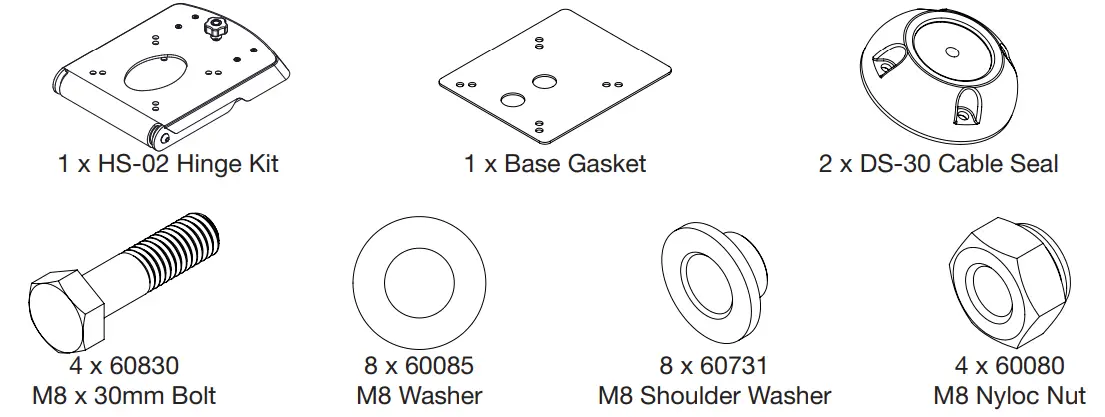

Parts List
Parts Required

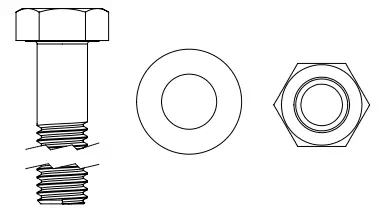

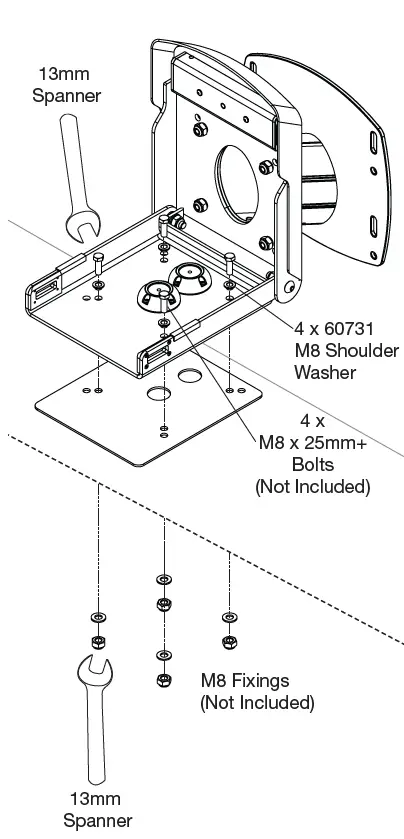

M8 x 25mm+ Length
M8 Fasteners for Securing Hinge Base

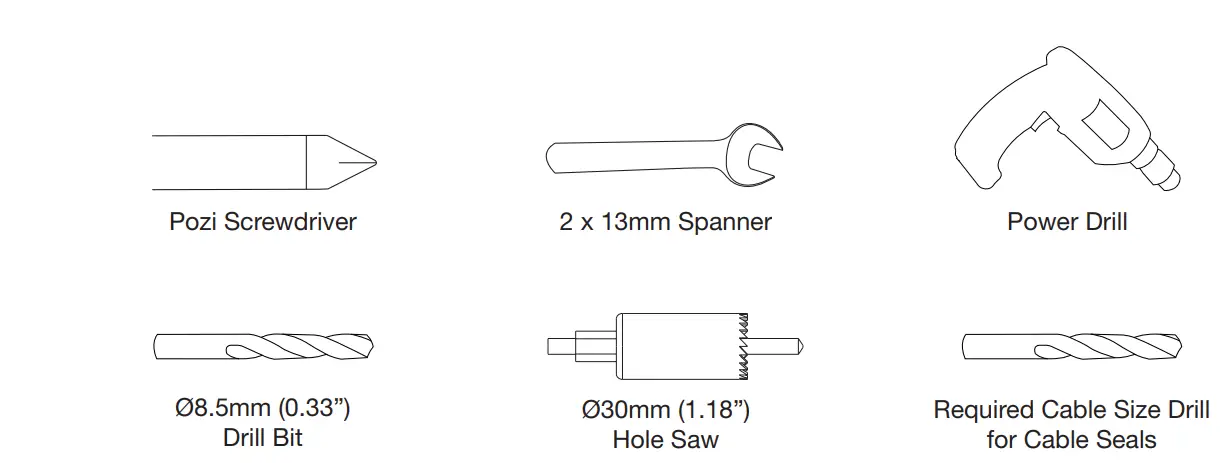

Tools Required

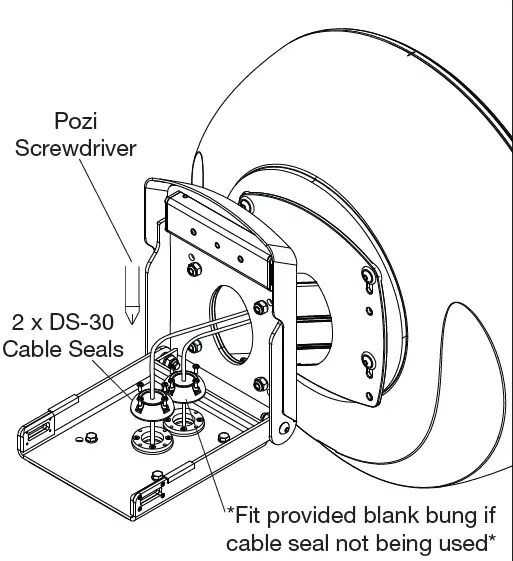

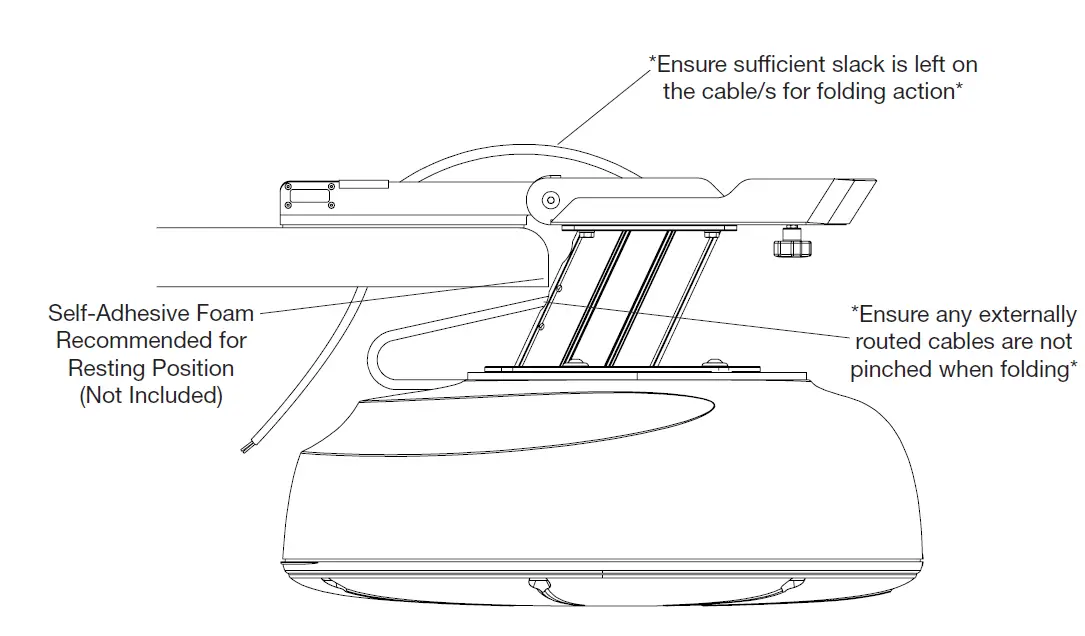

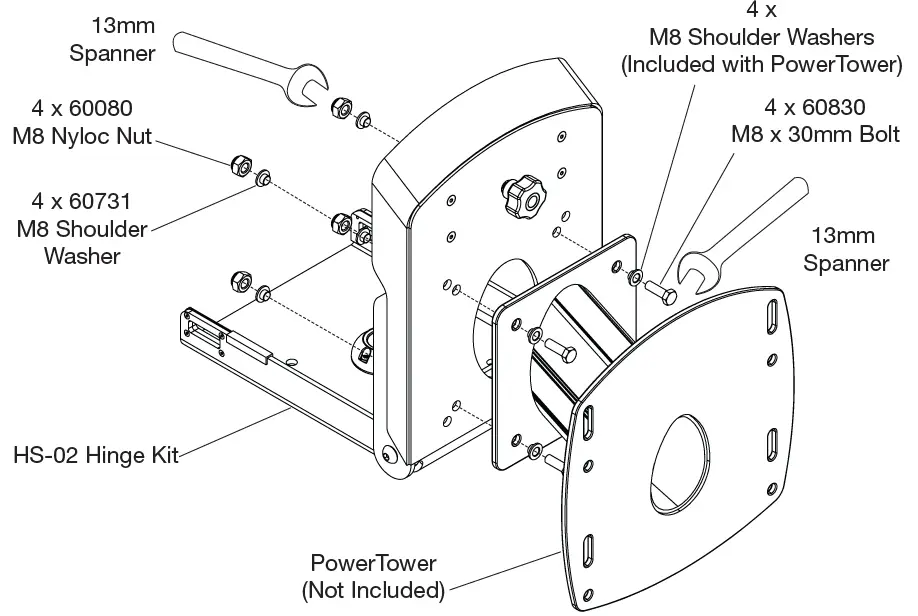

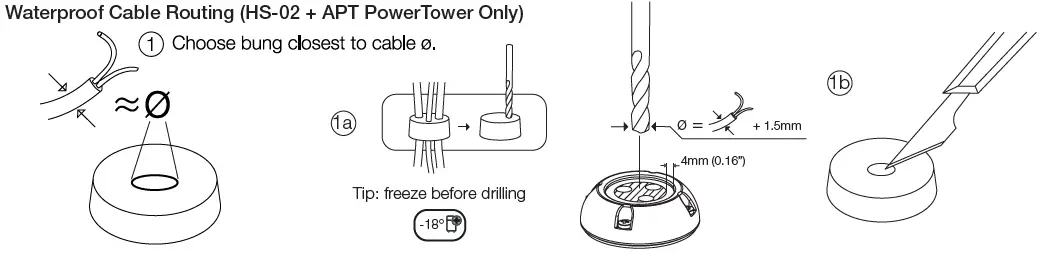

INSTALLATION
IMPORTANT NOTE
HS-02 Hinge System is only compatible with marine electronics devices as stated in the latest Scanstrut Product Guide – subject to change without prior notice.
Use of the HS-02 Hinge System with unapproved products, or overloading, invalidates any product warranty.
Scanstrut does not supply fastenings to fix this product to the chosen surface. Please choose suitable fastenings for this purpose.
No liability is accepted for damage caused by incorrect installation.
The installation and assembly must be regularly inspected for evidence of damage or loose parts.
Product has been designed specifically for the mounting of approved marine electronics under normal boating conditions.
