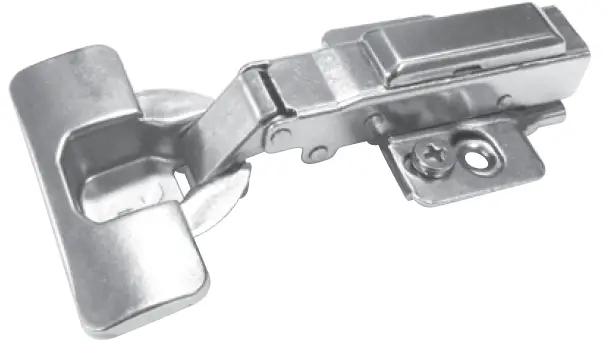

Richelieu RCS Series European Style Hinge
Opening

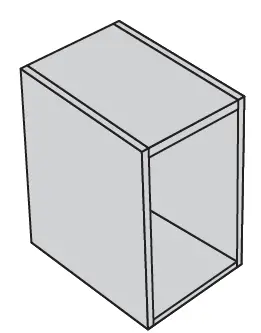

- Frameless Cabinet

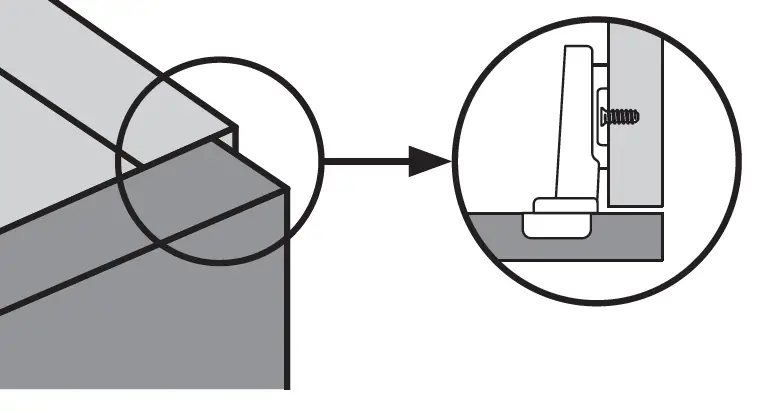

- FULL OVERLAY
For door thickness of 5/8” or 3/4”
Package contents
- 2 hinges
- 2 mounting plates
- 2 hinge cup covers
- 2 hinge arm covers
- Mounting screws
INSTALLATION

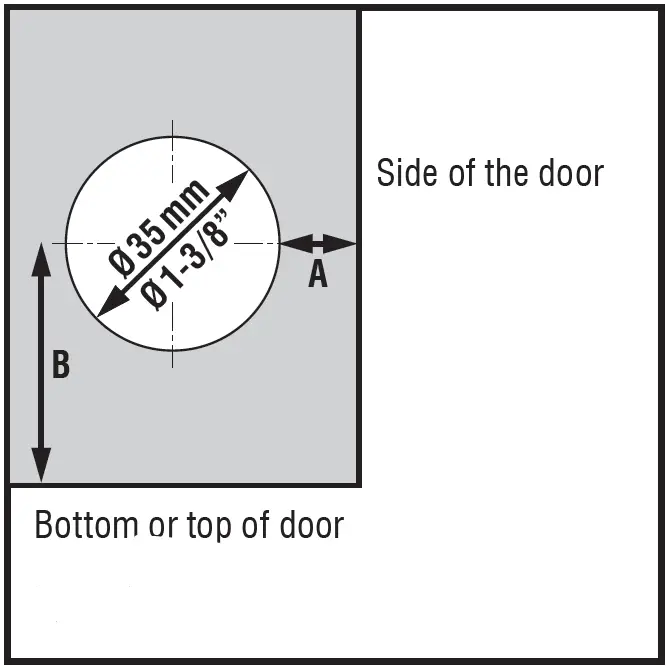

Use a 1-3/8” (35 mm) drill bit to make a hole 7/16” (11 mm) to 1/2” (13 mm) deep as follows:
- A 1/8” to 1/4” from side of door.
- B 1/5 from door height.
Insert the box. Secure with screws.

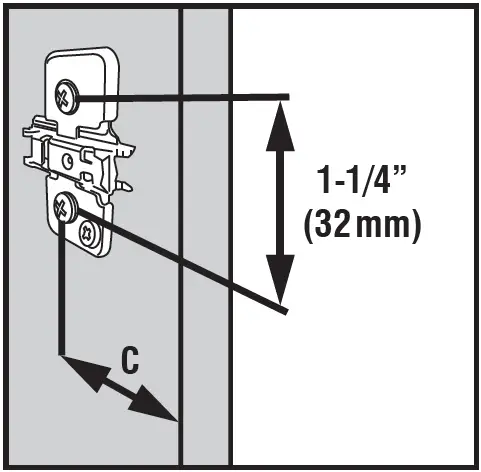

MOUNTING PLATE INSTALLATION
C 1-7/16”

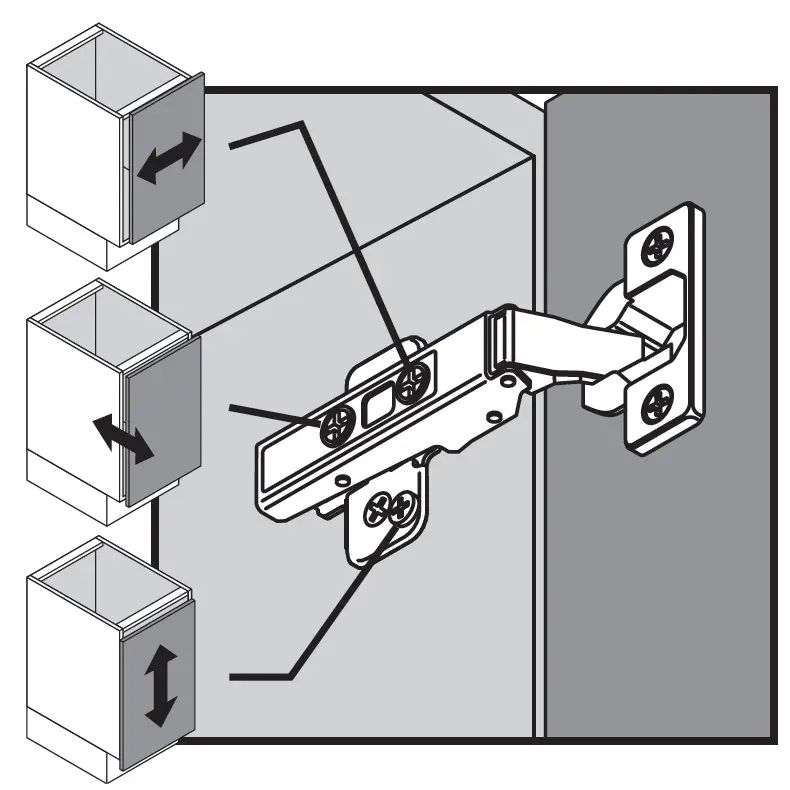

ADJUSTMENTS
