Honeywell Home CABINET BASE SCS 12 Mounting Installation Guide

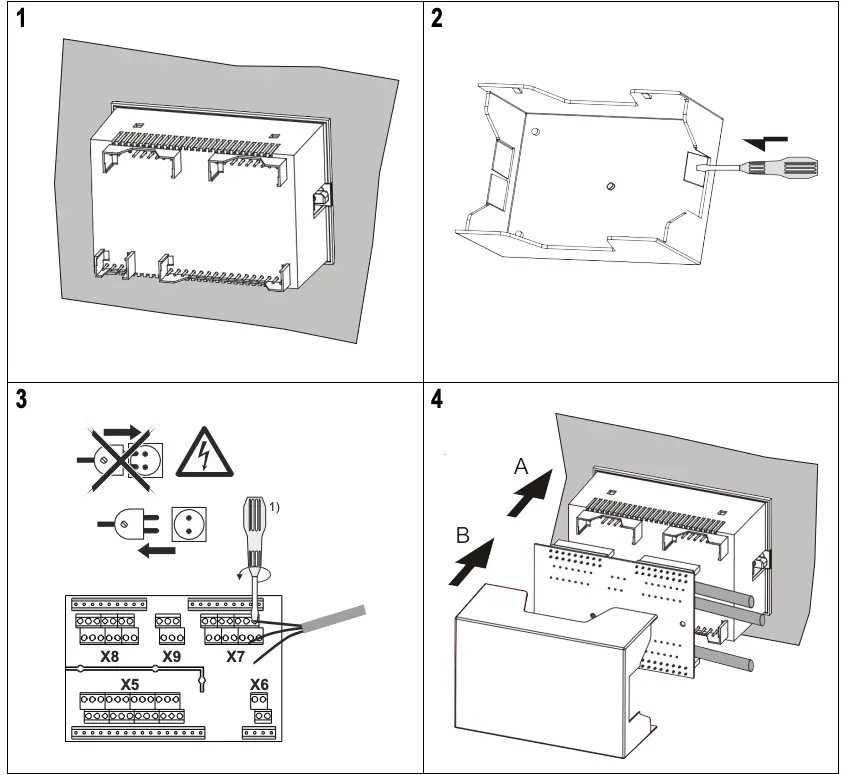

MOUNTING INSTRUCTIONS
Security Instructions
- All electrical connections may be carried out by authorized and trained personnel only.
- Make sure that certain local standards and regulations are observed at all times.
- Provide an all-pole interruptor unit for the power supply on terminal block X6.
WARNING
- Disconnect the power supply via main switch before you start wiring the terminals on the board. Do not reconnect the power supply until you have completed installation.
- When connecting the power supply to terminal block X6, voltage is also applied to the terminals and rear of terminal blocks 7 and 8.
- Disconnect the power supply via main switch before plugging in or removing the board.
- If the unit is modified in any way, except by the manufacturer, all warranties concerning operation and safety are invalidated.
- Use only accessory equipment which comes from or has been approved byHoneywell Home.
- Please, refer also to the general safety instructions in the Mounting Instructions of the SDC /DHC 43 Controller (No. MU1H-0207).
WIRING

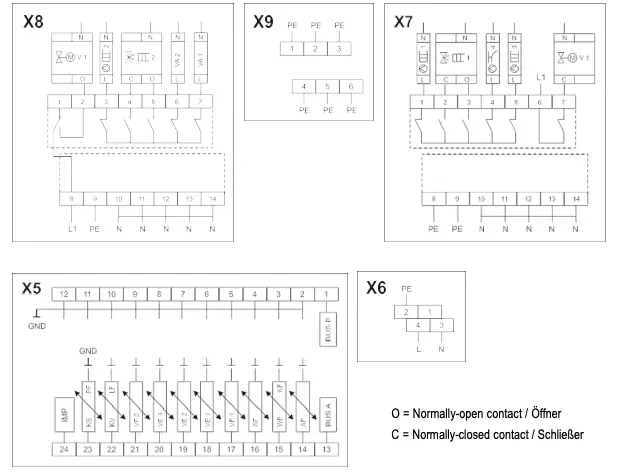

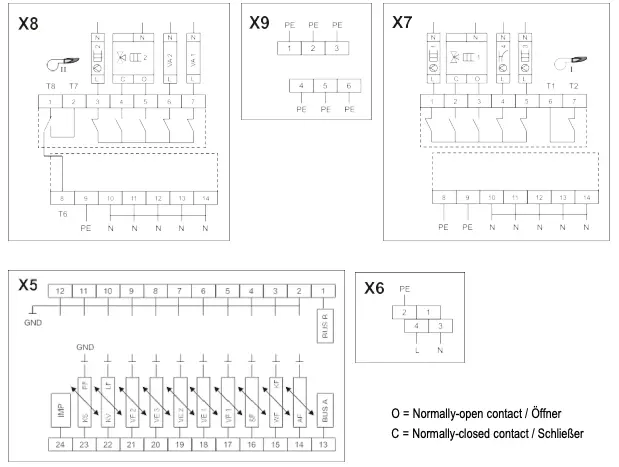

1) see Wring diagram
