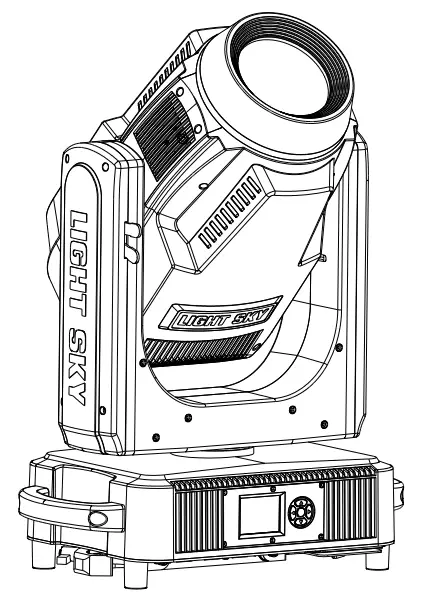

LIGHT SKY SUPER SCOPE Professional Moving Head Manufacturer

CHANNEL FUNCTION(V1.0) 27CH

Channel	DMX	Percentage	Functions	Note
1	Pan	0 – 255
2	Pan fine	0 – 255
3	Tilt	0 – 255
4	Tilt Fine	0 – 255
5	P/T speed	0 – 255
6	Functions	0 – 10	NO function
		11 – 20	The whole lamp reset
		21 – 30	XY reset
		31 – 40	Color reset
		41 – 50	pattern reset
		51 – 60	Cutting reset
		61 – 70	Focus module reset
		71 – 80	Silent mode
		81 – 90	Normal mode
		91 – 100	High Pattern
		101 – 110	NO function
		111 – 120	NO function
		121 – 130	NO function
		131 – 140	NO function
		141 – 150	NO function
		151 – 160	NO function
		161 – 170	NO function
		171 – 180	Show backlight is always on
		181 – 190	Display backlight automatically
		191 – 200	Open the function
		201 – 255	NO function
7	Cyan	0 – 255
8	Magenta	0 – 255
9	Yellow	0 – 255
10	CTO	0 – 255
11	Colour wheel	0 – 89	0 – 360°
		90 – 99	OPEN
		100 – 109	COLOR1
		110 – 119	COLOR2
		120 – 129	COLOR3
		130 – 139	COLOR4
		140 – 149	COLOR5
		150 – 159	COLOR6
		160 – 169	COLOR7
		170 – 179	COLOR8
		180 – 214	CW,Slow→Fast
		215 – 249	CCW,Fast→Slow
		250 – 255	Random color
12	Static Gobo	0 – 9	OPEN
		10 – 19	GOBO1
		20 – 29	GOBO2
		30 – 39	GOBO3
		40 – 49	GOBO4
		50 – 59	GOBO5
		60 – 69	GOBO6
		70 – 79	GOBO7
		80 – 89	GOBO8
		90 – 99	GOBO9
		100 – 109	GOBO1 Jitter slow to fast
		110 – 119	GOBO2 Jitter slow to fast
		120 – 129	GOBO3 Jitter slow to fast
		130 – 139	GOBO4 Jitter slow to fast
		140 – 149	GOBO5 Jitter slow to fast

Channel	DMX	Percentage	Functions	Note
		150 – 159	GOBO6 Jitter slow to fast
		160 – 169	GOBO7 Jitter slow to fast
		170 – 179	GOBO8 Jitter slow to fast
		180 – 189	GOBO9 Jitter slow to fast
		190 – 199	OPEN
		200 – 224	CW,Slow→Fast
		225 – 249	CCW,Fast→Slow
		250 – 255	Random Gobo
13	Rot. Gobo	0 – 9	OPEN
		10 – 19	GOBO1
		20 – 29	GOBO2
		30 – 39	GOBO3
		40 – 49	GOBO4
		50 – 59	GOBO5
		60 – 69	GOBO6
		70 – 79	GOBO7
		80 – 89	GOBO1
		90 – 99	GOBO2 Jitter slow to fast
		100 – 109	GOBO3 Jitter slow to fast
		110 – 119	GOBO4 Jitter slow to fast
		120 – 129	GOBO5 Jitter slow to fast
		130 – 139	GOBO6 Jitter slow to fast
		140 – 149	GOBO7 Jitter slow to fast
		150 – 159	OPEN
		160 – 204	CW,Slow→Fast
		205 – 249	CCW,Fast→Slow
		250 – 255	Random Gobo
14	Gobo Rot.	0 – 127	0° – 360°
		128 – 187	CW,Fast→Slow
		188 – 195	STOP
		196 – 255	CCW,Slow→Fast
15	Prism1	0 – 10	Prism off
15	Prism1	11 – 255	Prism Cut-in
16	Prism1 Rot	0 – 127	0° – 360°
		128 – 187	CW,Fast→Slow
		188 – 195	STOP
		196 – 255	CCW,Slow→Fast
17	Prism2	0 – 10	Prism off
17	Prism2	11 – 255	Prism Cut-in
18	Prism2 Rot.	0 – 127	0° – 360°
		128 – 187	CW Fast→Slow
		188 – 195	STOP
		196 – 255	CCW Slow→Fast
19	Frost1	0 – 127
		128 – 159	Slow IN Fast OUT, Slow → Fast
		160 – 191	Fast IN Slow OUT, Slow → Fast
		192 – 255	Slow IN Slow OUT, Slow → Fast
20	Frost2	0 – 127
		128 – 159	Slow IN Fast OUT, Slow → Fast

		160 – 191	Fast IN Slow OUT, Slow → Fast
192 – 255	Slow IN Slow OUT, Slow → Fast

Channel	DMX	Percentage	Functions	Note
21	Zoom	0 – 255
22	Focus	0 – 255
23	Auto Dis.	0 – 9	NO function
		10 – 19	5M
		20 – 29	10M
		30 – 39	15M
		40 – 49	20M
		50 – 59	30M
		60 – 255	40M
24	Auto Fin.	0 – 255
25	Strobe	0 – 255
26	Dimmer	0 – 255
27	Dimmer fine	0 – 255

CHANNEL FUNCTION(V1.0)

Channel	DMX	Percentage	Functions	Note
1	Pan	0 – 255
2	Pan fine	0 – 255
3	Tilt	0 – 255
4	Tilt Fine	0 – 255
5	P/T speed	0 – 255
6	Functions	0 – 10	NO function
		11 – 20	The whole lamp reset
		21 – 30	XY reset
		31 – 40	Color reset
		41 – 50	pattern reset
		51 – 60	Cutting reset
		61 – 70	Focus module reset
		71 – 80	Silent mode
		81 – 90	Normal mode
		91 – 100	High Pattern
		101 – 110	NO function
		111 – 120	NO function
		121 – 130	NO function
		131 – 140	NO function
		141 – 150	NO function
		151 – 160	NO function
		161 – 170	NO function
		171 – 180	Show backlight is always on
		181 – 190	Display backlight automatically
		191 – 200	Open the function
		201 – 255	NO function
7	Cyan	0 – 255
8	Cyan fine	0 – 255
9	Magenta	0 – 255
10	Magenta fine	0 – 255
11	Yellow	0 – 255
12	Yellow fine	0 – 255
13	CTO	0 – 255
14	CTO fine	0 – 255
15	Colour wheel	0 – 89	0 – 360°
		90 – 99	OPEN
		100 – 109	COLOR1
		110 – 119	COLOR2
		120 – 129	COLOR3
		130 – 139	COLOR4
		140 – 149	COLOR5
		150 – 159	COLOR6
		160 – 169	COLOR7
		170 – 179	COLOR8
		180 – 214	CW,Slow→Fast
		215 – 249	CCW,Fast→Slow
		250 – 255	Random color
16	Static Gobo	0 – 9	OPEN
		10 – 19	GOBO1

		20 – 29	GOBO2
		30 – 39	GOBO3
		40 – 49	GOBO4
		50 – 59	GOBO5
		60 – 69	GOBO6
		70 – 79	GOBO7
		80 – 89	GOBO8
		90 – 99	GOBO9
100 – 109	GOBO1 Jitter slow to fast

Channel	DMX	Percentage	Functions	Note
		110 – 119	GOBO2 Jitter slow to fast
		120 – 129	GOBO3 Jitter slow to fast
		130 – 139	GOBO4 Jitter slow to fast
		140 – 149	GOBO5 Jitter slow to fast
		150 – 159	GOBO6 Jitter slow to fast
		160 – 169	GOBO7 Jitter slow to fast
		170 – 179	GOBO8 Jitter slow to fast
		180 – 189	GOBO9 Jitter slow to fast
		190 – 199	OPEN
		200 – 224	CW,Slow→Fast
		225 – 249	CCW,Fast→Slow
		250 – 255	Random Gobo
17	Rot. Gobo	0 – 9	OPEN
		10 – 19	GOBO1
		20 – 29	GOBO2
		30 – 39	GOBO3
		40 – 49	GOBO4
		50 – 59	GOBO5
		60 – 69	GOBO6
		70 – 79	GOBO7
		80 – 89	GOBO1 Jitter slow to fast
		90 – 99	GOBO2 Jitter slow to fast
		100 – 109	GOBO3 Jitter slow to fast
		110 – 119	GOBO4 Jitter slow to fast
		120 – 129	GOBO5 Jitter slow to fast
		130 – 139	GOBO6 Jitter slow to fast
		140 – 149	GOBO7 Jitter slow to fast
		150 – 159	OPEN
		160 – 204	CW,Slow→Fast
		205 – 249	CCW,Fast→S，low
		250 – 255	Random Gobo
18	Gobo Rot.	0 – 127	0° – 360°
		128 – 187	CW Fast→Slow
		188 – 195	STOP
		196 – 255	CCW Slow→Fast
19	Prism1	0 – 10	Prism off
19	Prism1	11 – 255	Prism Cut-in
20	Prism1 Rot	0 – 127	0° – 360°
		128 – 187	CW Fast→Slow
		188 – 195	STOP
		196 – 255	CCW Slow→Fast
21	Prism2	0 – 10	Prism off
21	Prism2	11 – 255	Prism Cut-in
22	Prism2 Rot.	0 – 127	0° – 360°
		128 – 187	CW Fast→Slow
		188 – 195	STOP
		196 – 255	CCW Slow→Fast
23	Frost1	0 – 127
		128 – 159	Slow IN Fast OUT, Slow → Fast

		160 – 191	Fast IN Slow OUT, Slow → Fast
192 – 255	Slow IN Slow OUT, Slow → Fast
24	Frost2	0 – 127
		128 – 159	Slow IN Fast OUT, Slow → Fast
		160 – 191	Fast IN Slow OUT, Slow → Fast
		192 – 255	Slow IN Slow OUT, Slow → Fast

Channel	DMX	Percentage	Functions	Note
25	Zoom
26	Zoom fine	0 – 255
27	Focus	0 – 255
28	Focus fine	0 – 255
29	Auto Dis.	0 – 9	NO function
		10 – 19	5M
		20 – 29	10M
		30 – 39	15M
		40 – 49	20M
		50 – 59	30M
		60 – 255	40M
30	Auto Fin	0 – 255
31	Strobe	0 – 255
32	Dimmer	0 – 255
33	Dimmer fine	0 – 255
