Miele Pfd 101 Commercial Dishwasher Instruction Manual

Commercial Dishwasher
PFD 101 / PFD 101i
Operating instructions

It is essential to read these operating instructions before installing and using the appliance. This will prevent both personal injuries
and damage to the machine.

Test standard:	AS/NZS 2007.1, AS/NZS 2007.2; AS/NZS 6400
Standard programme (for energy label):	ECO
Capacity:	14 place settings
Detergent amount:	32.5 g
Rinse aid dosage:	Setting 3

You can find information on adjusting the rinse aid dosage in the “Rinse aid” section of this booklet.

The door opens automatically during the drying phase.
Do not close the door until the drying test has finished.

Upper basket setting:

Loading examples
Pictures illustrating how to load the dishwasher for each model (see data plate) are
shown on the following pages.
Picture 1: Upper basket
Picture 2: A lower basket

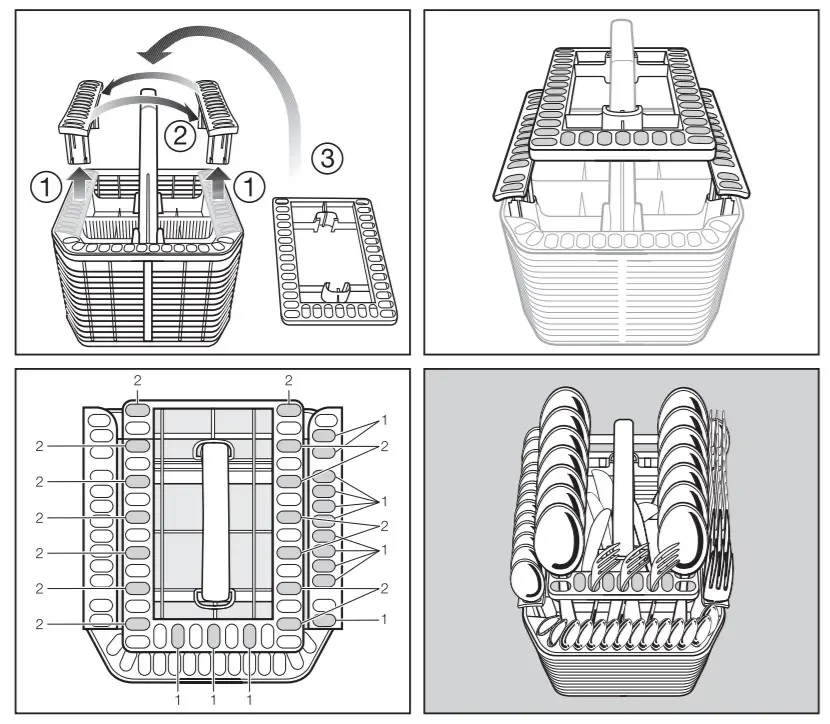

Picture 3: Cutlery basket

Do not lower or remove the basket inserts.
Squeeze and remove the bottle holder from the lower basket (if available).

Comparison tests

Capacity

Cutlery basket
1 fork
2 soup spoons

Programme chart

Programme	Application	Detergent The following dosages are based on Miele detergents. Please follow the manufacturer’s instructions.
		Detergent compartment,
	For fresh, non-sticky food residues.	20-25 g or 1 tab
	For moderately dried food residues.	20-25 g or 1 tab
	For burnt-on, stubborn, dried-on food deposits containing starch or protein 1).	20-25 g or 1 tab
	Special plastics programme.	20-25 g or 1 tab
	Special glassware programme.	20-25 g or 1 tab
	Special hygiene programme for hygienically demanding crockery.	20-25 g or 1 tab
	For rinsing heavily soiled items, e.g. for initial removal of soil or to prevent residues drying on to dishes when a complete programme does not yet need to be run.
	Energy-saving programme for normally soiled food residues.	20-25 g or 1 tab

*) This programme is the most efficient in terms of its combined energy and water consumption for cleaning crockery with a normal level of soiling. (fixed programme sequence which cannot be altered)
1)see “Detergent”

X = stages included in a programme
(X) = optional stages which can be selected (see “Programme options – Options”)
2)The temperature which is able to be reached depends on the load items, size of load and the water intake temperature.
3)Optional temperature increase to 82 °C.
4)With temperature increased to 82 °C, drying time increases to 30 min.

Programme	Consumption 6)							Duration 6)
	Electrical energy					Water
	Cold water 15 °C		Hot water 55 °C					Cold water 15 °C		Hot water 55 °C
	2.1 kW	7.3 kW	2.1 kW		7.3 kW	2.1 kW	7.3 kW	2.1 kW	7.3 kW	2.1 kW	7.3 kW
	1.4 kWh		0.9 kWh			14.7 I		53 min 7)	22 min 7)	36 min 7)	17 min 7)
	1.5 kWh		1.0 kWh	0.9 kWh		14.81		65 min 7)	34 min 7)	49 min 7)	31 min 7)
	1.7 kWh		1.0 kWh			19.2 I		79 min 7)	48 min 7)	58 min 7)	43 min 7)
	1.3 kWh	1.2 kWh	0.6 kWh		0.5 kWh	19.5 I		90 min	65 min	68 min	60 min
	1.0 kWh		0.4 kWh			15.3 I		43 min 7)	23 min 7)	27 min 7)	19 min 7)
	1.9 kWh	1.8 kWh	1.2 kWh		1.1 kWh	19.2 1		85 min 7)	53 min 7)	65 min 7)	47 min 7)
	0.02 kWh		0.02 kWh			4.5 I		13 min		13 min

6)Values are calculated in accordance with EN 50242 for a rated load of 2.1 and 7.3 kW. In practice considerable variations may be noted due to differing conditions.
The duration displayed is adjusted to the on-site conditions.
7) The figure refers to the wash duration without drying.

Programme	Consumption 6)							Duration 6)
	Electricity					Water
	Cold water 15 °C		Hot water 55 °C					Cold water 15 °C		Hot water 55 °C
	3.2 kW	5.1 kW	3.2 kW		5.1 kW	3.2 kW	5.1 kW	3.2 kW	5.1 kW	3.2 kW	5.1 kW
	1.4 kWh		0.9 kWh			14.7 I		39 min 7)	28 min 7)	28 min 7)	20 min 7)
	1.5 kWh		1.0 kWh		0.9 kW h	14.8 I		49 min 7)	39 min 7)	39 min 7)	32 min 7)
	1.7 kWh		1.0 kWh			19.2 I		65 min 7)	55 min 7)	50 min 7)	46 min 7)
	1.0 kWh		0.4 kWh			15.3 I		34 min 7)	27 min 7)	23 min 7)	21 min 7)
	2.0 kWh	1.9 kWh	1.3 kWh	1.2 kWh		19.2 I		72 min 7)	62 min 7)	58 min 7)	53 min 7)
	1.3 kWh	1.2 kWh	0.6 kWh	0.5 kWh		19.5 I		79 min	70 min	64 min	61 min
	0.02 kWh		0.02 kWh			4.5 I		13 min		13 min

6) Values are calculated in accordance with EN 50242 for a connected load of 3.2 kW and 5.1 kW. In
practice considerable variations may be noted due to differing conditions.
The duration displayed is adjusted to the on-site conditions.
7) The figure refers to the wash duration without drying.
Consumption data in ECO programme

Programme	Consumption 8)			8)Duration (Program Time)
	Electrical energy		Water 20 °C
	Coldwater 20 °C	Hot water 60 °C		Coldwater 20 °C	Hot water 60 °C
	0.6 kWh	0.9 kWh	13.1 L	178 min	171 min

8) Values for the ECO programme were calculated under standardised testing conditions. In practice, the selected settings, programme options or operating conditions may result in different values.

M.-Nr. 11 497 960
