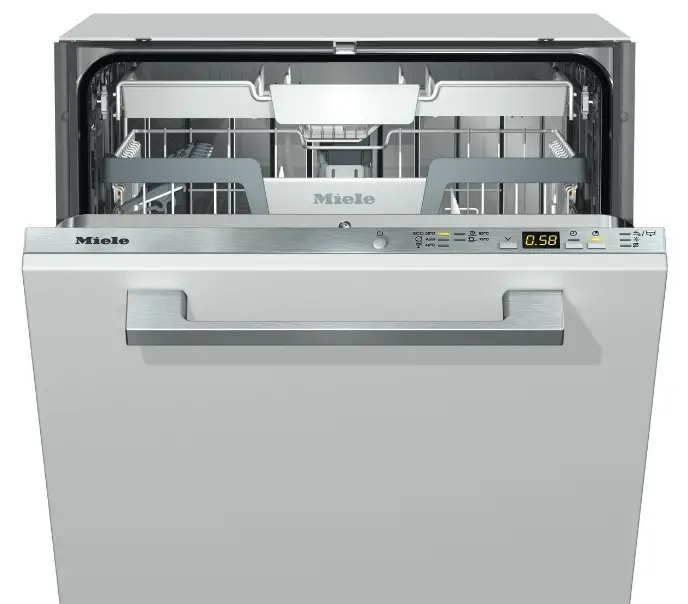

Miele G5272SCVi Integrated Dishwashers

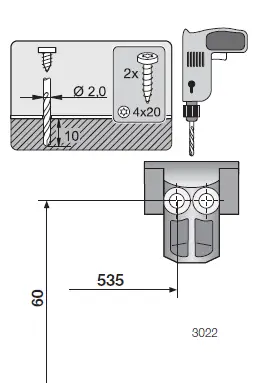

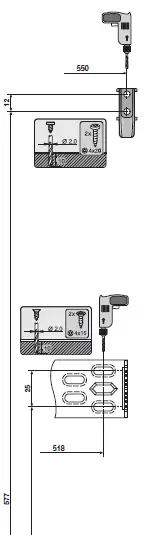

Installation drawings for fully integrated dishwashers
To avoid the risk of accidents or damage to the dishwasher please observe this installation sheet and read the operating instruction manual supplied with it before it is installed or used for the first time.

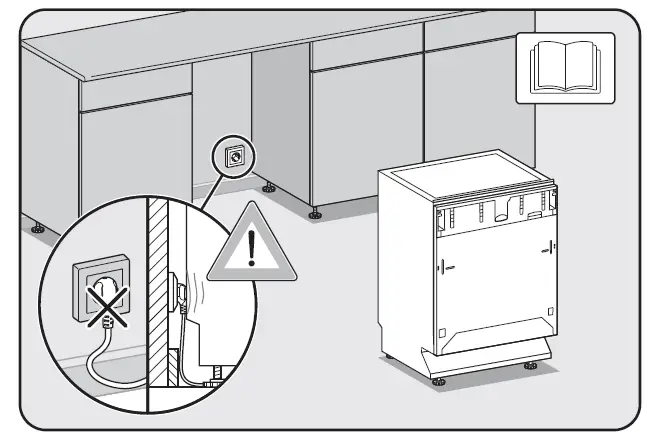

See operating instruction manual.- ⚠Risk of damage or fire hazard.
Check connection data.

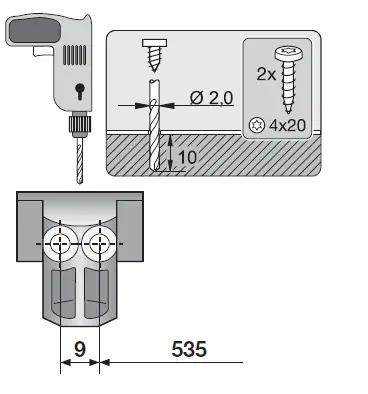

Do not use a cordless screwdriver, risk of damage.

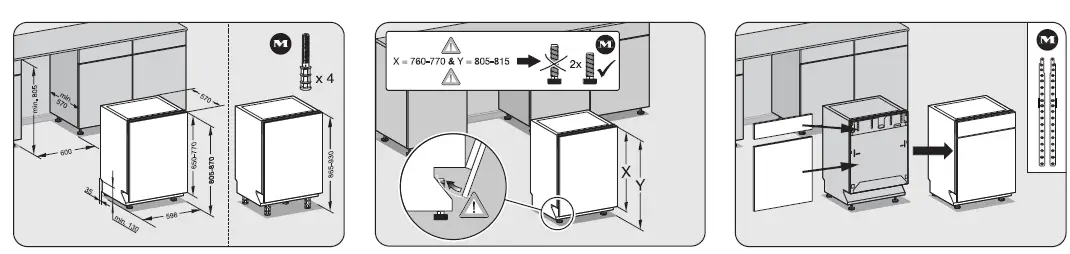

Screw the feet in before moving the dishwasher.
Warning: Danger of being cut.

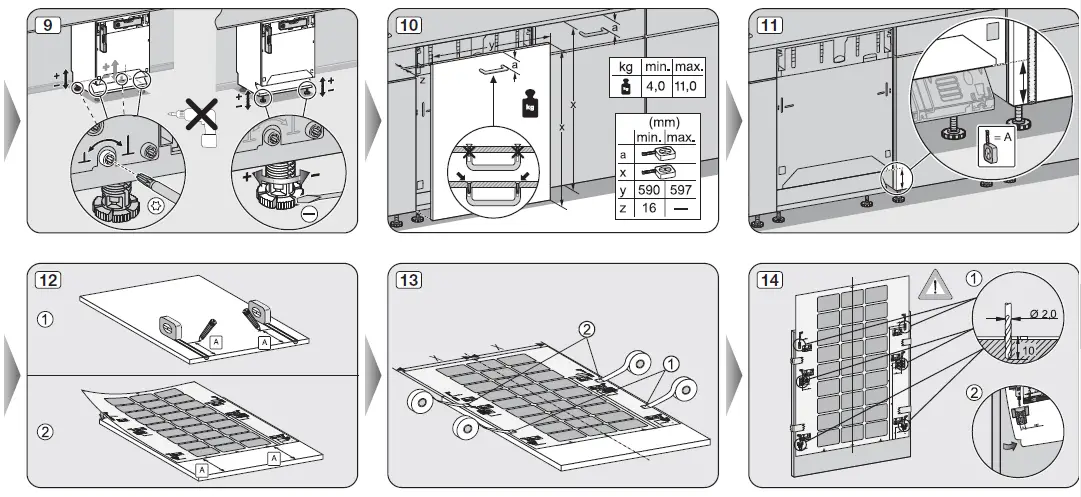

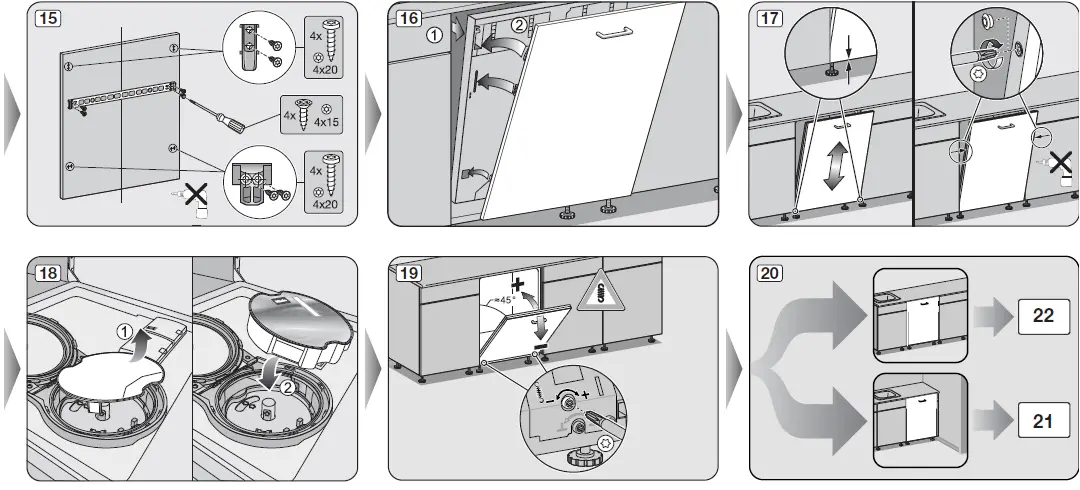

The door springs must be set equally on both sides after fitting the front panel to the door.

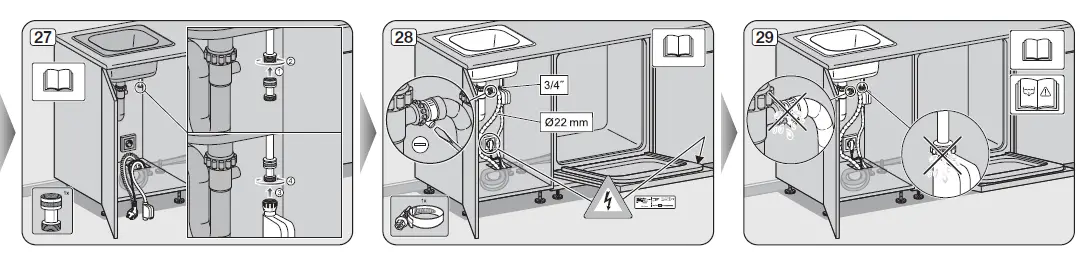

Venting the water drain
If the on-site drainage connection is situated lower than the guide path for the lower basket rollers in the open door, the drainage system must be vented.
See operating instruction manual.
Check connection data.
Do not use a cordless screwdriver, risk of damage.
Screw the feet in before moving the dishwasher.
Warning: Danger of being cut.
The door springs must be set equally on both sides after fitting the front panel to the door.
Venting the water drain

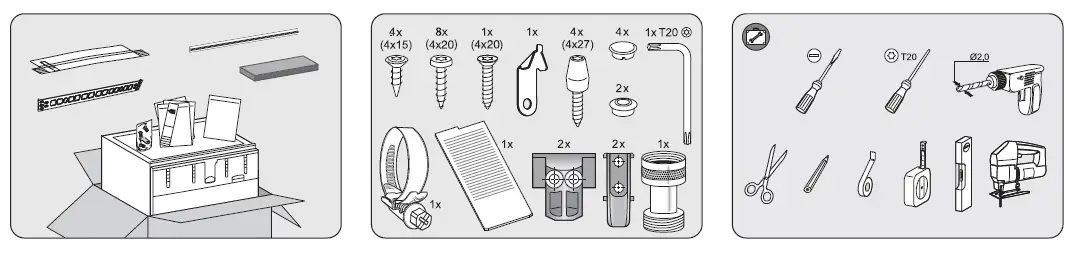

Tools required depend on model.
Optional accessories

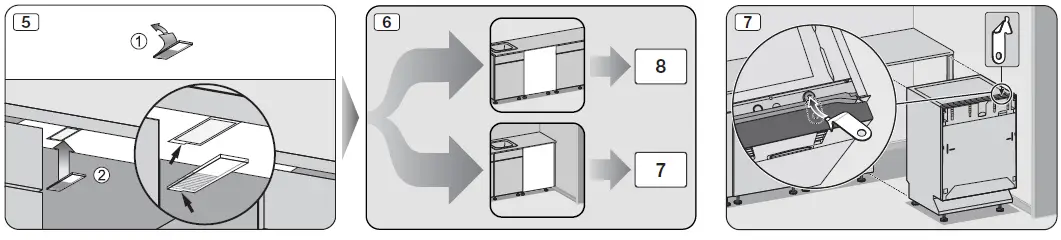

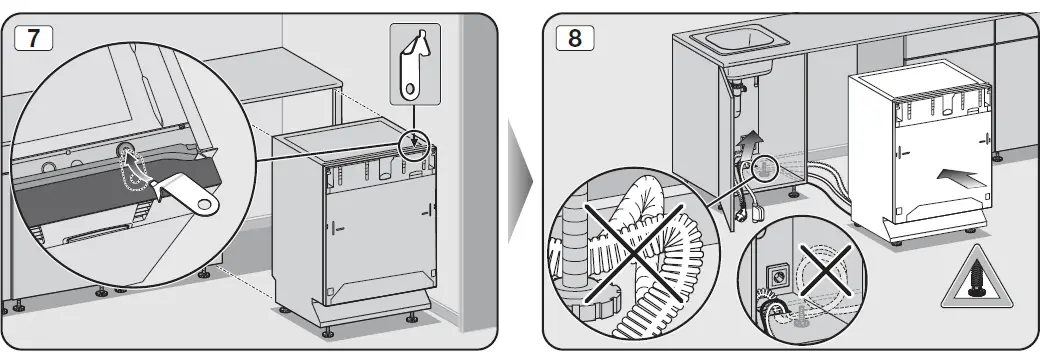

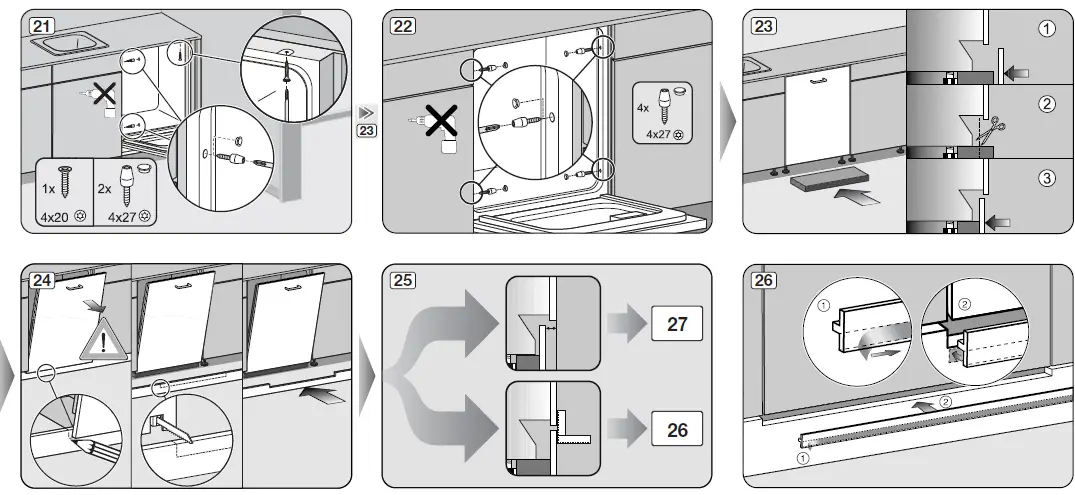

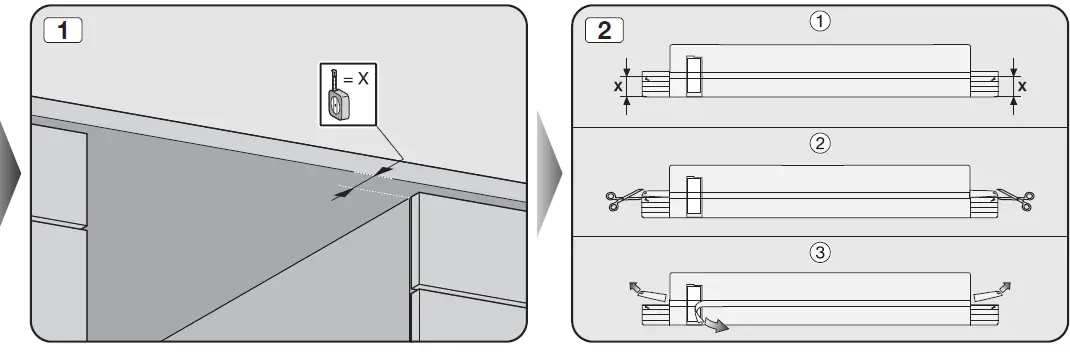

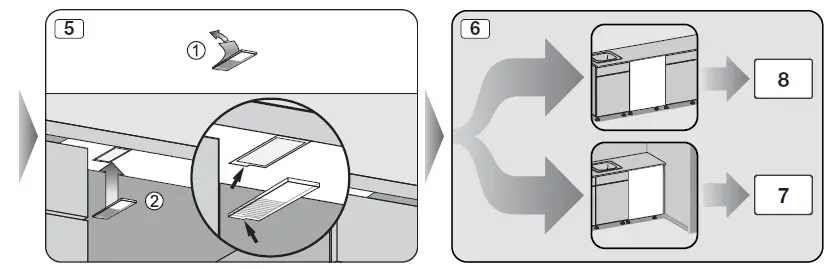

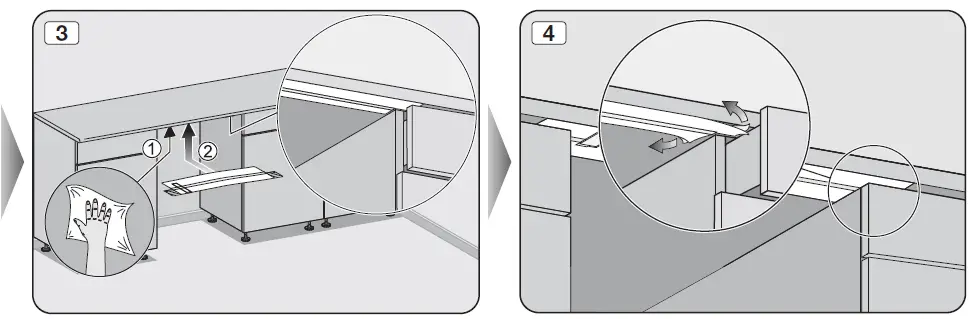

Assembly
