G 5058 SCVi SFP

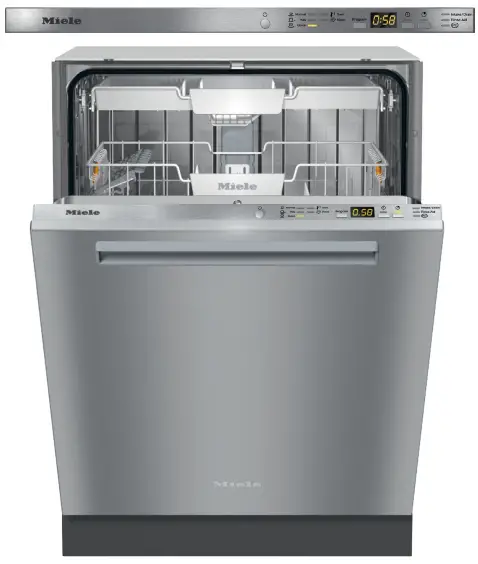

24” Fully Integrated Dishwasher
User Manual
Features
- DirectSelect Controls
- Pocket Handle
- Comfort Baskets
- Original Cutlery Tray
- EcoPower Technology
- Whisper quiet 44 dB(A)
- Quick Intense Wash – 58 min. program
- SaniWash – Sanitize cycle
- ExtraClean & ExtraDry Options to customize wash programs
- Delayed Start
- Energy Star Most Efficient 2022
| MATERIAL # | EAN # |
| 11966820 | 4E+12 |
SPECIFICATIONS
| Overall Unit Dimensions | 239/18″ (598 mm) W x 3311/16″ – 361/4″ (855 -920 mm) H x 227/16″ (570 mm) D [Depth does not include door panel] |
| Niche | |
| Minimum Cabinet Niche Opening | 2354″ (600 mm) W x 333/4″ (857 mm) H x 227/18″ (570 mm) D |
| Plumbing | |
| Water Supply Requirements | • Cold or Hot (max 150°F/65°C) water connection • Male 3/8″ compression fitting • Water pressure range 7.25 psi (0.5 bar) and 145 psi (10 bar) |
| Water Connection Line (Supplied) | Length: 5 ft (1.5 m) Female 3/8″ compression. |
| Drain Hose (Supplied) | Length: 5 ft (1.5 m) 7/8″ (22 mm) internal diameter |
| Electrical | |
| Electrical Requirements | 110V / 120V, 60Hz, 15 Amps |
| Power Cord (Convertible to hardwire) | NEMA 5-15 plug, 5 ft (1.52 m) |
| Shipping | |
| Shipping Weight | 121 lbs (55 kg) |
| Shipping Dimensions | 271/8″ W x 381/8″ H x 263/8″ D |

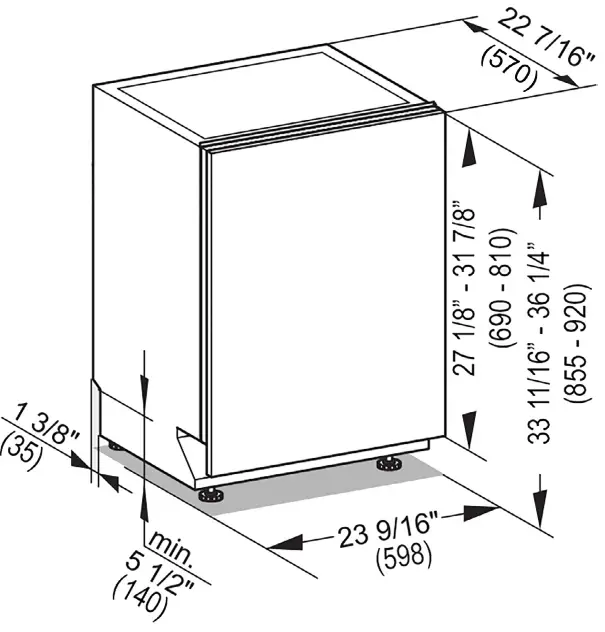

PRODUCT DIMENSIONS

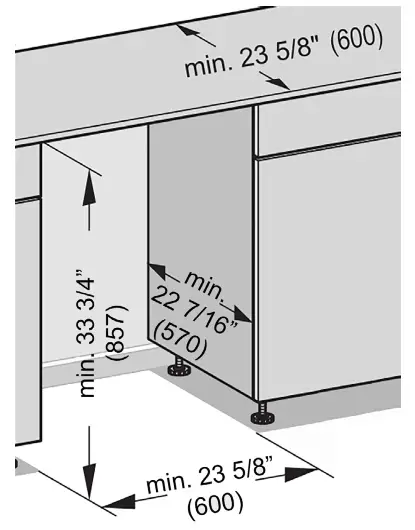

CUTOUT DIMENSIONS
mieleusa.com
Miele Help Desk: 800.999.1360
*Information subject to change
