Operating instructions
Commercial Dishwasher
PFD 104 SCVi
en-AU
It is essential to read these operating instructions before installing and using the appliance. This will prevent both personal injury and damage to the machine.
M.-Nr. 11 762 450
Comparison tests
XXL height with cutlery tray
Test standard: AS/NZS 2007.1, AS/NZS 2007.2; AS/NZS 6400
Standard programme for energy label comparison tests: ECO
Capacity:
15 place settings
Detergent quantity: 33.7 g in compartment II
Rinse aid dispensing: Setting 3
You can find information on adjusting the rinse aid dosage in the “Rinse aid” section of this booklet.
Upper basket level:
Position: Bottom
Jumbo cup rack (if available): Outer position
Loading examples
Pictures illustrating how to load the dishwasher are shown on the following pages.

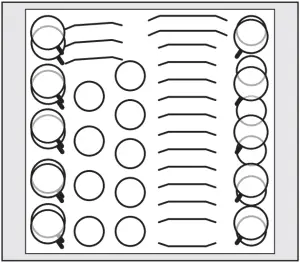

Picture 1: Upper basket

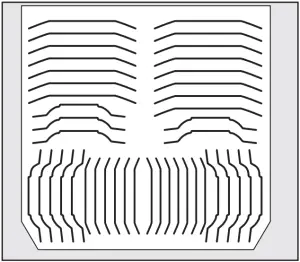

Picture 2: Lower basket

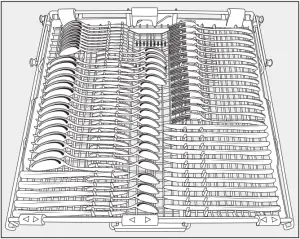

Picture 3: Cutlery tray
Do not lower or remove the basket inserts.
Remove the bottle holder from the lower basket (if available).
The door automatically opens during the drying phase. Do not close the door until the drying test is finished.
Capacity
15
1
2
3
Programme chart
| Programme | Application | Detergent The following dosages are based on Miele detergents. Please follow the manufacturer’s instructions. |
Detergent compartment  1) | ||
 Short | For fresh, non-sticky food residues. | 20-25 g or 1 tab |
 Medium | For moderately dried food residues. | 20-25 g or 1 tab |
 Intensive | For burnt-on, stubborn, dried-on food deposits containing starch or protein 1). | 20-25 g or 1 tab |
 Glasses | Special glassware programme. | 20-25 g or 1 tab |
 ECO *) | Energy-saving programme for normally soiled food residues. | 20-25 g or 1 tab |
 Plastics | Special plastics programme. | 20-25 g or 1 tab |
 Hygiene | Special hygiene programme for hygienically demanding crockery. | 20-25 g or 1 tab |
 Cold pre-wash | For rinsing heavily soiled items, e.g. for initial removal of soil or to prevent residues drying on to dishes when a complete programme does not yet need to be run. |
*) This programme is the most efficient in terms of its combined energy and water consumption for cleaning crockery with a normal level of soiling.
(fixed programme sequence which cannot be altered)
1) see “Detergent”
| Programme sequence | |||||
| Pre-wash | Main wash | Interim rinse | Final rinse | Drying | AutoOpen |
X | X 40 s | X 65 °C 3) 30 s | (X) 20 min 4) | (X) | |
X | X 3 min | X 65 °C 3) 2 min | (X) 30 min | (X) | |
X 6 min | X 75 °C 6 min | X 3 min | X 65 °C 3) 2 min | (X) 30 min | (X) |
X | X 3 min | X 50 °C 2 min | (X) 20 min | (X) | |
| X 51.5 °C 44 min | X 4 min | X 48 °C 10 min | X 127 min | (X) | |
X 6 min | X 50 °C 1 min | X 5 min | X 60 °C 1 min | X 30 min | (X) |
| X 8 min | X 60 °C 10 min | X 3 min | X 82 °C 2 min | X 30 min | (X) |
X | |||||
X = stages included in a programme
(X) = optional stages which can be selected (see “Programme options – Options”)
2) The temperature which is able to be reached depends on the load items, size of load and the water intake temperature. 3) Optional temperature increase to 82 °C.
4) With temperature increased to 82 °C, drying time increases to 30 min.
| Programme | Consumption 6) | Duration 6) | ||||||||
| Electrical energy | Water | |||||||||
Cold water | Hot water 55 °C | Cold water 15 °C | Hot water | |||||||
| 2.1 kW | 7.3 kW | 2.1 kW | 7.3 kW | 2.1 kW | 7.3 kW | 2.1 kW | 7.3 kW | 2.1 kW | 7.3 kW | |
Short | 1.4 kWh | 0.9 kWh | 14.7 l | 53 min 7) | 22 min 7) | 36 min 7) | 17 min | |||
Medium | 1.5 kWh | 1.0 kWh | 0.9 kWh | 14.8 l | 65 min 7) | 34 min 7) | 49 min 7) | 31 min | ||
Intensive | 1.7 kWh | 1.0 kWh | 19.2 l | 79 min 7) | 48 min 7) | 58 min 7) | 43 min | |||
Glasses | 1.0 kWh | 0.4 kWh | 15.3 l | 43 min 7) | 23 min 7) | 27 min 7) | 19 min | |||
Plastics | 1.3 kWh | 1.2 kWh | 0.6 kWh | 0.5 kWh | 19.5 l | 90 min | 65 min | 68 min | 60 min | |
Hygiene | 1.9 kWh | 1.8 kWh | 1.2 kWh | 1.1 kWh | 19.2 l | 85 min 7) | 53 min 7) | 65 min 7) | 47 min | |
Cold pre-wash | 0.02 kWh | 0.02 kWh | 4.5 l | 13 min | 13 min | |||||
6) Values are calculated in accordance with EN 50242 for a rated load of 2.1 and 7.3 kW. In practice considerable variations may be noted due to differing conditions.
The duration displayed is adjusted to the on-site conditions.
7) The figure refers to the wash duration without drying.
| Programme | Consumption 6) | Duration 6) | ||||||||
| Electrical energy | Water | |||||||||
Cold water | Hot water 55 °C | Cold water 15 °C | Hot water | |||||||
| 3.2 kW | 5.1 kW | 3.2 kW | 5.1 kW | 3.2 kW | 5.1 kW | 3.2 kW | 5.1 kW | 3.2 kW | 5.1 kW | |
| Short | 1.4 kWh | 0.9 kWh | 14.7 l | 39 min 7) | 28 min 7) | 28 min 7) | 20 min | |||
| Medium | 1.5 kWh | 1.0 kWh | 0.9 kWh | 14.8 l | 49 min 7) | 39 min 7) | 39 min 7) | 32 min | ||
| Intensive | 1.7 kWh | 1.0 kWh | 19.2 l | 65 min 7) | 55 min 7) | 50 min 7) | 46 min | |||
| Glasses | 1.0 kWh | 0.4 kWh | 15.3 l | 34 min 7) | 27 min 7) | 23 min 7) | 21 min | |||
| Hygiene | 2.0 kWh | 1.9 kWh | 1.3 kWh | 1.2 kWh | 19.2 l | 72 min 7) | 62 min 7) | 58 min 7) | 53 min | |
| Plastics | 1.3 kWh | 1.2 kWh | 0.6 kWh | 0.5 kWh | 19.5 l | 79 min | 70 min | 64 min | 61 min | |
| Cold pre-wash | 0.02 kWh | 0.02 kWh | 4.5 l | 13 min | 13 min | |||||
6) Values are calculated in accordance with EN 50242 for a connected load of 3.2 kW and 5.1 kW. In practice considerable variations may be noted due to differing conditions.
The duration displayed is adjusted to the on-site conditions.
7) The figure refers to the wash duration without drying.
Consumption data in ECO programme
| Programme | Consumption 8) | Duration 8) | |||
| Electrical energy | Water 20 °C | ||||
Cold water | Hot water 60 °C | Cold water 20 °C | Hot water | ||
| ECO 15 standard place settings | 0.6 kWh | 0.9 kWh | 13.2 L | 180 min | 169 min |
8) Values for the ECO programme were calculated under standardised testing conditions. In practice, the selected settings, programme options or operating conditions may result in different values.
