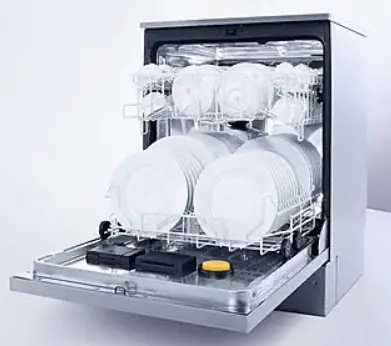

Miele PFD 104 SCVi Dishwasher
Installation notes
For safe installation and commissioning of the dishwasher please read the installation plan, the service documentation, the installation diagram, and the operating instructions. This installation plan includes the dimensions of the appliance, the technical data, and the requirements to be met on site for the installation of the dishwasher.
Installation requirements
Installation and commissioning work should be performed by a qualified and trained service technician in accordance with local and national safety regulations. Installation must comply with all local codes and regulations.
Surrounding area
Condensate can build up in the area surrounding the dishwasher. Any cabinetry and fittings in the room must, therefore, be suitable for this purpose.
Vapor-barrier film for built-in appli-ances
The vapor-barrier film supplied with the dishwasher protects the countertop from damage caused by steam when the door is opened. Attach the vapor-barrier film above the door, underneath the counter-top.
Electrical connec-tion
All work on the electrical connection should be carried out by Miele Customer Service, an authorized Miele dealer, or a qualified electrician.
Plug Connection
The dishwasher should be connected to the electricity supply via an electrical outlet.
Hard-wired
If the dishwasher is hard-wired to the power supply, a circuit breaker capable of disconnecting the dishwasher at all poles must be installed on-site. This power switch must have a contact gap of at least 1/8″ (3 mm). The electrical socket outlet and the circuit breaker must be accessible after the appliance has been installed. This is to enable an electrical safety test to be carried out after installation and after any servicing work. The power cord must be laid protected from the risk of thermal damage.
Equipotential bonding and grounding
This machine must be grounded in accordance with the local code.
Water connection
Before connecting the dishwasher or immediately the following disruption in the water supply pipe must be vented from air pockets to avoid pressure surges that may destroy components in the dishwasher.
Water intake
The quality of the incoming water must comply with the requirements for drinking water in the country in which the dishwasher is being operated. The dishwasher must be connected to the water supply in strict accordance with current local and national water authority regulations. It can be connected to cold or hot water supplies. Connecting the dishwasher to a hot water supply will reduce program cycle times. For short program cycle times, the water pressure of at least 29 psi (200 kPa) is also required. If this type of shut-off valve is not available, only a qualified installer may connect the dishwasher to the domestic water supply. The shut-off valve should remain accessible once the dishwasher has been installed so that the water supply can be shut off whenever the appliance is not in use.
Drainage
The dishwasher drainage hose should be connected to a separate on-site drain for the dishwasher only. If no separate drain is available, we recommend connecting it to a dual chamber siphon. When using a drain loop additional backflow prevention is not required. If the hose is to be directly connected to the drainage outlet on-site, use the hose clip supplied with the dishwasher. The on-site connector for the drain hose can be used for various hose diameters. If the connector extends more than 1″ (30 mm) into the drain hose, it must be shortened. Otherwise, the drain hose can become clogged. Lay the drain hose so that it does not kink and is not subjected to pressure or tugged. If the on-site drain connection is situated lower than the guide path for the lower basket rollers in the open door, a siphoning effect during a program can cause the appliance to empty itself of water. In this case, lay the drain hose with a bend in it so that its highest point is at least level with the guide path for the lower basket rollers.
Appliance dimensions and installation dimensions

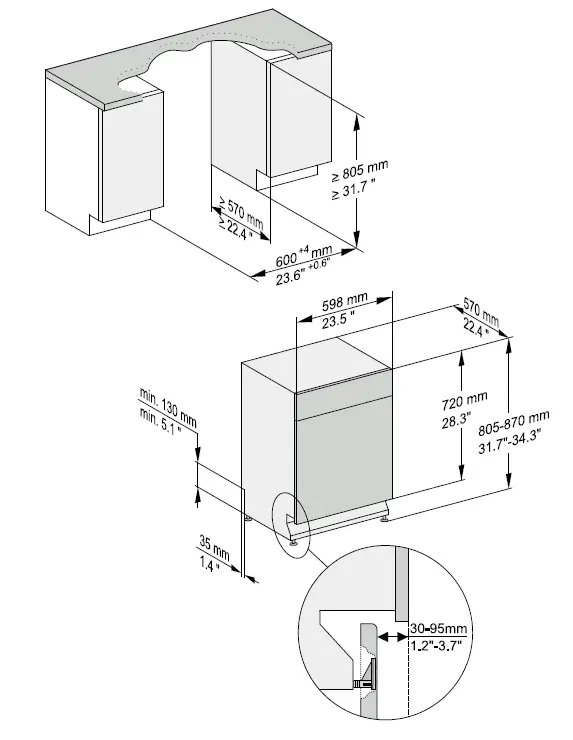

Undercounter appliance
PFD 101 U

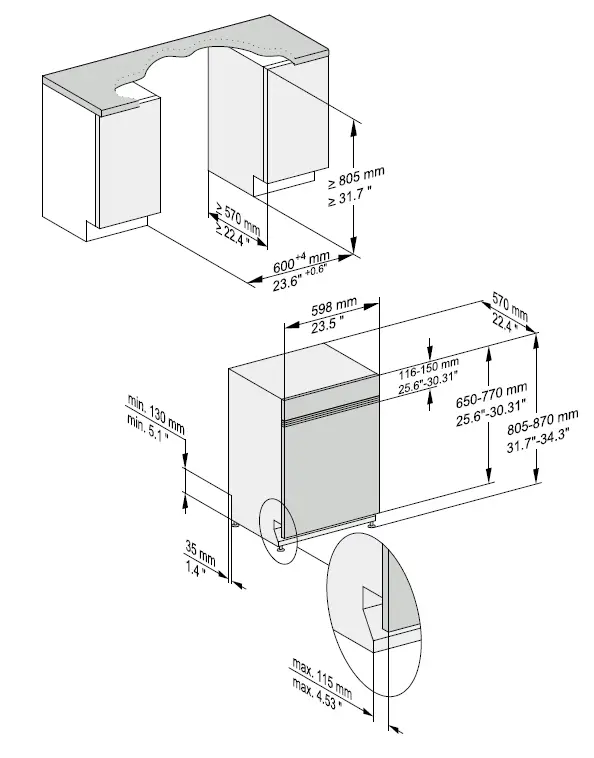

Built-in appliance
PFD 102 i
Front panel dimensions
| Length | 19.7″–25.7″ | 500–654 mm |
| Thickness | 0.63″–0.79″ | 16–20 mm |
| Weight | 8.8–24.3 Ibs | 4–11 kg |

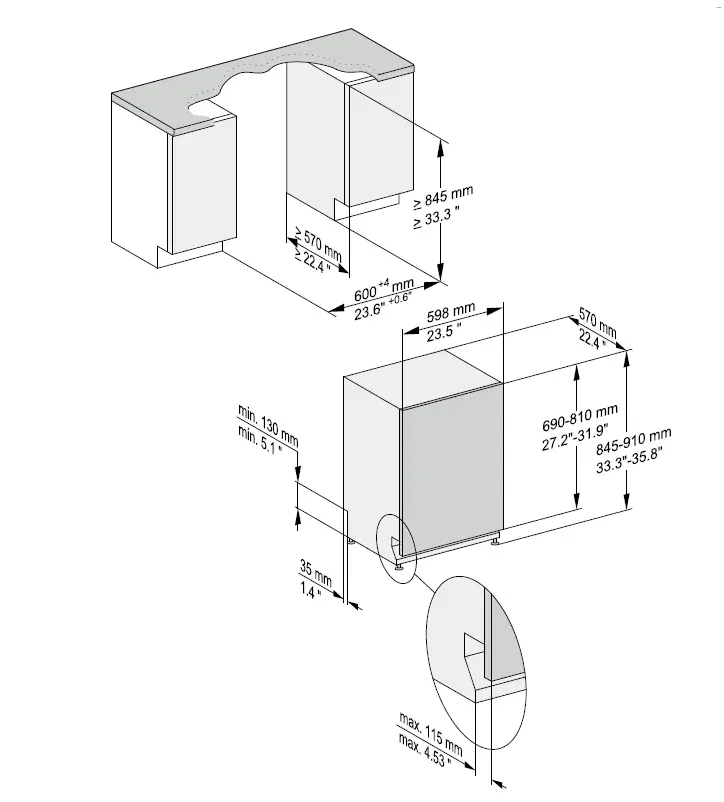

Fully integrated appliance
PFD 104 SCVi
Front panel dimensions
| Length | 27.2″–31.9″ | 690–810 mm |
| Thickness | 0.63″–0.79″ | 16–20 mm |
| Weight | 11–26.5 lbs | 5–12 kg |

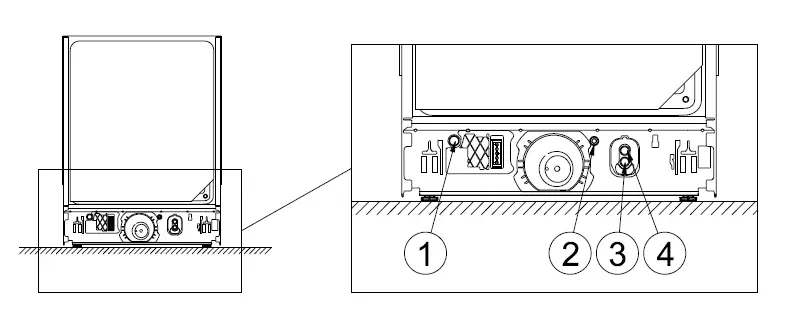

Connections on the back of the appliance
On-site connections
- Electrical connection
- Equipotential bonding and grounding
- Wastewater
- Cold or hot water
Technical details
| Dimensions and weights | ||||
| PFD 101 U | PFD 102 i | PFD 104 Vi | ||
| Height | [inches] | 31.7 | 31.7 | 33.3 |
| [mm] | 805 | 805 | 845 | |
| Height adjustment | [inches] | 2.56 | 2.56 | 2.56 |
| [mm] | 65 | 65 | 65 | |
| Width | [inches] | 23.5 | 23.5 | 23.5 |
| [mm] | 598 | 598 | 598 | |
| Depth | [inches] | 22.4 | 22.4 | 22.4 |
| [mm] | 570 | 570 | 570 | |
| Depth with door open | [inches] | 45.9 | 45.9 | 47.4 |
| [mm] | 1165 | 1165 | 1205 | |
| Max. toe-kick return | [inches] | 4.53 | 4.53 | 4.53 |
| [mm] | 115 | 115 | 115 | |
| Weight | [ibs] | 97 | 92.6 | 112 |
| [kg] | 44 | 42 | 51 | |
| Max. floor load | [N] | 1000 | 1000 | 1000 |
| Emission levels | ||||
| PFD 101 U | PFD 102 i | PFD 104 Vi | ||
| Sound power level | [dB(A) re 1 pW] | 48 | 48 | 45 |
| The sound pressure level in the workplace | [dB(A)] | 35.1 | 35.1 | 31.4 |
| Electrical connection the USA | ||
| PFD 101 U | ||
| Standard electrical connection | Possible voltage variant* | |
| Voltage | AC 120 V | 2N AC 120/208–240 V |
| Frequency | 60 Hz | 60 Hz |
| Fuse rating | 15 A | 2 x 30 A |
| Plug | 5–15P NEMA | 14–30P NEMA |
| Power cord length | 5.6 ft/1.7 m | 5.6 ft/1.7 m |
| Power cord cross-section | 3 x AWG14 | 4 x AWG10 |
| Heat output | 1.3 kW | 3.5–3.8 kW |
| Total rated load | 1.4 kW | 3.7–4 kW |
| * The conversion can be done by Miele Service. | ||
| PFD 102 i and PFD 104 SCVi | ||
| Variant 1 | Variant 2 | |
| Voltage | AC 120 V | 2N AC 120/208–240 V |
| Frequency | 60 Hz | 60 Hz |
| Fuse rating | 15 A | 2 x 30 A |
| Plug | 5–15P NEMA | 14–30P NEMA |
| Power cord length | 5.6 ft/1.7 m | 5.6 ft/1.7 m |
| Power cord cross-section | 3 x AWG14 | 4 x AWG10 |
| Heat output | 1.3 kW | 3.5–3.8 kW |
| Total rated load | 1.4 kW | 3.7–4 kW |
| Electrical connection Canada | ||
| PFD 101 U | ||
| Standard electrical connection | Possible voltage variant* | |
| Voltage | AC 120 V | 2N AC 120/208–240 V |
| Frequency | 60 Hz | 60 Hz |
| Fuse rating | 15 A | 2 x 30 A |
| Plug | 5–15P NEMA | 14–30P NEMA |
| Power cord length | 5.6 ft/1.7 m | 5.6 ft/1.7 m |
| Power cord cross-section | 3 x AWG14 | 4 x AWG10 |
| Heat output | 1.3 kW | 3.5–3.8 kW |
| Total rated load | 1.4 kW | 3.7–4 kW |
| * The conversion can be done by Miele Service. | ||
| PFD 102 i | ||
| Variant 1 | Variant 2 | |
| Voltage | 2N AC 120/208–240 V | AC 120 V |
| Frequency | 60 Hz | 60 Hz |
| Fuse rating | 2 x 30 A | 15 A |
| Plug | 14–30P NEMA | 5–15P NEMA |
| Power cord length | 5.6 ft/1.7 m | 5.6 ft/1.7 m |
| Power cord cross-section | 4 x AWG10 | 3 x AWG14 |
| Heat output | 3.5–3.8 kW | 1.3 kW |
| Total rated load | 3.7–4 kW | 1.4 kW |
| PFD 104 SCVi | ||
| Standard electrical connection | Possible voltage variant* | |
| Voltage | 2N AC 120/208–240 V | AC 120 V |
| Frequency | 60 Hz | 60 Hz |
| Fuse rating | 2 x 30 A | 15 A |
| Plug | 14–30P NEMA | 5–15P NEMA |
| Power cord length | 5.6 ft/1.7 m | 5.6 ft/1.7 m |
| Power cord cross-section | 4 x AWG10 | 3 x AWG14 |
| Heat output | 3.5–3.8 kW | 1.3 kW |
| Total rated load | 3.7–4 kW | 1.4 kW |
- The conversion can be done by Miele Service.
Water intake
| Max. water temperature | 140 °F | 60 °C |
| Max. water hardness | 6.5 mmol/l | |
| Max. water hardness | 37.5 gr/gal | |
| Water connection pressure | 5 – 1000 a | |
| On-site threaded connection (flat seal) | 3/4″ Hose thread | |
| Connection hose length | 4.9 ft | 1.5 m |
| Connection hose extension * | 4.9 ft | 1.5 m |
- Optional accessory
Max. water temperature: 180 °F: 82 °C
Drain hose length: 4.9 ft: 1.5 m
Max. drain hose length: 13 ft: 4 m
Max. drain height: 3.3 ft: 1 m
Max. transient flow rate: 0 l/min
Hose inner diameter: 0.87″: 22 mm
On-site hose sleeve (x length): 0.87″ x 1.18″: 22 x 30 mm
Operating conditions
| Ambient temperature | +41 – +104 °F | +5 – +40 °C | |
| Relative humidity: Up to 88 °F (31 °C), maximum | 80 % | ||
| Linear decreasing to 104 °F (40 °C) | 50 % | ||
| Max. altitude above sea level up to | 13,123 ft | 4,000 m |
Storage and transportation conditions
Ambient temperature: -4 – +140 °F: -20 – +60 °C
Relative humidity: 10–85 %
Air pressure: 500–1060 hPa
Min. site access dimensions including transport pallet
| Height | 38.2″ | 970 mm |
| Width | 26.4″ | 670 mm |
| Depth | 26.4″ | 670 mm |
