ALLEGION Schlage L0170 Door Prep Metal Flat or Beveled Escutcheon Trim Template Installation Guide
IMPORTANT! Suitable reinforcement required for metal door installation

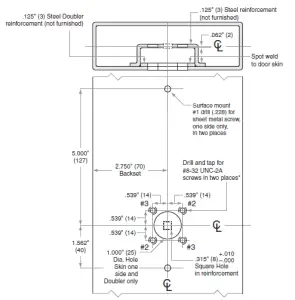

*Drill two holes at locations #2 for outside RH/RHR or
Drill two holes at locations #3 for outside LH/LHR
DRAWING IS NOT TO SCALE!
Customer service: 877-671-7011 We can help you find the correct guide for your product and application!
